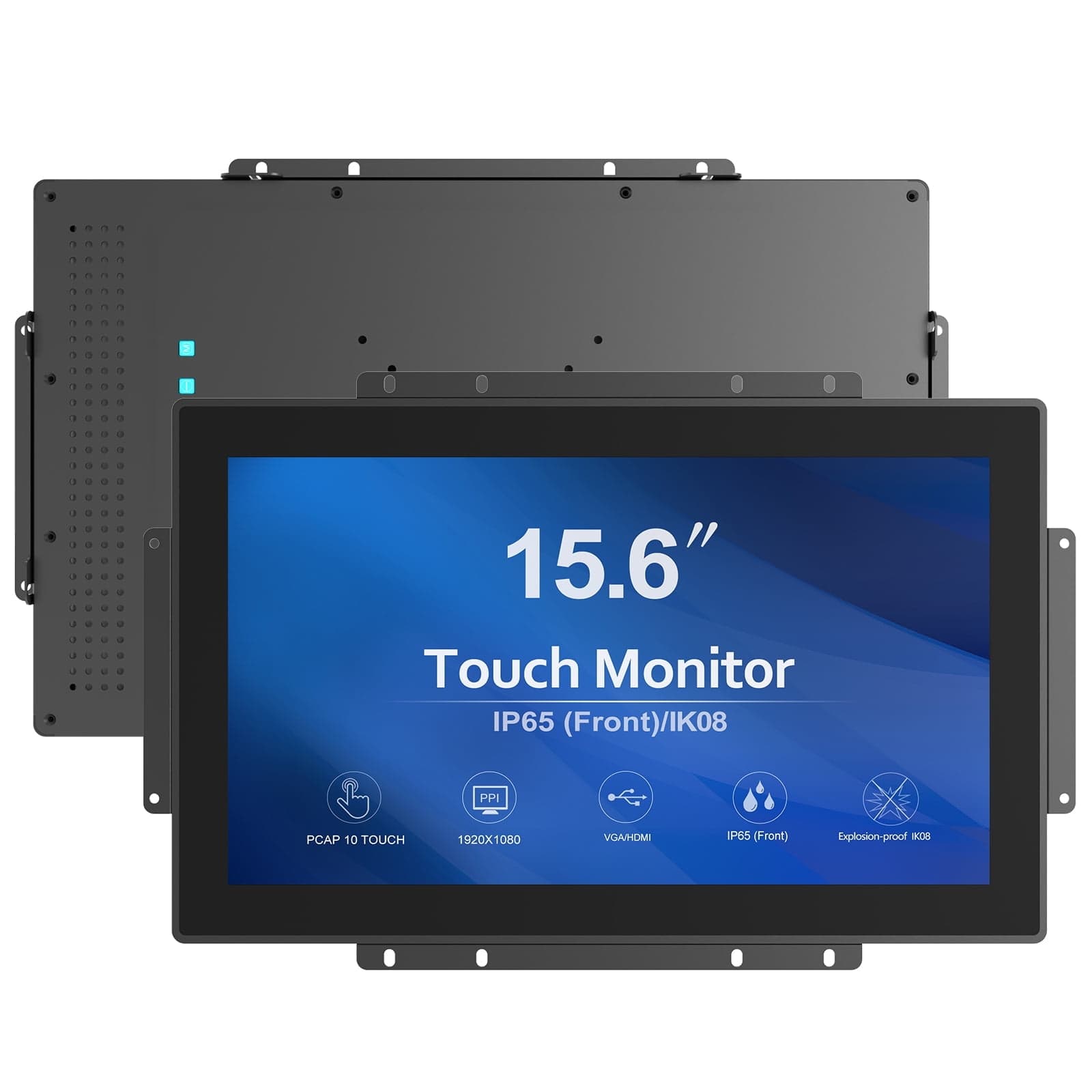

GreenTouch GT-TM156 15.6" High-Brightness Open-Frame PCAP Touch Monitor - 1920 x 1080 (16:9)

Brand: GreenTouch • Model Number: GT-TM156 • Series: 2CGL. This 15.6 Inch (1.95 x 15.67 x 9.76 inch) glossy open-frame touchscreen delivers Full HD 1920 X 1080 @ 60HZ with 16.7M display colors and a 16:9 aspect ratio. The panel offers extremely high luminance at 1000cd/m² and a contrast ratio of 1000 : 1 for strong image legibility, plus wide viewing angles L/R:85/85; U/D:85/85 (Typ.)( CR≥10).

Sweep frequency ranges are Horizontal: 31.5 - 60.2 kHz and Vertical: 56.3 - 75 Hz. Touch input is PCAP, 10 Points Touch for responsive multi-touch interaction. Power is via External DC with input voltage DC12V. Mounting supports 100mm or 75mm VESA and open bracket mounting, and the open-frame design can be installed landscape, portrait, or face-up to suit kiosks, tables, or cabinet builds.

Environmental ratings: Operation temperature -30℃~80℃, Storage temperature -30℃~ 80℃; Operating Humidity 20% to 80% RH (no condensation), Storage Humidity 10% to 90% RH. Built as a commercial-grade outdoor-capable open frame, the GreenTouch 2CGL Series monitor is suitable for reliable outdoor kiosks and sunlight-readable displays.
