Garmin GPSMAP943XSV HD3 Radar Pack with US and Canada GN+ 010-02366-53

Garmin GPSMAP® 943xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap with GMR18 HD3 Radar Dome Model: 010-02366-53 Easily integrate with more engines. Connect to compatible third-party devices with OneHelm™ digital switching. Easily build your marine system using the best of network connectivity. Compatible with premium maps and charts for the best in Garmin navigation.

See below your boat with built-in sonar capabilities. Manage your marine experience from nearly anywhere2. With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9" GPSMAP devices, this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into your Garmin marine system.

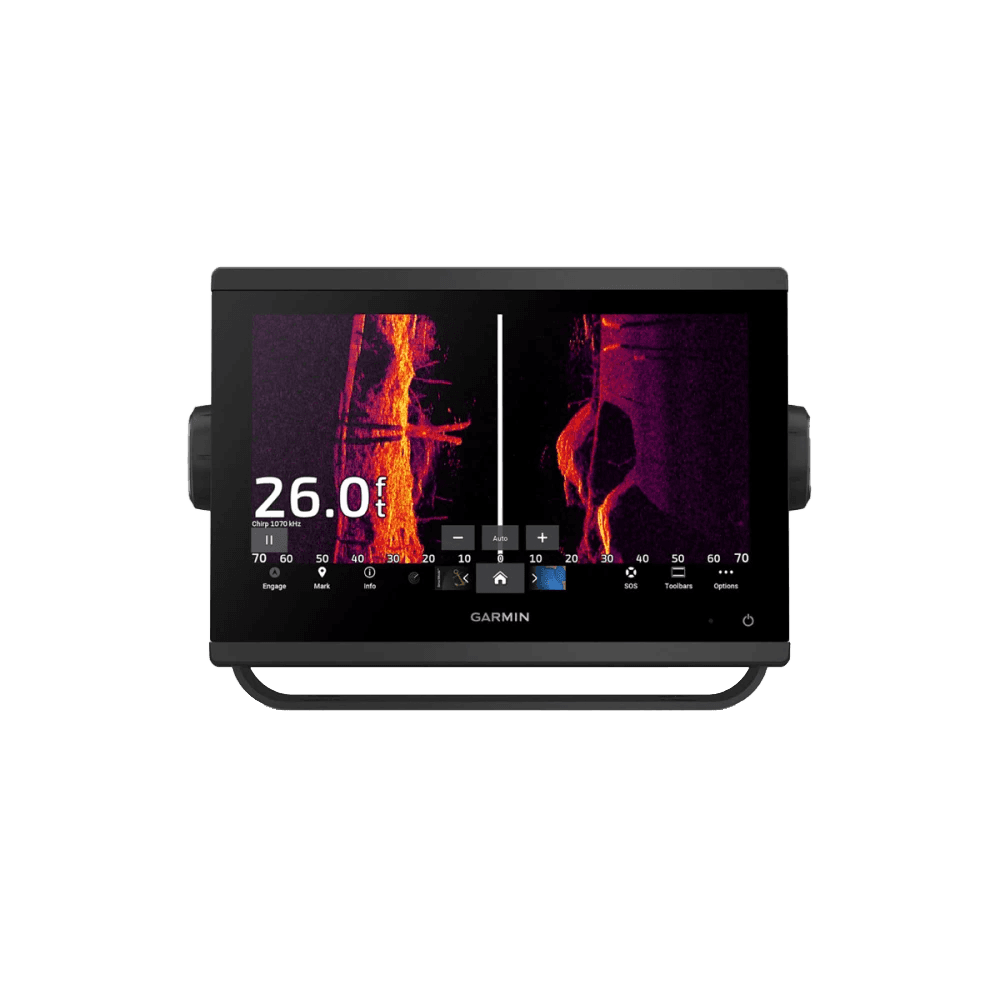

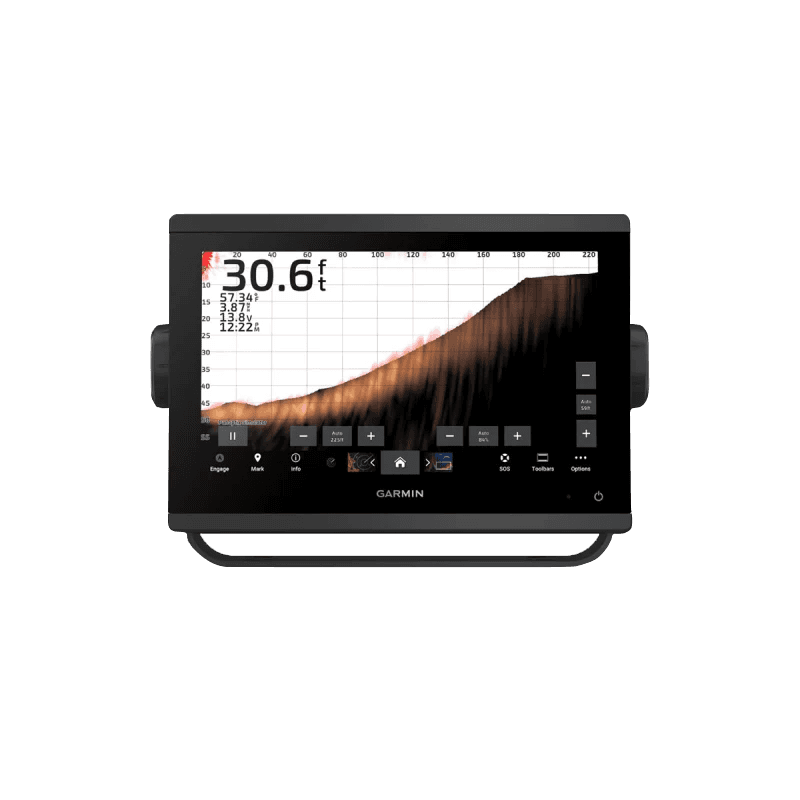

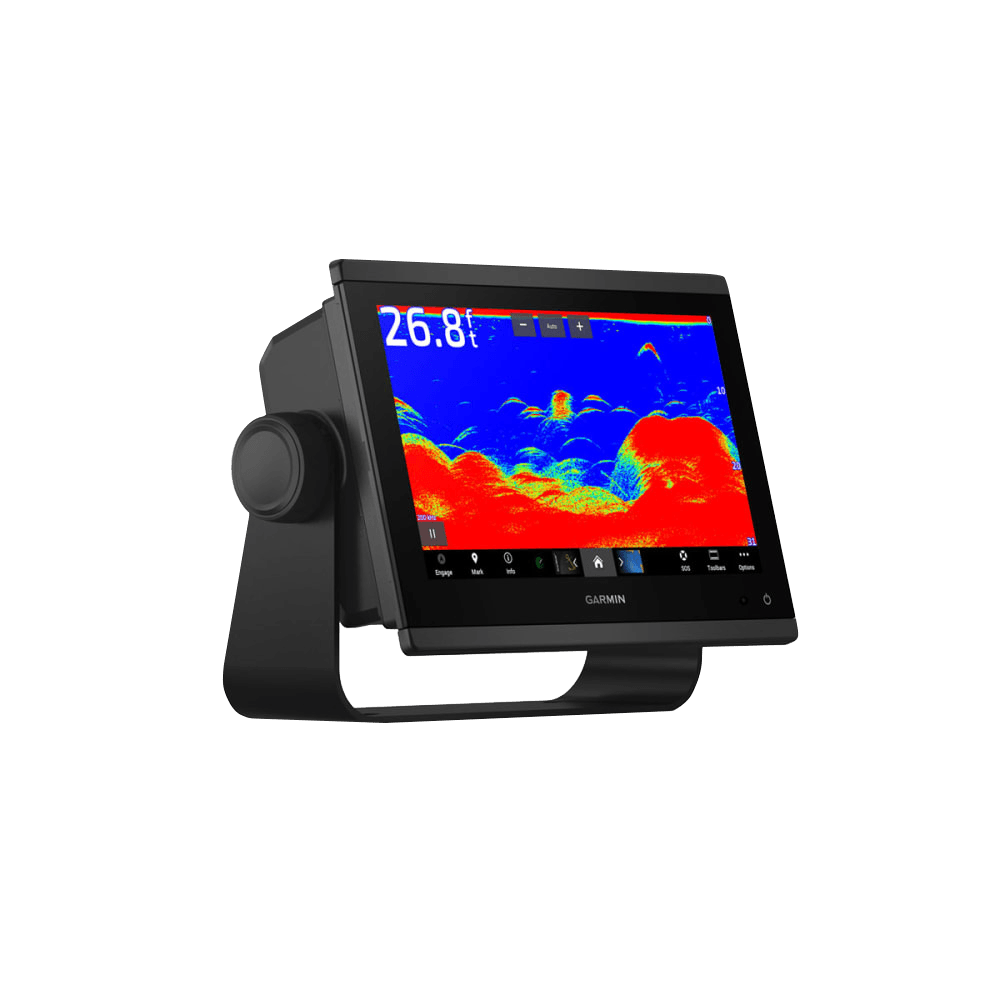

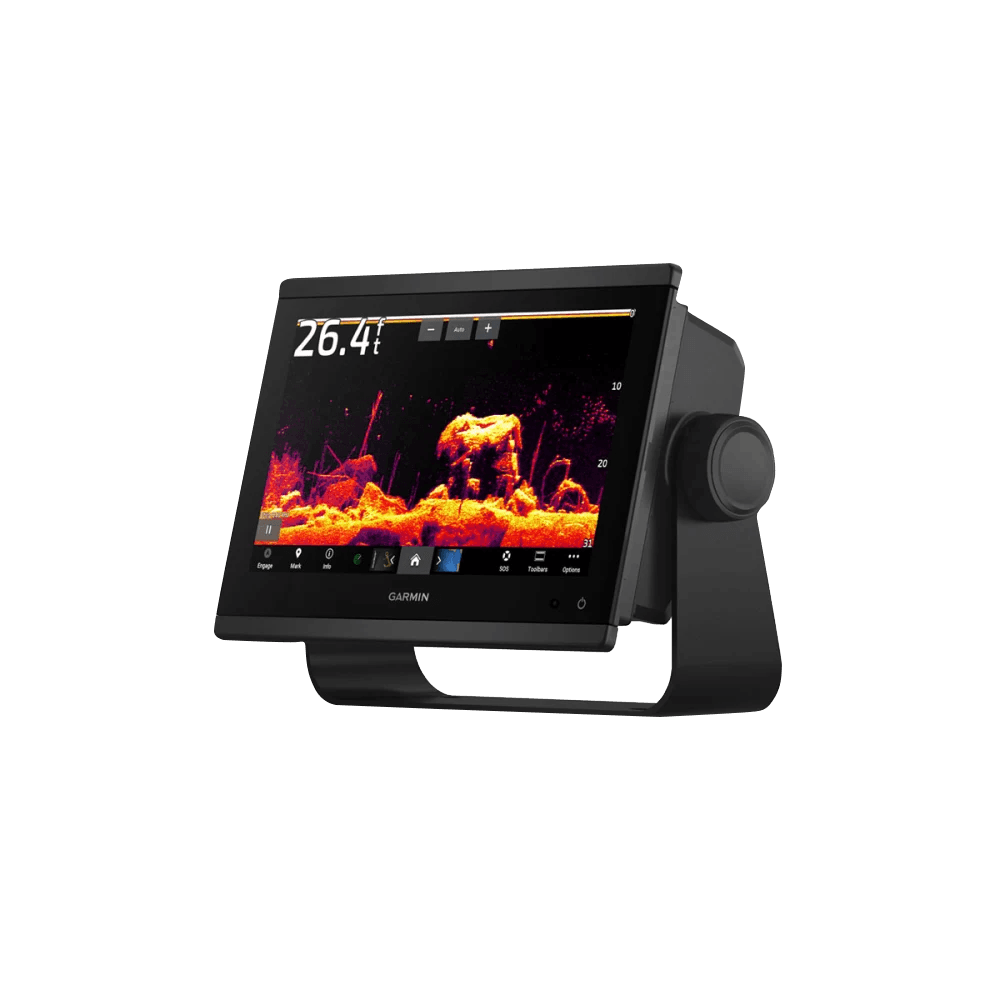

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities. Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 9" plotter in a wider range of dash configurations. New higher-resolution 9" IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices.

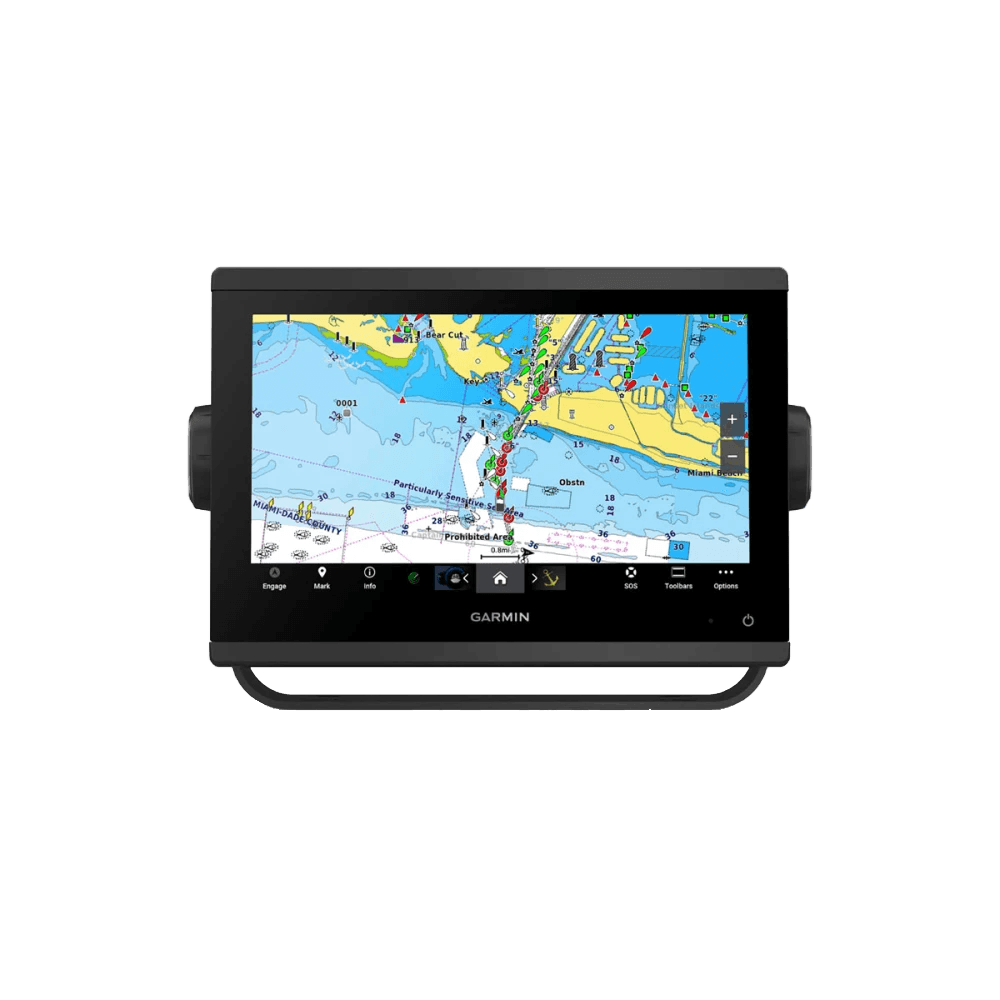

Navigate any waters with preloaded Garmin Navionics+™ charts and mapping To help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package. If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen. Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more4.

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls. Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

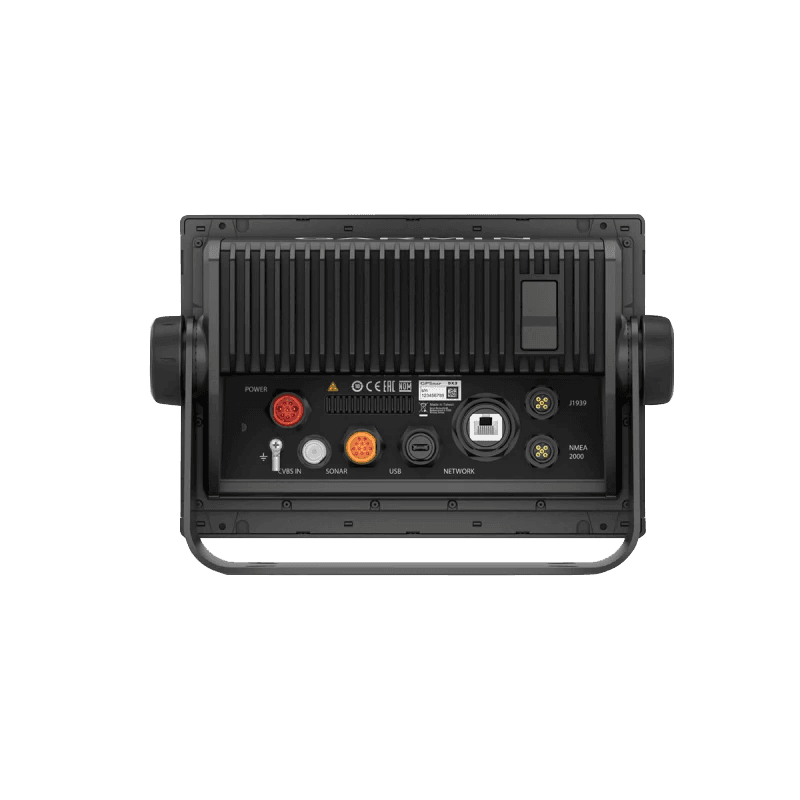

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Specifications General PHYSICAL DIMENSIONS 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) DISPLAY SIZE 7.8" x 4.4"; 9.0" diagonal DISPLAY RESOLUTION 1280 x 720 pixels DISPLAY TYPE WXGA display WEIGHT 3.6 lbs (1.6 kg) WATER RATING IPX7 POLARIZED SUPPORT Yes POWER CONSUMPTION Max power usage at 10 Vdc: 22 W Typical current draw at 12 Vdc: 1.3 A Max current draw at 12 Vdc: 1.8 A ANTENNA Internal or external over NMEA 2000 MOUNTING OPTIONS Bail, flush or flat RECEIVER 10 Hz high-sensitivity GARMIN MARINE NETWORK™ PORTS 1 TRANSMIT POWER 1 kW traditional; 1 kW CHIRP Maps & Memory PRELOADED MAPS Garmin Navionics+™ ACCEPTS DATA CARDS 2 microSD™ cards (back of unit) WAYPOINTS 5,000 TRACK LOG 50,000 points; 50 saved tracks ROUTES 100 Outdoor Recreation TIDE TABLES Yes Chartplotter Features GARMIN RADAR COMPATIBLE Yes GARMIN SONAR COMPATIBLE Yes (built-in) GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) Yes SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) Yes SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) Yes SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS Yes GSD™ BLACK BOX SONAR SUPPORT Yes GCV™ BLACK BOX SONAR SUPPORT Yes ACTIVECAPTAIN COMPATIBLE Yes GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE Yes WIRELESS REMOTE COMPATIBLE Yes SAILING FEATURES Yes Sonar Features & Specifications DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE Yes DUAL-BEAM (77/200 KHZ) SONAR CAPABLE Yes FREQUENCIES SUPPORTED Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) CHIRP SONAR TECHNOLOGY Yes (Built-in) CLEARVü Yes with CHIRP (built-in) SIDEVü Yes with CHIRP (built-in) MAXIMUM DEPTH 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) Yes WATER TEMPERATURE LOG AND GRAPH Yes SONAR RECORDING Yes SONAR HISTORY REWIND Yes Connections NMEA 2000® COMPATIBLE Yes TRANSDUCER PIN NUMBERS 12-pin (orange) NMEA 0183 INPUT PORTS 1 (Differential) NMEA 0183 OUTPUT PORTS 1 (Differential) VIDEO INPUT PORTS 1 BNC WIRELESS CONNECTIVITY Yes J1939 COMPATIBLE Yes What's in the Box: GPSMAP 943xsv chartplotter microSD™ card preinstalled Power cable NMEA 2000® T-connector NMEA 2000 drop cable (2 meters) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation 8-pin transducer to 12-pin sounder adapter cable GMR 18 HD3 radome Mounting hardware kit Power cable (15 m) Network cable (15 m) Installation instructions Garmin GPSMAP943XSV HD3 Radar Pack with US and Canada GN+ 010-02366-53 Garmin
