GARMIN GAR0100236752 Radar Pack Boating sku-5399221539

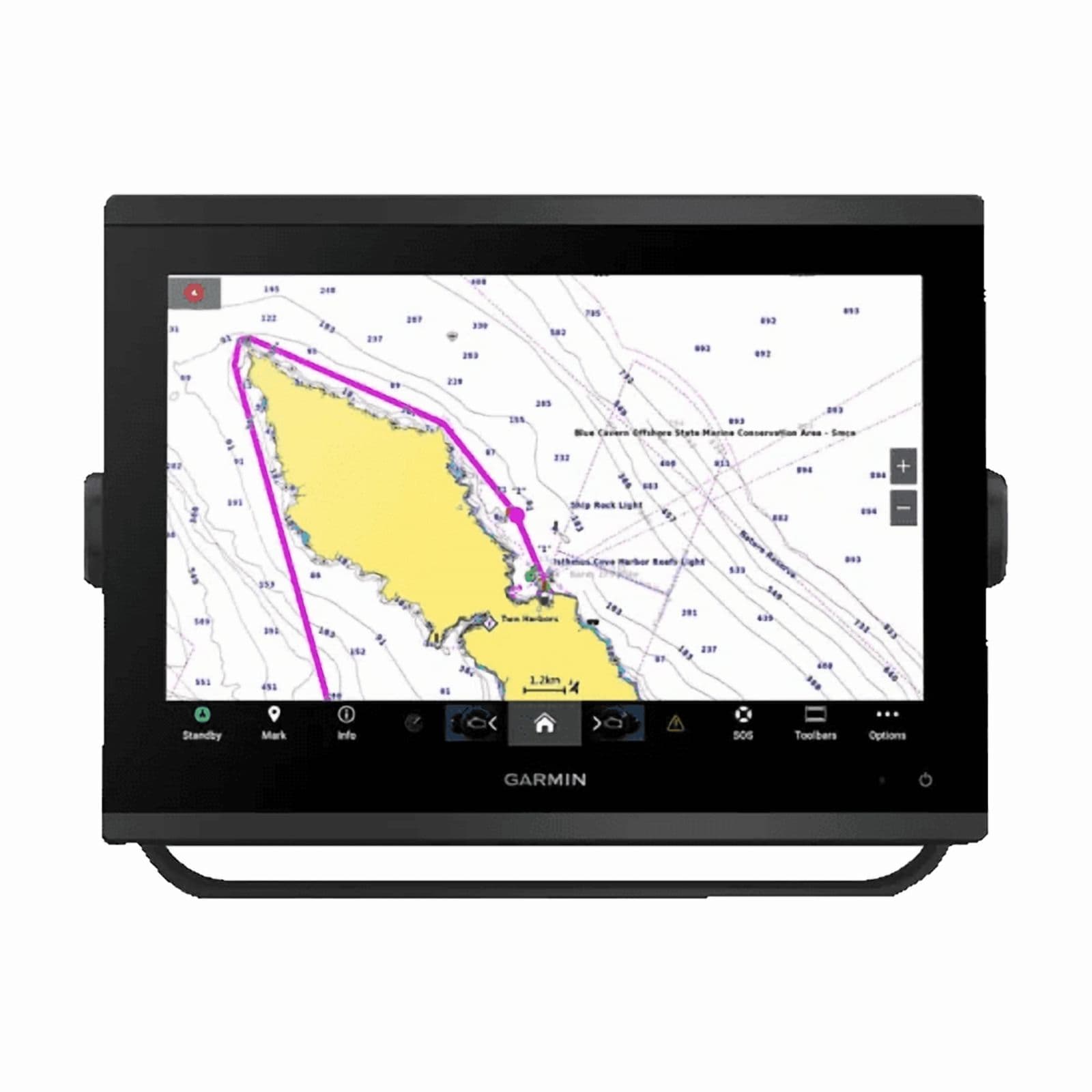

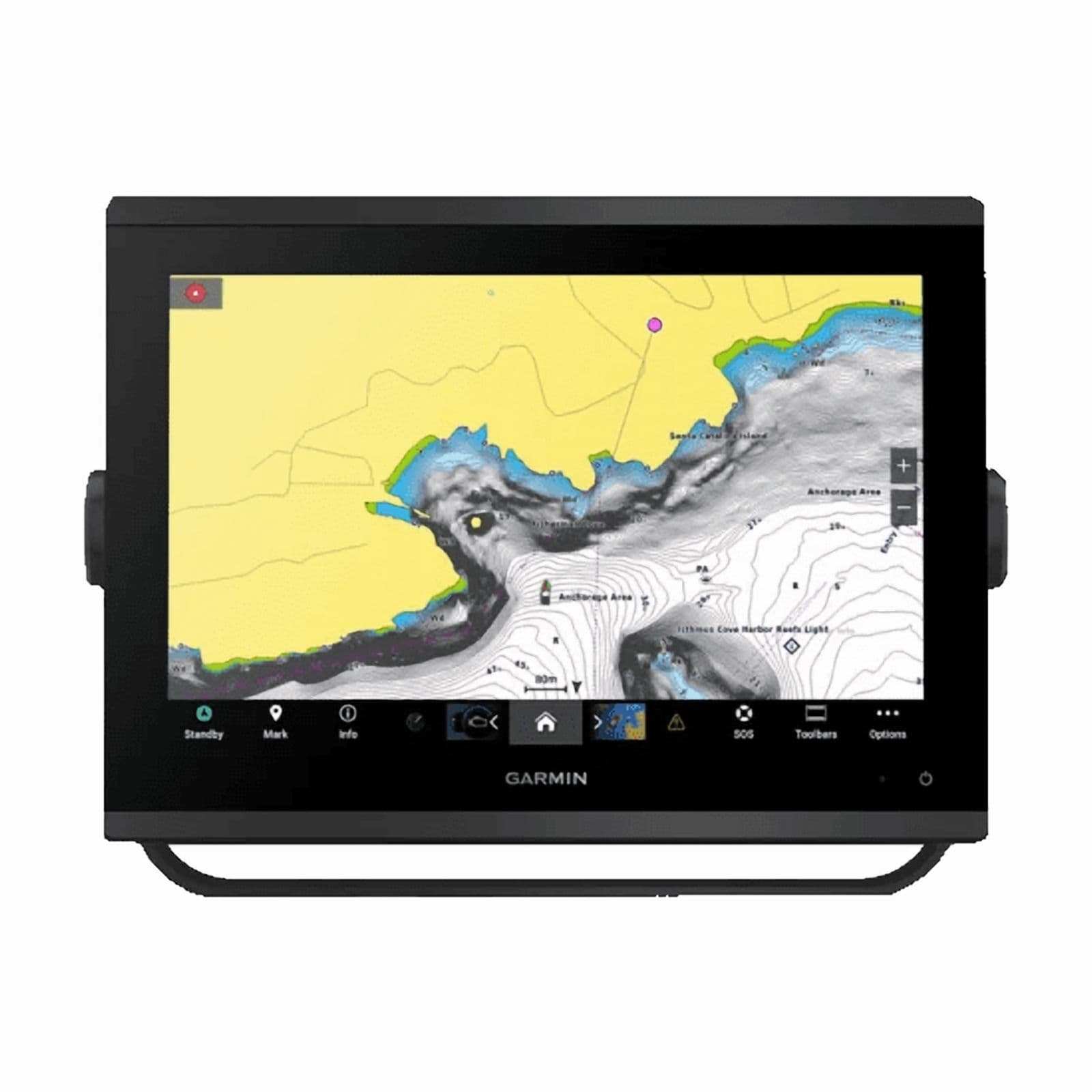

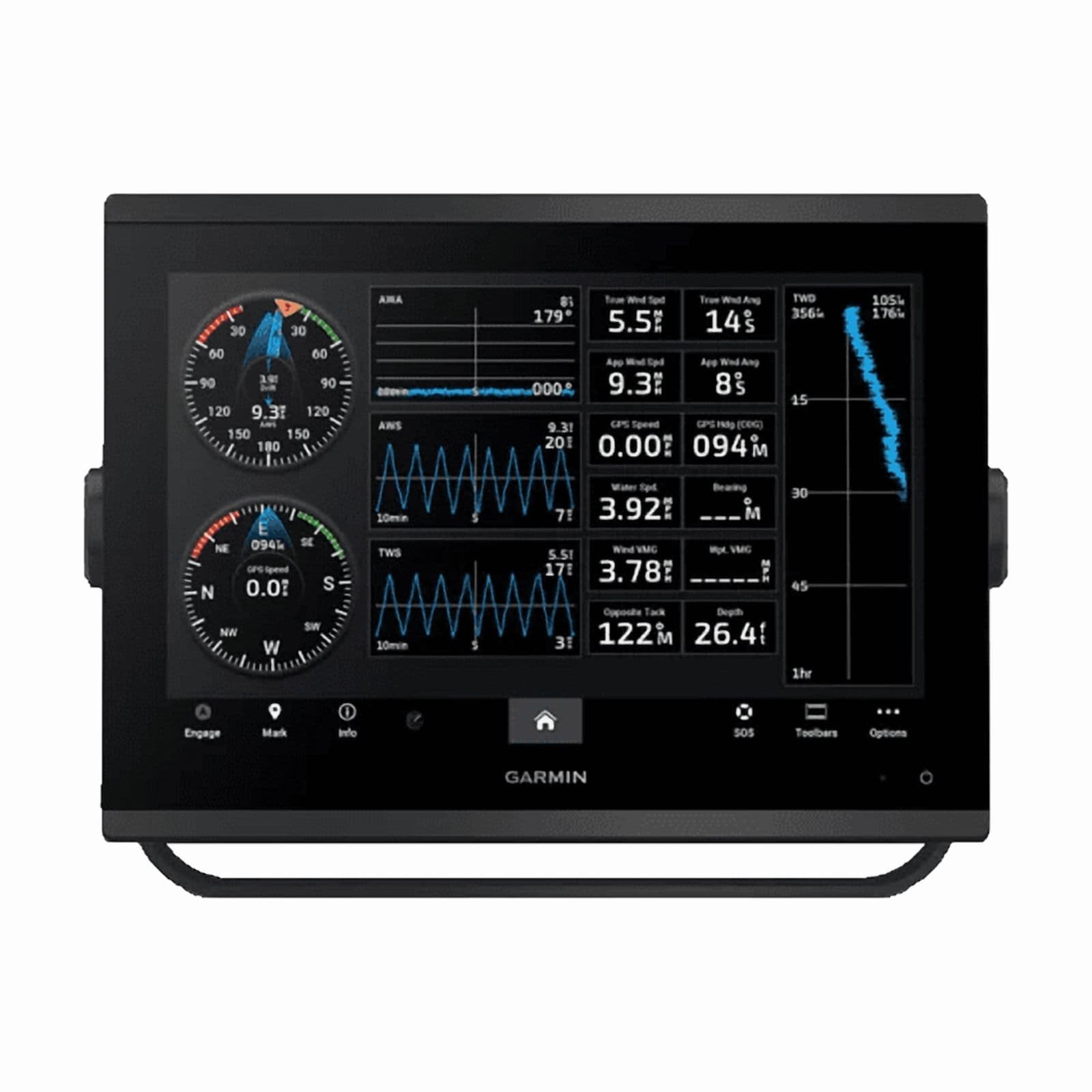

GARMIN Boating radar pack GAR0100236752, sku-5399221539, UPC 753759326029, pairs a GPSMAP 1223xsv chartplotter and sonar unit with a GMR 18 HD3 radar dome. The listed model is 010-02367-52. It has a worldwide basemap, built-in traditional CHIRP, SideVü and ClearVü sonar, and a 12" IPS display with color palettes intended to help distinguish fish from structure. The source also says GPSMAP 923xsv supports 1 kW traditional CHIRP sonar. Panoptix and Panoptix LiveScope live sonar are supported with a separately sold transducer. Compatible Garmin devices can share maps, user data, radar and IP camera video. Connections support compatible engines, including select Yamaha engines, plus autopilots, digital switching, weather, Fusion-Link audio, media, VHF, AIS, OneHelm and select third-party EmpirBus devices. Built-in Wi-Fi pairs with the mobile app for OneChart, notifications, updates, Garmin Helm and Quickdraw Community data. Compatible wireless devices include quatix watches, gWind Wireless 2 transducers, GNX Wind instruments and remote controls. Dimensions are 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm). The display measures 10.3" x 6.4" with a 12.1" diagonal, 1280 x 800 resolution and WXGA type. Weight is 6.6 lbs (3.0 kg); water rating is IPX7, and polarized support is listed. Maximum power use at 10 Vdc is 26.5 W; at 12 Vdc, typical draw is 1.7 A and maximum draw is 2.2 A. The antenna is internal or external over NMEA 2000, mounting can be bail, flush or flat, the receiver is 10 Hz, and there are 2 marine network ports. Transmit power is 1 kW for traditional and CHIRP sonar. The unit accepts 2 microSD cards and stores 5,000 waypoints, a 50,000-point track log, 50 saved tracks and 100 routes. It supports tide tables, radar, built-in sonar, customizable SmartMode presets, AIS, DSC position data, Fusion-Link radios, GSD and GCV black-box sonar, ActiveCaptain, GRID, wireless remotes and sailing features. Sonar supports dual-frequency 50/200 kHz and dual-beam 77/200 kHz; listed traditional frequencies are 50/77/83/200 kHz, with low, medium and high CHIRP and transducer-dependent ClearVü frequencies of 260/455/800 kHz. Built-in CHIRP ClearVü and SideVü, bottom lock, water-temperature logging, sonar recording and history rewind are listed. Maximum depth is 5,000 ft at 1kW, depending on bottom type and water conditions. Connections include a 12-pin orange transducer port, NMEA 0183 input and output ports, a BNC video input, HDMI video output, wireless connectivity and J1939 compatibility. The box contains the GPSMAP chartplotter with a preinstalled microSD card, power cable, NMEA 2000 T-connector and 2-meter drop cable, bail and flush mount kits, protective cover, trim covers, documentation, an 8-pin to 12-pin transducer adapter, the GMR 18 HD3 radome, mounting hardware, a power cable (15 m), a network cable (15 m) and installation instructions.
