GARMIN 010-02093-02 Black Boating GPSMAP sku-761418565

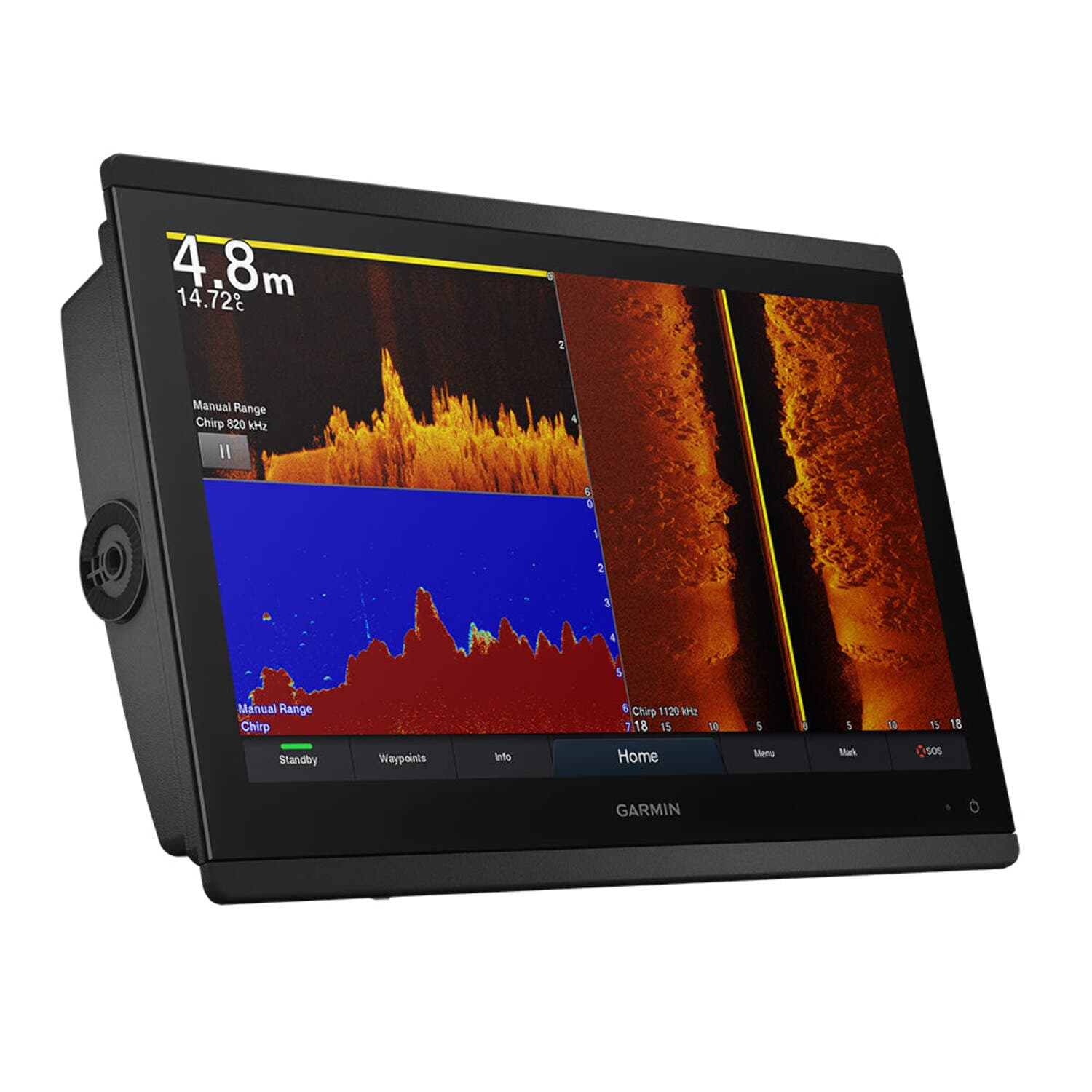

The Black GARMIN GPSMAP 8416xsv, model 010-02093-02, is a Boating chartplotter and sounder with a worldwide basemap. SKU: sku-761418565; UPC: 753759213541. Its listed size is 15.16" x 10.35" x 2.99". It has a 16" Full HD IPS touchscreen with an anti-glare finish and 1920 x 1200 pixel resolution. It supports WiFi, CHIRP sonar, ClearV? and SideV?

scanning sonar, AIS, DSC and the FUSION-Link™ entertainment system. Supported traditional sonar frequencies are 50/200, 77/200 and 83/200; single- and dual-channel CHIRP ranges are 40-250. SideV? /ClearV? CHIRP frequencies are 260/455/800. Ultra High-Definition ClearV? uses 0.8 MHz (800 kHz) with a 760-880 kHz CHIRP range; Ultra High-Definition SideV?

uses 1.2 MHz (1,200 kHz) with a 1,060-1,170 kHz CHIRP range, depending on the transducer. Traditional and CHIRP transmit power are each 1 kW, and the listed maximum depth is 5,000 ft at 1kW. Connections include HDMI, BNC, an NMEA 0183 1 input / 1 output port, NMEA 2000 and 2 Garmin Marine Network™ ports. The antenna can be internal or external over NMEA 2000.

Dual-frequency (50/200 kHz) and dual-beam (77/200 kHz) sonar require an external black box. The unit is compatible with Mac and Windows, has 2 microSD slots and a 10Hz internal GPS receiver, and stores 50000 track-log points, 50 saved tracks, 5000 waypoints and 100 routes. It supports flat or flush mounting, has IPX6 and IPX7 water-resistance ratings, and supports polarized viewing.

It is compatible with J1939, Garmin radar, BlueChart®, Garmin Helm and GRID™; wireless connectivity and tide tables are also listed.
