Garmin GPS 24xd GPS Antenna with Heading Sensor - NMEA 2000 [010-02316-10]

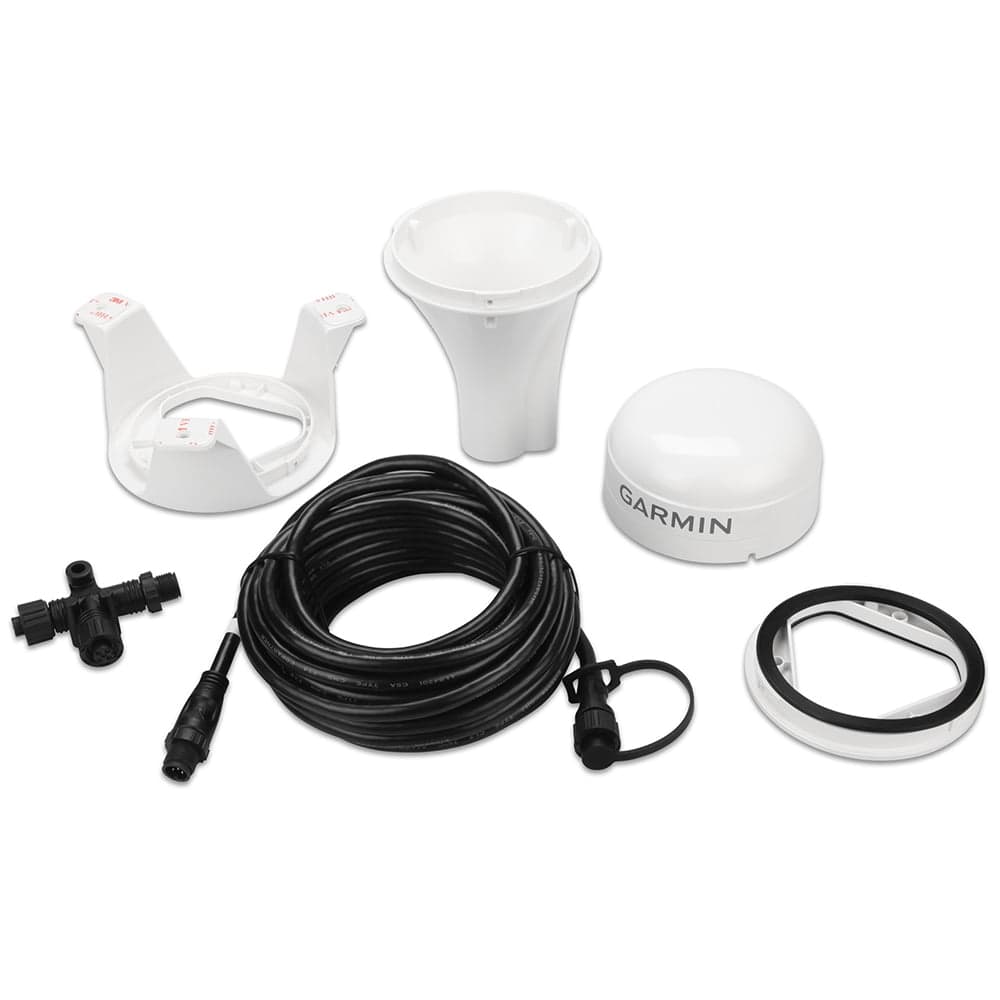

Explore coastal waters with reliable position and heading information using the Garmin GPS 24xd. This multi-band GNSS receiver and antenna delivers precise location and magnetic heading even at slow speeds, and is built for marine integration with NMEA 2000® compatibility. It’s water-resistant to IPX7 and offers flexible mounting choices for straightforward installation. Key performance: multi-band GNSS yields location accuracy to within 1 meter to compatible marine multifunction displays, instrument displays and autopilots; the magnetic heading sensor provides orientation accuracy within 3 degrees to stabilize charts, radar overlay and MARPA at low speed; and high-sensitivity GPS with a fast 10 Hz update rate supplies continuous position, velocity and time data. Expanded GNSS support includes access to GPS, Galileo1, GLONASS and BeiDou1 for better tracking in difficult conditions than GPS alone. Multi-SBAS compatibility corrects signal measurement errors and supplies information on signal accuracy, integrity, continuity and availability. Installation options include under-deck, pole and surface mounts to suit different vessels. In the box: GPS 24xd NMEA 2000® Pole mount Surface mount Under deck mount NMEA 2000 backbone/drop cable (6 meters) NMEA 2000 T-connector Documentation
