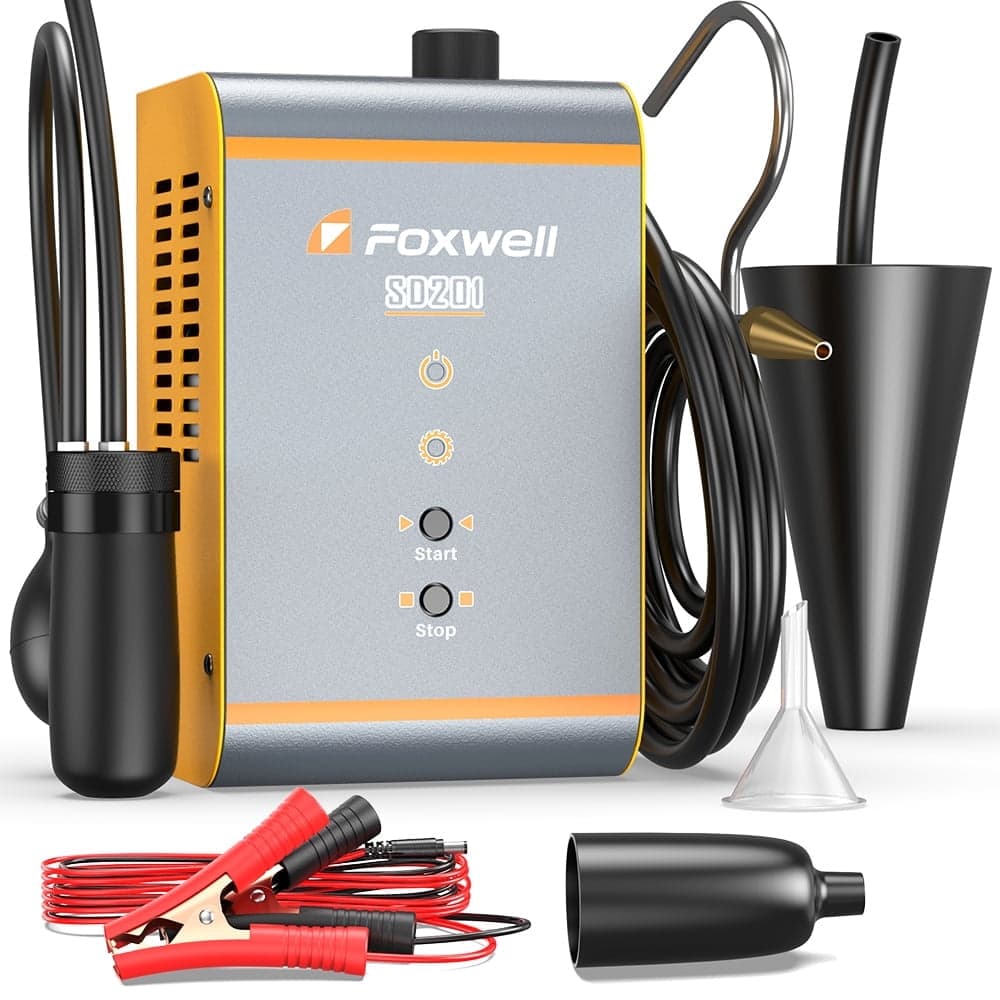

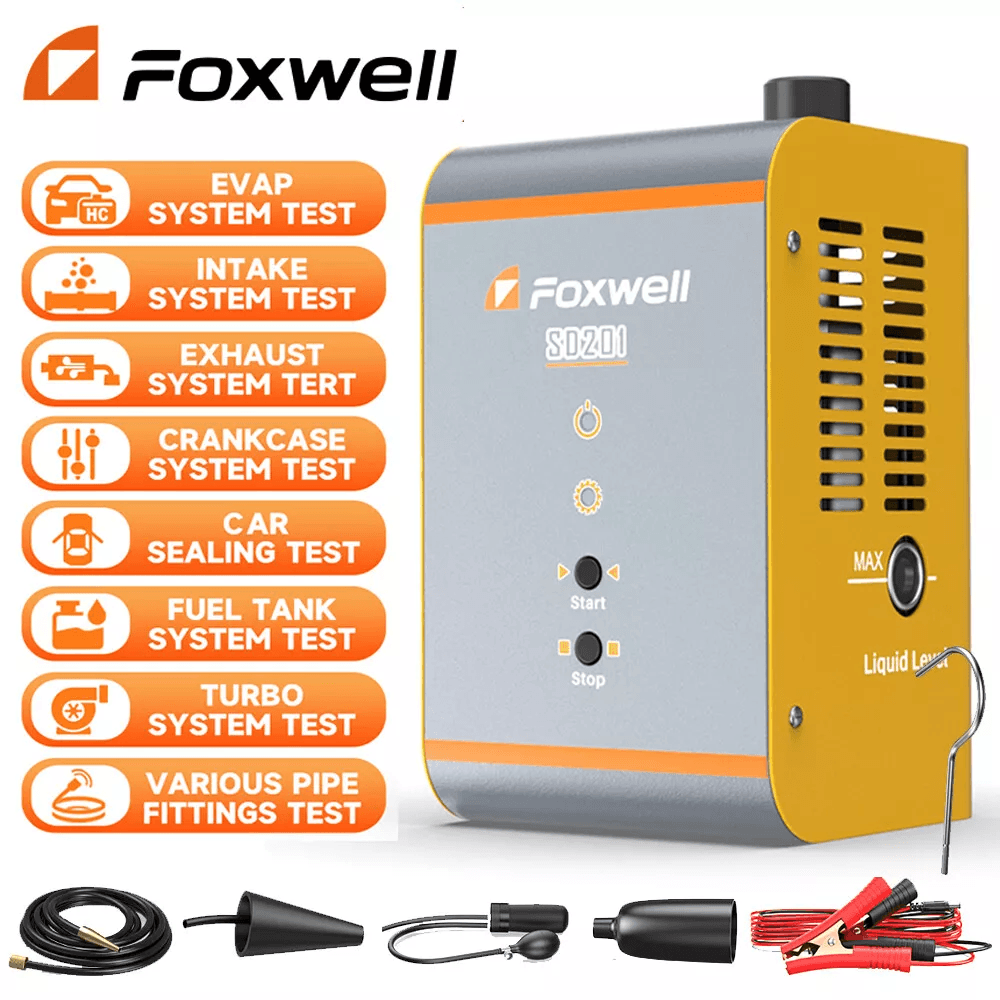

Foxwell SD201 Car Smoke Leak Detector for All Systems Automotive Smoke Machine EVAP Vacuum Leakage Locator Diagnostic Tool

Why You Need a Smoke Leak Detector? Your diagnostic tool partner The use of smoke leak detector, you can quickly and accurately determine whether the fault is caused by pipeline leakage, but also quickly find the leak point. Engine fault code, 60% related to pipeline, it will help you avoid problem If the relevant value detected by the sensor on the car exceeds the standard range, the ECU will store the corresponding fault code and automatically trigger the engine fault light. Maintenance personnel need to check for various pressure problems. Most pressure problems are caused by a leak somewhere. Using the smoke detector, it is easier to quickly find the problem and clear the fault code. Convenience for Using Smoke leak detector, because of the characteristics of smoke, can carry out leak detection on the whole set of pipelines, visual operation, omni-directional, no dead angle, and no leakage point. Operation safety The smoke leak detector does not need to ignite the engine when it is used, but finds the leak point by simulating the real-time working condition of the engine when the engine is static. It is very safe for people or cars, effectively avoiding production accidents. Improve productivity Smoke leak detector can effectively improve the speed of vehicle maintenance, thereby improving the utilization rate of the station, as well as personnel efficiency, improve productivity. General Operating Guide: 1. Turn OFF the ignition of the vehicle. LEAK TEST OF VEHICLE SYSTEMS KEE? THE ENGINE OFF. 2. Disassemble the Air Filter. Disassemble the Throttle valve in some type of car. 3. Put the Intake Adaptor Cone (or the Universal Intake Adaptor) into the test vent. 4. Connect Power Cords to 12V vehicle battery then the red indicator lamp on the equipment operate and the air pump start working. 5. Turn the switch on the equ ipment operate board the green indicator lamp will be on, then the equipment will make produce smoke 6. Put the smoke nozzle into the Intake Adaptor to lead the smoke into the system while the smoke is thick 7. Few seconds later until the system full of smoke then locate the leakage with the flashlight. 8. After leak test, collect the Power Cords and Smoke Tube, clean the Intake Adap tor Cone (or the Universal Intake Adaptor) before storage. 🎁Package List: SD201 Smoke Machine Hook Power Cords Smoke Tube Funnel Inflatable Adaptor Air drum rubber Intake Adaptor Core User Manual
