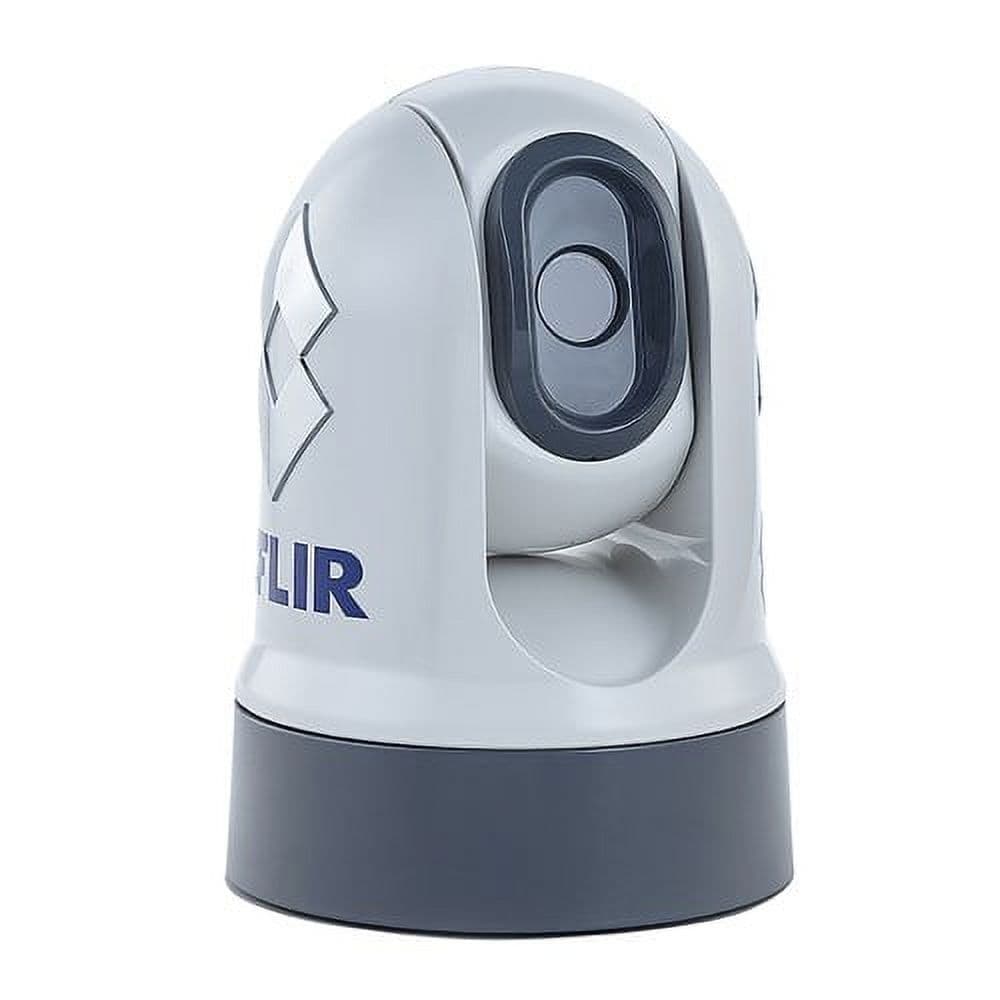

FLIR M232 Pan/Tilt 9Hz Marine Thermal Camera E70354

FLIR M232 Thermal IP Camera (320 x 240, 9Hz) with pan, tilt and electronic zoom — Model: E70354 Overview: The FLIR M232 is a compact, cost-effective pan/tilt marine thermal night-vision camera that delivers 320 x 240 thermal imaging at a 9 Hz refresh rate. Built around FLIR’s Boson™ thermal core, the unit offers 2x electronic zoom and Ethernet/IP video connectivity to simplify installation and integration with multifunction displays (MFDs). When paired with a Raymarine Axiom MFD, the M232 supports FLIR’s ClearCruise™ intelligent thermal analytics for audible and visual alerts when non-water objects such as vessels, obstacles, or markers are detected. Key Features: - Thermal resolution: 320 x 240 for horizon-to-horizon monitoring - Video refresh rate: 9 Hz - Field of view: 24° x 18° - Electronic zoom: 2x e-zoom for extended-range viewing - Pan/Tilt: Pan 360° (continuous); Tilt +110° / -90° - Networked video: H.264 IP video stream (Ethernet-enabled) - Image processing: FLIR Proprietary Digital Detail Enhancement Power and Video: - Video output: H264 IP video stream - Power: 12 or 24 VDC - Power consumption: 15 W (typical), 18 W (max) Environmental and Compliance: - Operating temperature: -13°F to +131°F (-25°C to +55°C) - Storage temperature: -30°F to +158°F (-30°C to +70°C) - Relative humidity: 93% max - Vibration: IEC 60945; MIL-STD-810E - Salt mist: ASTM B117 - Wind: 100 mph (161 kph) - EMI: IEC 60945 - Ingress protection: IP67 - Drop test: 1 m drop (in packaging) Physical Specifications: - Weight: 6.0 lb (2.7 kg) without top-down riser; 6.6 lb (3.0 kg) with top-down riser - Size: 6.34" (diameter at base) x 9.03" (height) — 161.1 mm (dia.) x 229.3 mm (ht.) Range Performance: - Person in the water: ~1,500 ft (457 m) - Small vessel: ~0.67 nm (1.3 km) In the Box: - Thermal camera - Thermal camera base-seal - Fasteners x 3 - 2 x Self-adhesive decals (for ball-down mounting only) - RayNet-to-RJ45 adapter cable (100 mm)* - Right-angled RayNet-to-RayNet cable (10 m)* - Right-angled 3-pin power cable (10 m) - Top-down riser kit (includes riser, riser base seal, and riser mounting template) - Documentation pack Mounting note: *The supplied right-angled RayNet and power cables are suitable for mounting on surfaces up to 25.4 mm (1.0 inch) thick. For installations on thicker surfaces, straightconnector RayNet and power cables are available separately.
