Kicker Restored Automotive Car Amp Kit | sku-132414563

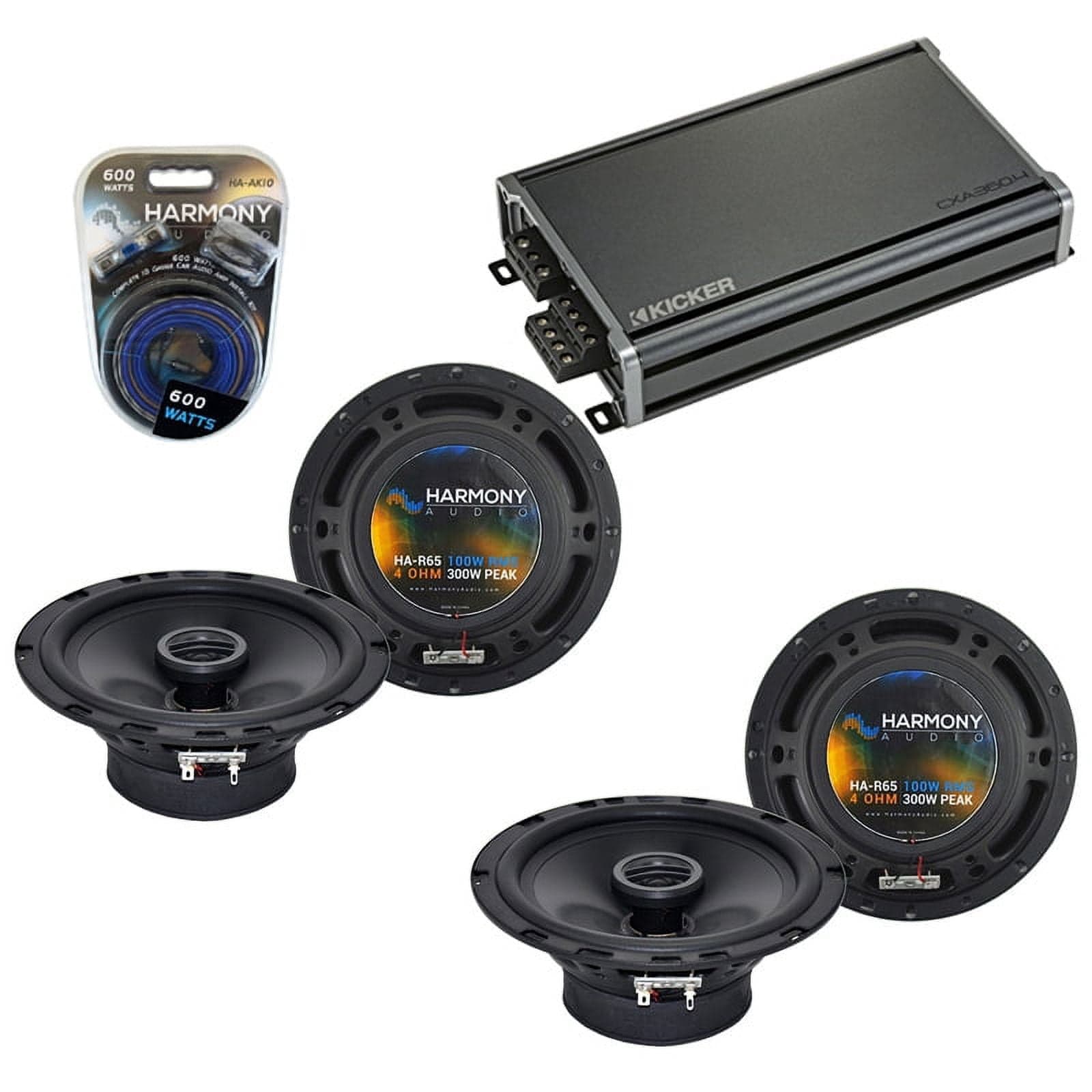

4.7(9 ratings)Kicker Restored Automotive package sku-132414563, UPC 600717586288, fits the Chrysler Pacifica 2004-2017 and is factory-certified refurbished. It includes 1 Kicker CX300.4 CX Series 4-channel, 600-watt full-range speaker/subwoofer amplifier, 1 Harmony Audio HA-AK10 nickel-finish 10-gauge 600-watt amp kit, and 2 Harmony Stereo HA-R65 Rhythm Series 300-watt 6 1/2-inch speakers. The amplifier delivers 40 watts x 4 channels at 4 ohms, 75 watts x 4 channels at 2 ohms, or 150 watts x 2 channels bridged at 4 ohms. It has a pulse-width-modulated MOSFET power supply, green power and red protect LEDs, adjustable bass boost from 0 to +12 dB at 40 Hz, and 4/3/2-channel operation. Its 3-way protection covers heat, overload, and speaker shorts. Other features include an aluminum-alloy heat sink, nickel-plated RCA inputs and screw terminals, low-level input sensitivity of 125mV-5V, high-level sensitivity of 250mV-10V, a selectable high/low/off crossover of 50-200 Hz at 12 dB/octave, and a subsonic filter of 24 dB at 25 Hz. The CEA-2006-compliant amplifier has a 10-20000 Hz frequency response and requires 8-gauge power and ground wiring. It measures 7-3/16 inches wide by 12-7/16 inches deep by 2-3/8 inches high. The 1-year manufacturer's warranty is handled through HiFiSoundConnection at 1-877-275-4434. The amp kit includes a 17FT flexible matte-blue 10GA power cable, a 3FT flexible matte-black 10GA power cable, a 20FT flexible matte-blue 16GA speaker wire, a 17FT flexible matte gray-and-black RCA cable, a 17FT flexible matte-blue remote wire, a 6FT split loom, a Mini ANL fuse holder, and a 60-amp Mini ANL fuse. It also includes (2) blue-and-black 10GA 5/16-inch ring terminals, (2) blue-and-black 10GA spade terminals, (5) blue-and-black 16GA spade terminals, (4) pan-head screws, and (10) wire ties. The Harmony HA-R65 pair consists of 6-1/2-inch 2-way speakers rated at 300 watts peak and 100 watts RMS. They have 90dB sensitivity, a 40Hz-20kHz frequency response, a 2 3/8-inch mounting depth, a 5 11/16-inch mounting cutout diameter, a 1/2-inch tweeter, and single 4-ohm impedance. Features include direct-fit OEM replacement sizing, polypropylene injection-molded cones, butyl-rubber surrounds, PEI neodymium-magnet dome tweeters, passive tweeter crossovers, steel baskets, ferrite magnets, and Kapton former material.
