Unbranded Magnetic Laser Bracket Hand Tools sku-18394250902

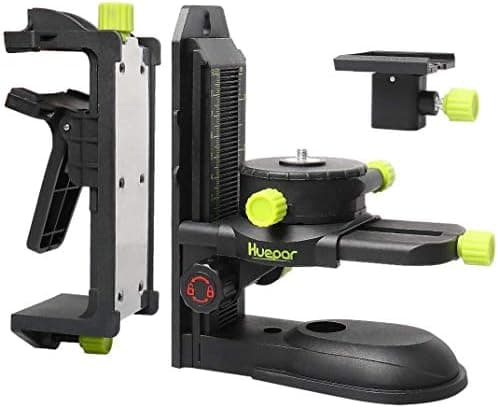

This Unbranded Hand Tools positioning bracket for line lasers has a 1/4"-20 male thread and fits most cross-line laser levels with a 1/4" female thread. The maximum distance from the thread to the back of the bracket is 8.5cm. An AD5/8 adapter fits laser levels with a 5/8" female thread.

The separate back clip works with most magnetic bases and grips objects up to 5cm thick; its opening and vertical angle can be adjusted, and it has a nail hole for wall mounting. Four fine-adjustment knobs provide 3cm of left-to-right travel, 5.5cm of front-to-back travel, 9 cm of height adjustment and 360° rotation. A locking knob holds the height, and the scales show inches and centimeters.

The bracket also has 1/4"-20 and 5/8"-11 female threads for a tripod or laser pole, magnets for attachment to the clip or metal surfaces, and slots for screws, nails, raceways or optional straps. The included laser-window adapter brings the laser closer to the wall, allows the bracket to be inverted or turned sideways, and has a pitch-adjustment knob.

Its groove fits only these Huepar models: B03CG, 901CG/R, 902CG/R, 903CG/R, GF360CG/R, AK360G/R, B02CG/R, B21CG/R, LS04CG, LS03CG and LS03DG. SKU sku-18394250902; UPC 741050970799.
