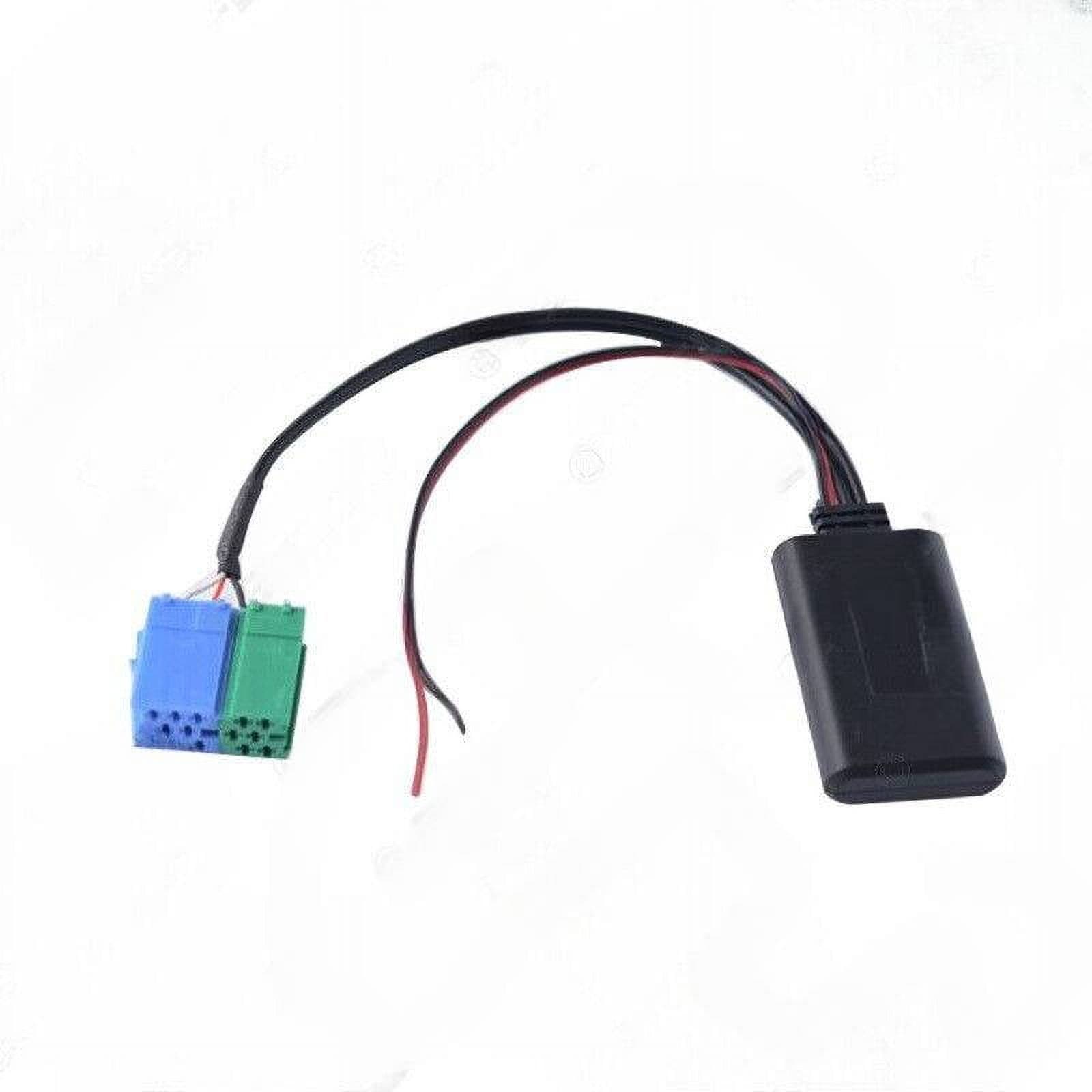

Fiat Bravo 2007 AUX Bluetooth Wireless Receiver Cable — 6+8 Pin AUX Audio Adapter

Fitment: Designed for Fiat Bravo 2007. Overview: 6+8Pin connector cable with an integrated Bluetooth module to add wireless audio to compatible car radios/stereos. If the car radio offers a single AUX-compatible socket, this cable can be plugged into the radio’s rear connector and wired to the vehicle power to enable Bluetooth audio streaming. Installation: Insert the 6+8 pin plug into the back of the radio, connect the red wire to 12V + and the black wire to 12V -. Switch the radio to Auxiliary input, then pair your Bluetooth-enabled phone or MP3 player to stream audio. Compatibility and audio: Bluetooth version 5.0 (backward compatible with 2.0, 3.0, 4.0 and 5.0). Supports common MP3 playback and higher-quality decoding including WMA, WAV and FLAC, and also supports DSD large-capacity transmission. Audio from apps such as QQ Music, Kugou, movie playback and navigation will be sent to the car (sound only, no video). Technical specifications: Plug Type: (6 + 8) Pin. Material: Plastic + Copper. Color: Black. Total length: 27cm. Voltage input: 5V-12V DC. Working current: 600mA. Standby current: 20mA. DAC resolution: 20bit. Total Harmonic Distortion: 0.05%. Signal to noise ratio: 90dB. Frequency response: 20Hz-20KHz. Operating temperature: -35 ° C to + 75 ° C. Notes: Requires a radio with AUX capability to function. Devices must have Bluetooth to connect. This adapter only transmits audio to the car stereo.
