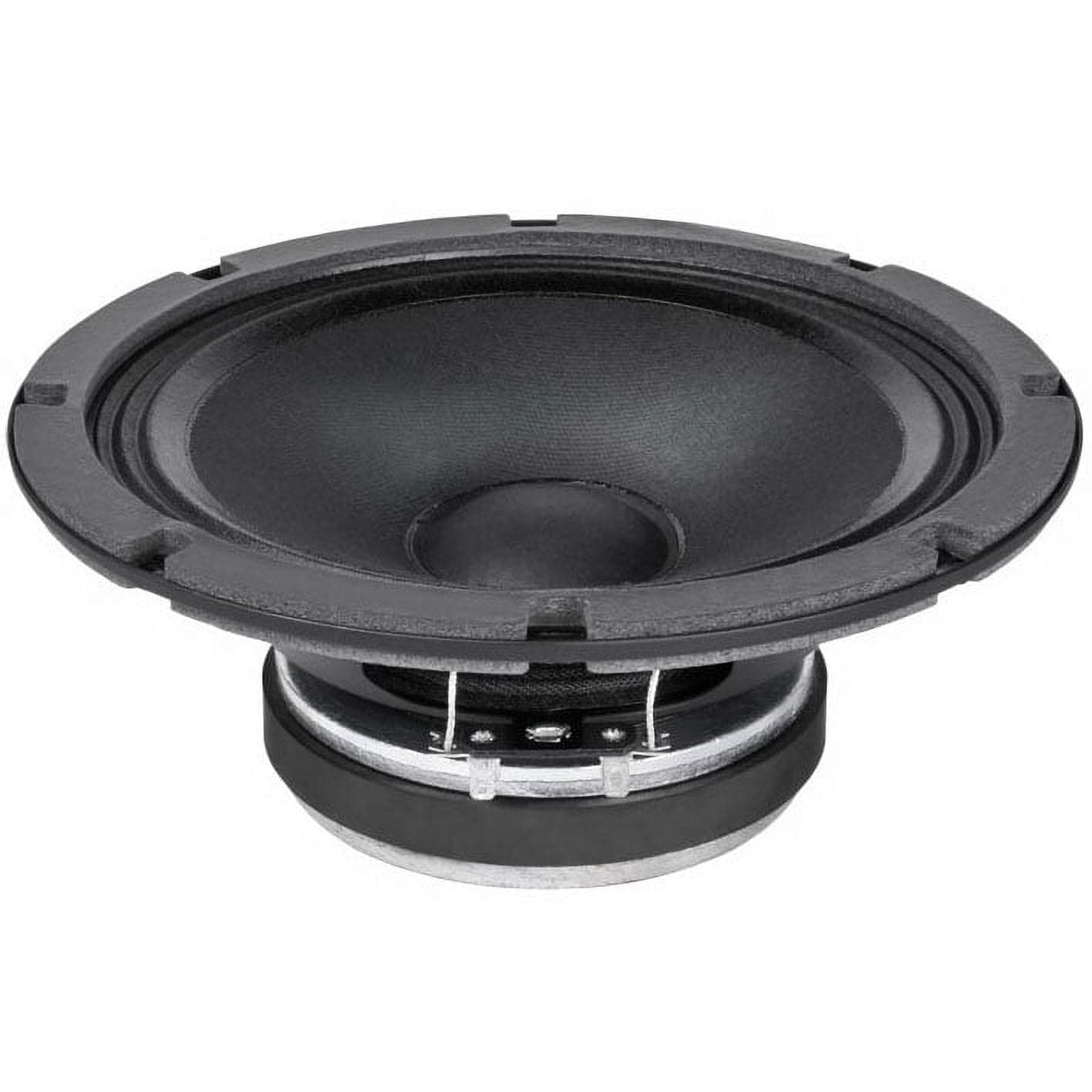

FaitalPRO 8FE200 8" Midbass Driver - 4Ω, 130W RMS, 95 dB

Overview: The FaitalPRO 8FE200 is an 8" professional midbass driver made in Italy, engineered for accurate reproduction from 60 Hz up to 5,000 Hz. Its high-power ferrite ring motor, treated paper cone and stamped steel frame deliver reliable performance for three-way systems and car audio door applications. The motor design helps maintain a low Qts (0.44) while providing a sensitivity of 95 dB (1W/1m).Key Features: - 130 watt RMS, 260 watt program power handling - 4 ohm impedance - 95 dB sensitivity (1W/1m) - High-power ferrite ring motor for improved Qts and sensitivity - Cloth triple-roll surround for durability - Treated paper cone with stamped steel basket - Made in ItalyElectrical & Acoustic Specs: - Nominal Diameter: 8" - Power Handling (RMS): 130 Watts - Power Handling (max): 260 Watts - Impedance: 4 ohms - Frequency Response: 60 to 5,000 Hz - Sensitivity: 95 dB (1W/1m) - Voice Coil Diameter: 1.46"Thiele-Small Parameters: - Resonant Frequency (Fs): 80 Hz - DC Resistance (Re): 3 ohms - Voice Coil Inductance (Le): 0.25 mH - Mechanical Q (Qms): 8.7 - Electromagnetic Q (Qes): 0.47 - Total Q (Qts): 0.44 - Compliance Equivalent Volume (Vas): 0.47 ft.³ - Mechanical Compliance of Suspension (Cms): 0.26 mm/N - BL Product (BL): 7 Tm - Diaphragm Mass Inc. Airload (Mms): 15.3g - Moving Mass Of Diaphragm (Mmd): 13.8 - Maximum Linear Excursion (Xmax): 4.62 mm - Surface Area of Cone (Sd): 191 cm²Materials & Construction: - Cone Material: Treated Paper - Surround Material: Cloth (triple roll) - Voice Coil Wire Material: Aluminum - Voice Coil Former: Kapton / Polyimide - Basket / Frame Material: Steel - Magnet Material: FerriteMechanical / Mounting: - Overall Outside Diameter: 8.24" - Baffle Cutout Diameter: 6.93" - Depth: 3.5" - Bolt Circle Diameter: 7.75" - # Mounting Holes: 8Recommended Enclosure (BassBox 6 Pro High Fidelity suggestion): - Sealed Volume: 0.2 ft.³ — Sealed F3: 145 Hz - Vented Volume: 0.51 ft.³ — Vented F3: 74 HzProduct Details: - Brand: FaitalPRO - Model: 8FE200 - Part Number: 294-1170 - UPC: 848864010915 - Product Category: Pro Woofers, Subwoofers & Midrange Speakers - Unit of Measure: EA - Weight: 5.1500 lbs.Note: International/PO BOX deliveries are not available. The item can't be shipped to AF, AA, AC, AE, AM, AP, HI, AK, PR in the United States.
