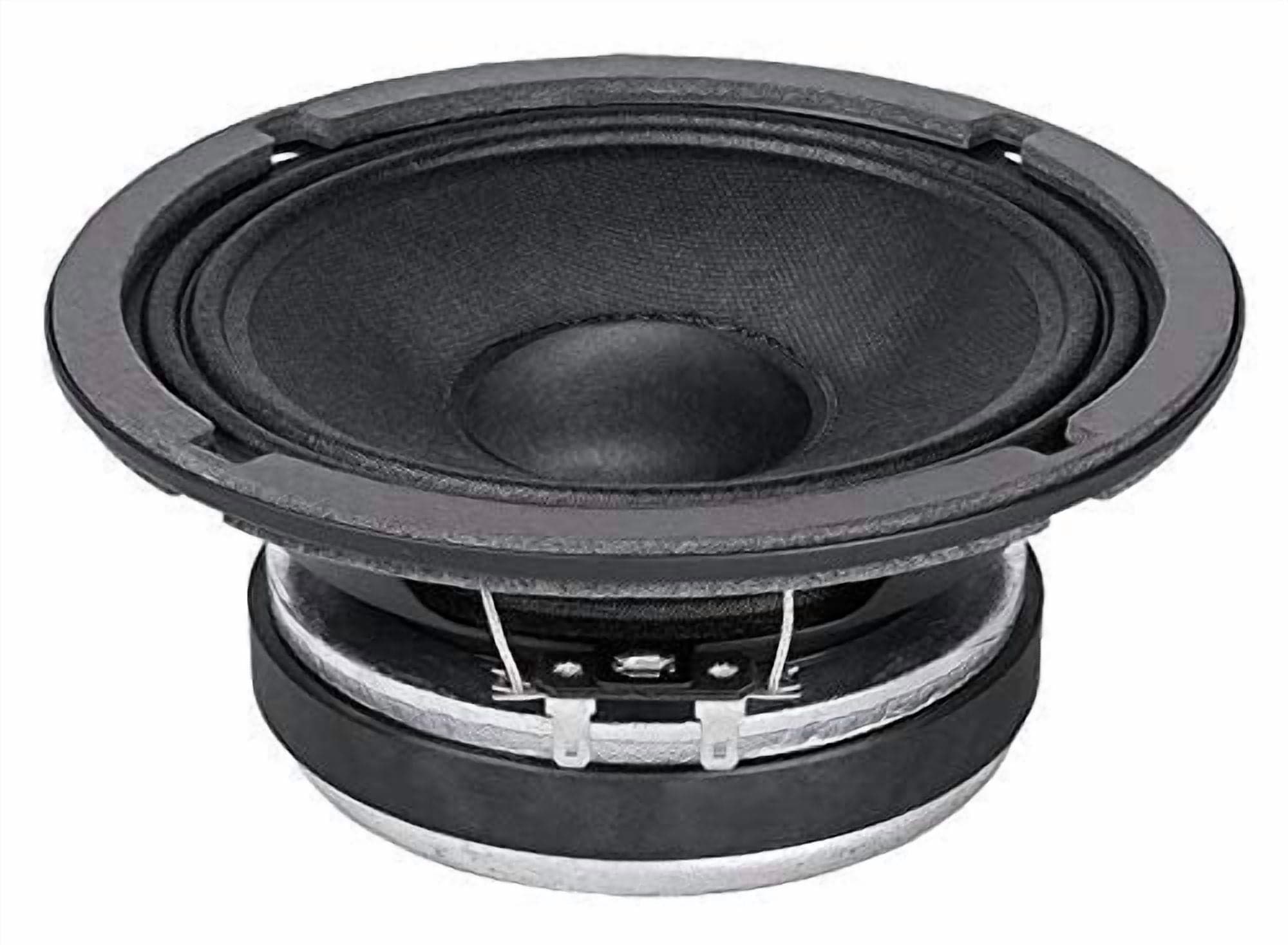

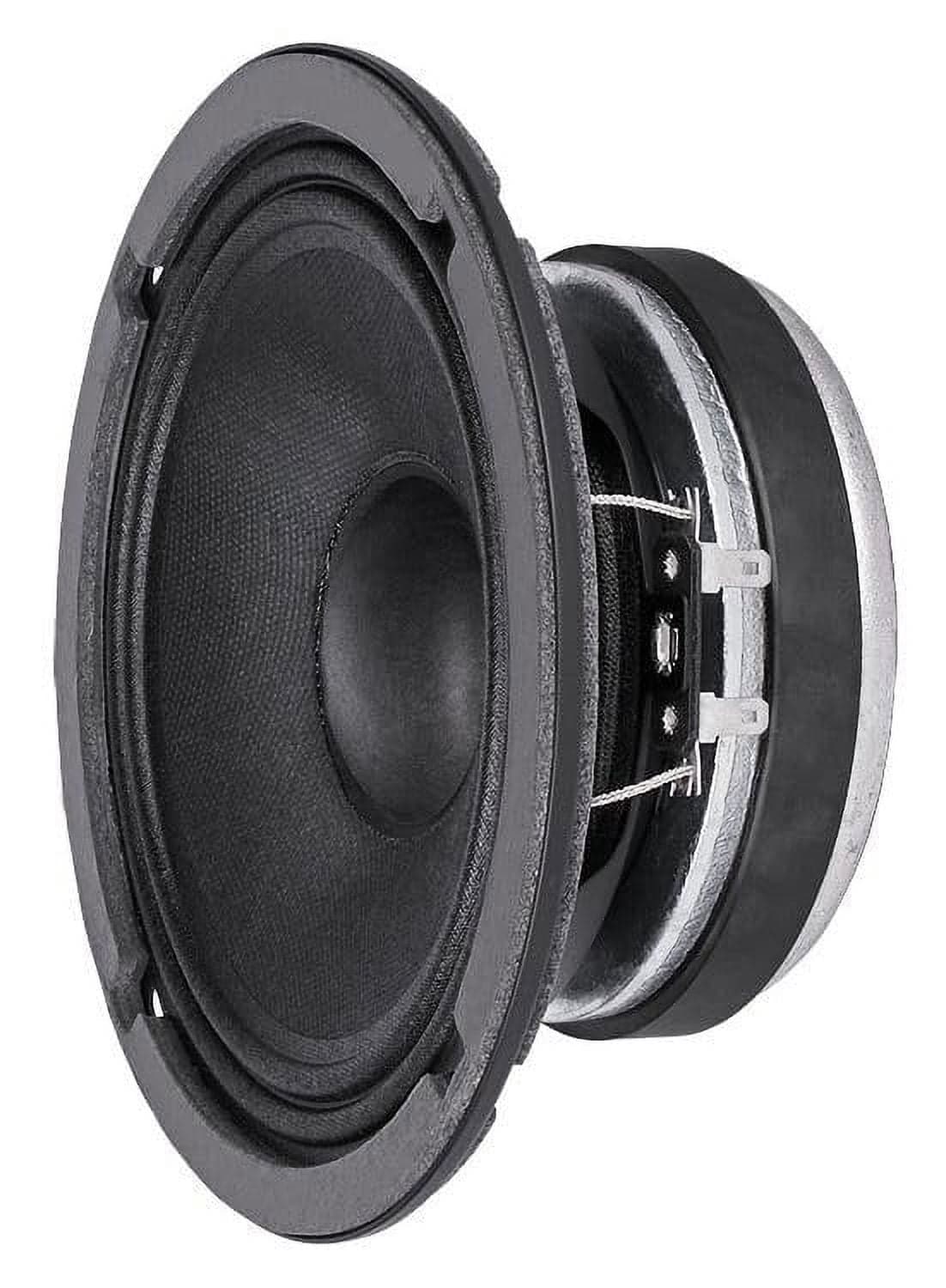

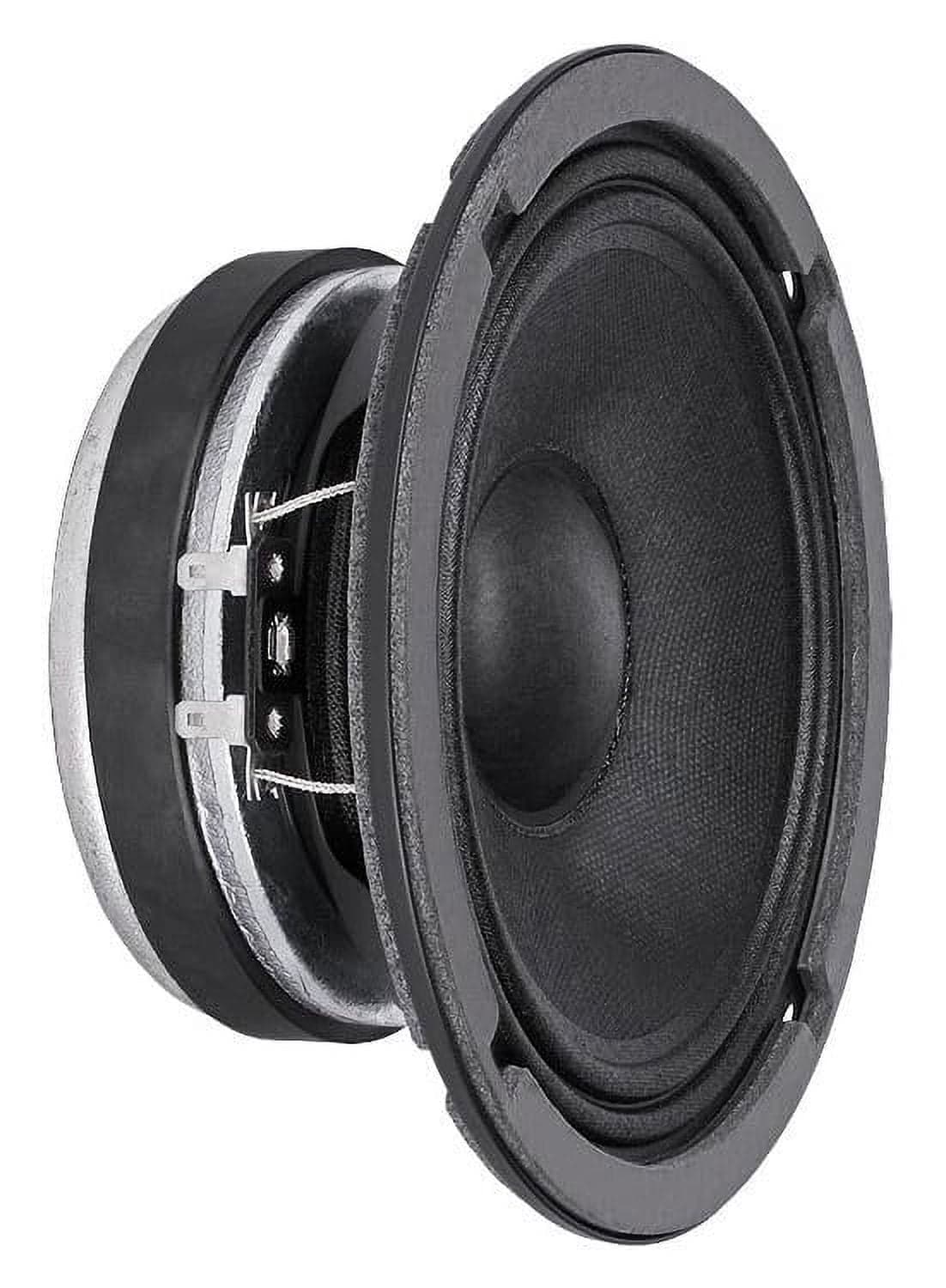

Faital Pro 6FE200-8 6-inch Midrange Loudspeaker — 8 OHM, 130W RMS / 260W Max, 95 dB (Waterproof Cone)

Overview: The FAITAL PRO 6FE200-8 is a 6-inch professional midrange / mid-bass driver designed for home and car audio use. It delivers 130 W AES power handling (260 W max) with a high sensitivity of 95 dB (1W/1m) and an 8 Ohm nominal impedance. The cone assembly uses treated materials and an M-Roll surround for reliable performance. Mechanical / Mounting Dimensions: Nominal Diameter : 160 mm 6 in Overall Diameter : 167.4 mm 6.59 in Bolt Circle Diameter : 154 mm 6.06 in Baffle Cutout Diameter : 144 mm 5.67 in Depth : 77 mm 3.03 in Flange and Gasket Thickness : 8 mm 0.31 in Net Weight : 2 kg 4.4 lb Shipping Box (single carton) : 190 x 185 x 103 mm 7.5 x 7.3 x 4.1 in Shipping Weight : 2.2 kg 4.9 lb Electrical / Voice Coil / Acoustic: Nominal Impedance : 8 Ohm Minimum Impedance : 6.8 Ohm AES Power Handling 1 : 130 W Maximum Power Handling 2 : 260 W Sensitivity 1W/1m : 95 dB Frequency Range : 856000 Hz Voice Coil Diameter : 37 mm 1.46 in Winding Material : Al Former Material : Kapton Winding Depth : 12 mm 0.47 in Magnetic Gap Depth : 8 mm 0.31 in Flux Density : 1 T Magnet : Ferrite Ring Basket Material : Steel Demodulation : No Cone Surround 3 : M-Roll NET Air Volume filled by Loudspeaker : 0.45 dm3 0.016 ft3 Spider Profile : 1x constant height waves Thiele & Small Parameters: Fs : 120 Hz Re : 5.9 Ohm Qes : 0.75 Qms : 6.2 Qts : 0.67 Vas : 3.6 dm3 0.13 ft3 Sd : 131 cm2 20.23 in2 Xmax 4 : 4.67 mm Xdamage 5 : 10.4 mm Mms : 11.5 g Bl : 8.2 N/A Le : 0.4 mH Mmd : 9.8 g Cms : 0.15 mm/N Rms : 1.4 kg/s Eta Zero : 0.80 % EBP : 160 Hz Identification: Brand : FAITAL PRO Model Number : 6FE200-8 6FE200 PART NUMBER P/N Faston Terminals - 8 Ohm Version : 01604017 UPC : 810130951345 Notes: 1 2 Hours Test According to AES 2-1984 Rev. 2003 2 Maximum power is defined as 3dB greater than nominal power 3 Treated Polycotton 4 Xmax= [winding depth - magnetic gap depth/2] + magnetic gap depth/3 5 Maximum excursion before permanent damage
