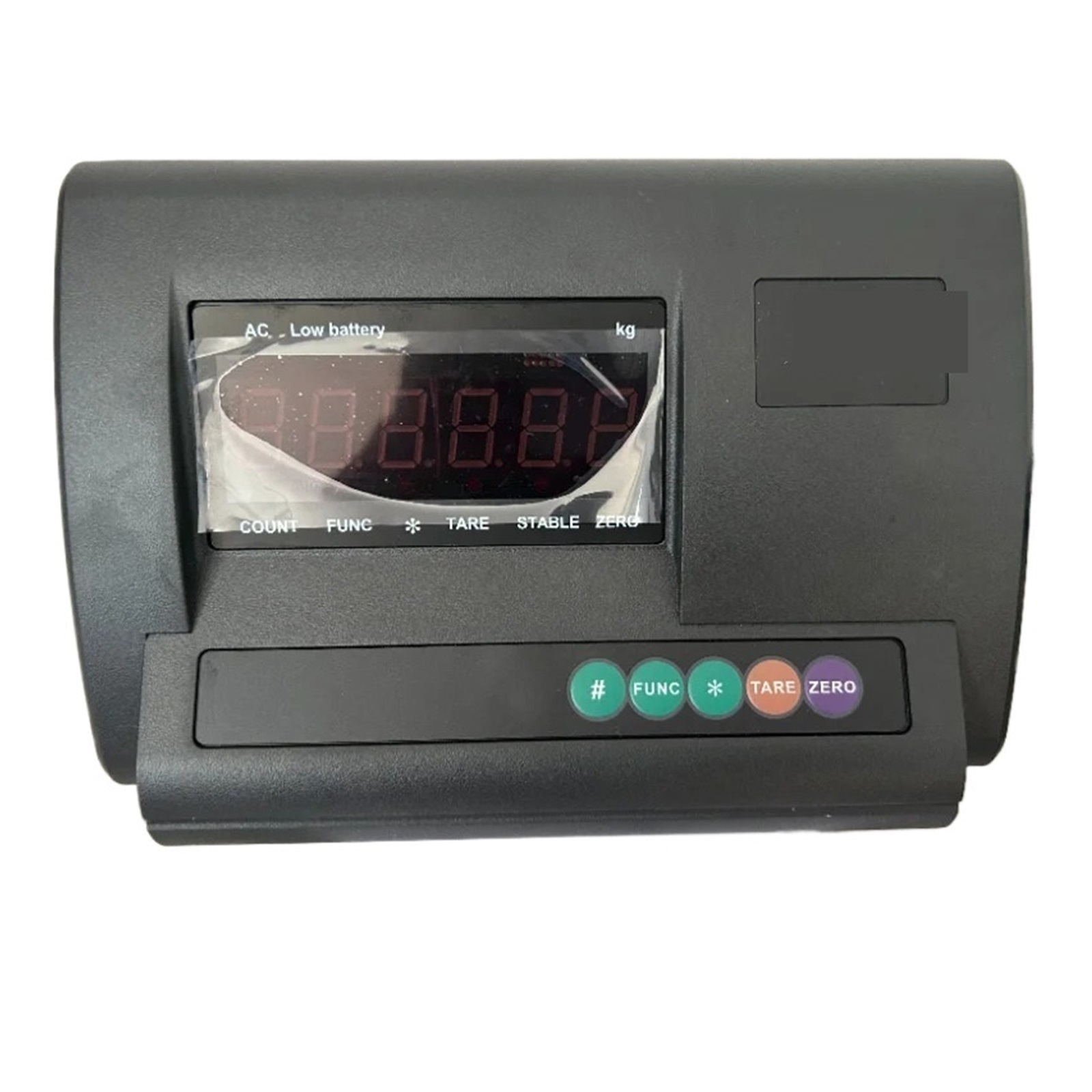

Electronic Platform Scale LED Display Header Weight Indicator Display Load Meter Controller ,High Accuracy

Weighing indicator basic function: High precision A/D conversion, the readability of 1/30000; The code calls convenient display, observation and analysis of weight tolerance instead of feeling Special software technology, enhance the system's ability to resist vibration; Zero tracking range, zero (boot / manual range, respectively); Digital filtering speed, amplitude and the stability of the time can be set; With the weighing counting function; (a power-off protection unit weight) A/D conversion rate: 20 times / sec The maximum A/D conversion number: 20bit Input signal range: 10mV ~ 15mV Input sensitivity: more than 1 V/e The sensor bridge power supply C5V; I = 150mA Connect the sensor number: 4 350 sensors can be connected.

Connection: 4 wire sensors Verification of indexing number: 3000 The maximum number: 30000 Maximum resolution: 300000 Division value: 1/2/5/10/20/50 optional Display mode (A12): 6 LCD LCD, 6 state indicaton Display mode (A12E): 6 LED digital tube, 6 state indicator Display range: -2000 ~ 150000 (e=10) Large screen interface (optional) Output mode: serial output signal Signal: current loop signal Baud rate: 600 Transmission distance: the current loop signal is less than 100 meters The serial communication interface (optional) Baud rate: 1200/2400/4800/9600 optional Communication mode: automatic continuous mode / instruction mode Related Products: weighing controller,load cell indicator,load cell,load cell sensor,weight sensor,weighing controller,load cell weight sensor,load sensor,weight indicator,weighting sensor load weight cell electronic,load cell weighing sensor
