Kemblawolf 24V 500W Black Motor Kit | sku-15655651896

Kemblawolf 24V 500W, sku-15655651896, is a Black Go Karts Parts & Accessories kit with UPC 722302928355. The supplied brushless DC motor has an aluminum body, copper coil and natural air cooling. Its specifications list 48V DC input, 1800W output, 33A rated current, 4500 RPM rated speed, 5200 RPM maximum speed, a T8F-9T sprocket and 37.5A maximum current.

To change motor direction, change the wiring between the motor and controller: Step 1, connect the 3 thick phase wires yellow to yellow, blue to green and green to blue; Step 2, for the 6 Hall wires, connect blue to yellow and leave the others unchanged.

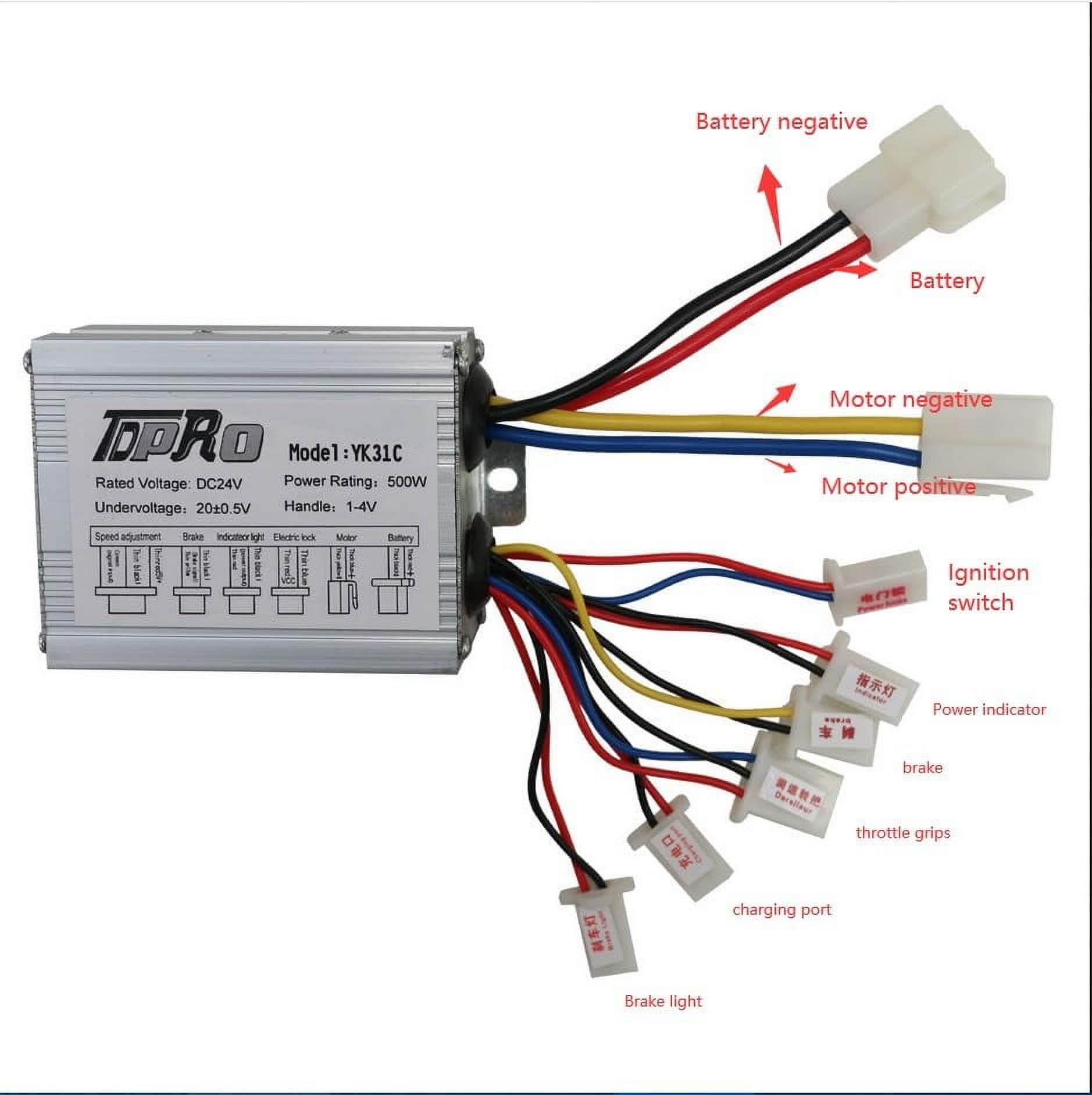

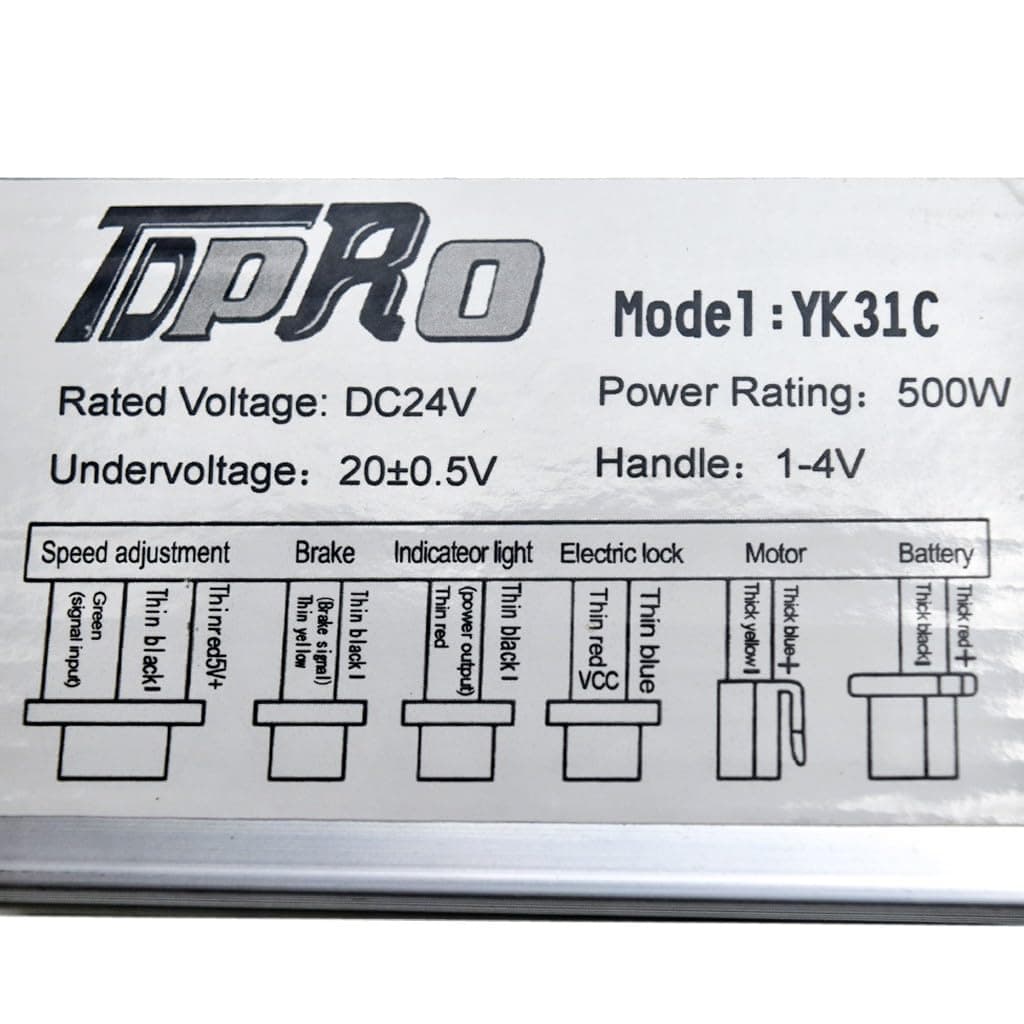

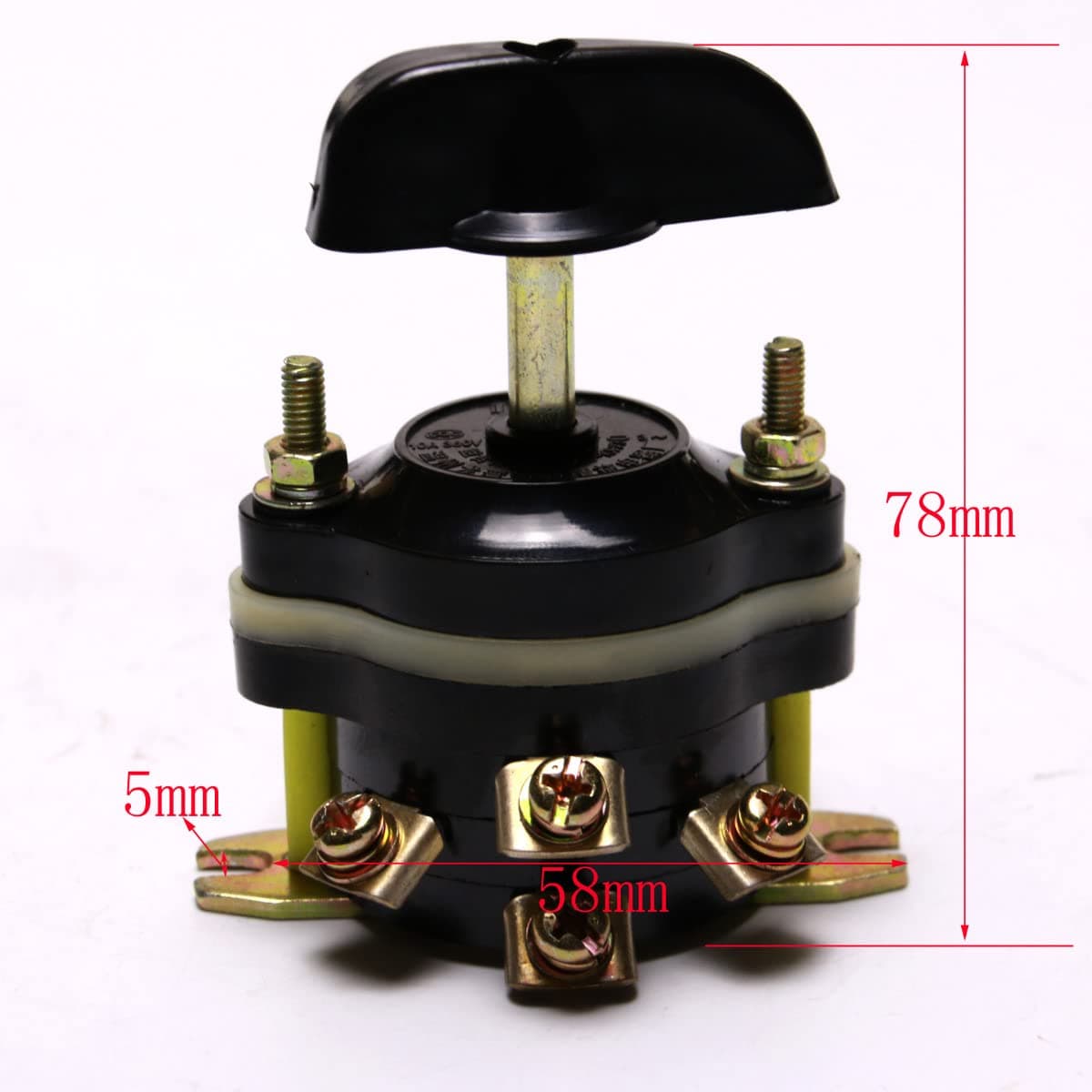

The kit includes 1 motor with T8F and 35 sprockets; 4 sealed lead-acid batteries, each 12v 24ah and measuring 7.1'' (181mm) x 3" (78mm) x 6.7" (170mm); a charger, controller, throttle pedal, terminal block, wiring harness, forward/reverse switch, brake switch, charger port, 4 battery wires, a 35 chain, a 35 58T rear sprocket (29mm), a 3-speed switch, safety air switch, power indicator and ignition key switch.

Listed uses include go karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini bikes, pocket bikes, electric tricycles, 4-wheelers, quads, buggies, drift trikes and Razor vehicles.
