Kemblawolf Bike Parts 48V Motor Kit sku-15709515825

The Kemblawolf motor kit, sku-15709515825, is listed under Bike Parts; UPC 722302928225. Its brushless DC motor has an aluminum body, full copper coil and natural air cooling. It is heat-resistant and designed for low-noise, efficient, stable operation and a long service life.

Specifications are 48V DC input, 1800W output, 33A rated current, 4500 RPM rated speed, 5200 RPM maximum speed, a T8F-9T sprocket and 37.5A maximum current. To change rotation to reverse-counterclockwise, Step 1 connects the 3 thick phase wires from controller to motor as yellow to yellow, blue to green and green to blue.

Step 2 changes the connection among the 6 Hall wires from blue to yellow, leaving the others unchanged. The motor is described for go-karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini and pocket bikes, electric tricycles, 4-wheelers, quads, buggies, drift trikes and golf carts.

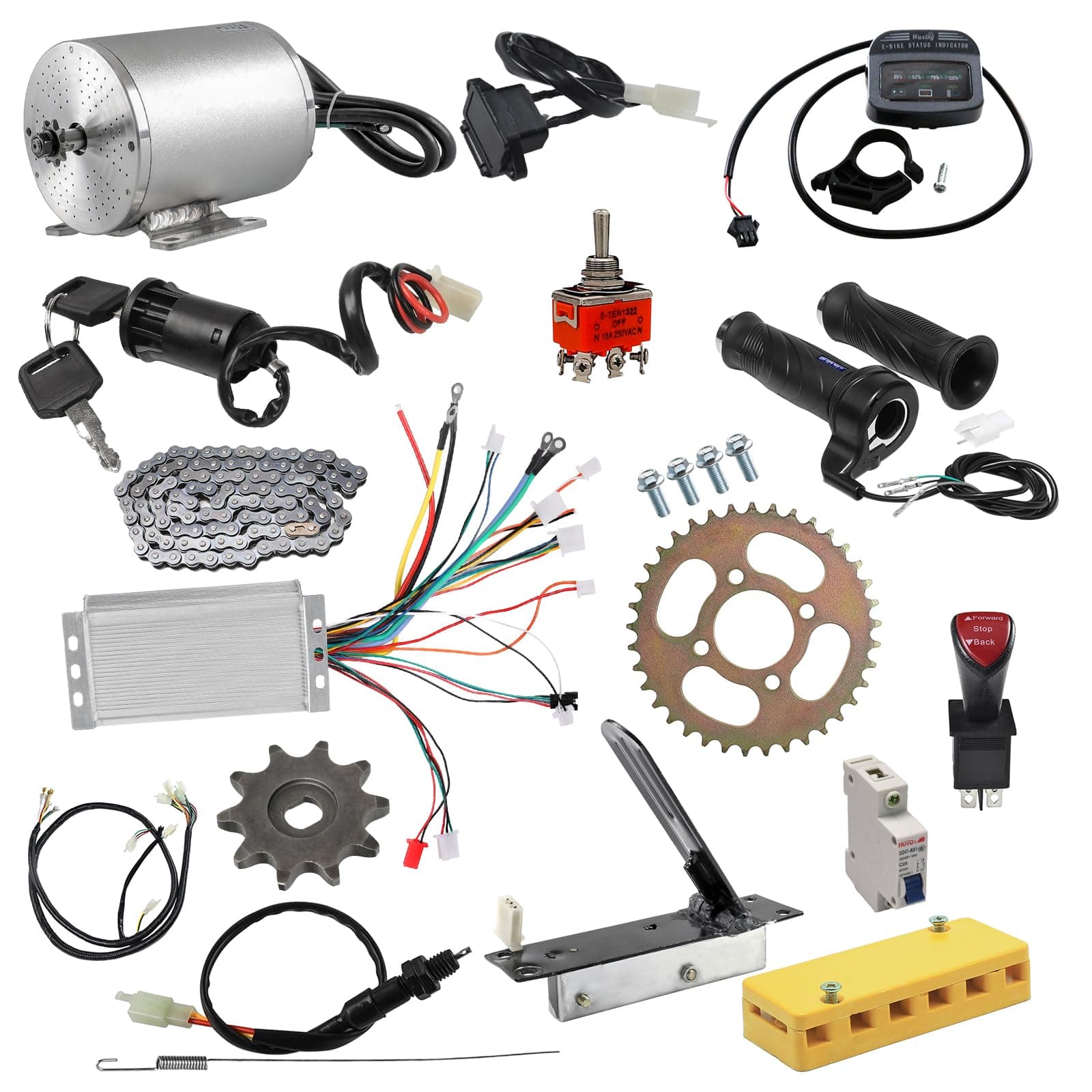

The kit contains 1 motor, 1 420 10T motor sprocket, 1 420 48T rear sprocket, 1 420 chain with 100 links, 1 speed controller, 1 key switch, 1 charging port, 1 power indicator, 1 wiring harness, 1 terminal block, 1 foot pedal, 1 set of throttle grips, 1 forward-reverse switch, 1 circuit breaker and 1 3-speed toggle switch.
