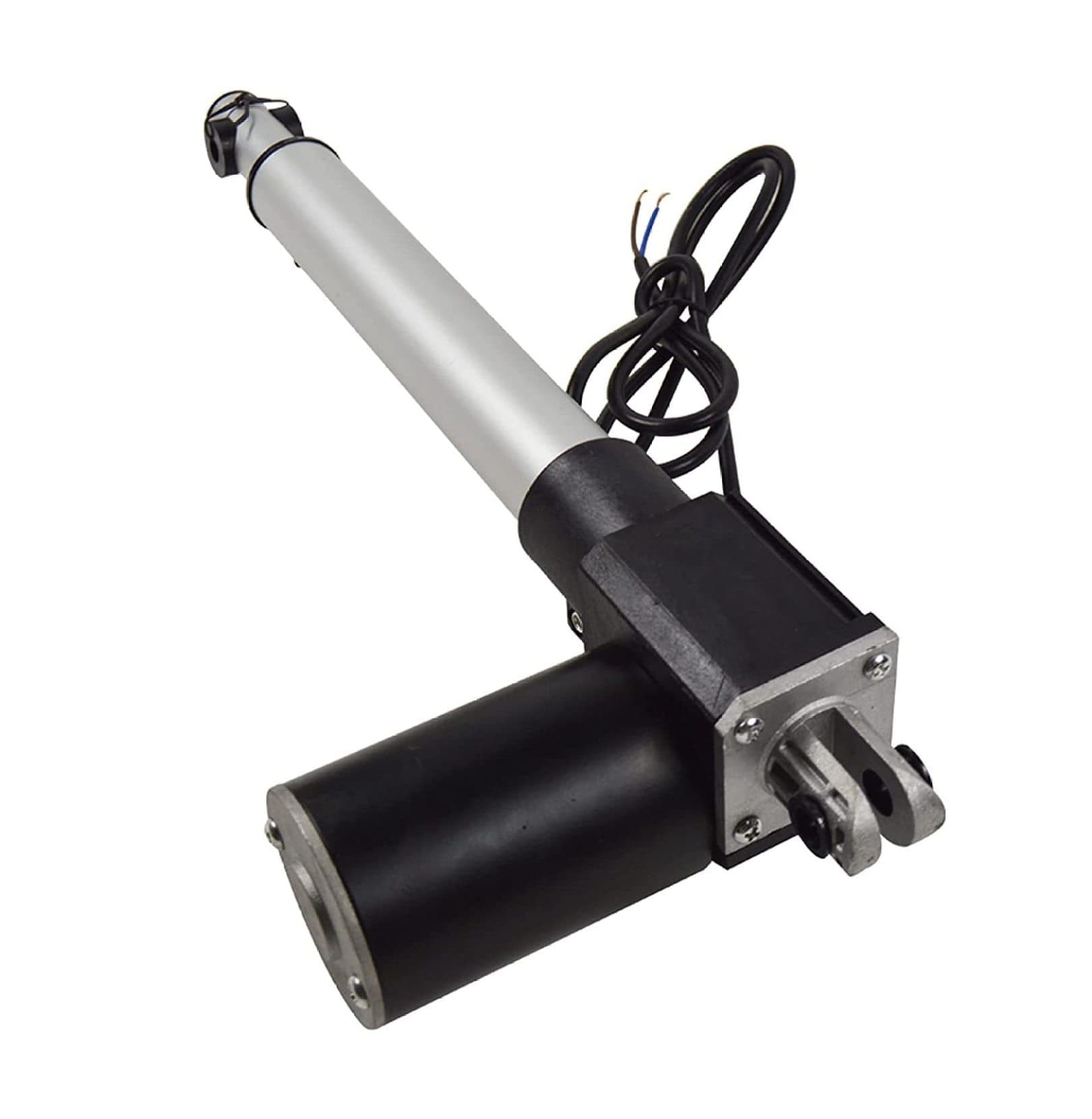

Electric Actuator 50mm(1.97inch) 12V DC with Mounting Bracket Heavy Duty 6000N/1320LB Actuators Controller

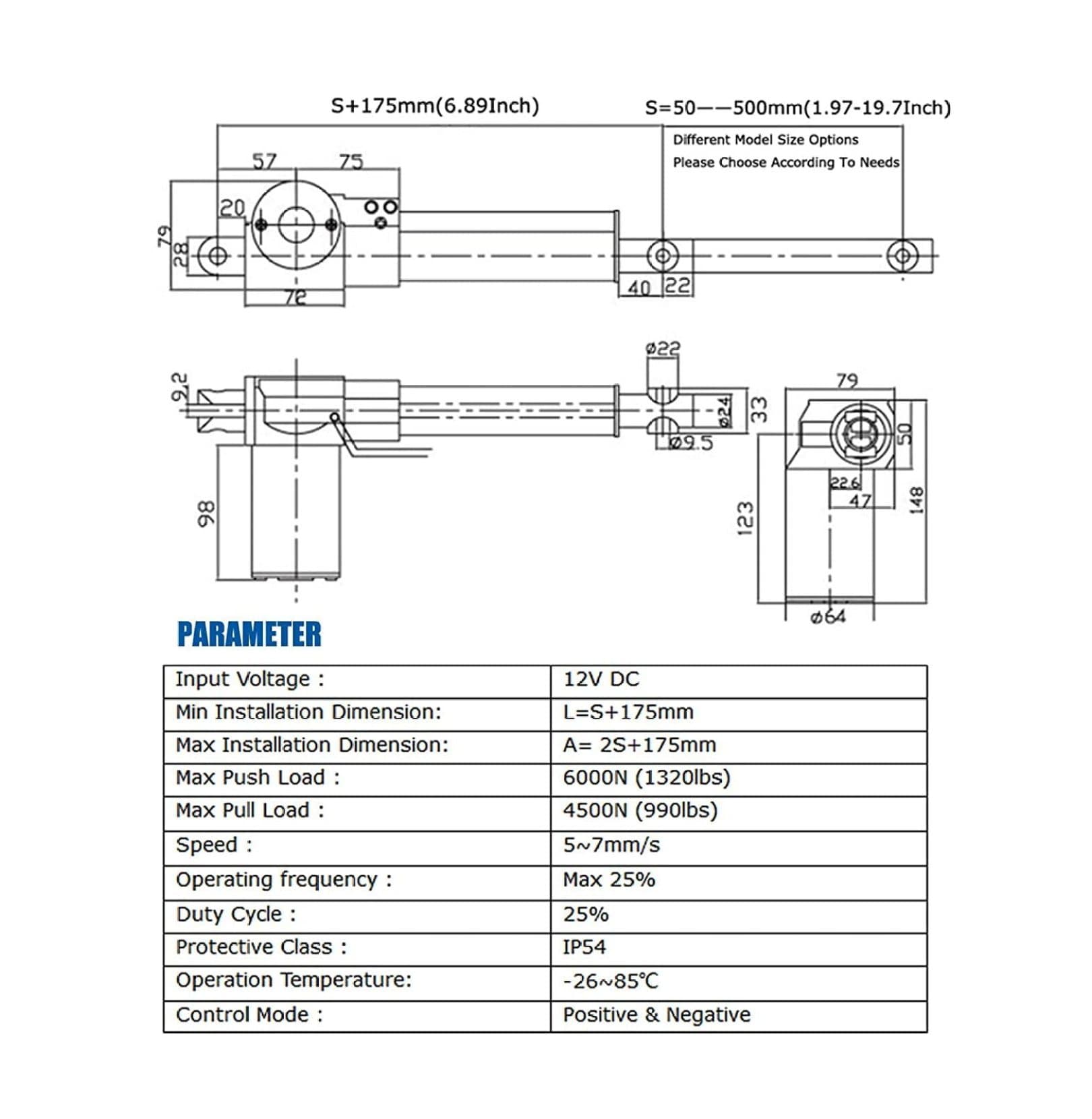

Wide application: The actuator is widely used in number of industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on Parameter: Input Voltage :12V DC;Stroke Length :S = 50mm (1.97inch);Min Installation Dimension:L=S+175mm;Max Installation Dimension:A= 2S+175mm;Max Push Load :6000N (1320lbs);Max Pull Load :4500N (990lbs);Speed :5~7mm/s;Operating frequency :Max 25%;Duty;Cycle :25%;Protective Class :IP54;Operation Temperature:-26~85℃;Control Mode :Positive & Negative High quality: Actuators With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc. High quality metal material, high performance motor, built-in stroke . All metal gear: smooth transmission, wear - resistant, high transmission torque.Pure copper : low heating, long service life and more stable performance Quiet ande comfortable: This actuator works with Max. 48db sound, quiet on working, not to annoying sound. Built-in limit , stop at any position in the stroke. push/pull is up to 6000N, and stroke speed is up to 30mm/s when under no-load Easy assembly: Easy to install, all accessories included.Screw washer design, specially added flat washers, effectively prevent the screws from falling off automatically, ensuring safetyYou may also like KioJJp HOME PRODUCTS 69424 24x10 Trim Coil, White/Brown.
