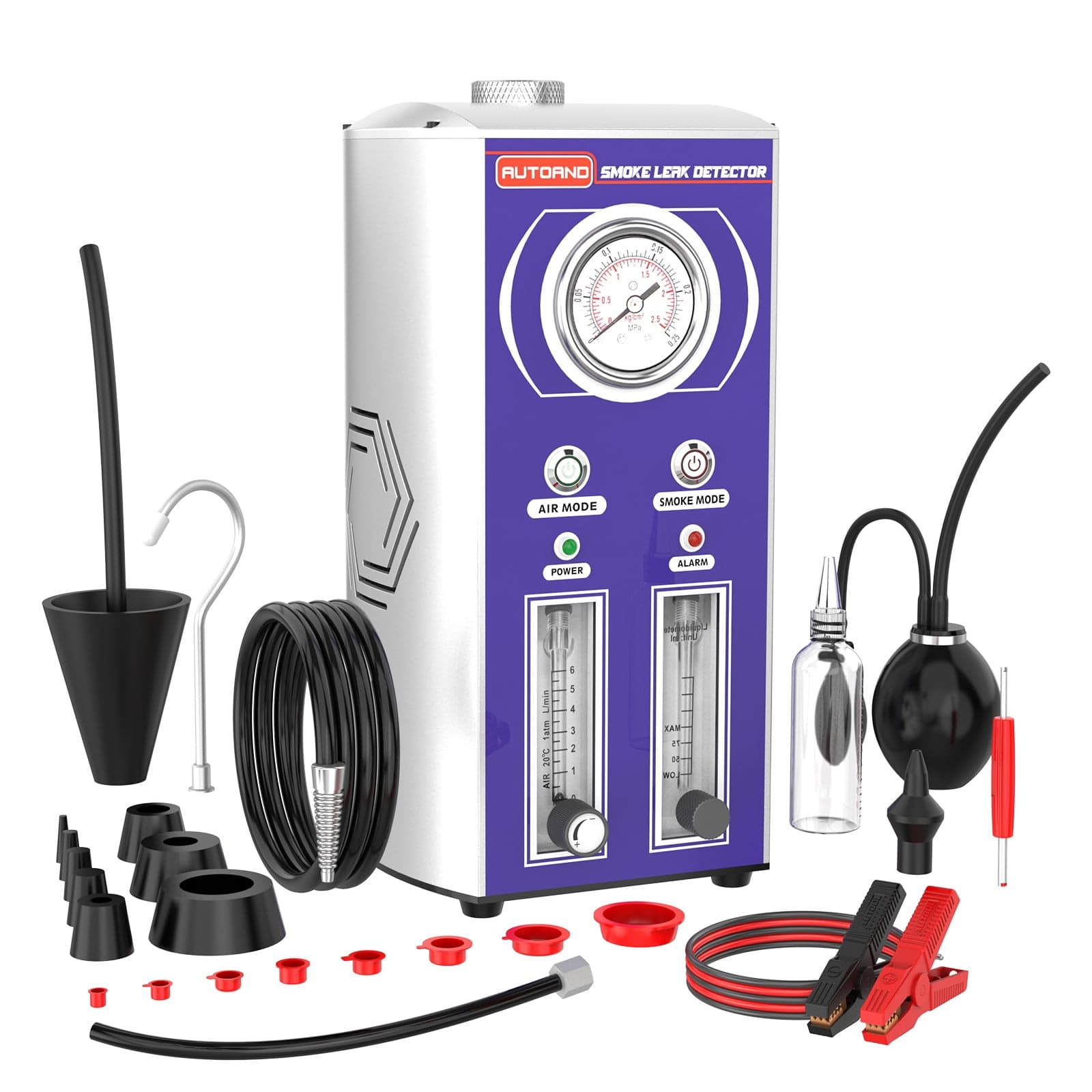

DUOYI Automotive EVAP Smoke Machine Leak Detector, 12V Fuel Pipe & Vacuum Tester with Built-in Air Pump for Cars, Trucks, Motorcycles, ATVs

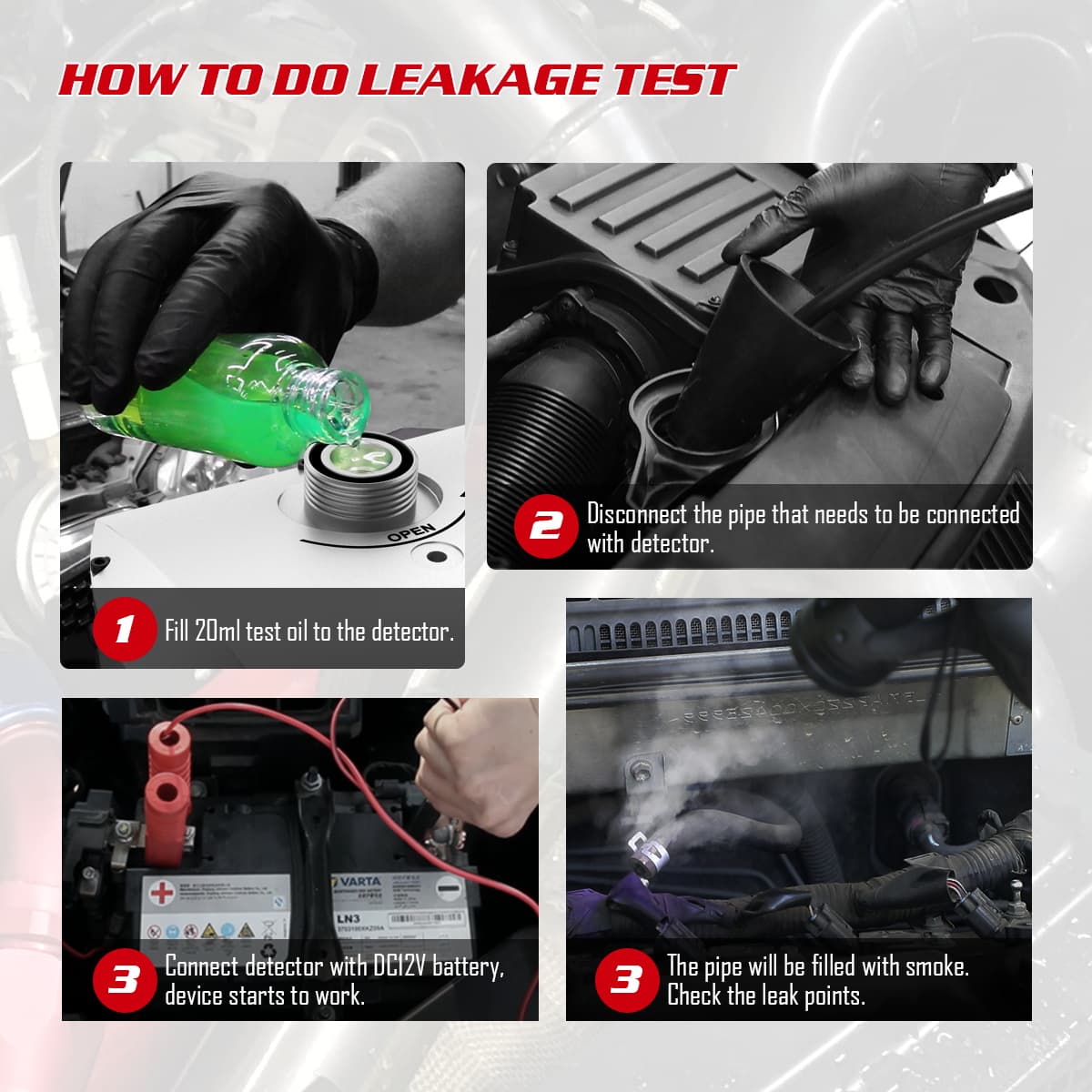

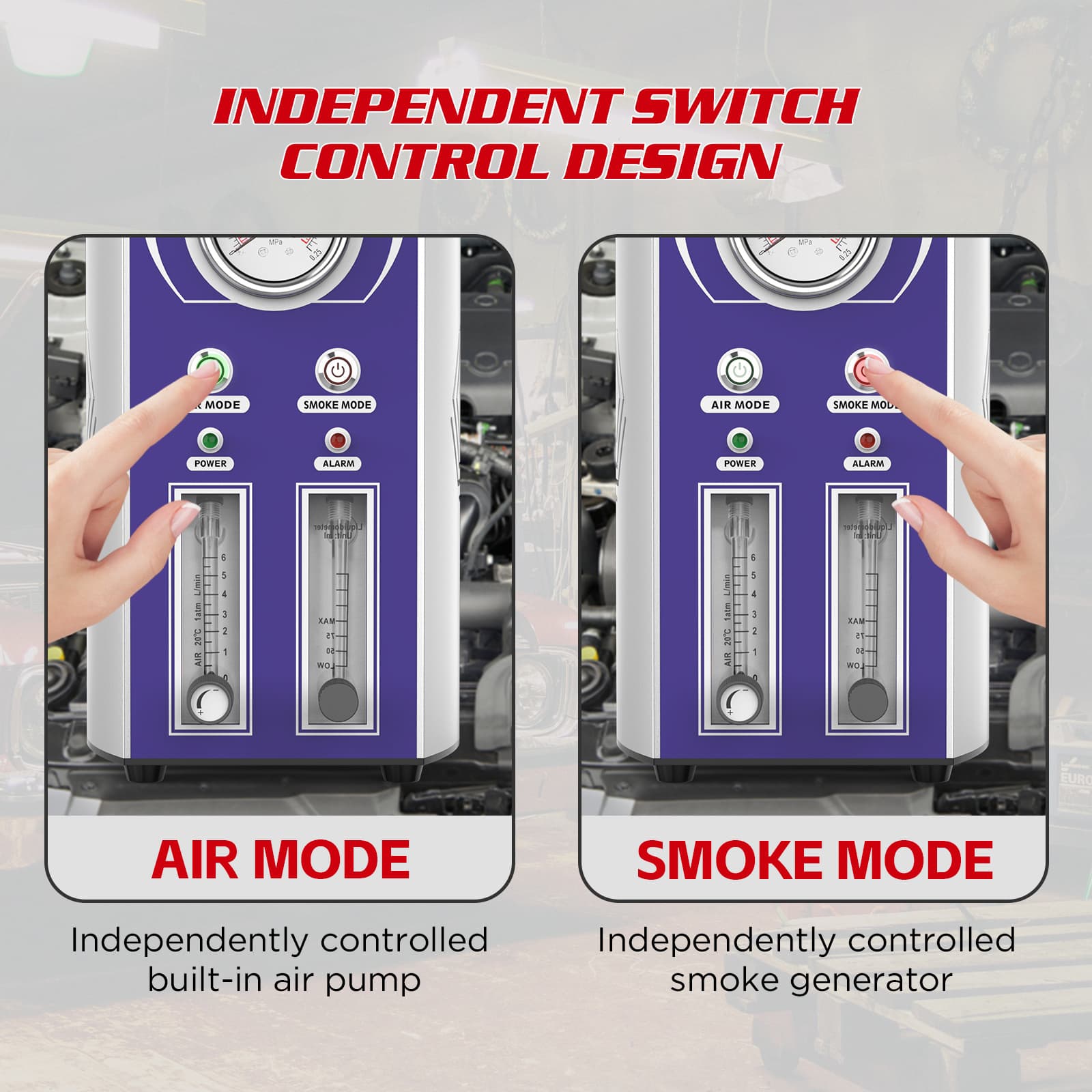

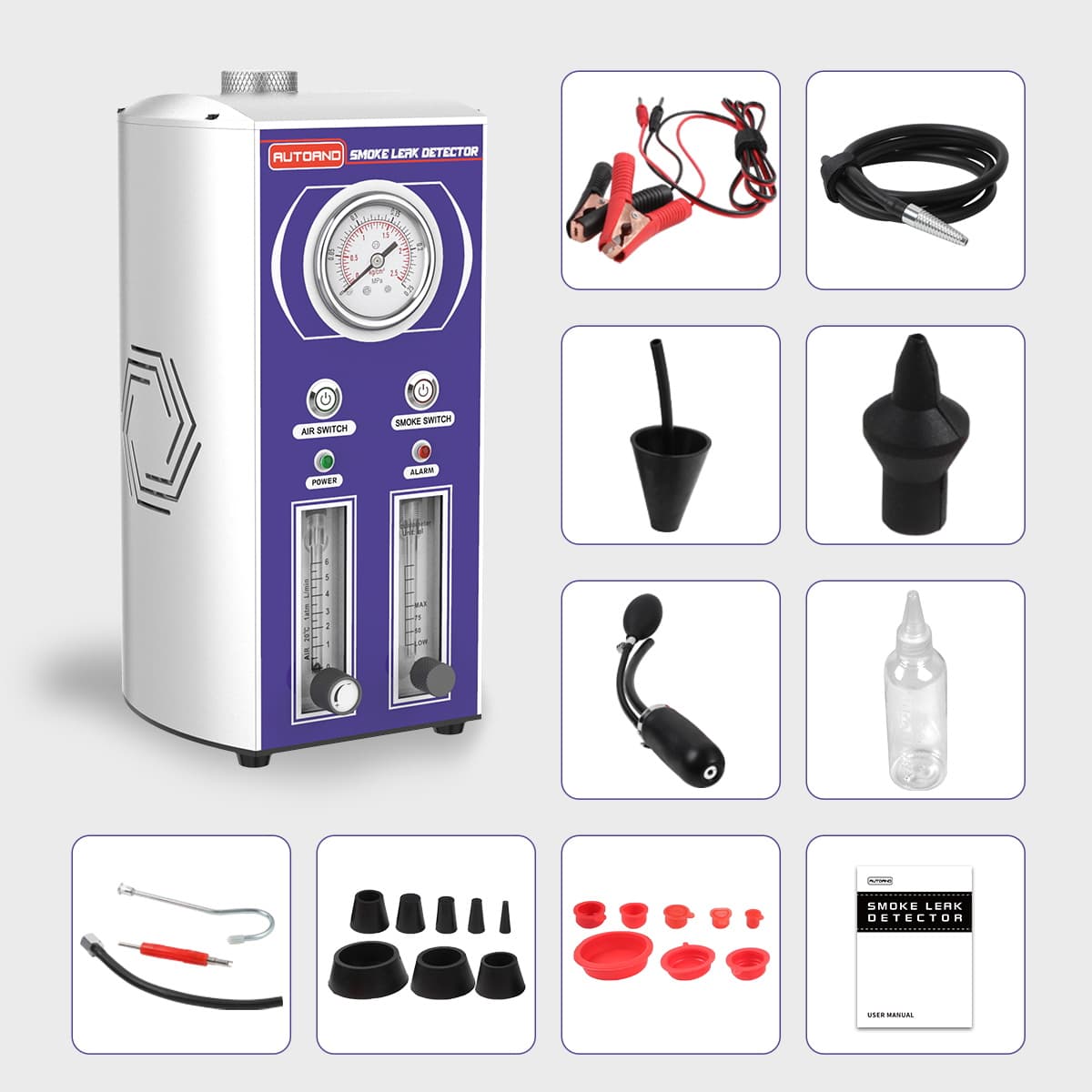

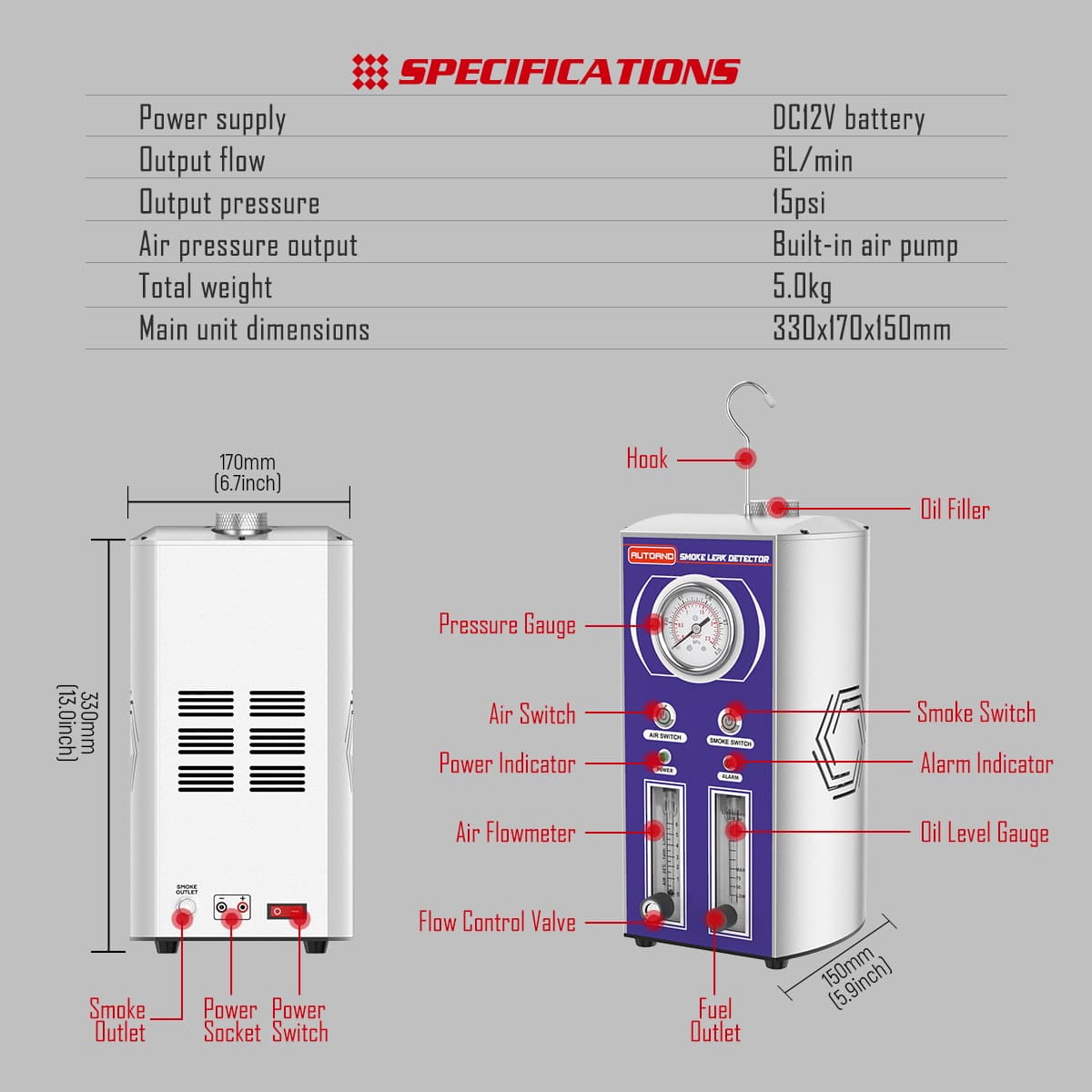

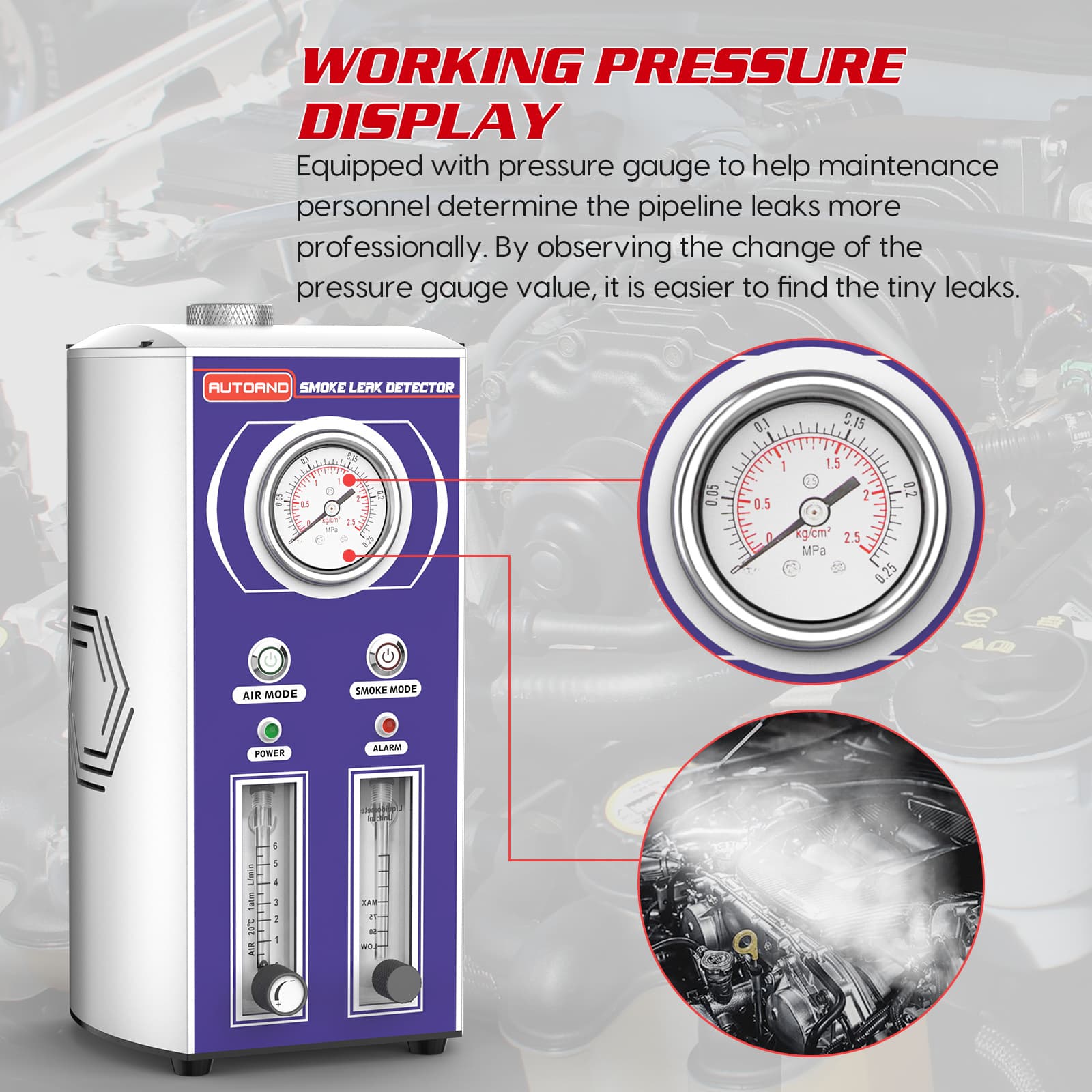

D‌UOYI Automotive Smoke Machine Features: ✅ Powerful And Easy to Use: The vehicle smoke leak tester has its own air pump without relying on other machines and a pressure gauge with precise scales. Simply connect the detector to the 12V DC battery, it can emit thick smoke within 30s after power on. ✅ EVAP System Supported: Our auto smoke leak detector comes with EVAP adapters, smoke machine can help you apply with EVAP System of all vehicles to quickly find out the leak parts. 4ft Smoke Outlet Pipe can help to reach and connect perfectly. When you test, the car is turned off, so it will not damage the car's EVAP system sensors. ✅ EVAP Leak Detector with Air Flowmeter: The EVAP smoke machine is equipped with two air flowmeter able to accurate data display. You can rotate the button to adjust the scale from 1-6 to control the smoke concentration. ✅ Dual Modes & Various Test Function: Smoke modes button is to control the smoke generator independently, generate smoke faster, reducing diagnostic time. Air modes button is to control the air pump independently, adapt smoke grade to locate the small and hard to find leaks. ✅ Safety: This smoke leak detector has intelligent protection, if it exceeds the working limit, such as above 75°C, it will automatically turn off the power supply to ensure the safety of the operator and the device. ✅ Wide Range of Applications: Car smoke machine for detecting leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats. Suitable for all car models leakage of pipe systems, such as fuel pipe, air intake system, EVAP system, cooling system etc. Specification: Power Supply: DC 12V Battery Air source Mode: Built-in Air Pump Output Pressure: 12-18psi Output Flow: 6L/min Air Pressure Smoke Control: Adjustable Tank Oil Capacity< 100ml Operating Temperature: -20~60"C Product Dimensions: 13 x 6.7 x 5.9" Package Dimensions: 11.8 x 12.8 x 12.5" Package Weight: 11.05 lbs Packing list: 1 x Car Smoke Leak Detector Main Unit 1 x Hook (with hand-tightened nuts) 8 x Soft Rubber Hose Plugs(with serial specification) 1 x Standard Cone Adapter 1 x Power Cable Clamp 1 x Oil Bottle (Oil not included) 1 x EVAP Special Connector 1 x Smoke Hose（ 1.5m/59”） 1 x Universal Airbag Adapter 1 x Valve Core Wrench 1 x User Manual How to Use: 1. Open the engine cover and hang the EVAP smoke leak machine detector on it. Disconnect all pipes that needs to be connected with the smoke machine. 2. Secure this side with proper taper stopple/pipe and connect it with smoke output tube. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple. 3. Red with positive and black with negative to connect the EVAP smoke machine with DC 12V battery. Turn on the power switch and the EVAP smoke machine starts to work. 4. Adjust the flow gauge, control the input smoke value and pressure to make sure the pipe system can afford the pressure. Generate smoke soon and the pipe will be filled with smoke in about 3 minutes. 5. Observe the floating ball in flow gauge. If the floating ball stays still in the bottom, so the pipe is sealed. If the floating ball is arising or bouncing, so leakage exists. If the bounce arises highly, means the leakage is serious. 6. If necessary, better use head lamp while checking the leak points. After leak detection, please connect the wires and pipe well. Tips: For reference only, the specific steps can be adjusted according to personal preference. Warm Notes: 1. In first time use, please fill with 10ml test liquid into the car smoke leak detector. Both liquid paraffin and baby oil are OK, but please NOT to beyond this range of 10ml. 2. Before filling fresh oil, please pour out the oil left in the detector. The fresh oil can be filled with only when the smoke gets thin, can't be filled over 20ml each time. 3. During the process of leak detection, must keep away from smoke-sensitive parts. Please be careful with the round part of the leak detector with high temperature to avoid burns hurt. 4. Do NOT use the leak detector over 8 minutes continuously. Once the high temperature protection mechanism triggered, please make it interval rest and operate later.
