DUOYI MT733 Black Charger sku-17768515510 142733197197

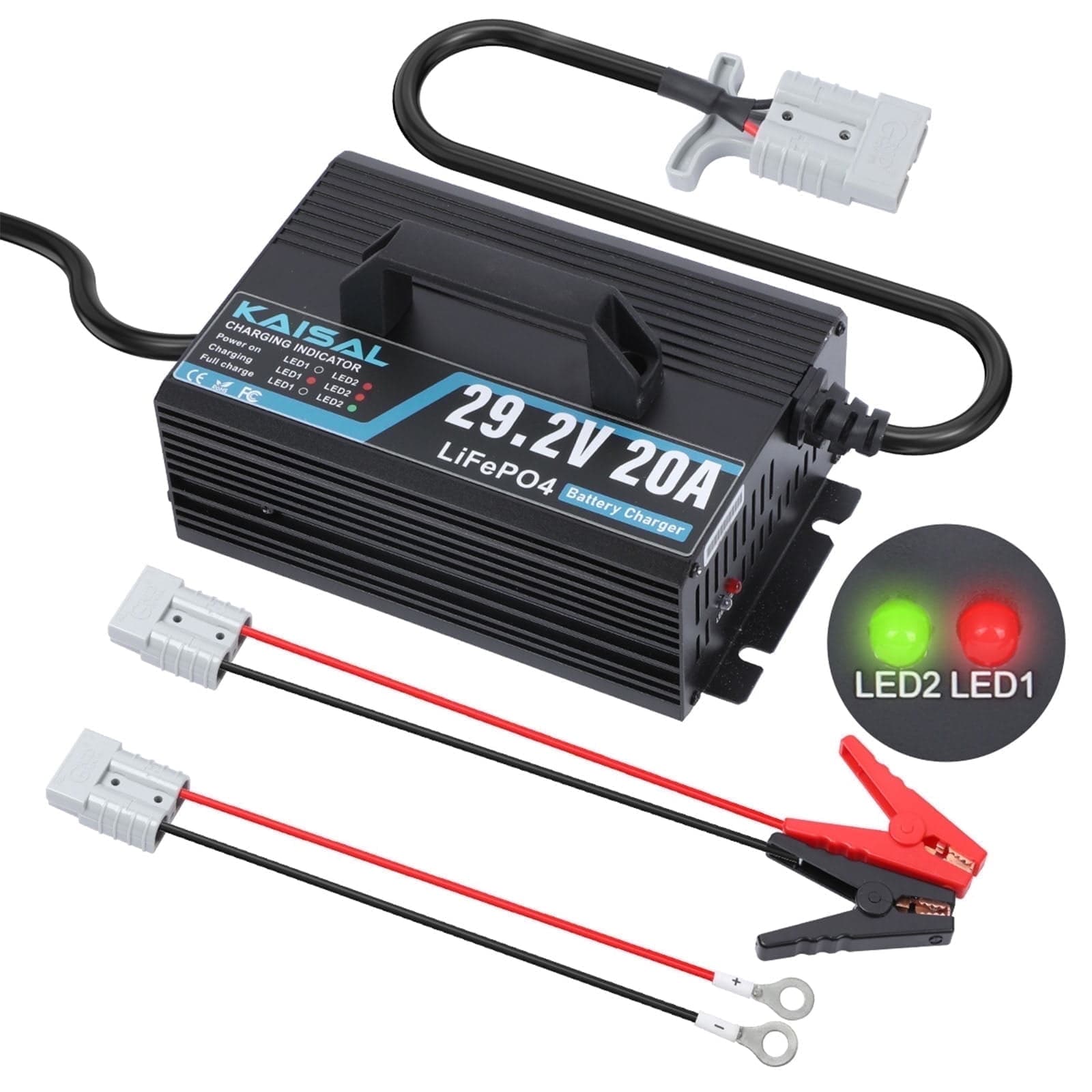

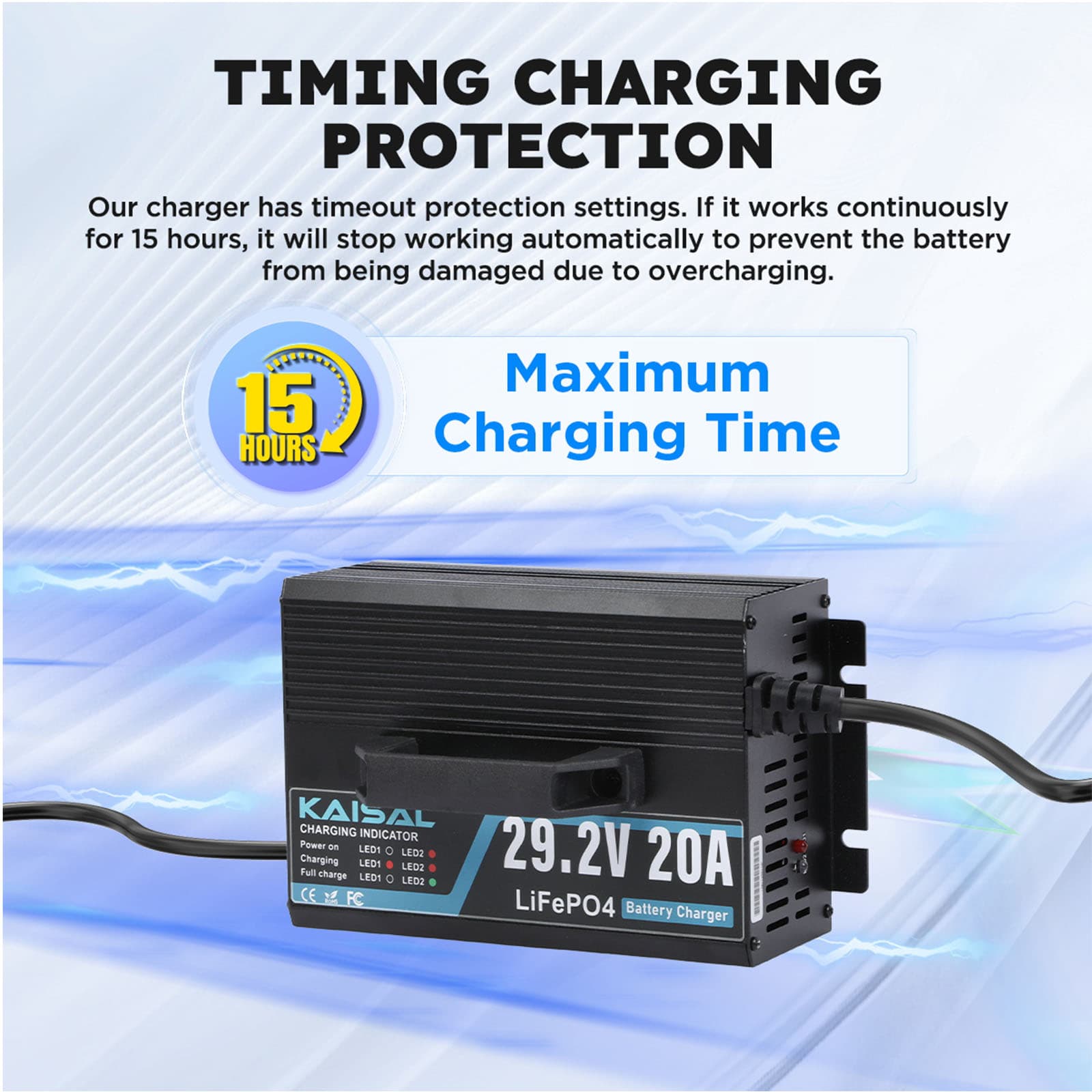

The DUOYI MT733 is a Black 29.2V 20A lithium iron phosphate charger for 24V LiFePO4 batteries, listed under Car Battery Chargers and Jump Starters. Its SKU is sku-17768515510 and UPC is 142733197197. It has 8 protections: overvoltage, no-load, overcurrent, overcharge, overheating, short-circuit, charging time control and reverse polarity. It resumes operation after a fault is repaired.

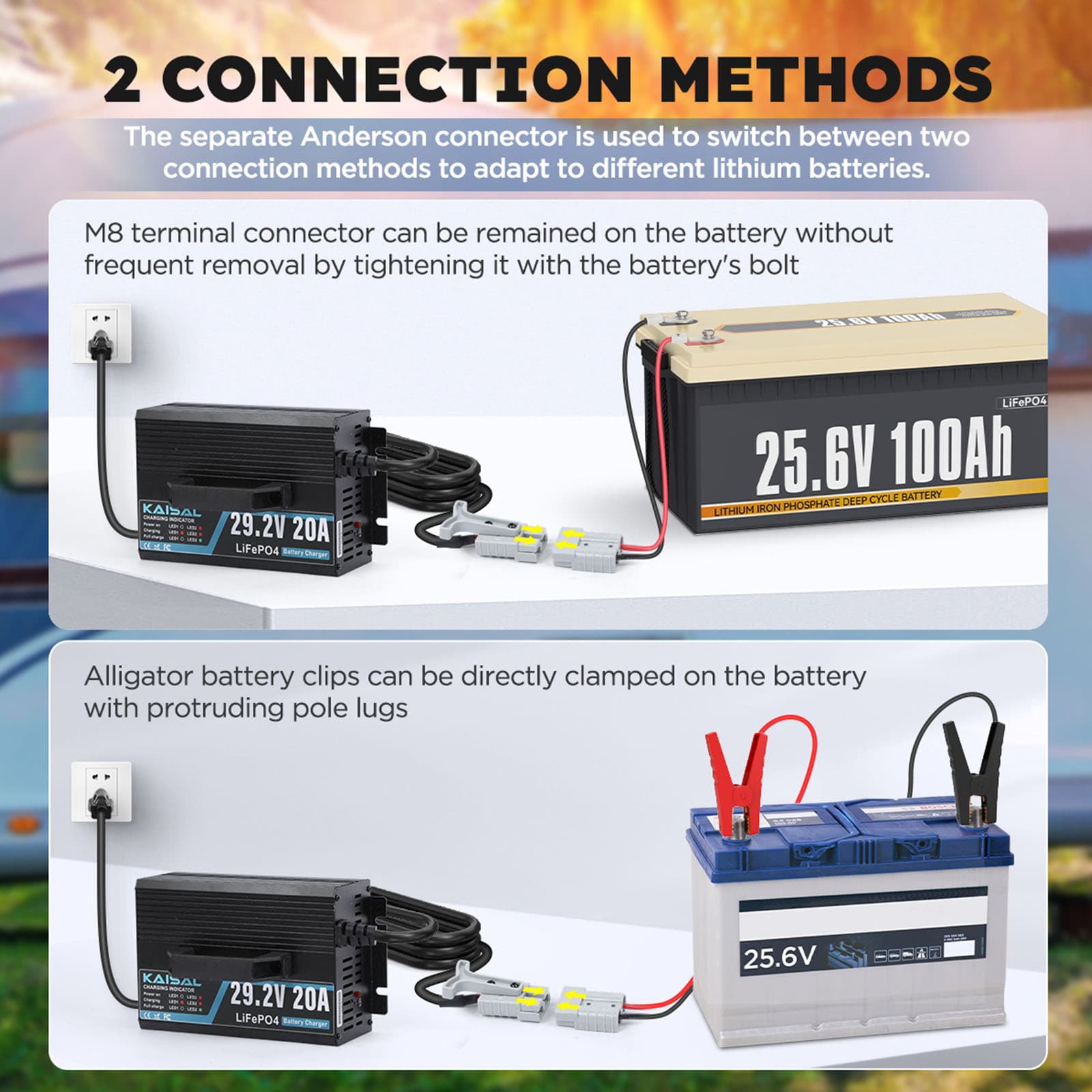

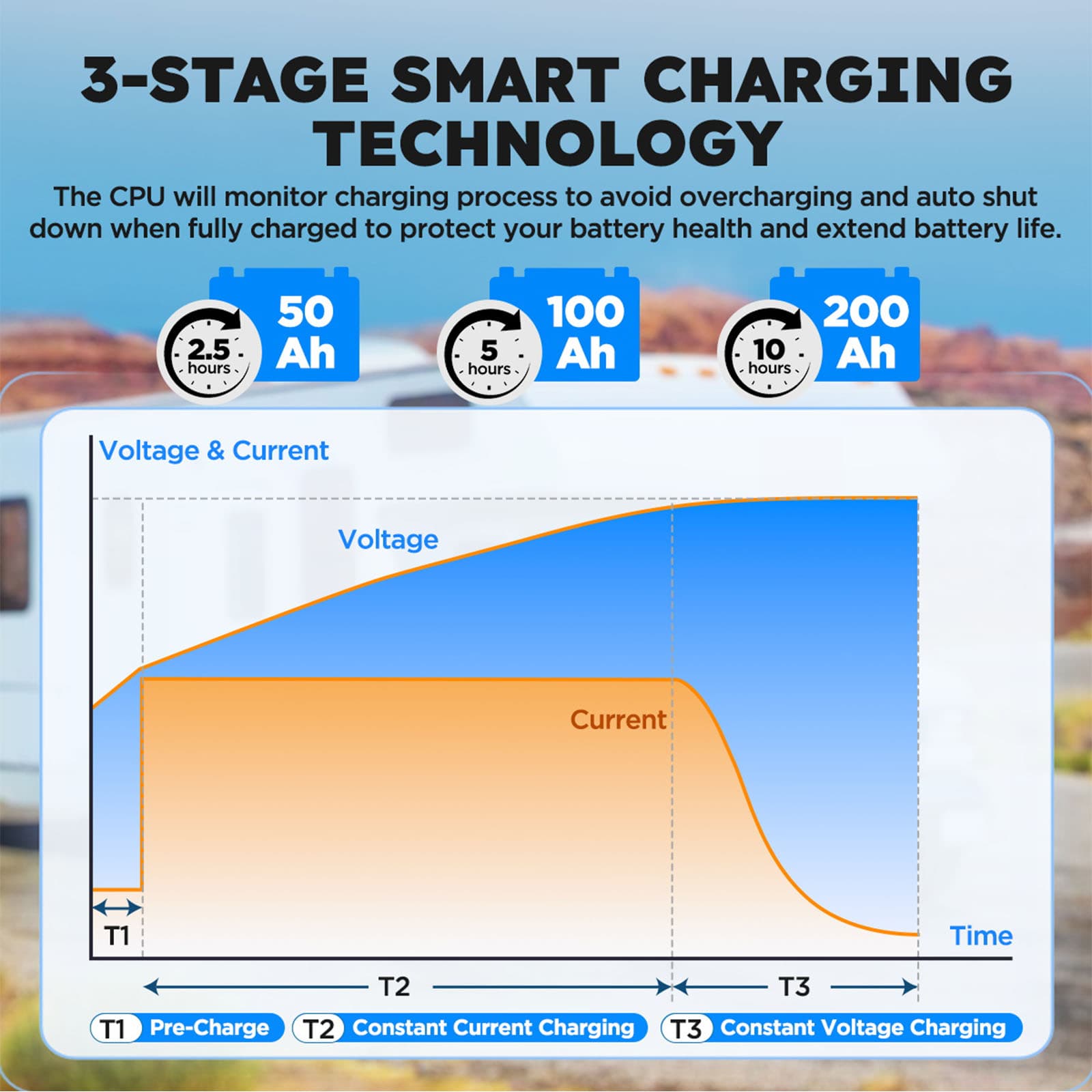

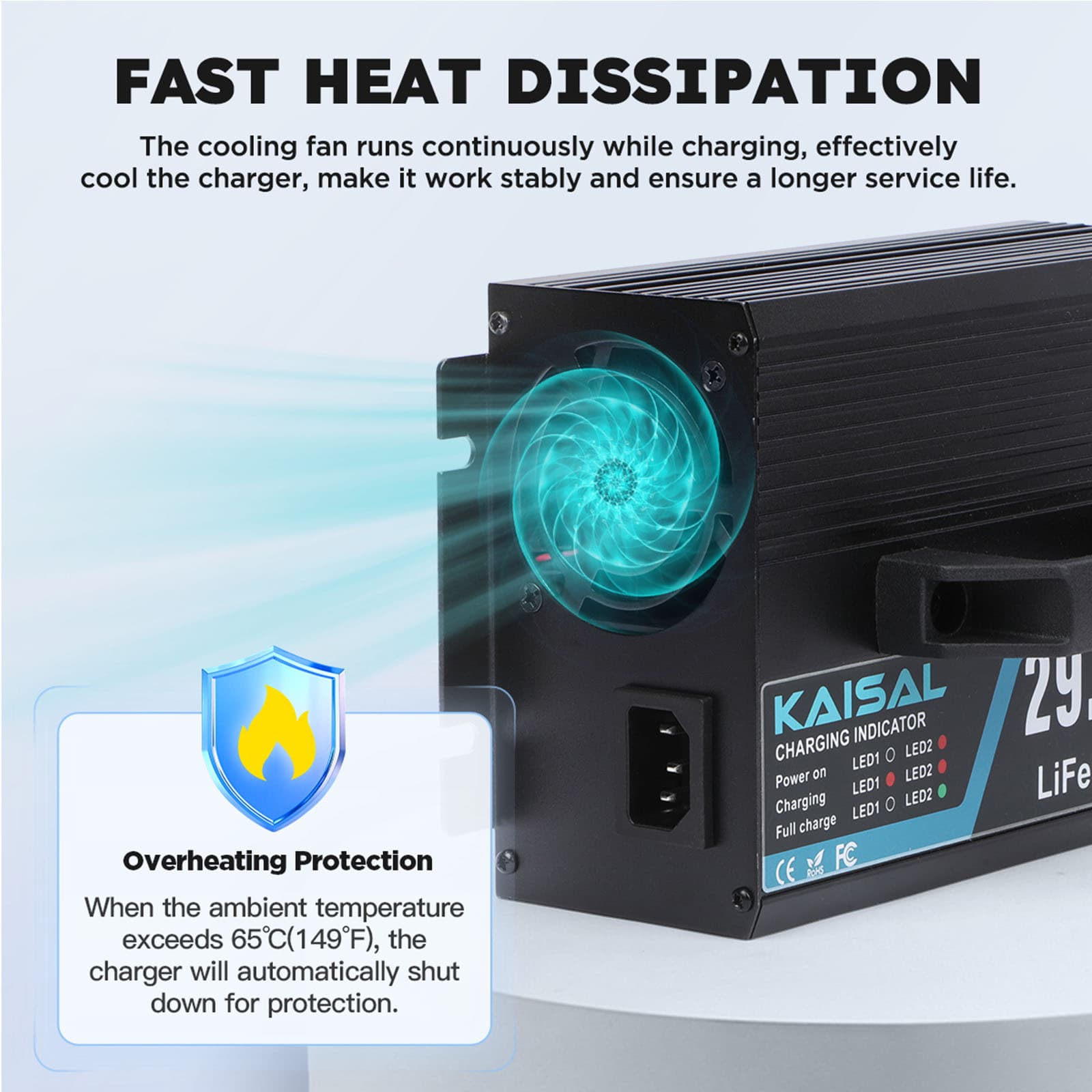

A CPU monitors charging and shuts the charger off when the battery is full. A wake-up mode can reset and repair a battery after BMS cut-off and wake a low-voltage battery. The cooling fan runs while charging; overheating protection shuts the charger down above 65℃ (149℉). Connection options are an M8 terminal connector that can stay on the battery and alligator clips for protruding pole lugs.

The charger is intended for RVs, campers, solar systems, marine use, truck batteries, trolling motors, electric yachts, off-grid applications and home energy storage. Its 2-color indicator uses LED2 and LED1: 1. From 0%-90%, both are red; 2. From 90%-99%, LED2 is green and LED1 remains red as current decreases; 3. At 100%, LED2 is green and LED1 is off, indicating charging has stopped; 4.

In no-load/0V wake-up mode, LED2 is red and LED1 is off.
