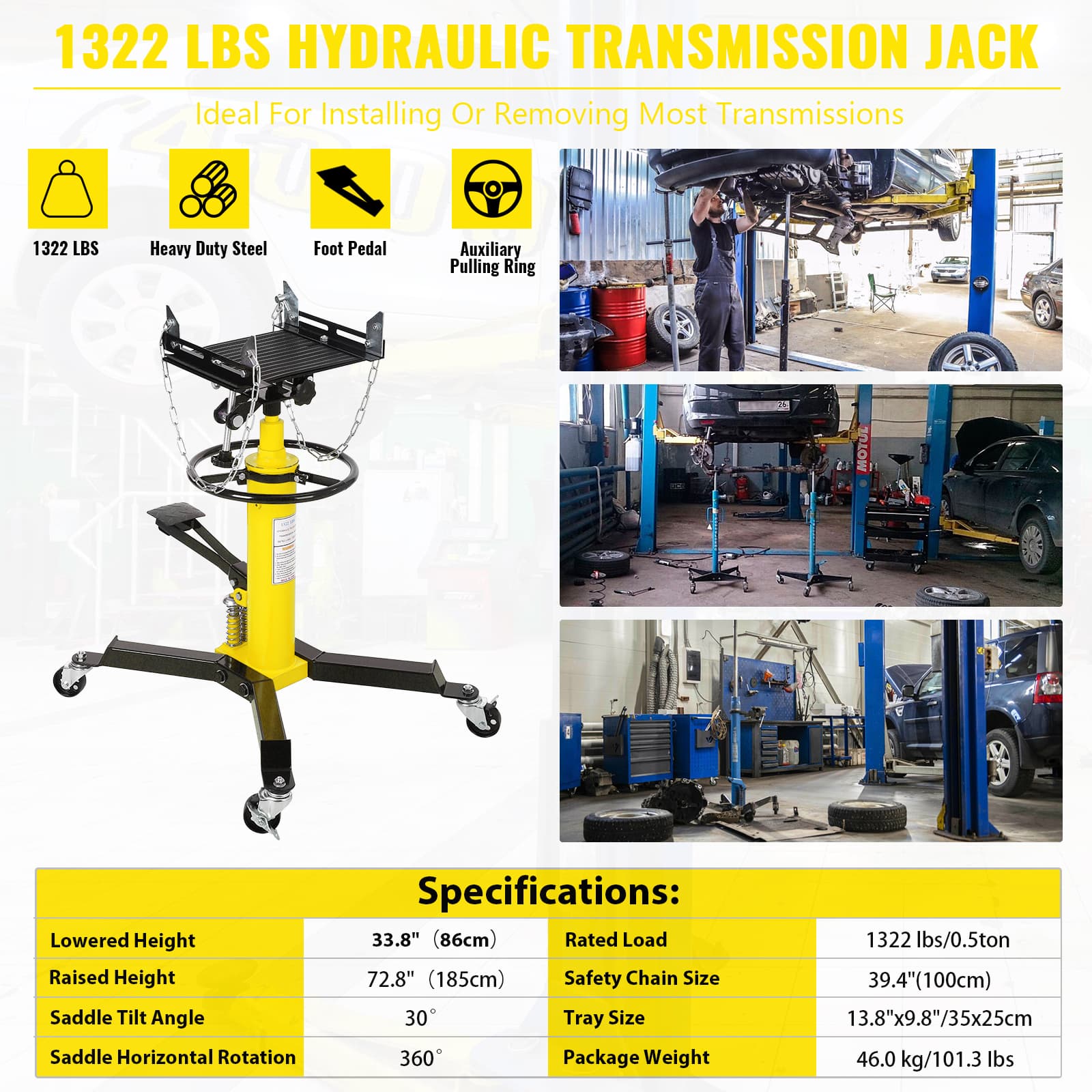

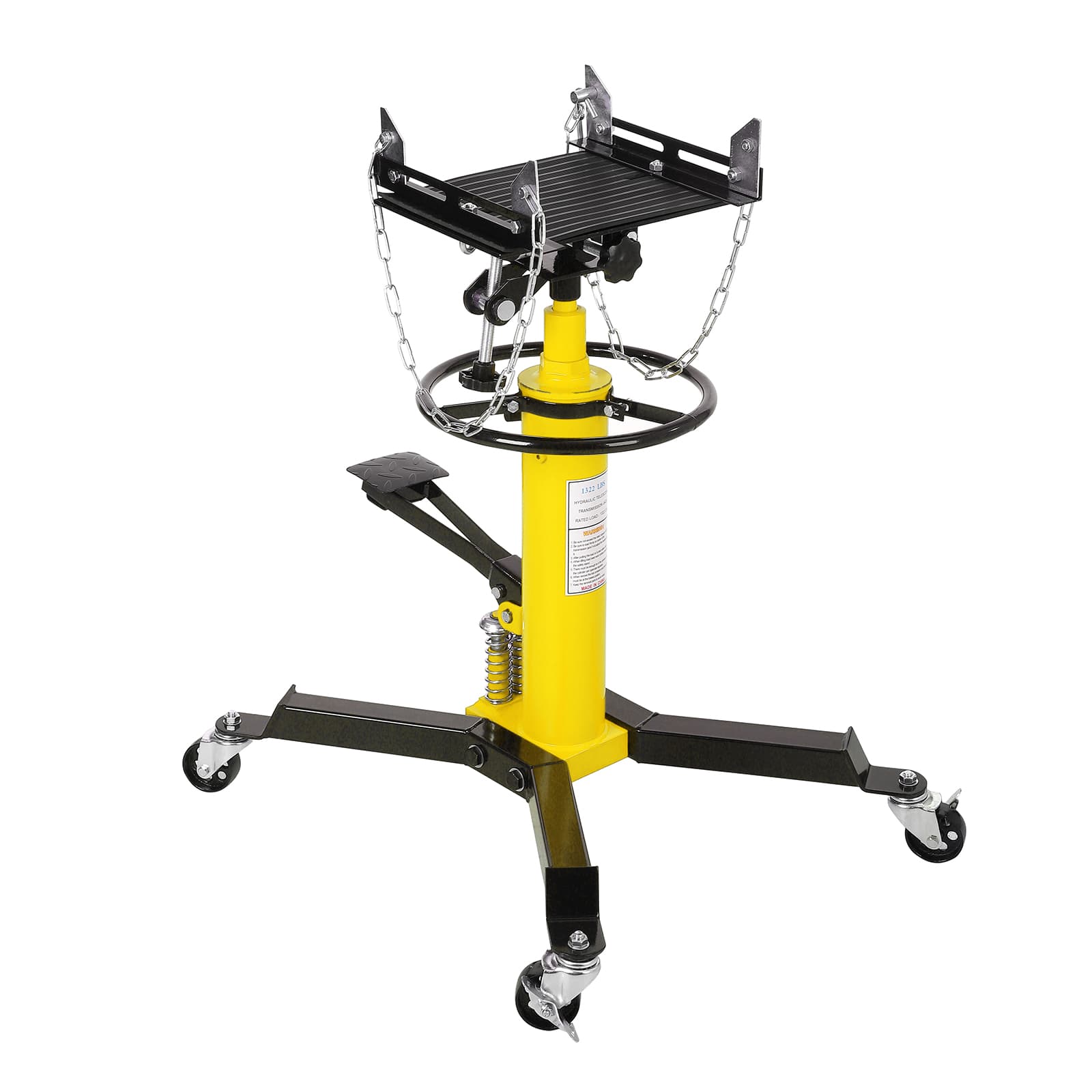

Dual Plunger Transmission Jack 1322lbs Capacity, 2-Stage Hydraulic Lift 33.5 to 69 Inch, with Non-Slip Pad, Foot Pedal & Swivel Casters, Yellow Service Tool

High Load Capacity & Secure Design: This hydraulic transmission jack supports weights up to 1322 lbs, constructed with carbon steel and a widened base for improved balance.Two safety anchor chains help keep transmissions steadily positioned during lifting tasks, reducing shift risk while moving drivetrains. Adjustable Telescoping Lift Range: A 2-stage hydraulic ram allows smooth height adjustment from 33.5 inches to 69 inches.The tilting tray adjusts up to 30 degrees and works with a foot-operated pedal to accommodate various transmission angles, suitable for use with sedans, SUVs, and light trucks. Foot-Pedal Controlled Lifting System: Operate the lifting mechanism using the foot pedal, designed as an alternative to manual cranking.A controlled release function allows gradual lowering, assisting with careful positioning during transmission service or replacement work. Maneuverable Swivel Caster Setup: Four polyurethane casters with ball-bearing swivels provide smooth movement over concrete floors.A centered pull-ring offers one-handed steering to help position the jack around vehicles without excessive effort. Versatile Automotive Service Tool: Suitable for professional technicians and experienced DIY users working on popular vehicle models. Can be used for transmission removal, installation, or supporting drivetrain components in home garages and professional service environments.

Shipping & Returns

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Price unavailable
Dual Plunger Transmission Jack 1322lbs Capacity, 2-Stage Hydraulic Lift 33.5 to 69 Inch, with Non-Slip Pad, Foot Pedal & Swivel Casters, Yellow Service Tool
$430.00
