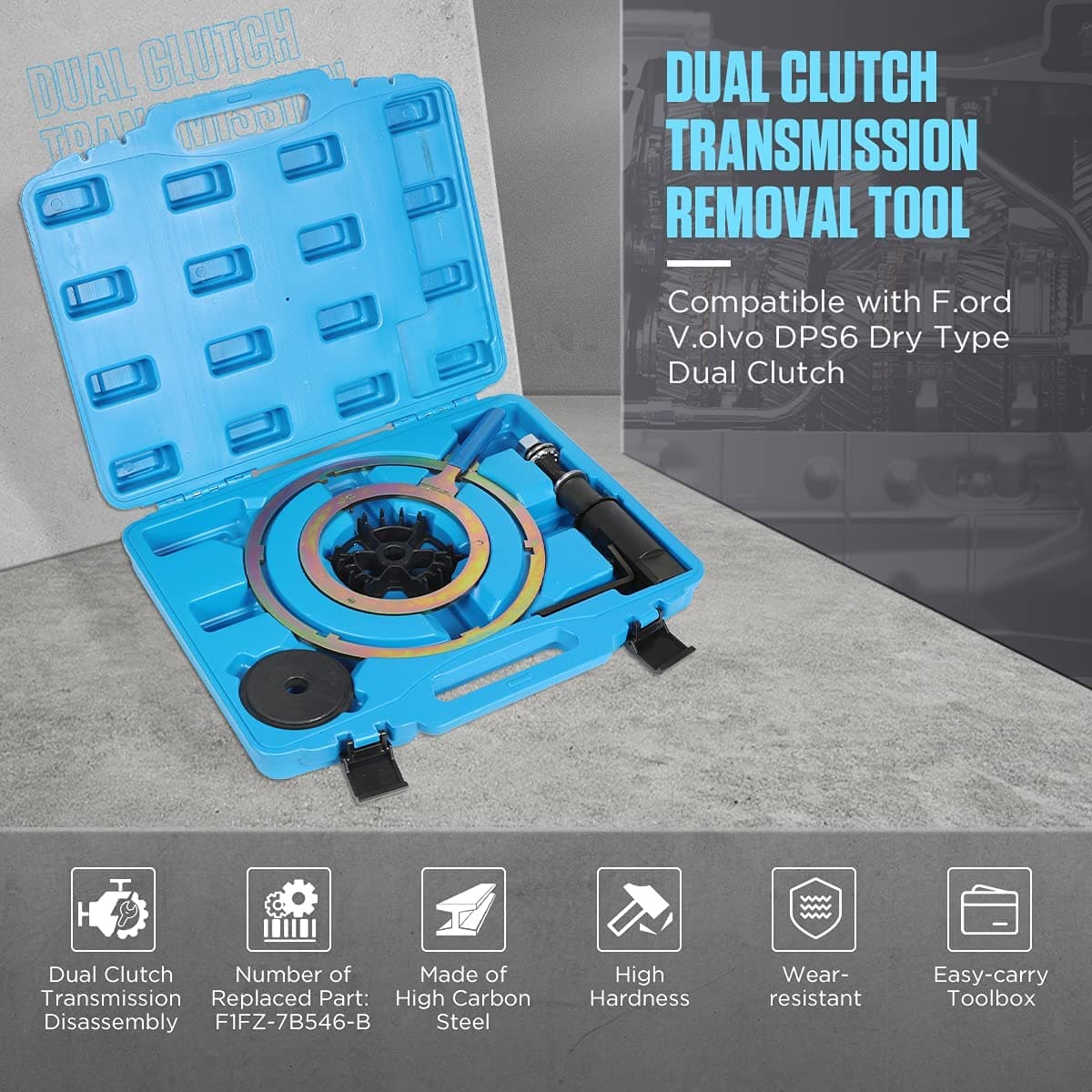

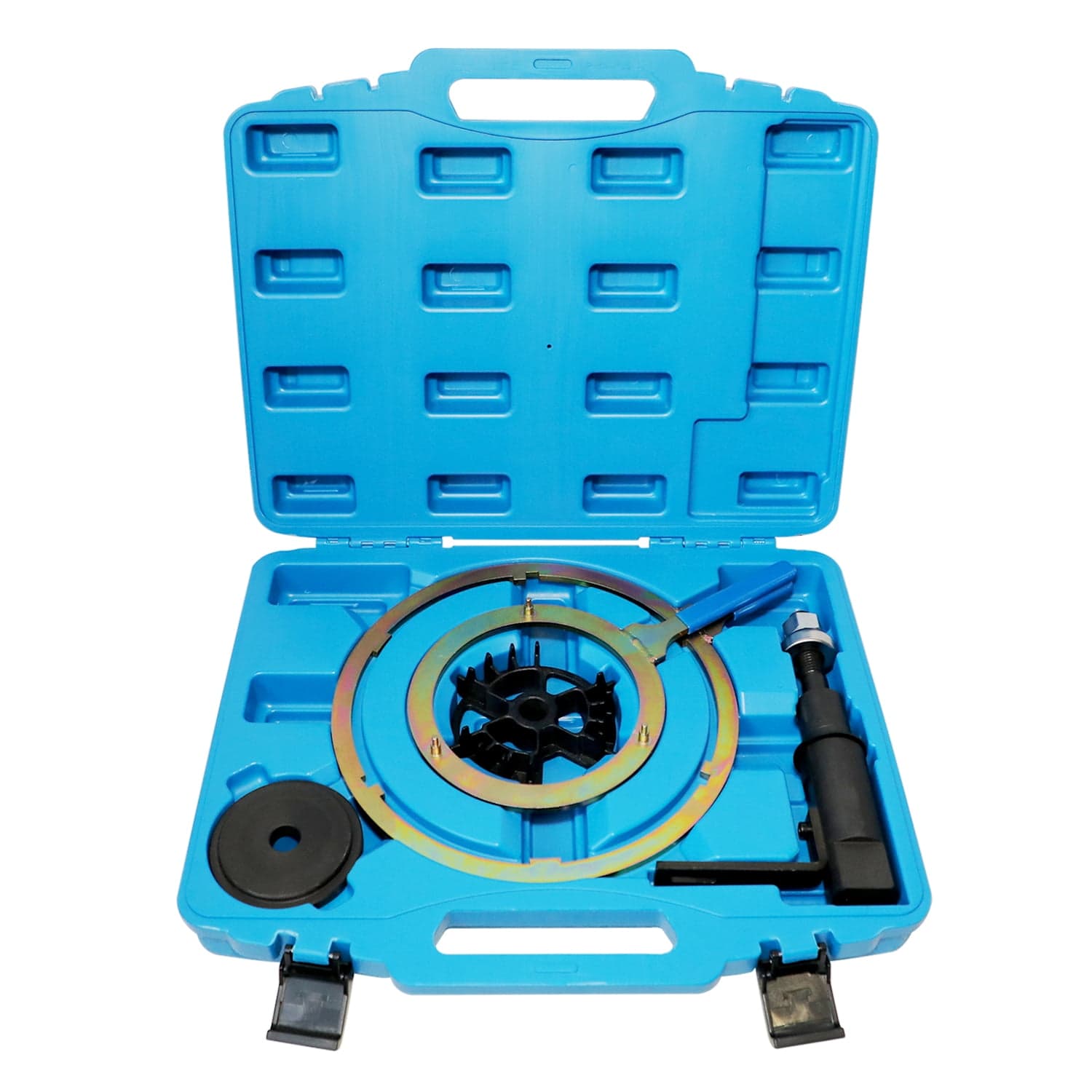

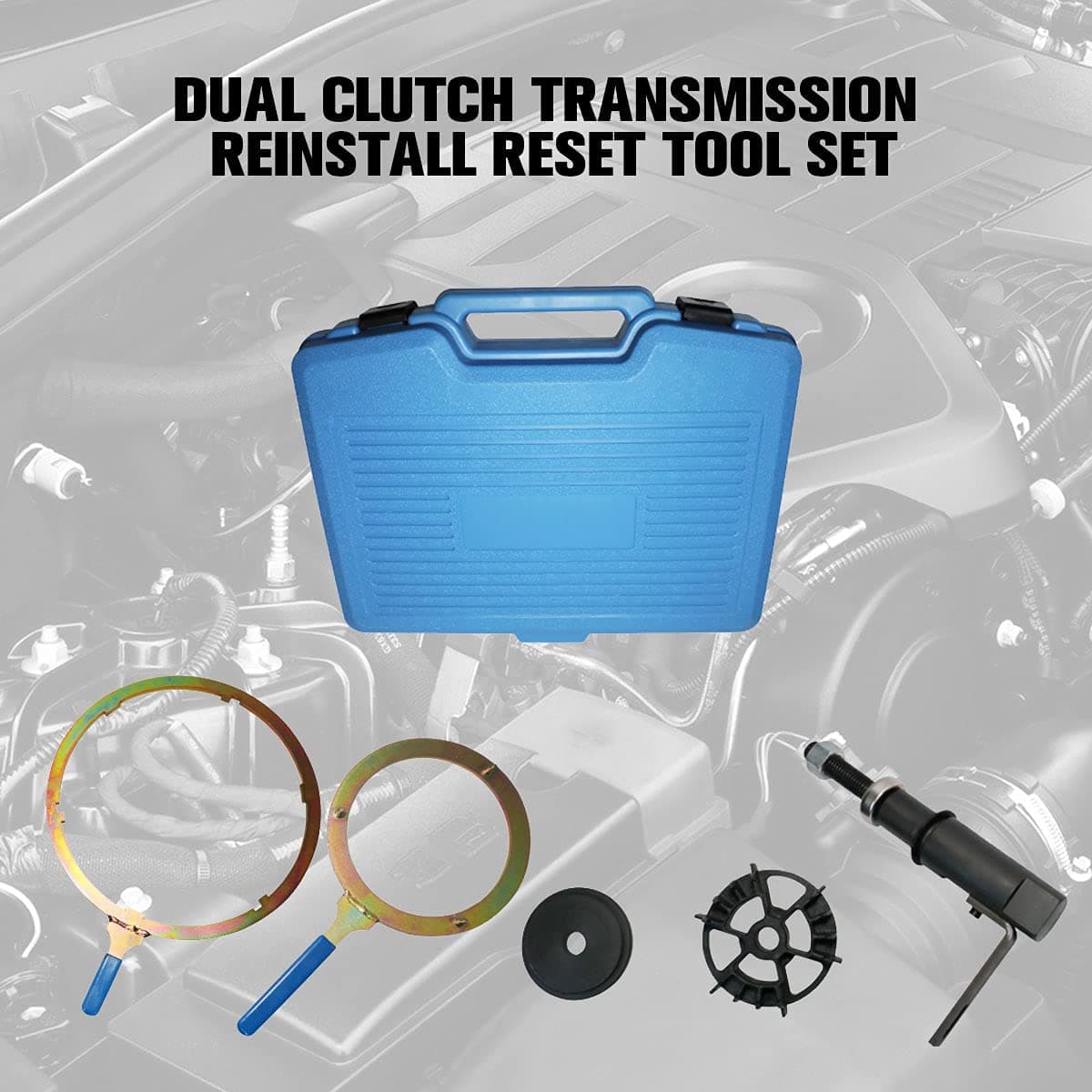

Dual Clutch Transmission Remover Installer Tool DSG Clutch Unlock Tool W/ Box Compatible Ford Focus Fiesta Volvo DCT for Reusable DPS6-DCT F1FZ-7B546-B

Step 1: Install the locking tool, and align the locking tool with the appropriate groove, in order to install the locking tool into the base cylinder. Step 2: Screw in the screws, pinch two wrenches and unscrew the bearing nuts. Step 3: After hearing a few crackling noises, remove the locking tool and confirm whether the internal card slot enters the round hole. Note: If the internal card slot does not enter the round hole, please continue this step. Step 1: Insert the locked double clutch, put in the mounting sleeve, install the extension feet on three sides to fix the appropriate holes, and fix the extension feet. Step 2: Unscrew the screws and observe whether they are in place. Once in place, remove the tool and install the retaining ring. Step 3: Remove the motors on both sides, insert the teeth of the motors with a hexagonal tool, and rotate them counterclockwise to the end (there is a clicking sound when rotating, and the double clutch slightly pops up). Step 4: Turn the other side counterclockwise again. Finally, install the motor. At this point, the dual clutch has been unlocked and can be loaded.You may also like Car Injector Puller Seal Installer Tool Set For BMW 335 X5 535i 750i 550i 130195.
