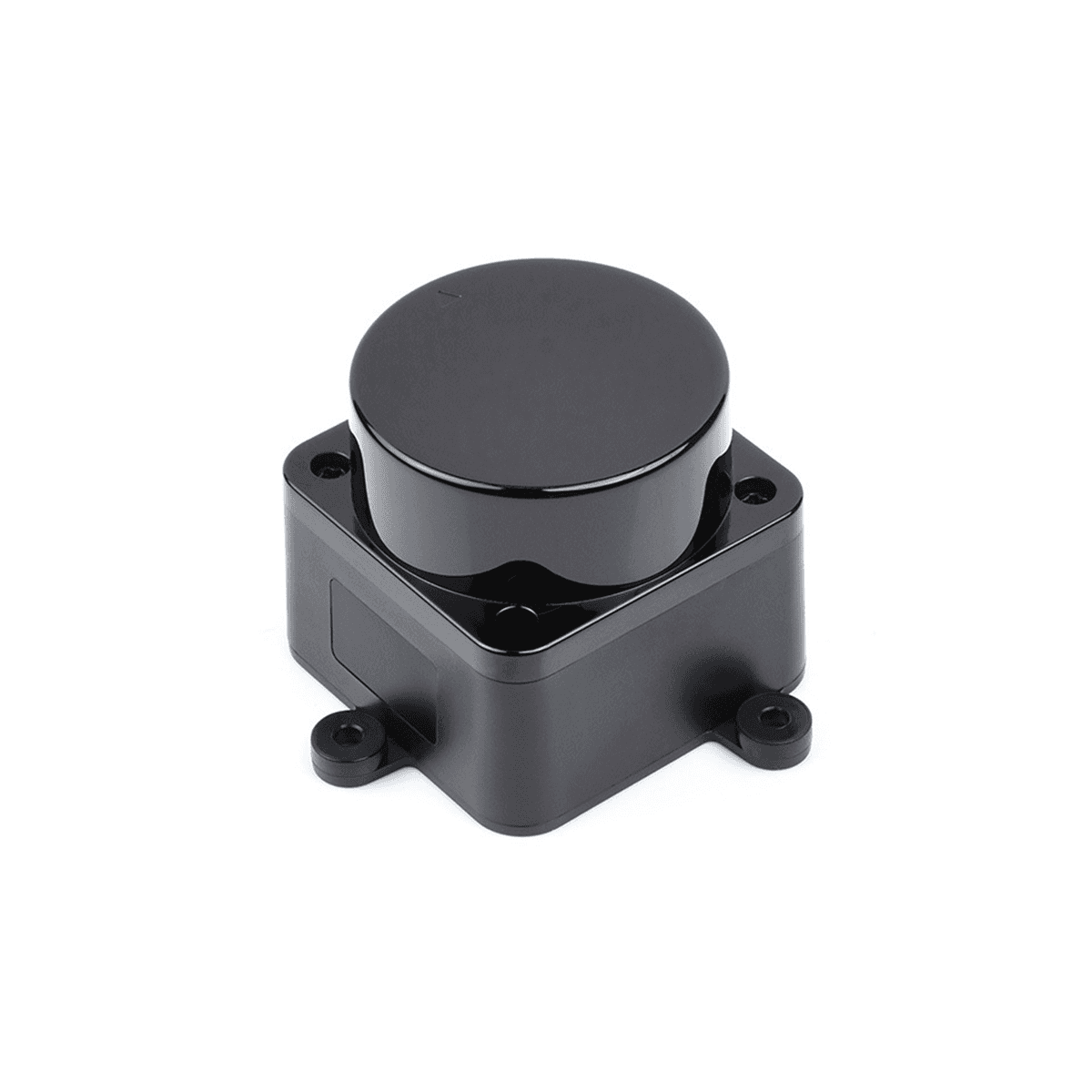

DTOF Lidar Sensor STL27L 360° Omni-Directional Time-Of-Flight Ranging UART Serial Port ma2383

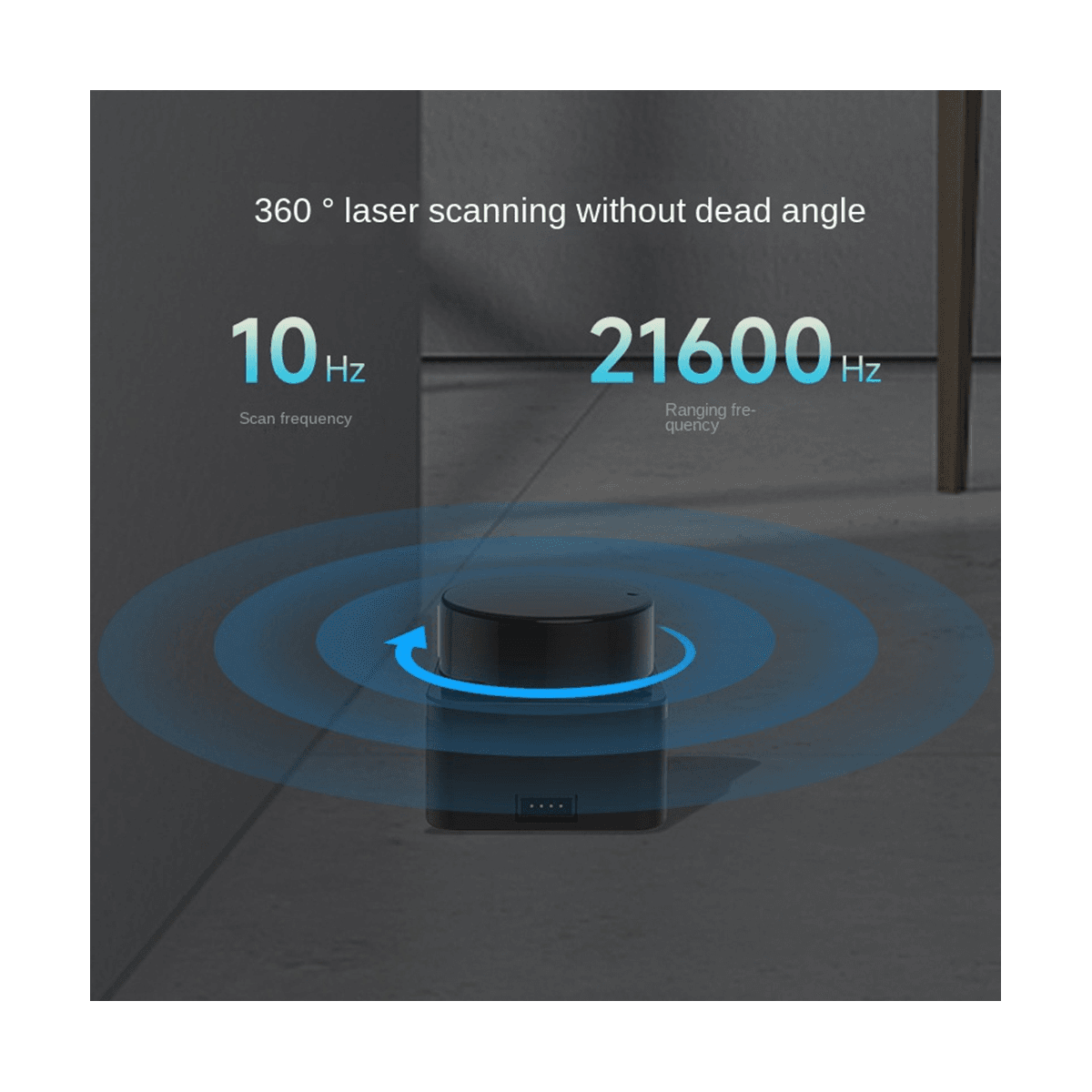

The -27L has a compact and small structure, with the same shape and mounting holes as the LD19 lidar. It is suitable for applications that have requirements on space and appearance. By comparing the time when the laser is emitted and the time when it is received by the photon receiving unit, calculate the flight time of the laser, which, combined with the speed of light, allows us to determine the distance.After obtaining the distance data, it is fused with the angle measurements from the angle measurement unit to form point cloud data. This data is then wirelessly transmitted to an external interface. The -27L consists mainly of a laser ranging core, a wireless power transmission unit, a wireless communication unit, an angle measurement unit, a motor drive unit, and a mechanical case. The laser ranging core of the -27L uses DTOF (Direct Time of Flight) technology, enabling it to perform 21,600 distance measurements per second. During each measurement, the lidar emits infrared laser that are reflected back to a single photon-receiving unit upon encountering a target object.
