Dometic DME 207500310 White Boating | sku-33274202

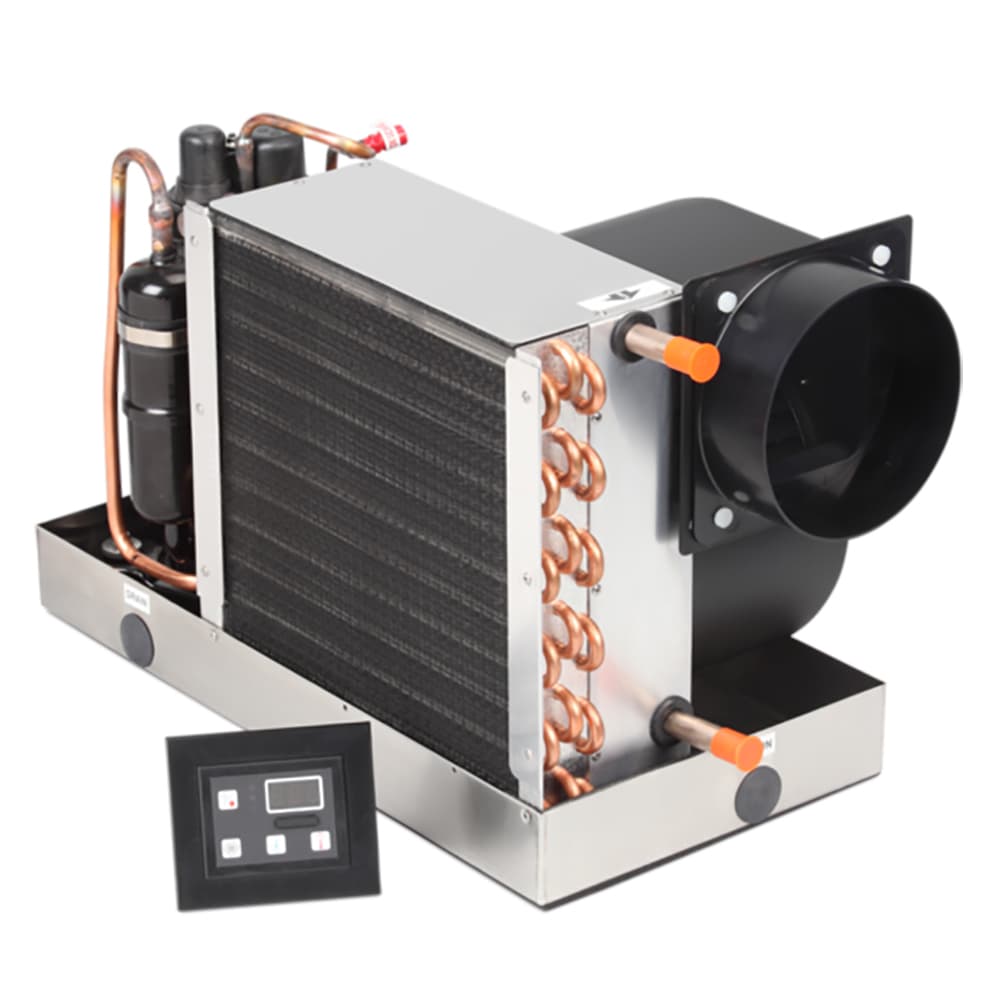

Dometic DME 207500310 White Boating equipment (sku-33274202, UPC 713814198473) is the EnviroComfort ECD10K-HV AC retrofit kit. This 10,000 BTU, 115V reverse-cycle unit provides cooling and heating aboard a boat. It can replace a self-contained air conditioner rated from 8,000 to 11,000 BTU or be used for a new installation. The source also uses the spellings 115v and 115 V for the voltage.

Its high-velocity blower has an internal motor and rotates for horizontal or vertical installation. The unit has a stainless-steel drain pan, a removable return-air filter, R-410a refrigerant, a remote electrical box, and a Dometic Passport I/O digital control and display (part 9600005997). The legacy part number is 207500310.

Specifications include 42 A starting current, a 25 A maximum and 12 A minimum fuse rating, 50/60 Hz input, 10,000 BTU cooling capacity, a 6" minimum supply duct, and a .625" seawater inlet. Dimensions are 13.25" high by 20" wide by 9.63" deep. The box contains the self-contained unit, digital control with bezel and 15' cable, and instruction manual. Sold individually.

Warning: This product can expose you to arsenic, which the State of California identifies as causing cancer or other reproductive harm. See p65warnings.ca.gov. It cannot be returned to the original point of purchase; contact the manufacturer with issues or concerns. Manual: https://productimageserver.com/literature/ownersmanual/89768om.pdf
