Electronix Express DM207 Multimeter sku-1572205041

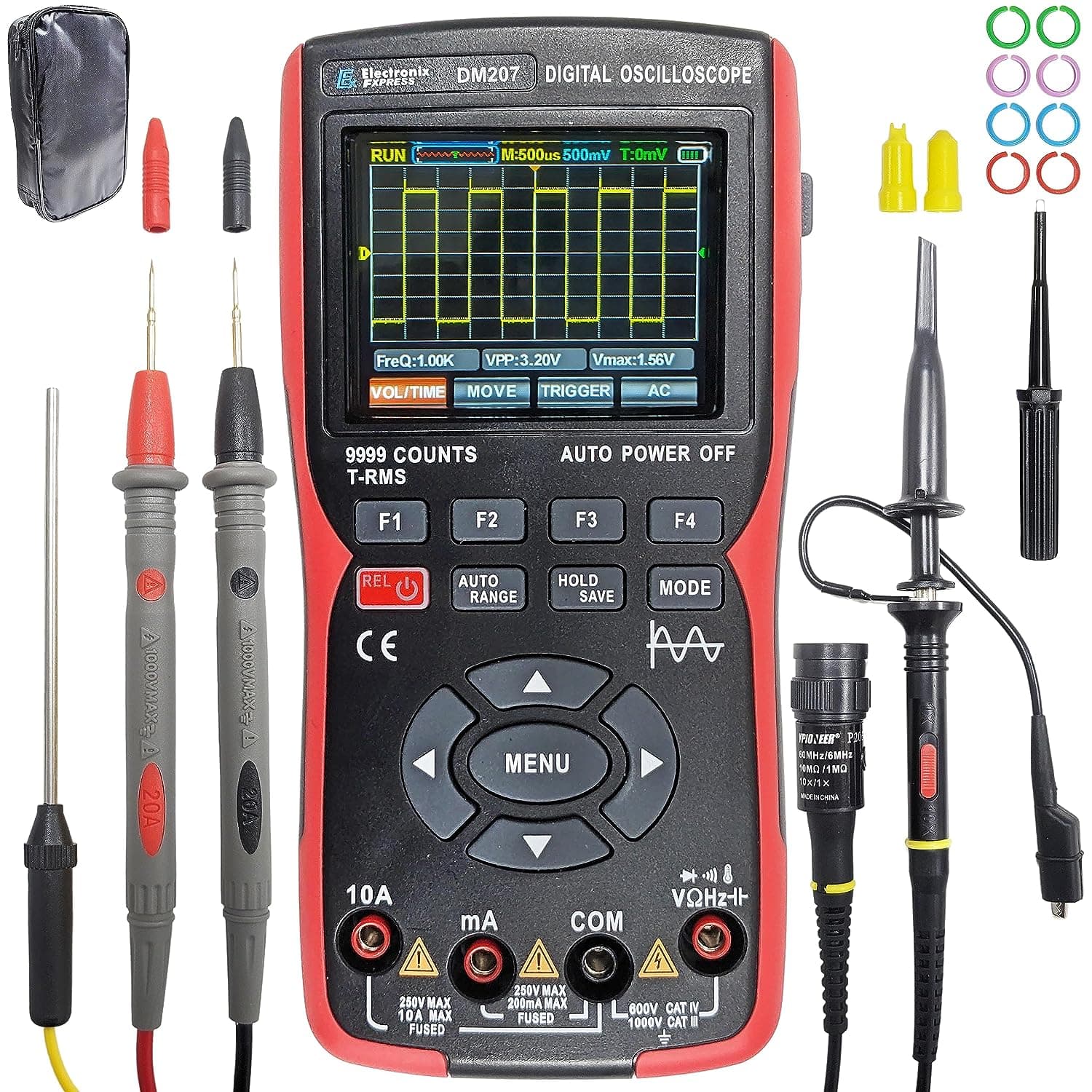

Electronix Express DM207 Hand Tools, sku-1572205041, UPC 679771630398: This 2-in-1 handheld instrument combines an oscilloscope and a true RMS digital multimeter. The MODE button switches between them. It has a 2.8 inch backlit color screen with 4 brightness settings, a preinstalled rechargeable 18650 battery and a USB-C cable for charging and transferring saved measurement and waveform images to a computer. The oscilloscope has 10MHz bandwidth, 1 channel, 48MSa/s real-time sampling, a maximum 64Kbyte record length, AC/DC input coupling, 1MΩ input resistance at 16pf, X1 and X10 probe attenuation, and a 150V maximum input voltage (DC plus AC peak). Its sample-rate range is 1.5Sa/s to 48MSa/s, with (sinx)x waveform interpolation, sweep speeds from 50ns/div to 20s/div, 20ppm time-base accuracy and vertical sensitivity from 20mV/div to 10V/div. The multimeter has 9999 counts. It measures AC voltage from 0-750V, DC voltage from 0-999.9V, DC/AC current from 0-9.999A, resistance from 0-99.99MΩ, capacitance from 0-9.999mF, frequency from 0-99.99kHZ and temperature from -20°C to 1000°C. It also measures diodes and continuity. Other functions include one-button automatic measurement, time-base calibration, screenshot saving, memory, a 3V-1kHZ square-wave output and automatic shutdown after 15, 30, 60 or 120 minutes, or no time limit. Overload protection is listed as CAT III 1000V and CAT II 600V; the instrument meets CE certification requirements and has A/D high-sampling conversion and a 200mA-10A double ceramic fuse. Included are a user manual, zippered case, USB-C charging and data cable, 60MHz x1/x10 oscilloscope probe with retractable hook tip, adjustment tool, 2 locating sleeves, 8 marker rings and ground lead, plus multimeter leads and a temperature probe.
