Digital Yacht ZDIGGPS160 GPS Boating | sku-741842570

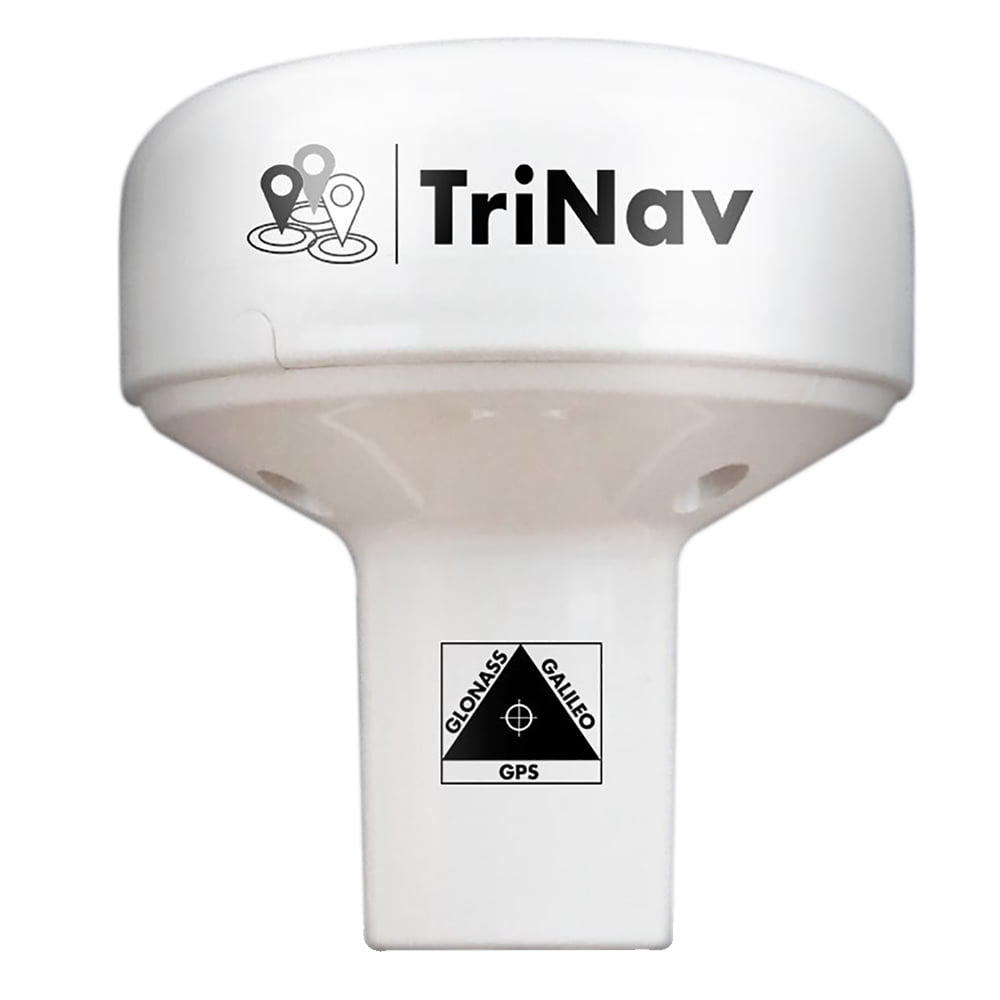

Digital Yacht ZDIGGPS160 is a Multicolor, Unisex GPS160 TriNav sensor for Boating, with NMEA 0183 output. SKU sku-741842570; UPC 703791696031. It combines GPS, GLONASS and Galileo signals for positioning, or can be set to use one system. Its 72-channel receiver typically provides sub-1m accuracy. An anti-spoofing algorithm helps reject interference.

Internal DIP switches select 4800, 38400 or 115200 baud, the NMEA data format and an update rate up to 18Hz. The sensor accepts an external MOB switch; activation sends a synthetic AIS SART MOB message to a connected plotter. Power consumption is under 20mA at 12V DC. It supports ECDIS datum sentences and can be installed as a puck or on a 1-inch x 14 TPI threaded mount.

USB, wireless and NMEA 2000 variants are also described; the NMEA 2000 bundle uses iKonvert. The USB version connects to PC, Mac or Linux. The source describes Galileo as a third positioning source and says full operation was planned for 2020. Box dimensions are 4 inches high by 7 inches wide by 10 inches long; weight is 1.2 lb.
