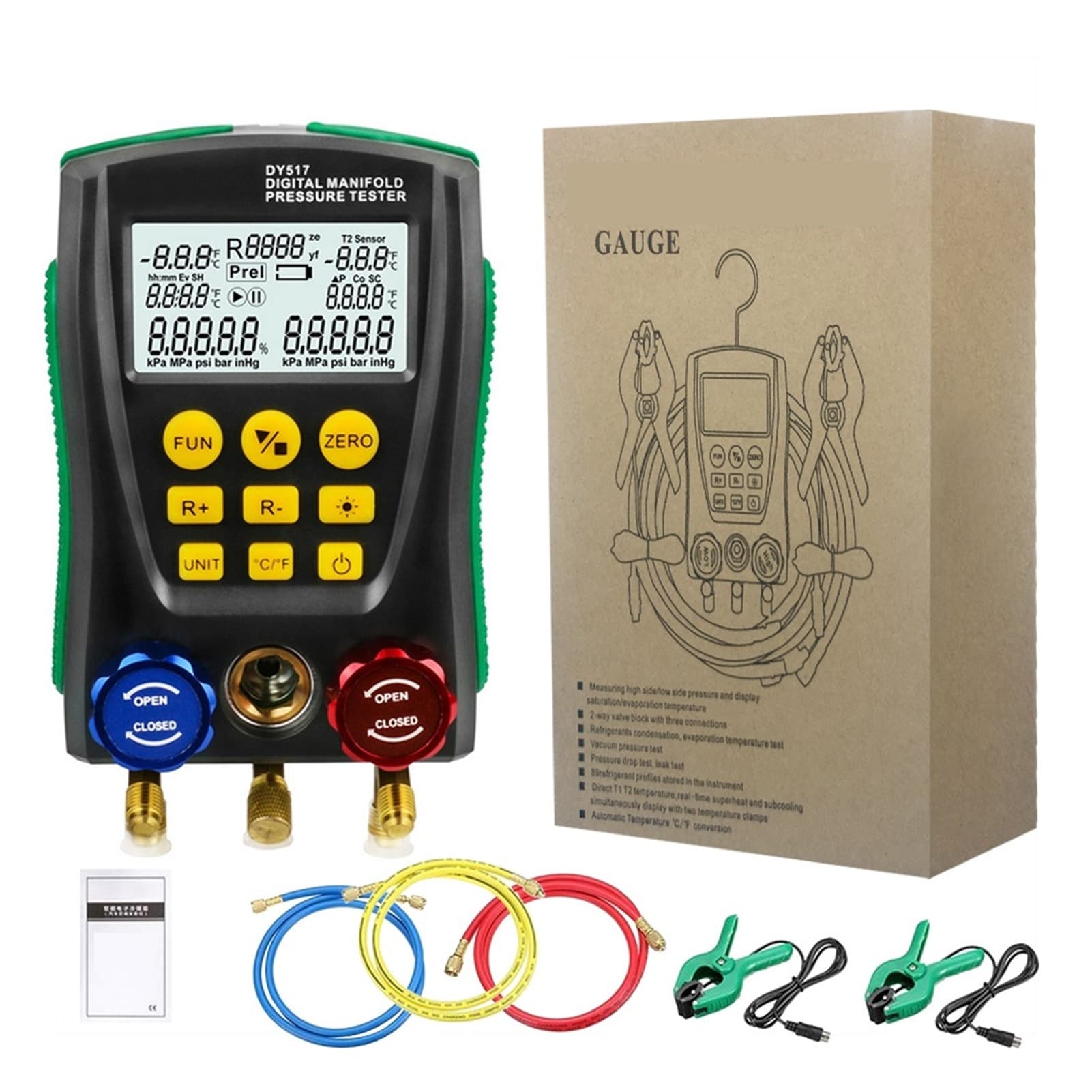

Digital Manifold Gauge Refrigeration Air Pressure Gauge For Refrigerant Manifold Gauge Set

Specifications: Housing material: ABS/PA/TPU Dimensions: 265 x 135 x 75 mm/10.43 x 5.31 x 2.95" Weight: approx. 1000 g Parameters: pressure: kPa/MPa/bar/psi, temperature: // K. Sensor: pressure: 2 x pressure sensor, temperature: 2 x NTC Meas. Cycle: 0.5s Interface pressure connection: 3 x 7/16 "UNF, NTC measurement Measuring range: HP/LP pressure ranges: -100 to 6000 kPa / -0.1 to 6 Mpa / -1 to 60 bar (rel) / -14.7 to 870 psi Temperature range: -50 to + 150/ -58 to 302 Vacuum measurement range (rel) : -1 to 0 bar / -14.7 to 0 psi Overload: 65 bar, 6500 kPa, 6.5 Mpa, 940 psi Resolution: pressure resolution: 0.01 bar / 0.1 psi / 1 kPa / 0.001 MPa Temperature resolution: 0.1/ 0.1 Refrigerant quantity: 60 Environmental conditions: operating temperature: -20 to 50/ -4 to 122°F Storage temperature: -20 to 60/ -4 to 140 IP level: 42 Battery: 4 x AA (not included) type: luminescent LCD Response time: 0.5 seconds Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow slight measuring deviation due to manual measurement. Package: 1 X Refrigerator Manifold Pressure Gauge Set
