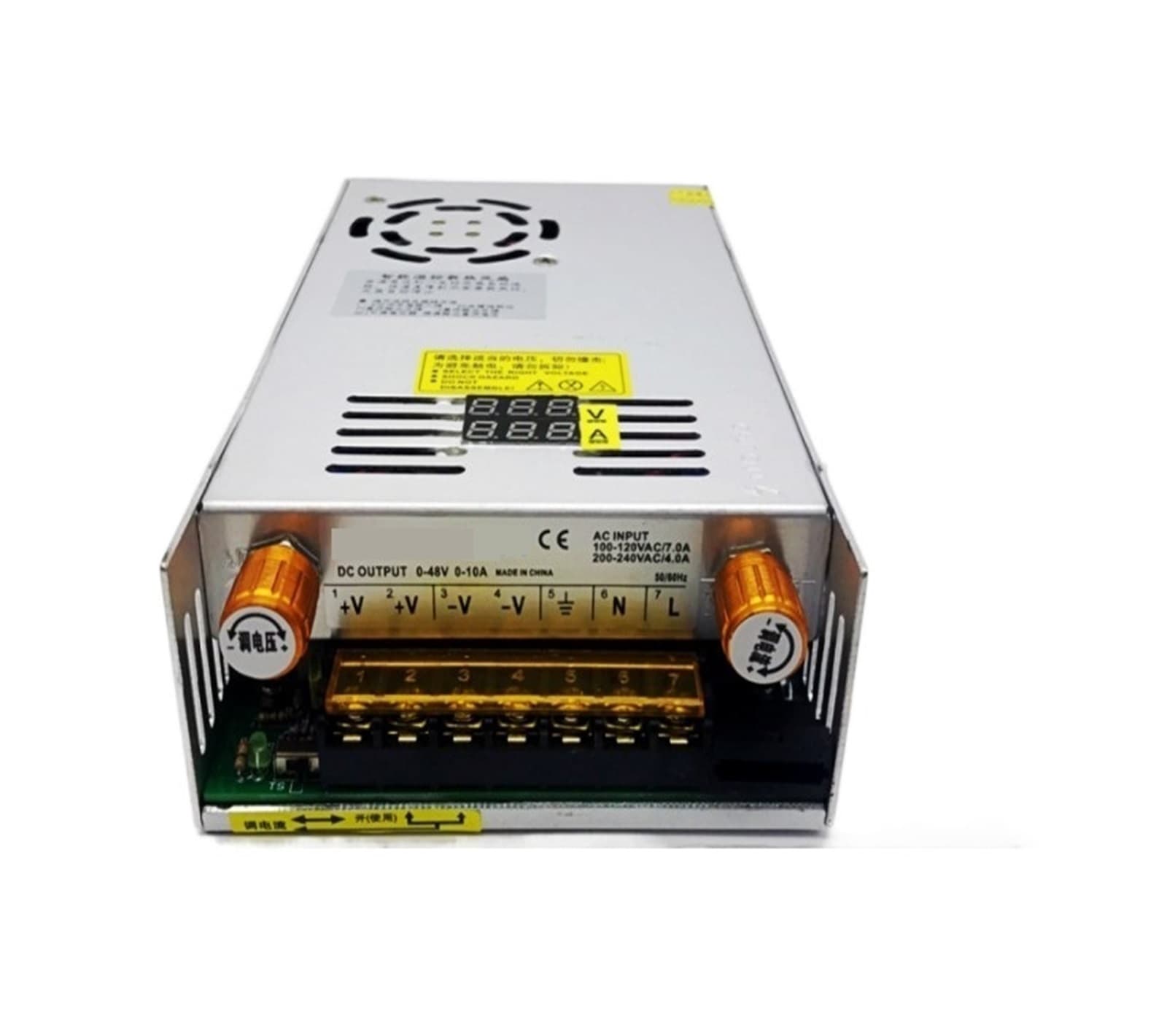

Digital Display Adjustable DC 480W Switch Power Supply, 0-5-12-24-26-48-60-80-120-160-220

Name: Digital Display Adjustable DC 480W Switch Power Supply, 0-5-12-24-26-48-60-80-120-160-220
Brand: Eugene Color
SKU: prod_d3d5ef90f00cfc98ae0360ce
Price: 215.00 USD
Availability: InStock

No rating yet(0 ratings)

No matter how much voltage is adjusted and the current is 60A, the current is not adjustable, and the actual current is determined by the load. Any device with a current less than 60A can be used, and any device with a current greater than 60A cannot be used These 9 current limiting and adjustable regulated power supplies have stable and reliable performance, with a DC output voltage ranging from(0-5)(0-12)(0-24)(0-36)(0-48)(0-60)(0-80)(0-120)(0-160)(0-220) Continuously adjustable, high adjustment accuracy, high-precision multi turn potentiometer, overload current limiting function, current limiting output(0-60A)(0-40A)(0-20A)(0-15A)(0-10A)(0-8A)(0-6A) (0-4A) (0-3A) (0-2.2A) Continuously adjustable, 0-5V signal control voltage and current, power 0-480W 1, Technical performance indicators 1.

Output voltage range: 0-5 continuously adjustable, output current: 60A, (adjustable to 8) digital display meter number: 3 digits Output voltage range: 0-12 continuously adjustable, output current: 40A, (adjustable to 15) digital display meter number: 3 digits Output voltage range: 0-24, continuously adjustable, output current: 20A, (adjustable to 27), digital display meter number: 3 digits Output voltage range: 0-36, continuously adjustable, output current: 15A, (adjustable to 38), digital display meter number: 3 digits Output voltage range: 0-48, continuously adjustable, output current: 10A, (adjustable to 50), digital display meter number: 3 digits Output voltage range: 0-60, continuously adjustable, output current: 8A, (adjustable to 62), digital display meter number: 3 digits Output voltage range: 0-80, continuously adjustable, output current: 6A, (adjustable to 82), digital display meter number: 3 digits Output voltage range: 0-120, continuously adjustable, output current: 4A, (adjustable to 122), digital display meter number: 4 digits Output voltage range: 0-160, continuously adjustable, output current: 3A, (adjustable to 162), digital display meter number: 4 digits Output voltage range: 0-220, continuously adjustable, output current: 2.2A, (adjustable to 222), digital display meter number: 4 digits 2.

Current limiting output current range: (0-40A) (0-20A) (0-15A) (0-10A) (0-8A) (0-6A) (0-4A) (0-3A) (0-2.2A) Continuously adjustable 3. Ripple voltage; Not greater than 100mV 4. Equivalent internal resistance for voltage stabilization: not greater than 0. O5 5. Voltage regulation rate: 6.

Equipped with short-circuit current limiting protection and automatic recovery function Operation and usage (How to limit the current) Adjust the current? 1. When operating under power outage, turn the small toggle switch in the lower left corner to the current regulation position 2. Pull out the (dedicated current adjustment ) and connect it to the second and third ports of the wiring port.

Use a screwdriver to loosen the port screws, then tighten them with a screwdriver (connected to the power supply at this time). After connecting them, the voltage of the digital display meter shows 0.00V, and the current displays the current parameters. At this time, the power supply will emit a squeaking current sound 3.

On the right side (current adjustment knob), the desired current limiting parameters can be adjusted, and the current parameters can be displayed synchronously with the digital display meter. The entire range of 0-21A/0-16A/0-11A/0-6.5A can be adjusted 4. Remove the (special current regulating ) and insert it back into the original holder.

After removing it, the digital display meter shows a voltage of about 0.90V and a current of 0.00A 5. Pull the toggle switch in the bottom left corner to the right towards the "on (use)" position 6. The current power supply is at the parameter value of the current limit just now.

No matter how much V the power supply is adjusted to (the digital display shows the output voltage in real time), the current remains unchanged. When the current reaches 95% of the current limit parameter during use, it begins to reduce voltage and overload protection begins 7.

At this time, the current parameter displayed on the digital display meter is the current value of the equipment load, and real-time monitoring of the load current When there is a load device connected, the current value can be directly adjusted in real time. The current value displayed on the digital display is the current value of the load device.

If the current adjustment knob is clockwise and exceeds the current value of the device, the digital display current value will not be continuously synchronized in real time, and only the current value of the device will be displayed. If there is no need for current limiting, use general equipment without the above operation.

Turn the pull-out switch in the lower left corner to the "on" position and turn the current adjusting knob clockwise to the top. At this time, the current limiting is 21A/16A/11A/6.5A/4A, and the power parameter is output 0-24V21A/0
