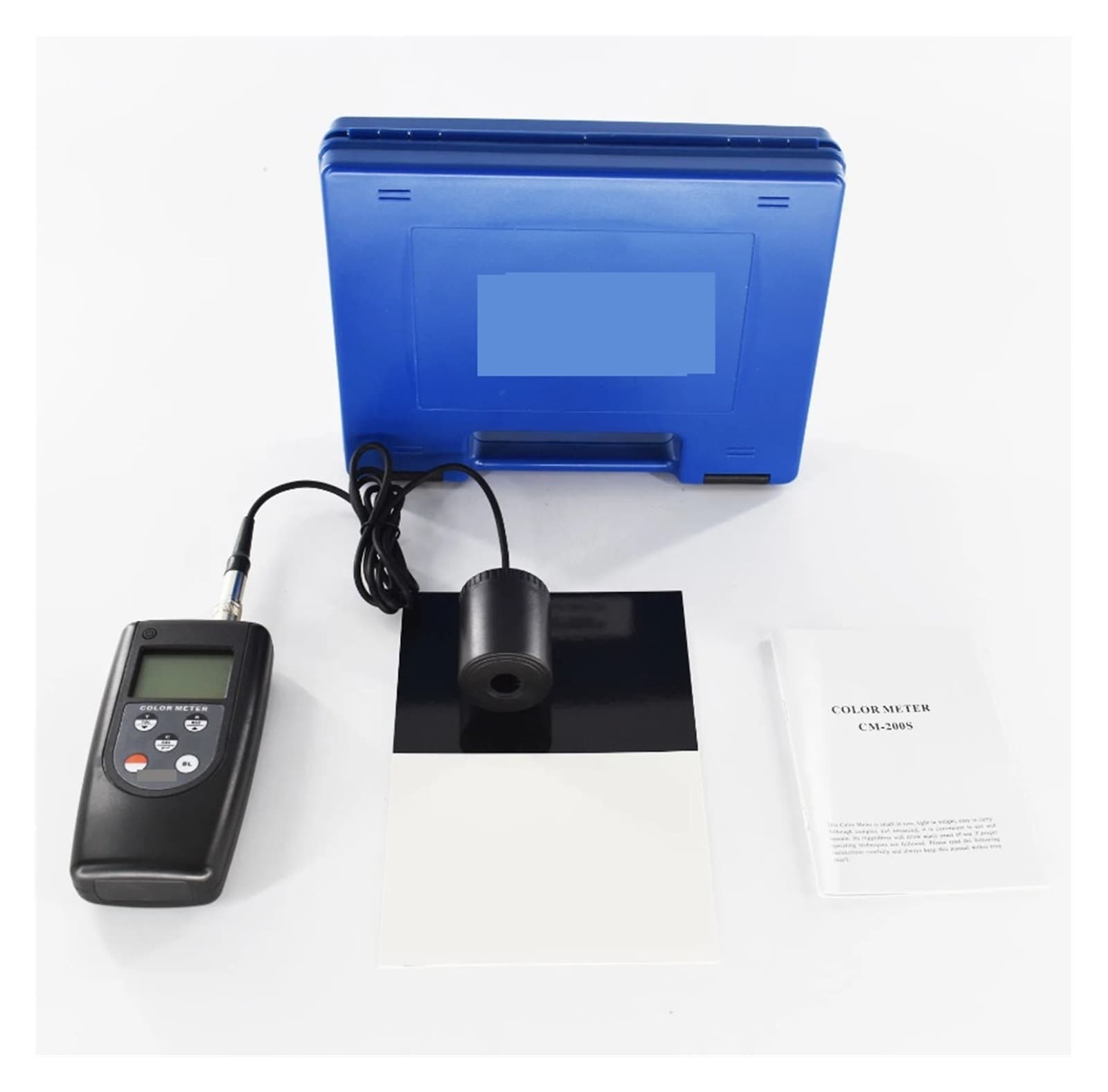

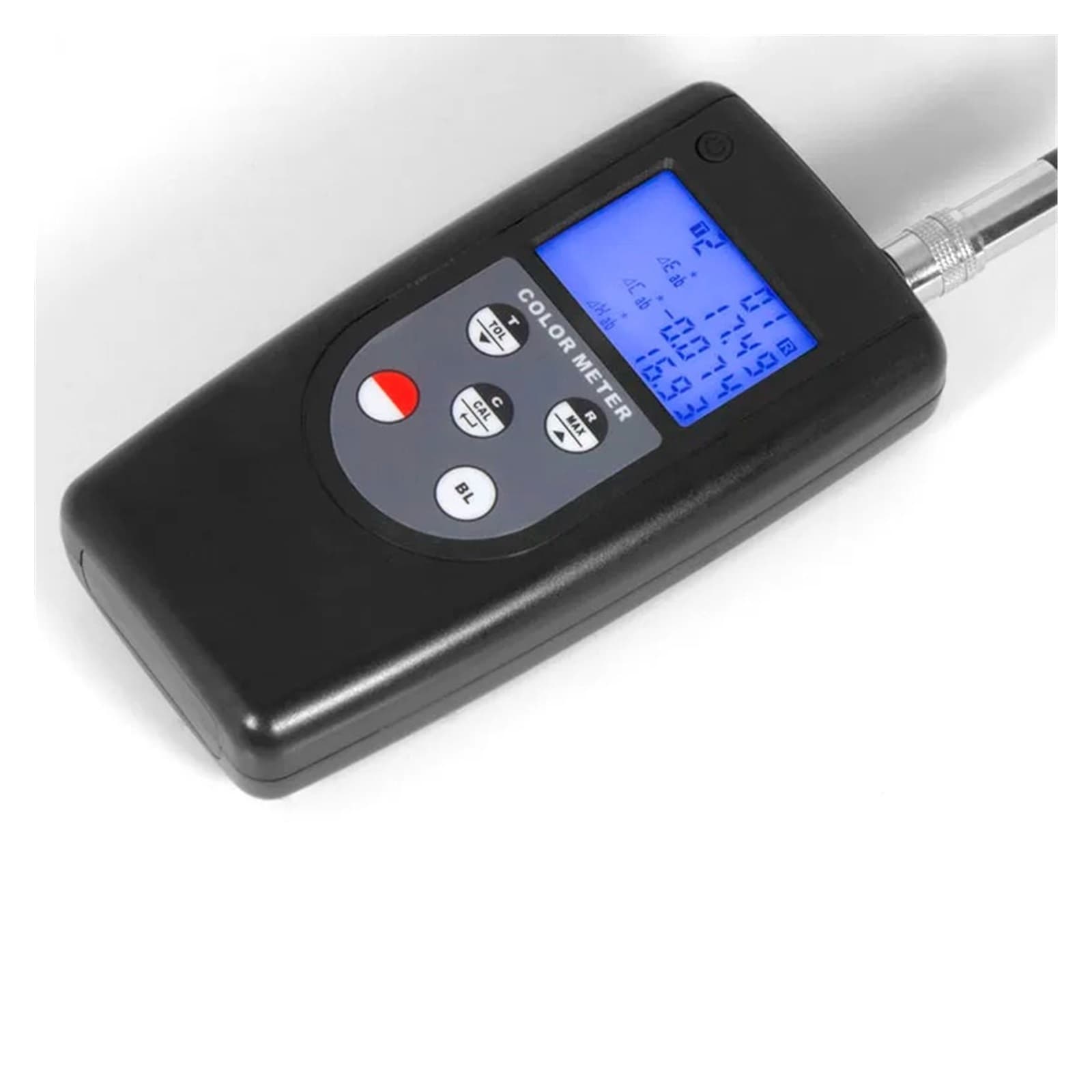

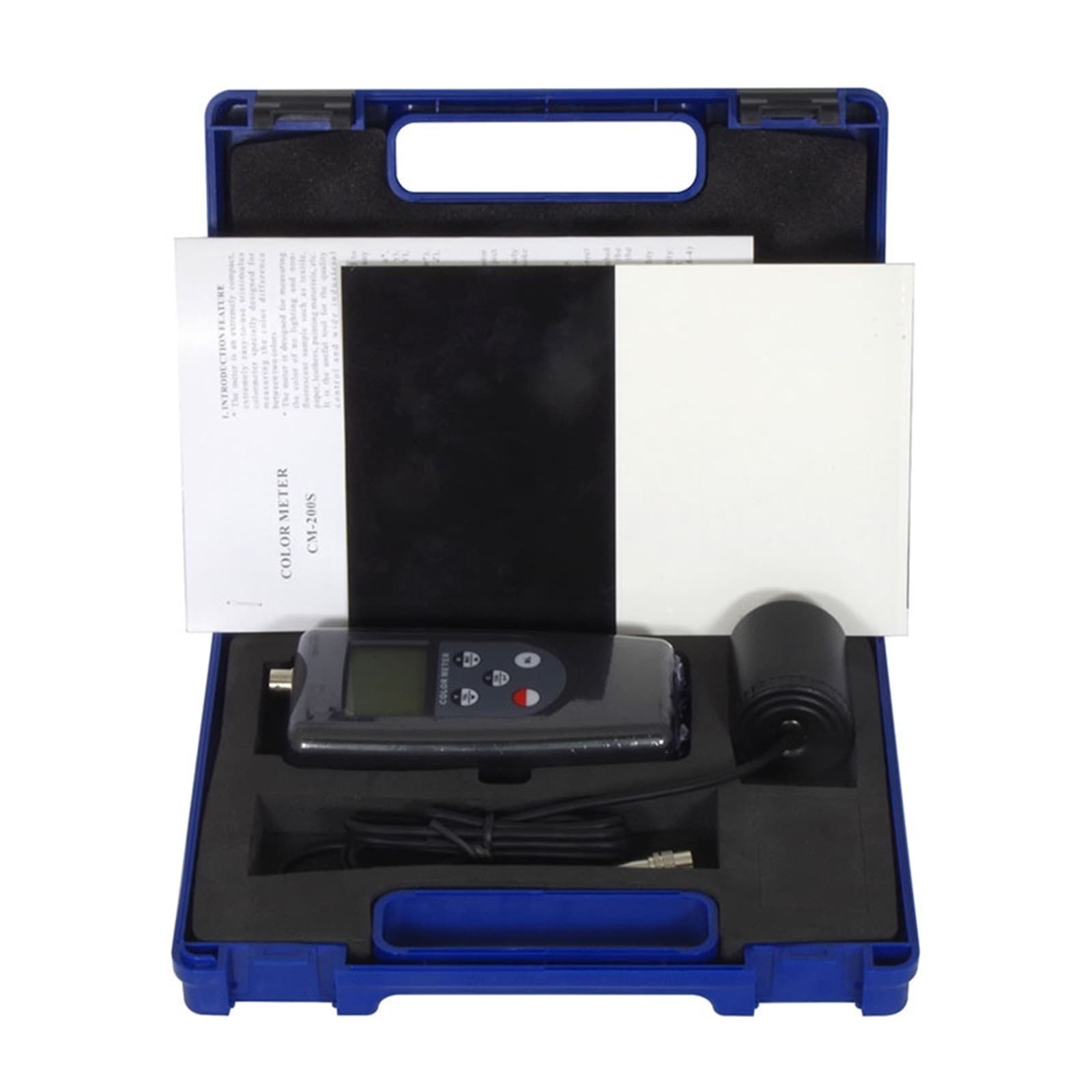

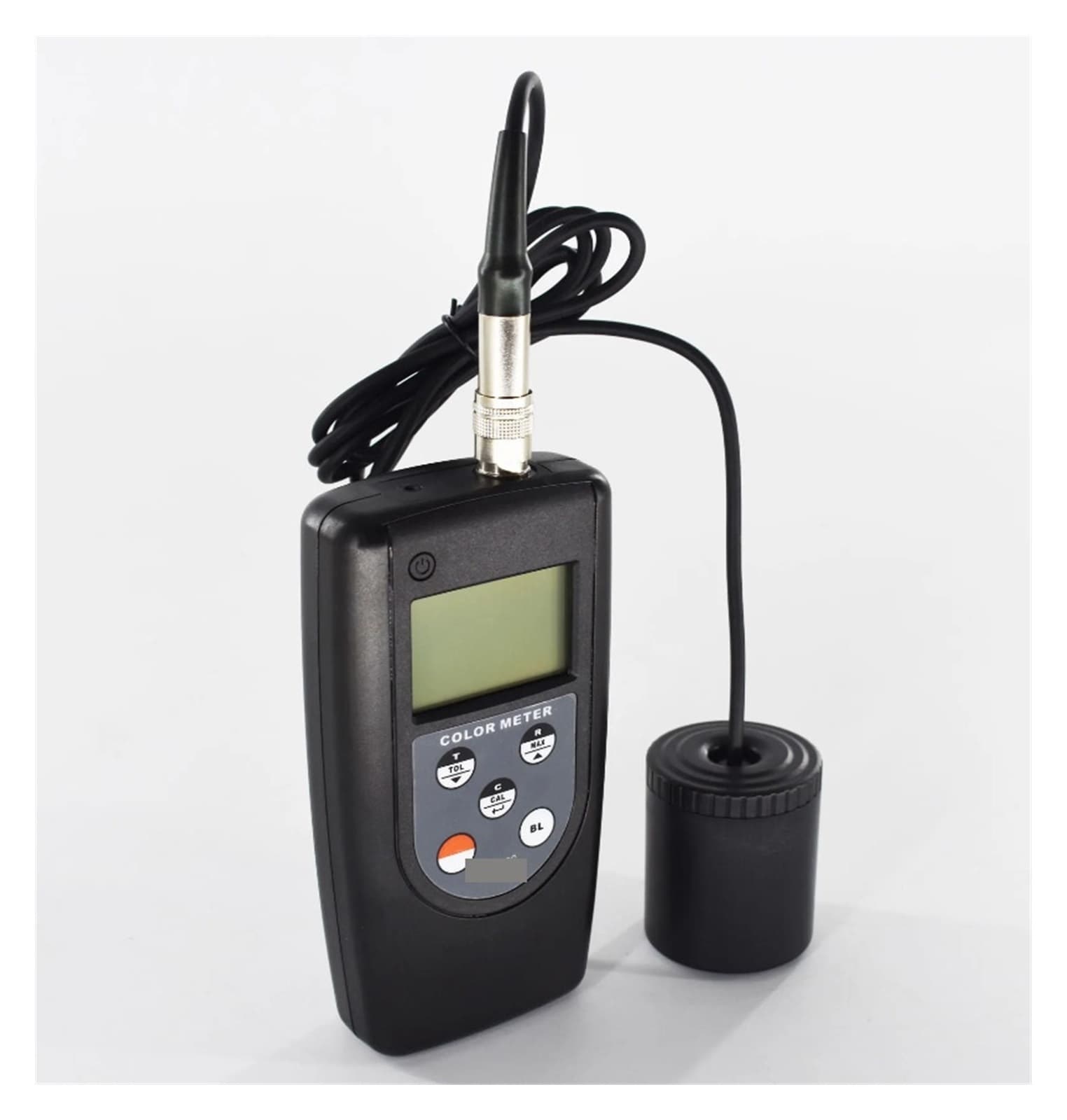

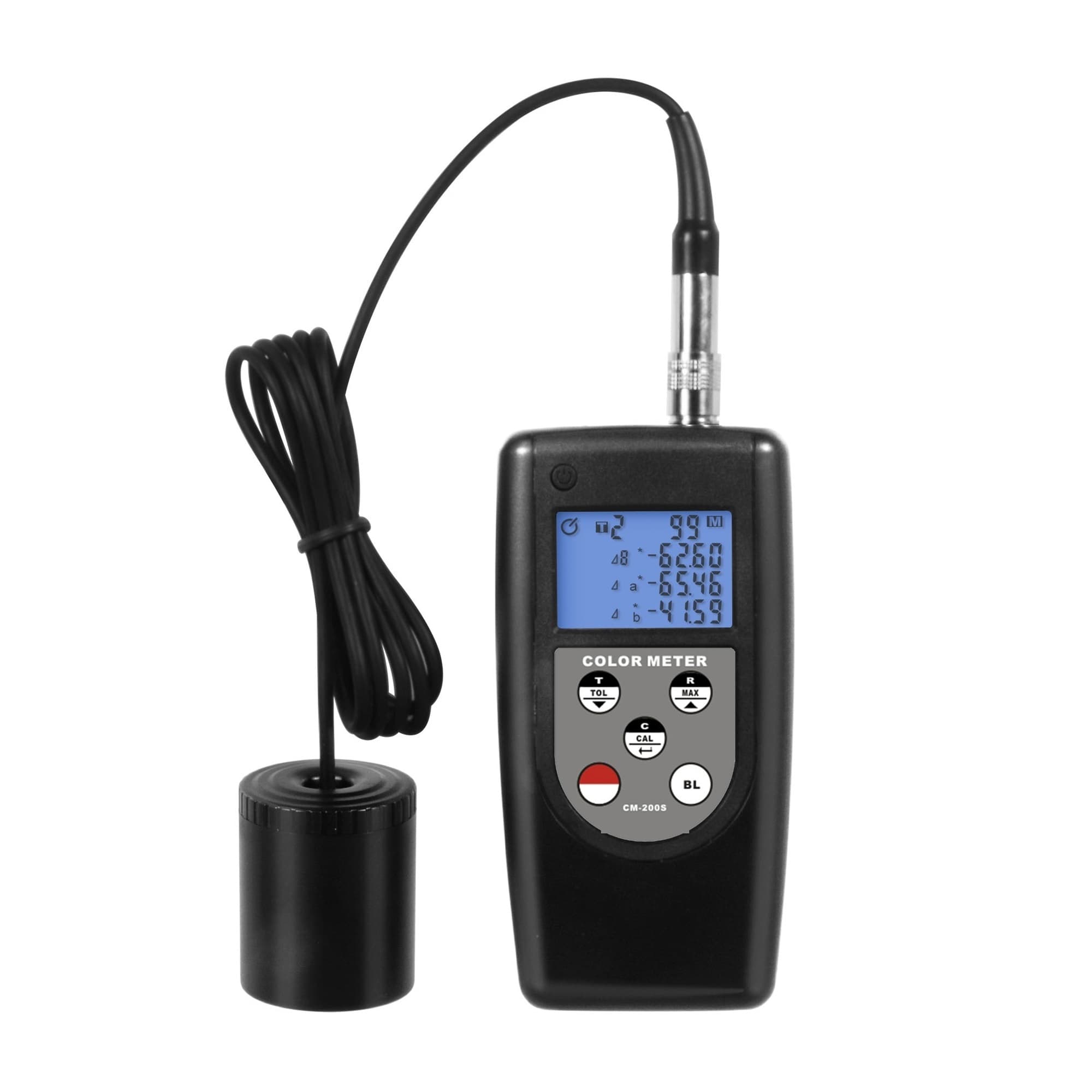

Digital Color Meter 8/D Colorimeter Illuminating Color Analyzer -------- Accurate Color Matching

Digital Color Meter 8/D Colorimeter Illuminating Color Analyzer Spec: The meter is an extremely compact, extremely easy-to-use tristimulus colormeter specially designed for measuring the color difference between two colors. Features: The meter is designed for measuring the color of no lighting and non-fluorescent sample such as textile, paper, leathers, painting materials, etc. It is the useful tool for the quality control and wide industrial application. * Color difference displayed (L*, a*, b*), (E*ab, C*ab, H*ab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw). * Color space displayed (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw). * Statistical function (Maximum, Minimum, Avera and Standard Deviation). * Color difference tolerance set to perform PASS / WARN / FAIL. * Store 9 color-difference tart colors. * User calibration function ensures higher accuracy. * Auto memory (99 sets) & Read function Digital backlight display. * Auto power off function. * Applies USB, data output. * Use USB data output to connect with PC. * Provide data output choice. Specification: Display Triple 4 digit LCD Display Auto power off Approx. 3 minutes Data memory capacity 99 set. (Direct reading from LCD display) Low battery indication Illuminating/Viewing ometry 45/0: Illumination at 45, measurement at 0 Measuring area Color difference: (L*,a*,b*), (E*ab,C*ab,H*ab), (Y,x,y), (X,Y,Z), (Rs,Gs,Bs) or (WI,YI,Tw) Color space: (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw) Tart color memory 9 channel; set by measurement or keypad Measuring ran L*: 5 to 100 Measurement conditions Observe: CIE 2 Standard Observer Illuminant White LED lamp Repeatability Standard deviation within E*ab 0.5 (Measurement conditions: Avera of measurements of standard white plate) Minimum interval between measurements Approx. 2 seconds Operating temperature and humidity < 85%RH. Stora temperature and humidity < 70%RH. Power source 4x1.5 AAA (UM-4) Battery Dimensions 140x73x35mm (5.5x2.9x1.4inches) Weight(Not Including Batteries) Approx. 220g with battery Standard Accessories Main Unit Measuring head White calibration card Carrying Case (B04) Manual Related Products:color analysis,colorimeter,color meter,spectrophotometer,color analysis kit,spectrometer handheld,lab colorimeters,spectrometer analyzer,color sensor colorimeter,portable color analyzer,paint color matching device,color reader for paint matching
