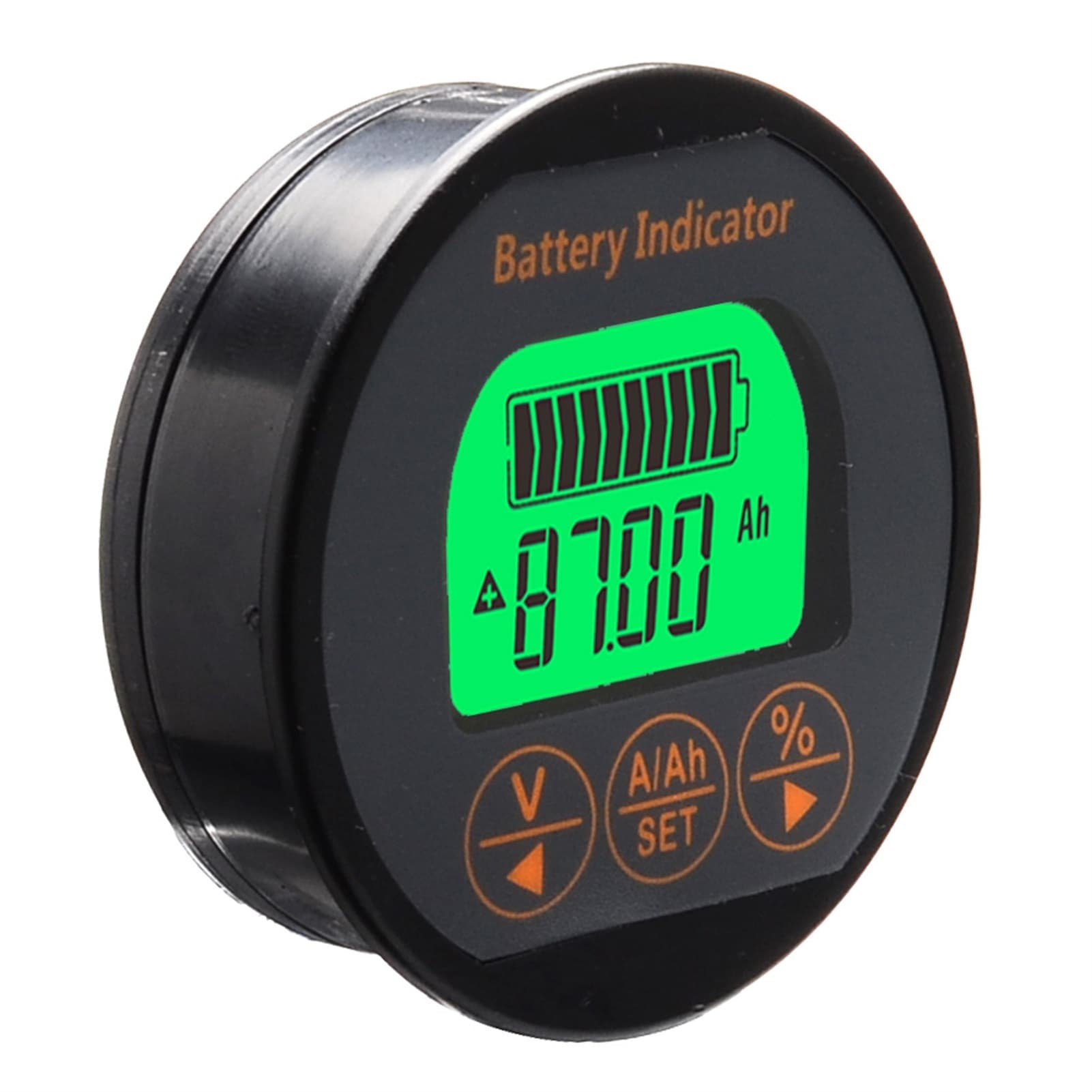

Eugene Color TR16 Other Battery Tester sku-12009017800

Eugene Color TR16 is a battery capacity tester, also called a coulometer, listed under Electrical Tools in the color Other. SKU: sku-12009017800. The listing describes a DC8-80V tester with 50A/100A/350A options for Pb, Li-ion, LiFePo, NiMH and NiCd batteries. It measures voltage, current and capacity, and has a memory function.

It is intended for lithium, lithium iron phosphate, lead-acid and nickel-metal hydride batteries with a working voltage from 8V to 80V. Suggested uses include portable equipment, e-bikes, balance cars, cleaning machines, instruments and UPS equipment. For setup: 1.

Connect the tester and check that the displayed current matches the actual current while charging or discharging; check the connection if the screen does not respond or the readings differ substantially. 2. On first use, fully discharge the battery and hold the key for 3 seconds to set capacity to zero, or fully charge it and hold the key for 3 seconds to set capacity to full.

Repeat this after replacing the battery. 3. If displayed capacity differs from actual capacity, discharge the battery and hold the key for 3s to reset to zero, set a high capacity value, fully charge the battery, then set the displayed value as the preset capacity. The package contains 1 battery tester, 1 shielded wire (1m), 1 shunt, 1 bracket and 1 English user manual.
