Wanptek DPS3010U Bench sku-5141119629 DPS3010U 30V/10A

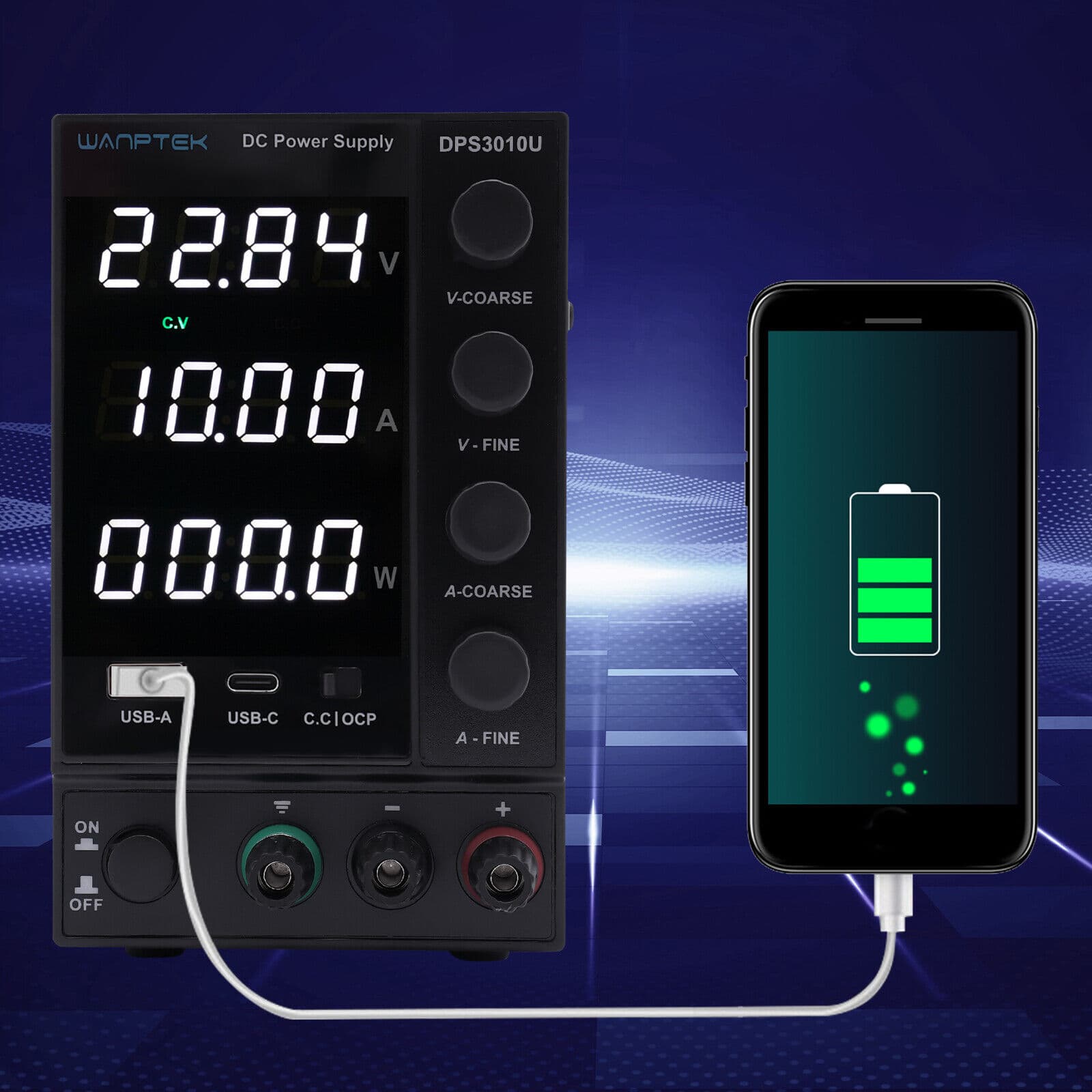

The Wanptek DPS3010U 30V/10A power supply, sku-5141119629, UPC 749767330622, is listed under Electronic & Bench Testing. Model DPS3010U has an adjustable 0-30V output, a 0-10A current range and 300W output power. Its auxiliary USB output supports multiple quick-charging protocols at 18w. Input is AC110V at 60HZ.

The working temperature range is 0-40°C at up to 80% relative humidity; storage is -10-70°C at less than 70% relative humidity. In constant-voltage mode, voltage and load stability are each rated at ≤0.1% + 3mv, with ripple noise ≤20mvrms. In constant-current mode, current stability is ≤0.1% + 3MA, load stability is ≤0.2% + 3MA, and ripple noise is ≤5mArms.

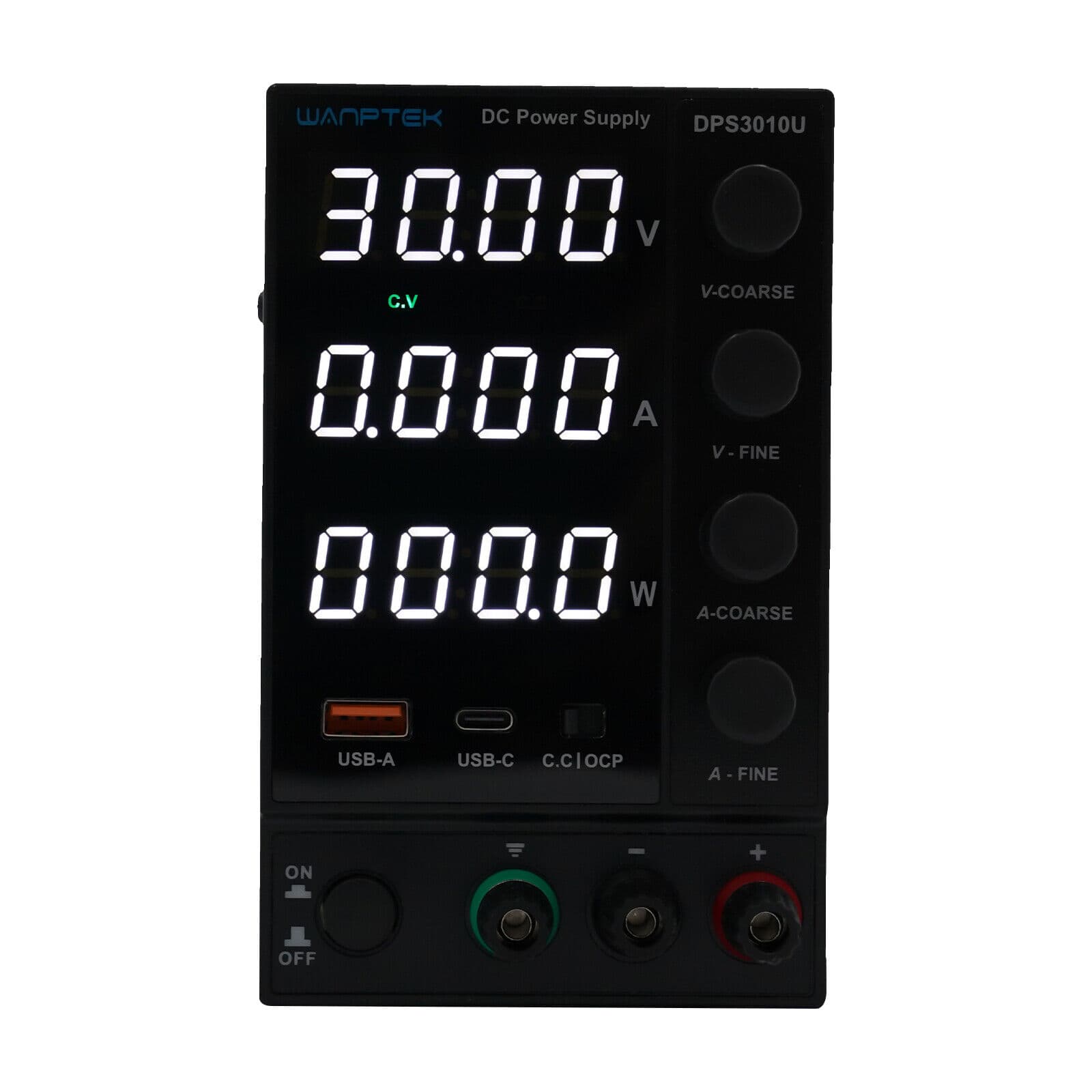

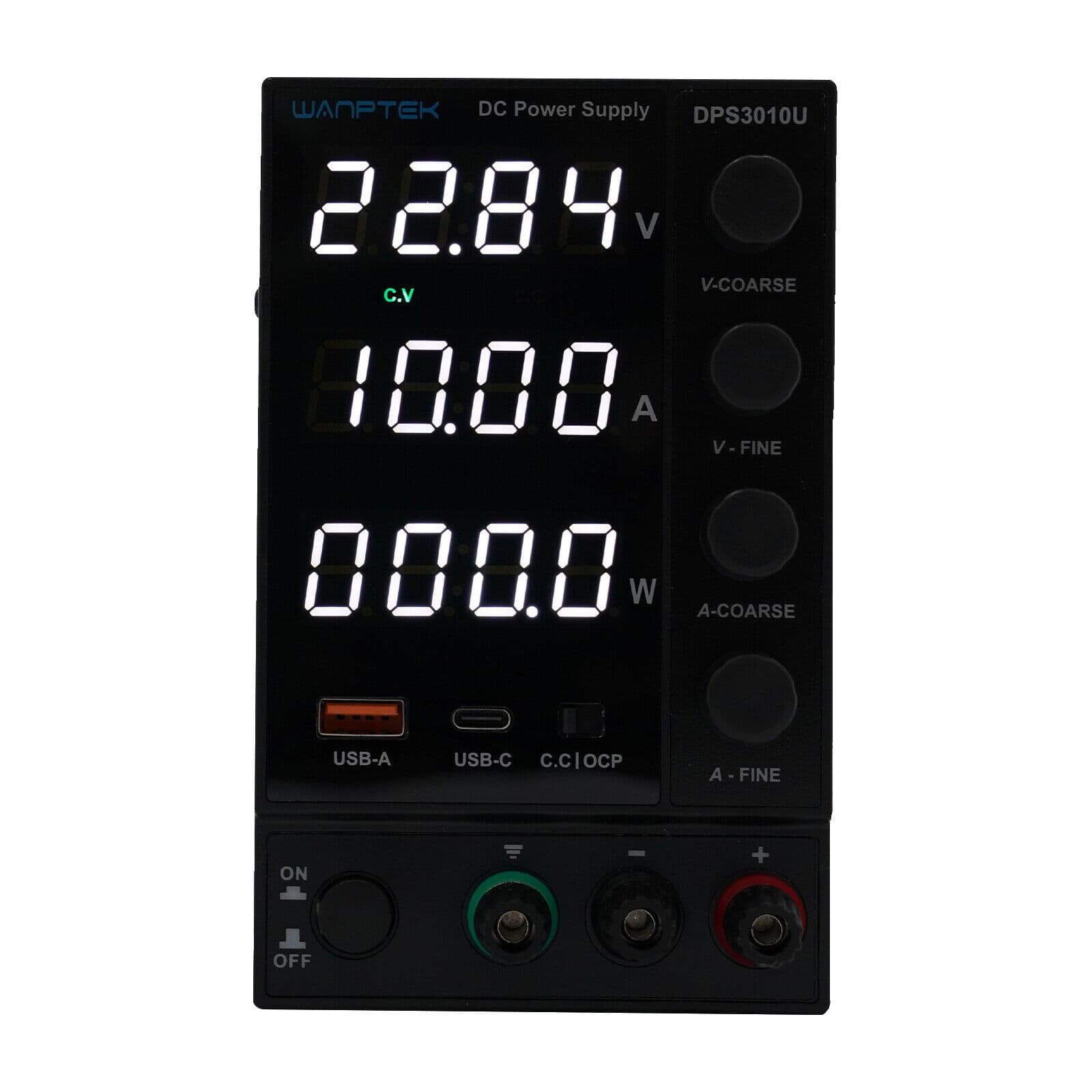

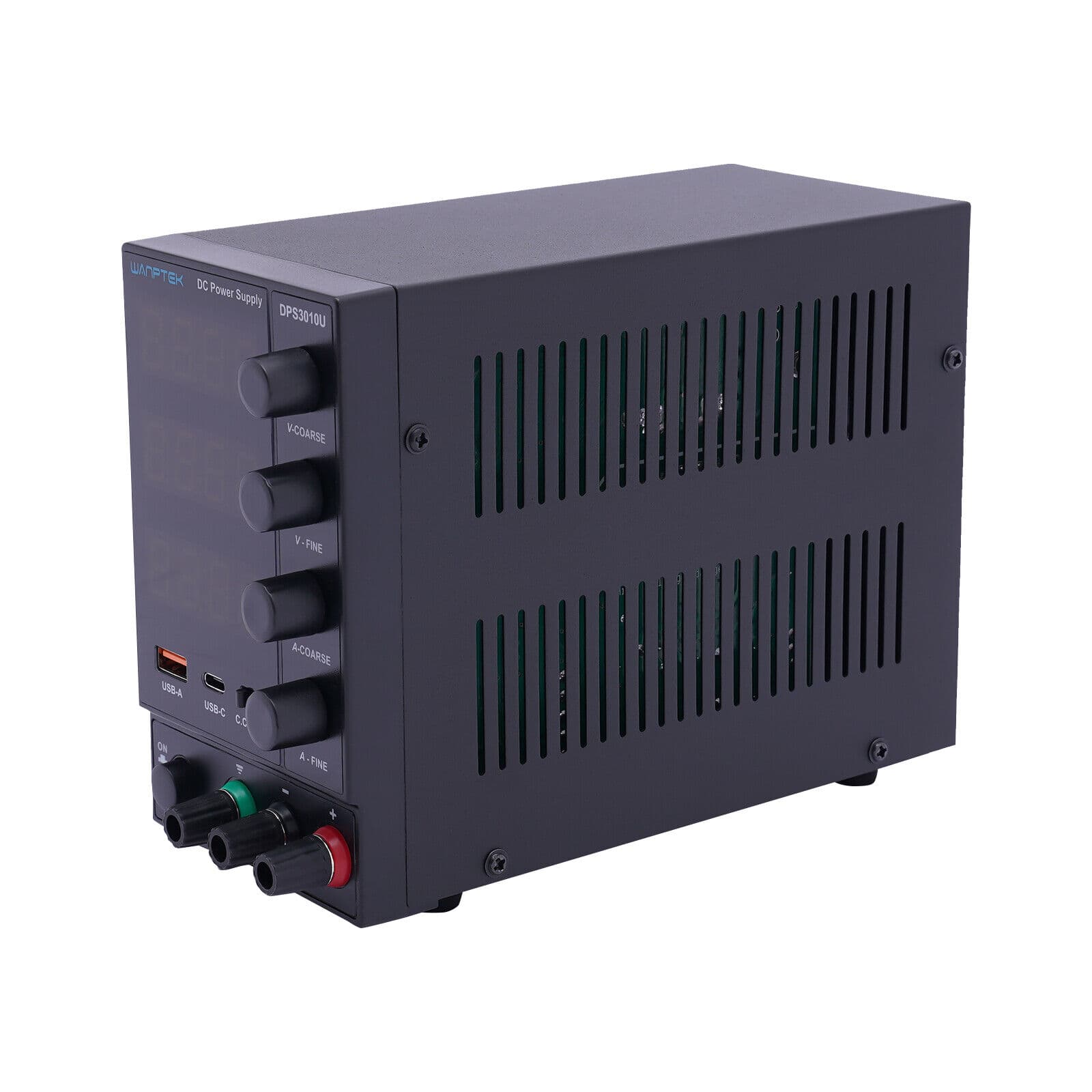

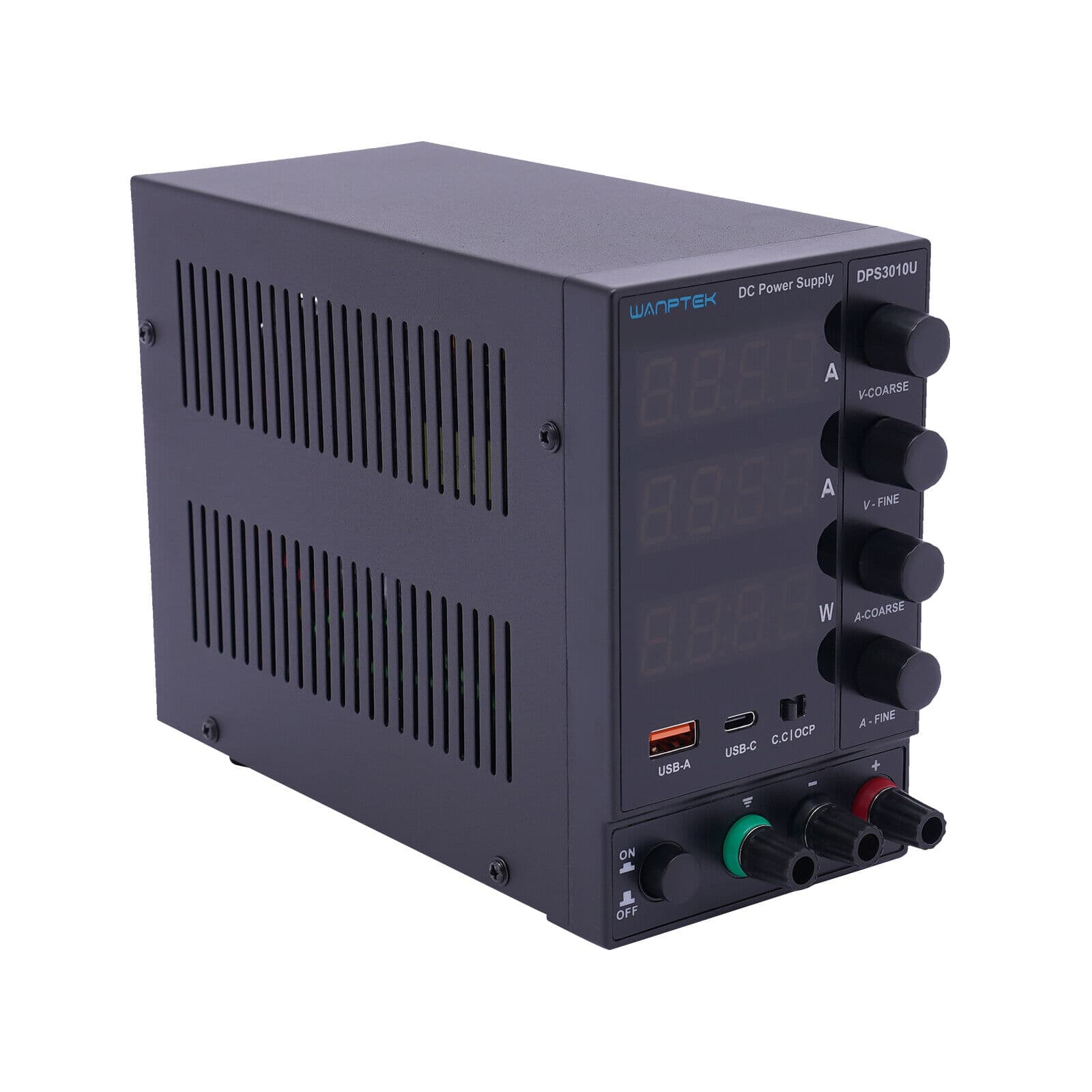

The unit has current-limiting protection and a short-circuit alarm that stops output and self-recovers. Its four-digit, three-window display has accuracy of 0.5% + 3 digits and resolution of 0.01V for voltage and 0.001A for current. It measures 225mm x 90mm x 145mm and weighs 1.8kg. The listed fuse ratings are 2A for DPS305U, 3A for DPS3010U and 3A for DPS605U.

The package contains 1 machine, 1 power cord, 1 output load line and 1 set of instructions.
