DBX VENU360-V DriveRack System PA Speakers sku-5289774618

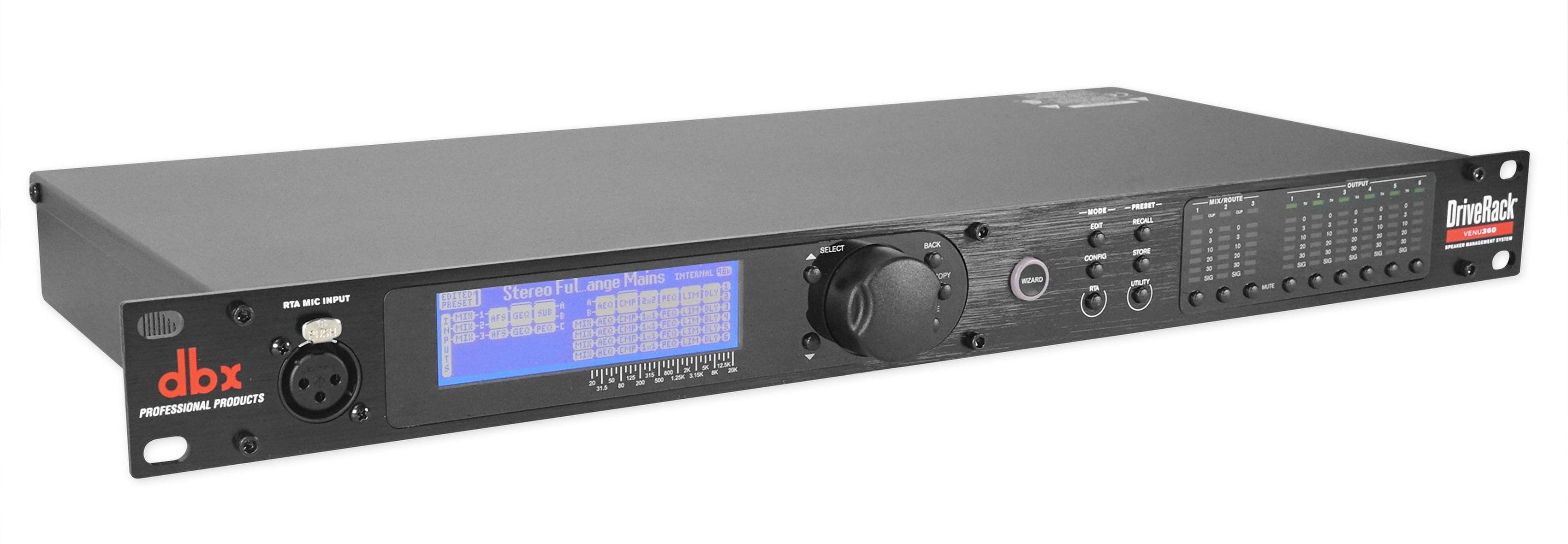

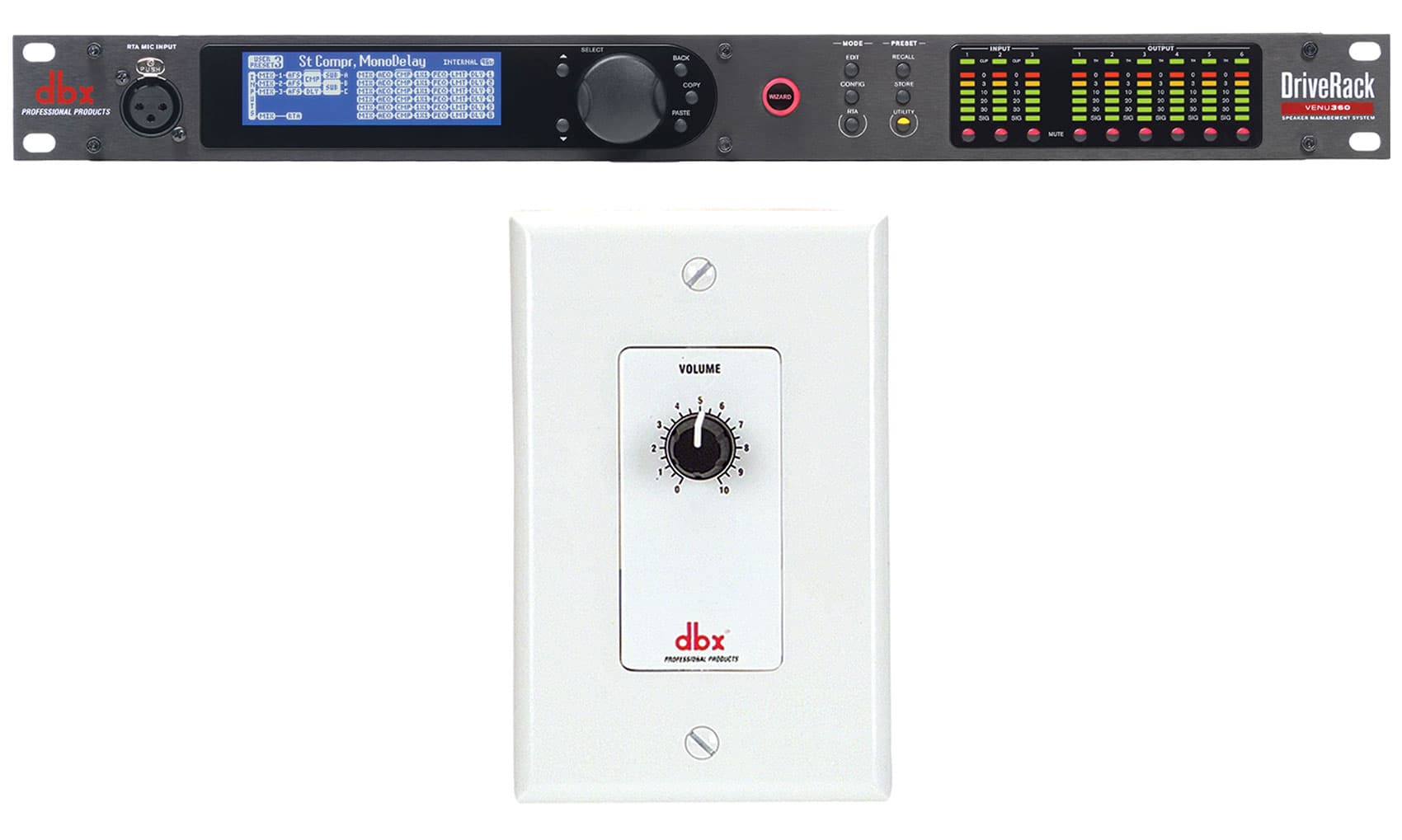

This DBX package contains 1 VENU360-V VENUE360 VENU 360 DriveRack 3x6 PA speaker processor with app control and 1 ZC1 wall-mounted programmable zone controller for DriveRack and ZonePro ZC 1. Processing includes dbx compression, Advanced Feedback Suppression, a 31-band graphic EQ, a 12-band parametric EQ with narrow notch settings, subharmonic synthesis, backline delay, noise gate, automatic gain control and a crossover supporting full-range through mono 6-way systems.

It also provides 12-band AutoEQs with 8 AutoEQ bands and 4 user bands, tower delays up to 1000ms per output, 8-band parametric EQs for speaker tuning, dbx limiting and driver alignment delays. Listed compatible networking equipment includes Dlink 636L, Dlink Cloud router 2000, Cisco/Linksys WRT54G2V1, Netgear WGR614 v7 and Netgear WNR 1000. The controller uses 2 RJ-45 connectors.

With series wiring, 3 zone controllers allow 600 ft of cable and 6 allow 300 ft. Parallel wiring with a ZC-BOB supports up to 6 zone controllers over 1000 ft. The specified parallel-wiring cable is CAT5 or CAT5E with nominal 28.6 Ohm/M (Ohm/1000ft.) DCR and a VW-1 or higher rating. Listed safety certifications are UL 60065, IEC 60065, EN 55013 and E60065.

Listed under PA Speakers, model VENU360-V, SKU sku-5289774618, UPC 613816441785.
