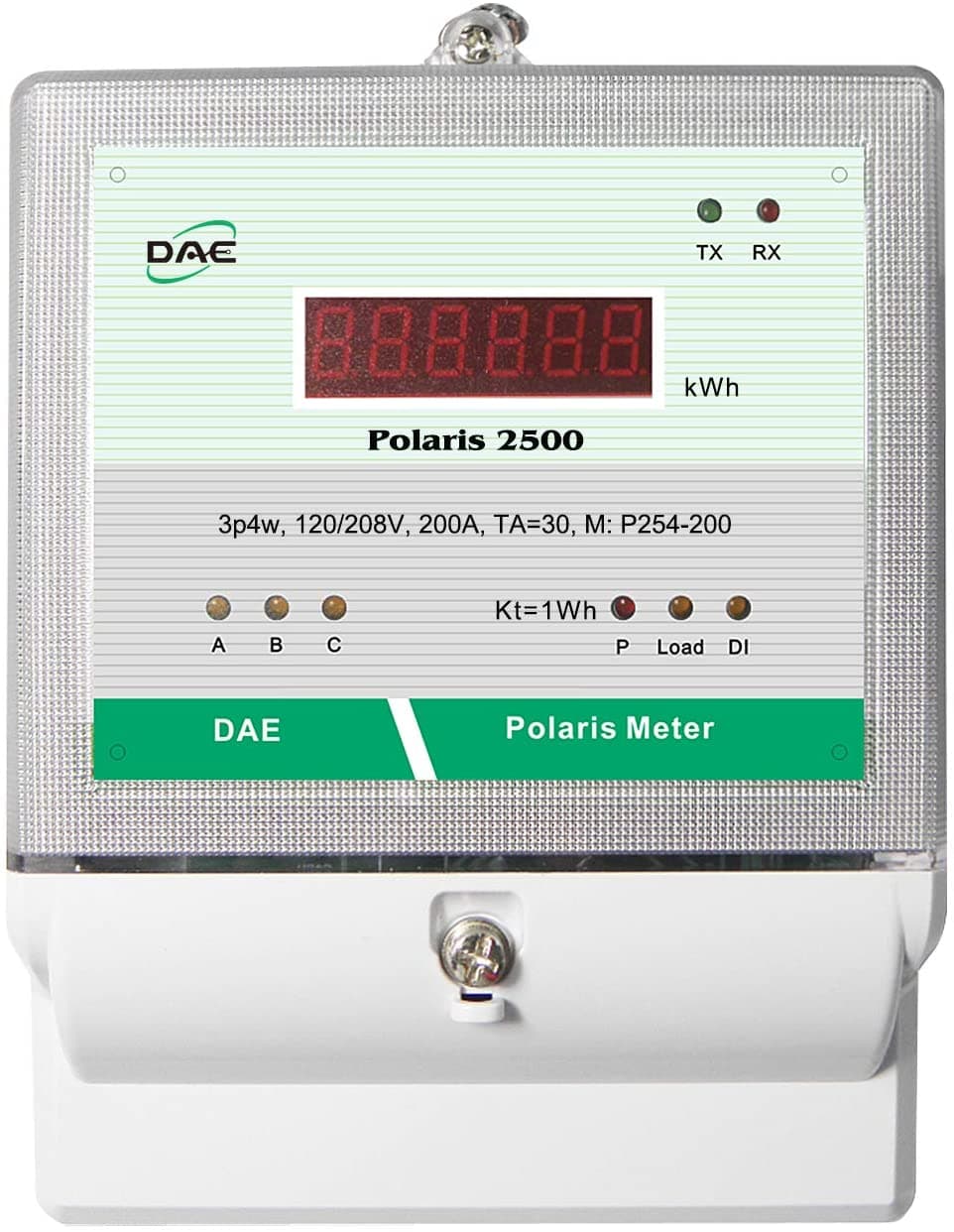

DAE P254-200 Universal kWh Meter RS485 sku-712907620

The DAE P254-200 Universal kWh meter is listed under Electrical Tools. It is rated for 120/208V, 30-200A and RS485, with 3P4W (3 hot wires, 1 neutral), 1P3W (2 hot wires, 1 neutral) and 1P2W (1 hot wire, 1 neutral) configurations. It is UL/CUL listed and independently certified to exceed ANSI C12.1 accuracy standards, with revenue-grade 0.5% accuracy.

The lower cover has two 3/4-inch conduit knockouts. An inline fuse and holder are attached for connecting hot wire A to VA; VA and VN power the meter. VB and VC take voltage references from hot wires B and C and do not need inline fuses. For cloud metering, a separately available DAE CC2030 Gateway collects meter data and sends it to a cloud server over Ethernet.

A PC, phone or tablet can then access real-time data, monthly kWh reports, tenant billing reports and time-of-use billing reports. The meter is for indoor use; a DAE B1725 watertight enclosure is available for outdoor use. Where cabling to the gateway is difficult, 1 CC2030 KIT and 2 WSC500A RF Converters provide a wireless connection.

Compatible CTs are sold separately: split-core CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A) and CT-100S (100A); and solid-core CT-600D9 (600A), CT-400D6 (400A) and CT-200D3 (200A). Factory calibration certificates are available.

DAE Controls LLC is a minority business, and its NMSDC Minority Supplier Certificate is available on its website. For remote monitoring and billing reports for up to 8 electric panels, the listed setup is 1 SMB350-UL-8-B KIT plus 1 CC2030 KIT. SKU sku-712907620; UPC 730707519146.
