DAE P256-400D KIT Electrical Tools | UPC 730707517937

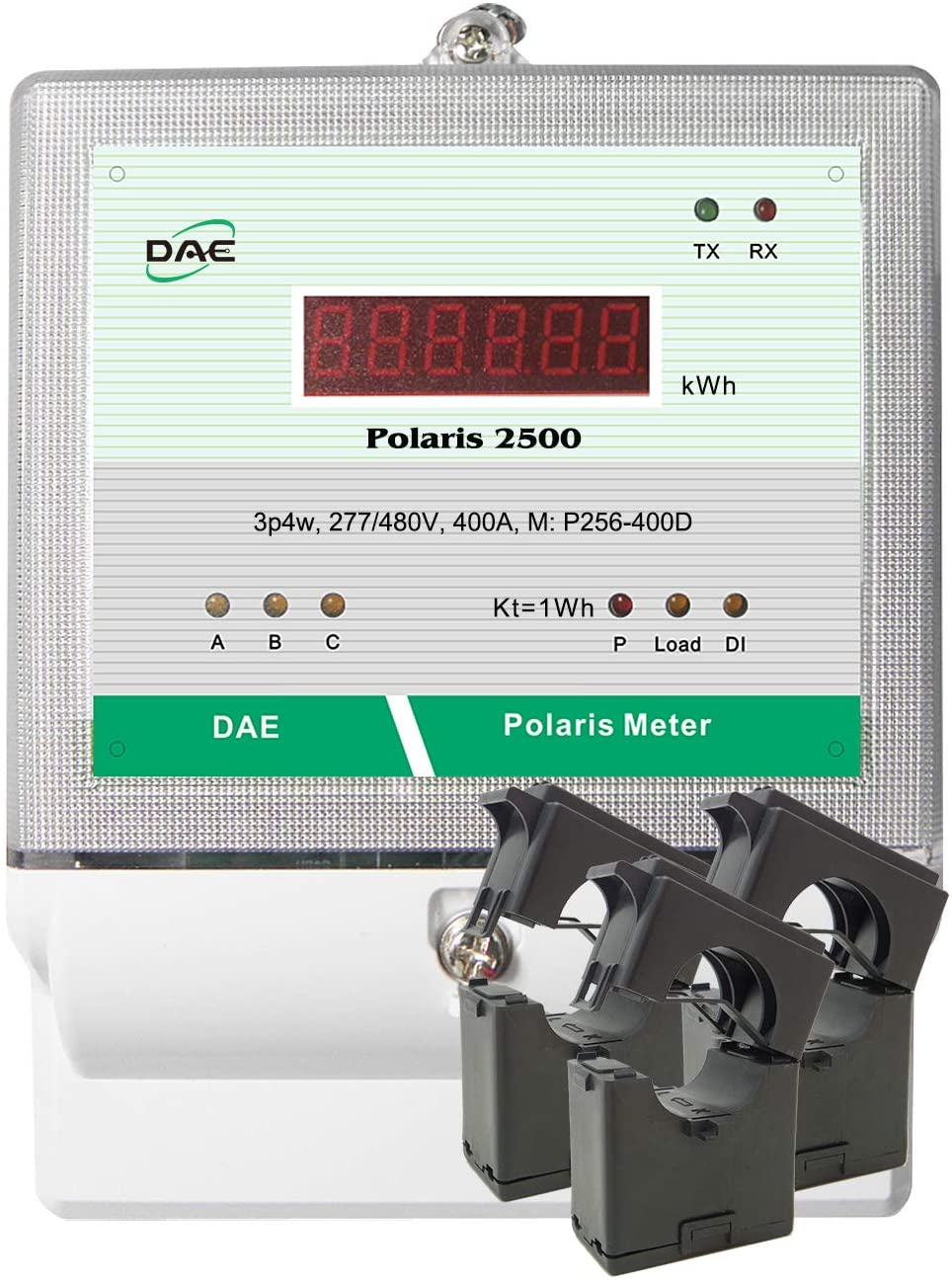

DAE P256-400D KIT is a 400A, RS485 demand and kWh smart submeter in Electrical Tools, listed for 277/480v, 3-phase use with 3 split-core CTs whose inner diameter is 1.38 inch. The listed size is 277/480V, 3 hot, 1 neutral; UPC: 730707517937. It is UL/cUL listed and conforms to ANSI C12.1. The lower cover has two 3/4" conduit knockouts.

The kit ships with 1 P254-400 meter rated 120-480V, 3 CT-400D6 units and 1 push button. UL has confirmed that a fuse is not required between the electric panel breaker and the meter. The meter supports 3-phase 4-wire service with 3 hot wires and 1 neutral, or 3-phase 3-wire service with 3 hot wires and no neutral. Follow the wiring shown in the fifth product picture.

With a DAE CC2030 Gateway, DAE Cloud Metering collects meter data and sends it to a cloud server over Ethernet. Landlords or property managers can view real-time data, monthly kWh, tenant billing and time-of-use reports on a PC, phone or tablet.

For an existing building where a cable cannot readily run between the meter and gateway, the listing recommends 1 CC2030 KIT and 2 WSC500A RF Converters for a wireless connection. The meter is for indoor use; a DAE B1725 watertight enclosure is available for outdoor use. Factory calibration certificates are available.

DAE Controls LLC identifies itself as a minority business and offers its NMSDC Minority Supplier Certificate on its website. Compatible split-core CTs are CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A) and CT-100S (100A). Solid-core options are CT-600D9 (600A), CT-400D6 (400A) and CT-200D3 (200A).

To monitor up to 8 panels remotely and generate billing reports, the listing specifies 1 SMB350-UL-8-B KIT and 1 CC2030 KIT.
