DAE P103-200-S KIT sku-165959423 UPC 730707517678 kWh

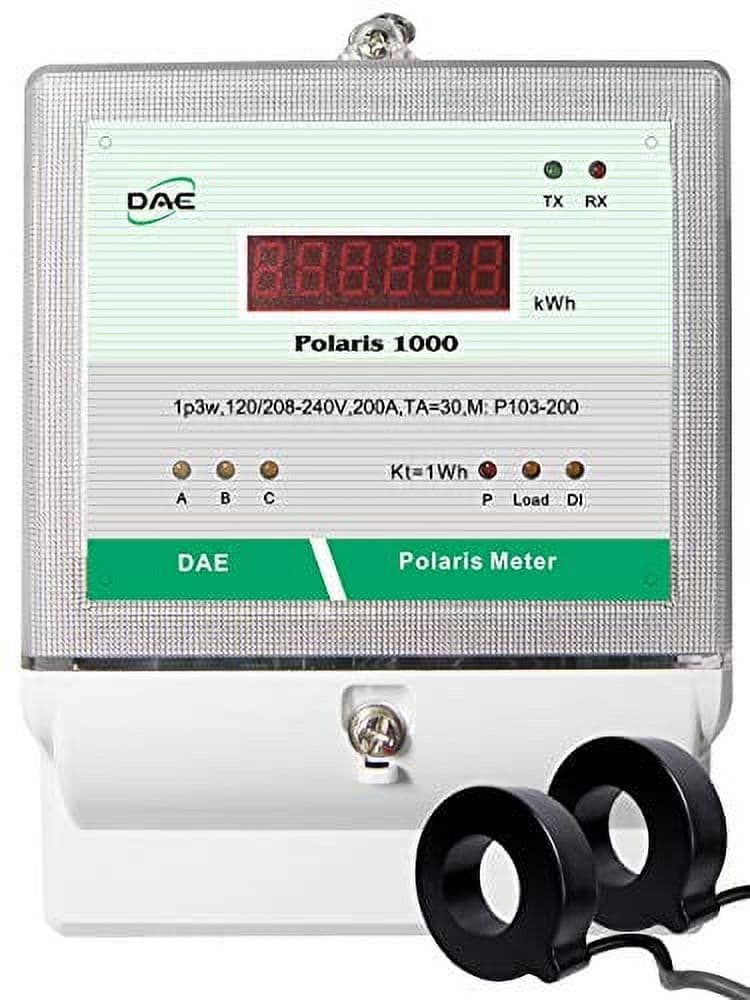

The DAE P103-200-S KIT is a Polaris 1000 kWh smart submeter rated for 200A and 120/240V, 2 hot, 1 neutral wiring. It comes with 2 CTs with a 1.02-inch inner diameter. Listed under Electrical Tools as sku-165959423, UPC 730707517678, it is UL/CUL listed and California CTEP approved.

An independent test lab certified it to exceed ANSI C12.1 accuracy standards; its stated revenue-grade accuracy is 0.5%. The lower cover has two 3/4-inch conduit knockouts. An in-line fuse and holder connect hot wire A to VA, which powers the meter with VN. VB and VC take voltage references from hot wires B and C without in-line fuses.

The meter is for indoor use; a DAE B1725 watertight enclosure is available for outdoor use, as are factory calibration certificates. Compatible split-core CT options are DAE CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A) and CT-100S (100A).

Solid-core options are CT-600D9 (600A), CT-400D6 (400A) and CT-200D3 (200A). The source also describes cloud metering for the P153-200-S KIT using a CC2030 Gateway, with Ethernet access to real-time data, monthly kWh, tenant billing and Time of Use reports by PC, phone or tablet.

For buildings where a cable between the meter and gateway is difficult to run, it recommends a CC2030 KIT and 2 WSC500A RF converters. To monitor up to 8 panels remotely and generate billing reports, it specifies an SMB350-UL-8-B KIT and a CC2030 KIT. DAE Controls LLC identifies itself as a minority business and makes its NMSDC Minority Supplier Certificate available on its website.
