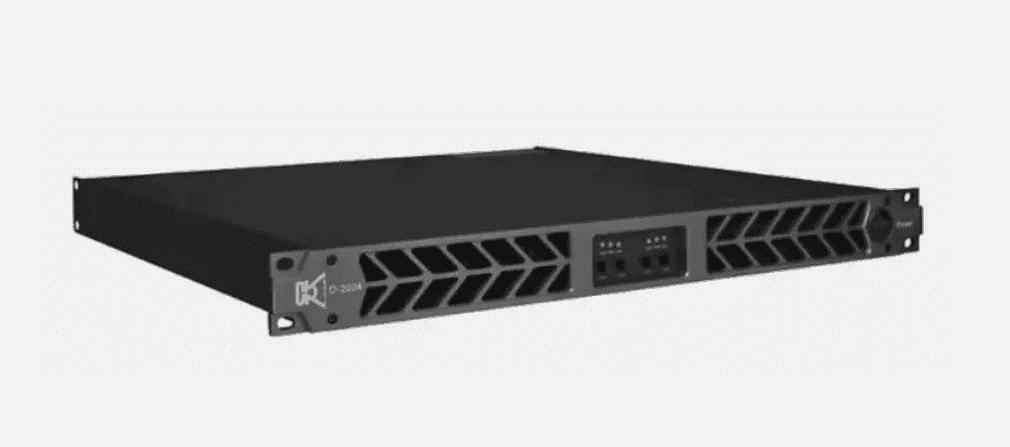

CVR D-2004 Series Professional Power Amplifier — 1 Space, Class D (2000W x4 @ 8Ω)

Class D wiring delivers high output in a single-space touring amplifier. Power output (RMS): 8Ω — 2000W x 4; 4Ω — 3400W x 4; 2Ω — 4760W x 4. Bridged power (RMS): 16Ω — 4000W x 2; 8Ω — 6800W x 2; 4Ω — 9520W x 2. Frequency response spans 10Hz - 34kHz with a signal-to-noise ratio greater than 110 dBA and channel separation (crosstalk) >90 dB at 1 kHz. Inputs (per channel) use 3-pin XLR, electronically balanced; outputs (per channel) are speakon connectors. The amplifier offers a damping factor >5000, a slew rate of 50v/us and an RMS output voltage of 89.4. Built for tour-class reliability, protection circuits include short circuit, DC voltage, turn-on/off transient, current inrush and sub/ultrasonic input safeguards. Operates on 115v or 230v at 50 Hz or 60 Hz. Input impedance is 20 kOhm. Level adjustment (per ch.) is via a front-panel potentiometer with 31 position detents from -inf to 0 dB.
