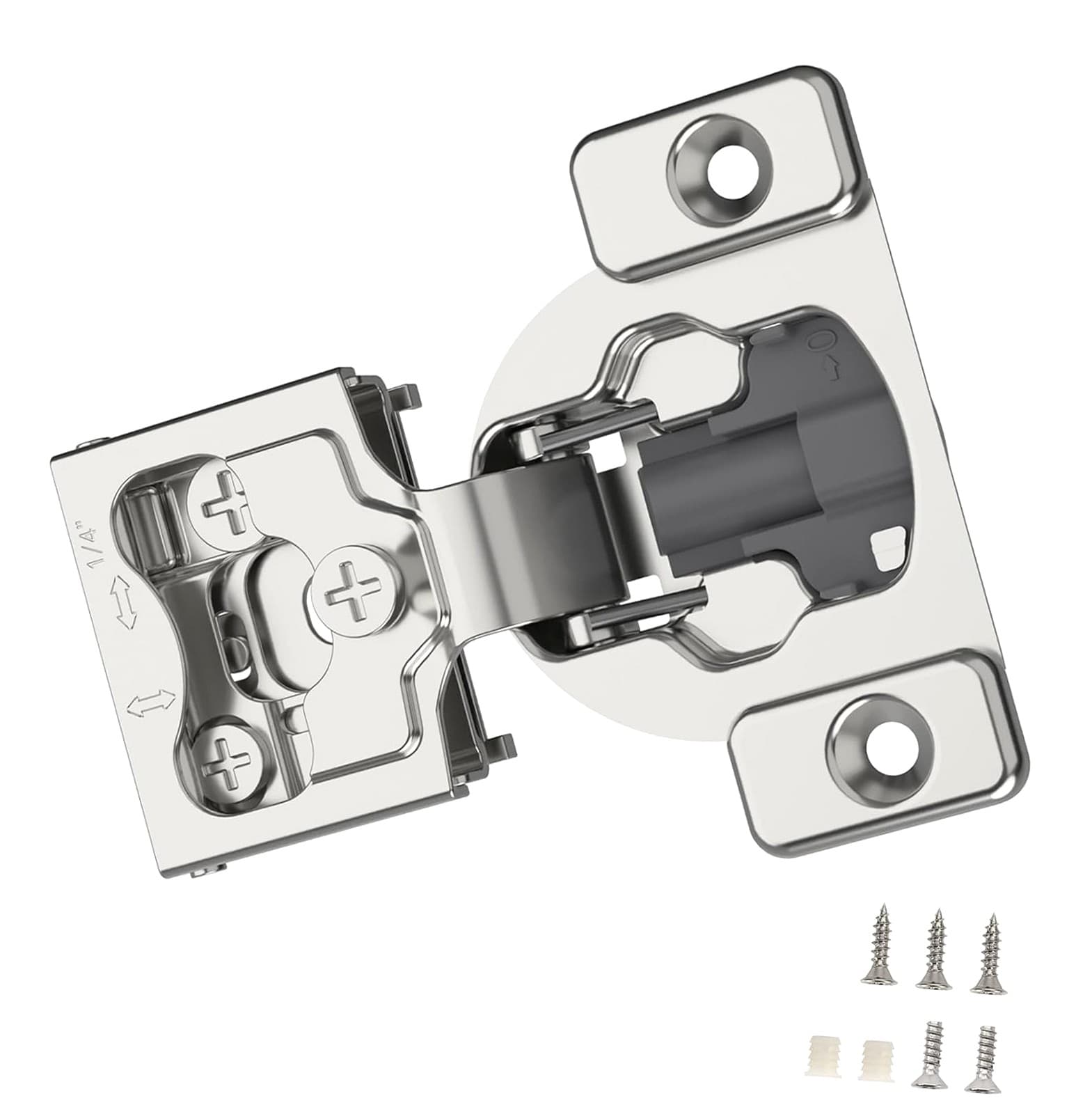

Coolnut 10 Pieces 1/4" Small Overlay Face Frame Hinges, 105° Open Angle 4 Soft Close Screw Cabinet Hinges, for Face Frame Door, Soft Close /Off, Sel

4D Adjustment : Utilize screwdriver to rotate the adjustment screw for modification of the cabinet door (vertical, horizontal, depth) so your cabinet door aligns perfectly. Moreover, the soft-close feature incorporates nylon damper in the cup, enabling you to toggle the '/off' as needed for quiet and seamless .

Specification: The cup diameter is 35 mm (1-2/5"), depth of cup is 11.6mm (9/20"), hole distance: 45 mm (1-4/5"), opening angle is 105 degrees, suitable for most cabinet door styles. Each overlay includes 3 self-tapping wooden screws and 2 dowels for . : Our cabinet hinges are made of - steel, and double electroplating process (nickel plating the surface and copper plating the base) renders our hinges more corrosion-resistant and long-lasting.These types are for face frame cabinets.

It is practical for kitchen cabinet doors, wardrobe, tv cabinets, bookcases, furniture, and other door connections. Noise: Each 1/4 in Overlay Soft has built-in nylon damper that reduces the speed of the cabinet door, the door from slamming and making noise while protecting your fingers How to : You to the thickness of the cabinet side panel (measure the distance where the door panel overlaps the cabinet face) rather than the thickness of the cabinet door.

You must select cabinet hinges that match the side thickness of your cabinet. For instance, if the thickness of the cabinet side panel is 1/4", then you should pick the corresponding 1/4"
