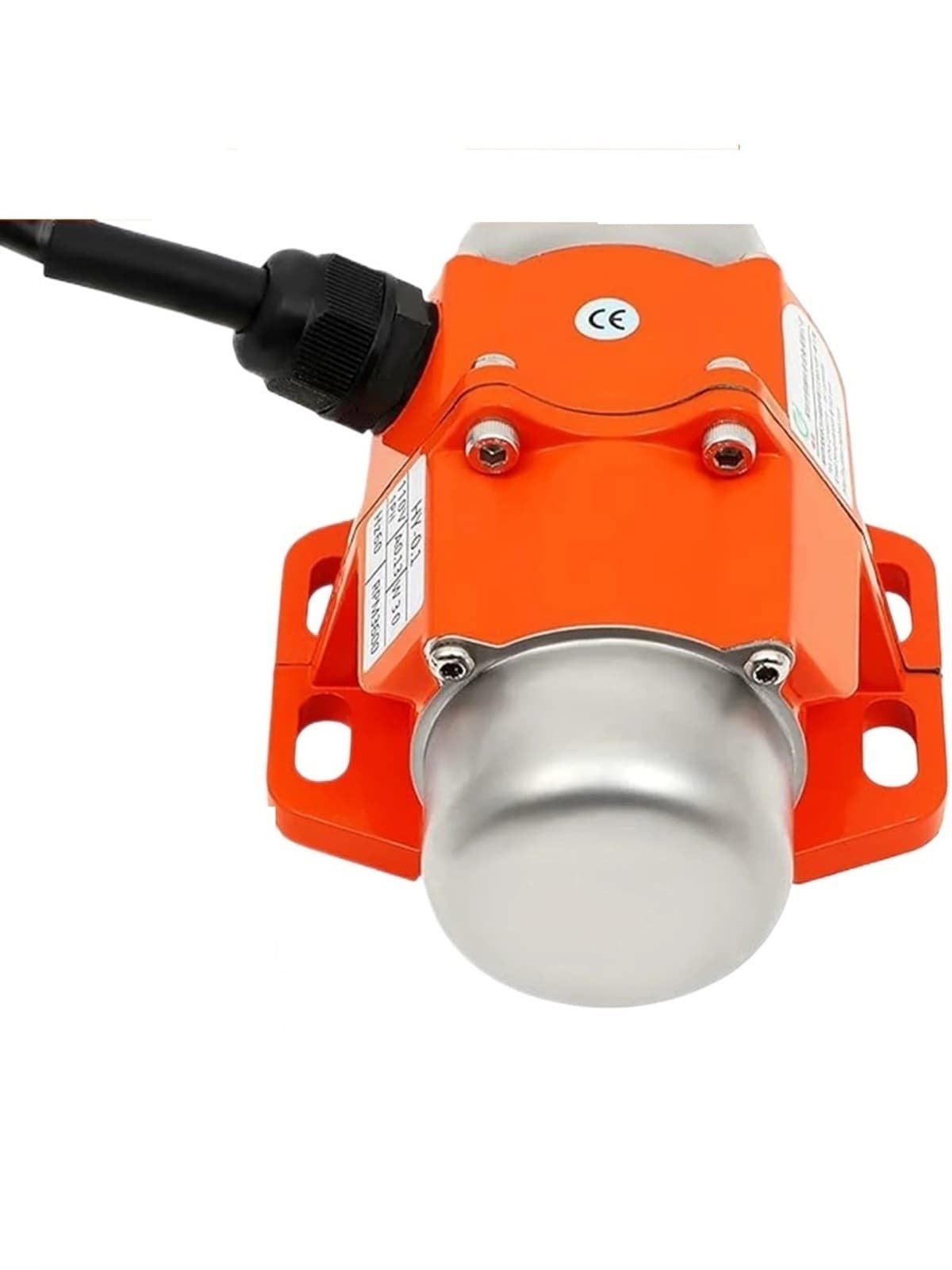

Concrete Vibrator Vibration Motor AC Single Phase Vibrating Motor Aluminum Alloy Case Vibrating Vibrators For

MAIN PARAMETER-----Power: 30w, Current-1.2A; Speed-3600RPM; Vibration Force: 48KG/0.48KN, Insulation Class: F; Waterproof Class: IP65. Note:Remember to regularly check the tightness of the mounting screws and the dust on the vibrating motor surface.

SUPERIOR QUALITY MATERAIL-----The concrete vibrator motor has an aluminum alloy case, which is equipped with a pure copper enameled wire stator, the resistant high temperature is 180/356. Fast heat dissipation and "F" high insulation level, can withstand years of intense use.

EXCELLENT PERFORMANCE-----This mini vibrating motor is built in high performance bearings,with the feature of high precision, low noise and smooth operation. It also adopts full cast aluminum rotor with large magnetic field, and the high-precision shaft of the rotor is integrally stamped and formed and made of 45# high-hardness steel processed by high frequency.

ADJUSTABLE ECCENTRIC BLOCK-----The angle-adjustable eccentric block of this vibration motors support to steplessly adjust the vibration force to meet various requirement.NOTE:The eccentric blocks on both sides of the vibration motor must be confirmed to be symmetrical.

APPLICATION-----The main applicable equipment for this vibration motor is vibrating table, shaker table, vibrating feeder, vibrating screen, specific stone remover, etc. And it is widely used in mining, metallurgy, coal, electric power, construction, chemical, medical, foundry, food, powder spraying equipment, powder sieving, food machinery, etc.
