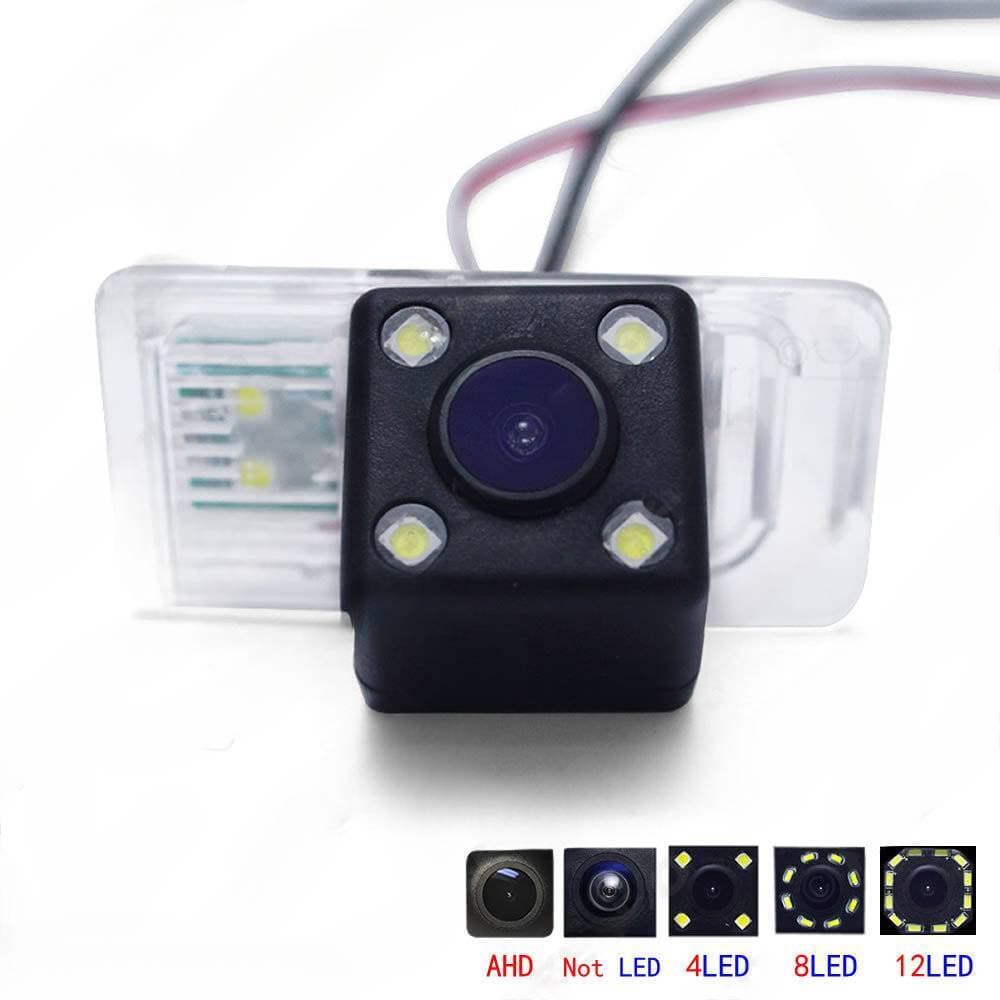

Compatible Rearview Camera for Great Wall Haval H2/H6/H7 & Coolpad — 170° HD Waterproof (CCD, 640 * 480 pixels)

Overview: High-definition waterproof reversing camera designed for Great Wall Haval H2, H6 and H7 models and compatible Coolpad installations. Built around a CCD image sensor with a 100% glass lens for crisp rear imaging and reliable night performance. Imaging & Optics: - Image sensor: CCD - Lens material: 100% glass - Effective pixel: 640 * 480 pixels - Horizontal resolution: 480TV cable - Field viewing angle: 170 degrees (diagonal), 138 degrees (H), 125 degrees (V) - Minimum illumination: 0.01 Lux/F = 1.2 (0 Lux with infrared) - Night Vision: Support - Lens with LED lights: AHD/without LED/4LED/8LED/12LED Parking & Mirror Functions: - Parking Guide Line: Support - Reversing Image: Mirror Image - Mirror/Original Switch: No - Wire Switch: No Video & Electrical: - TV format: NTSC - Video output: CVBS RCA connector (1.0VP-P, 70OHM) - Power supply: DC12V - Power consumption: 120mA Environmental & Durability: - Operating temperature: -20C to + 75C, RH 95% MAX - Storage Temperature: -40C to + 80C, RH 95% MAX - Waterproof grade: IP67/IP68 This camera offers a wide diagonal view of 170° and multiple LED configurations to suit different installation needs while maintaining original image orientation as a mirrored reversing view.
