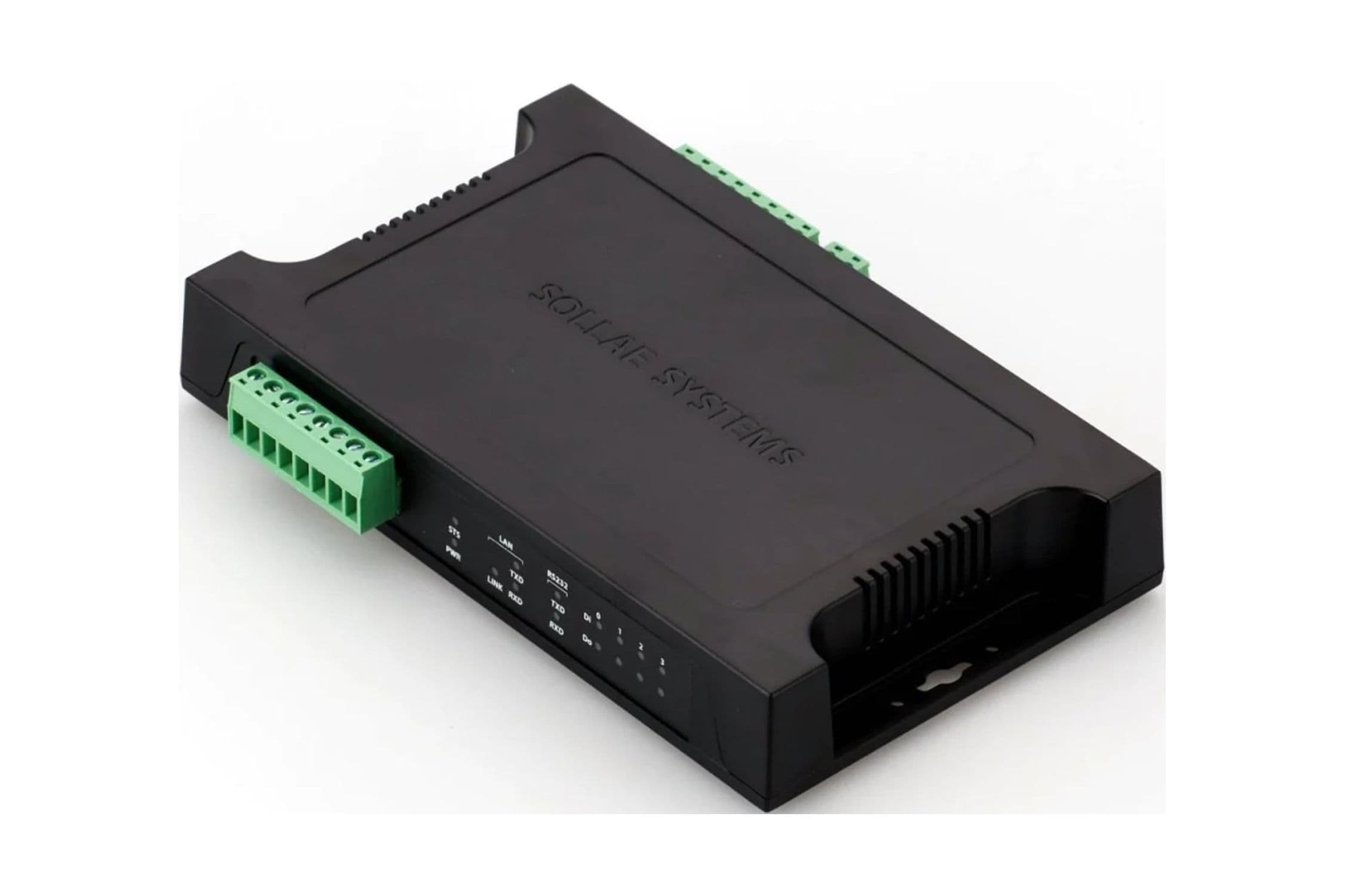

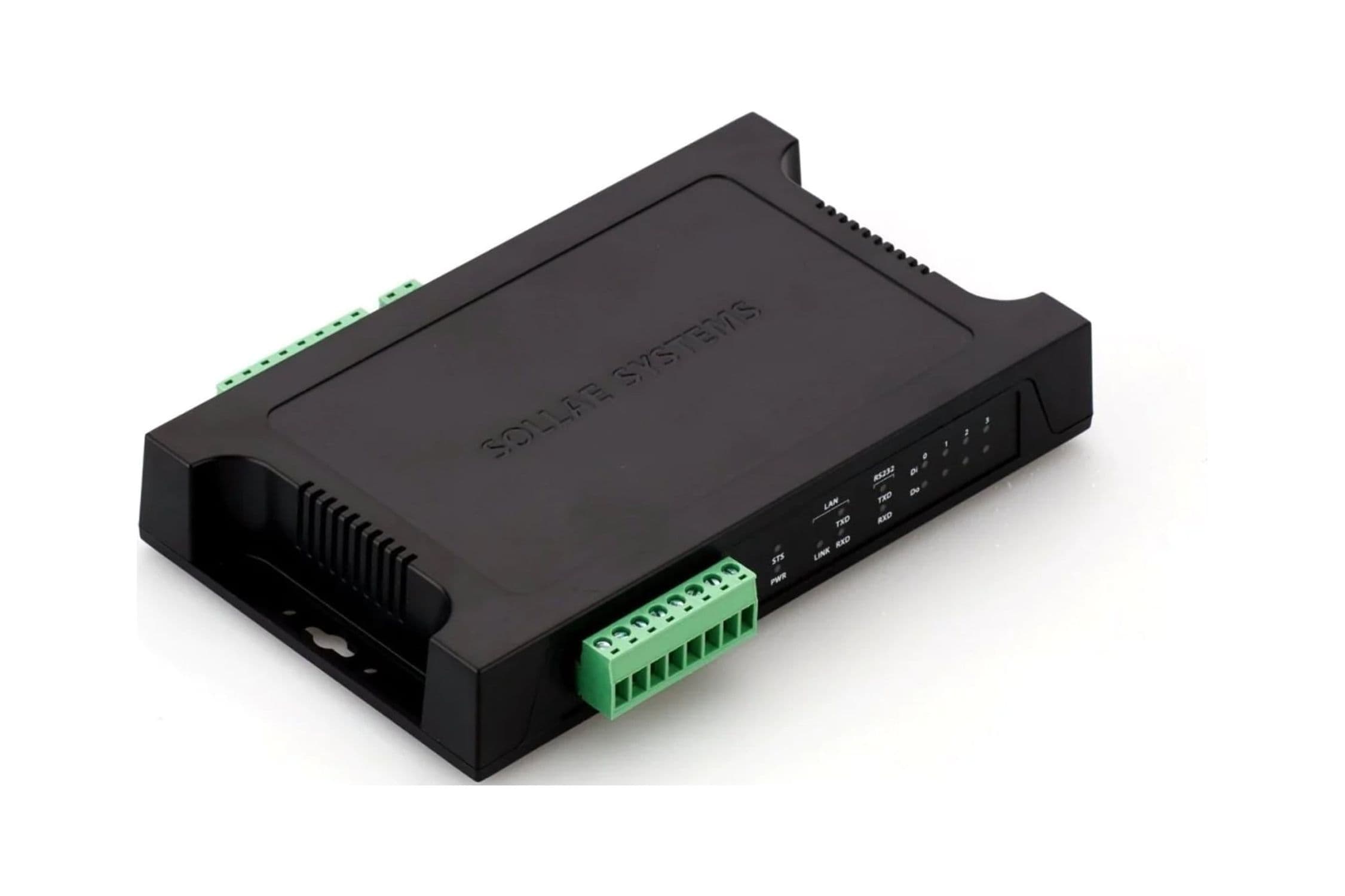

CIE-H14A ezTCP 4-Port RS-232/Ethernet Remote I/O Controller by Sollae Systems

CIE-H14A Features: Wide range of power input (DC8.5V ~ 38V) Power input interface (terminal block) Dry contact adapter (optional) Monitor & control via Modbus/TCP or Web Controlled by simple logic formula operating autonomously Web-based control over a custom web page Can be used as an Internet switch Free Modbus/TCP program (ModMap) CIE-H14A Controller Specifications Digital Input Ports Number of Ports: 4 Interface: Isolated by Photo-coupler Electrical Parameter: MAX VIL=1.2V, MIN VIH=4.5V Maximum Input Voltage DC 24V Digital Output Ports Number of Ports: 4 Interface: Isolated by Relay Relay Capacity: 5A (DC 28V) Serial Physical Interface Serial Interface: 1 x RS232 Port RXD, TXD, RTS, CTS, DTR, DSR, GND ±15KV ESD Protection Connector: DB9M Connector Serial Port Property Data Rate: 300bps ~ 230,400 bps Data Bits: 5, 6, 7, 8 bits Parity: None, Even, Odd, Mark, Space Stop Bit: 1, 1.5, 2 Network Physical Interface Network Interface: 10Base-T/100Base-TX Ethernet (RJ45) Ethernet Speed: Auto Sense 1:1 or Cross-over Cable: Auto Sense 1000 VAC Isolation Software Functions Protocols: TCP, UDP, IP, ICMP, ARP, DHCP, PPPoE, TELNET TFTP, DNS, DDNS, HTTP, Modbus/TCP, SMTP Security IP & MAC filtering: Restrict host or network Password for Configuring Digital I/O Port Communication Mode: Modbus/TCP, HTTP, Stand alone (by simple equation) Communication Mode: TCP Server(T2S) TCP Client(COD) TCP Server/Client with AT Command(ATC) UDP Mode(U2S) Additional Functions: Remote Debug Function TCP Server/Client Mode Sending MAC address Option Indicators (LEDs) Power Red Status Green Ethernet Link Green Ethernet RXD Green Ethernet TXD Green Digital Input Green x 4 Digital Output Green x 4 Management ezManager Configuration and Monitoring Tool through Network and Serial Telnet Telnet Login AT Command Configuring in ATC Mode Supplementary Software ezManager Configuration Tool for Windows ezVSP Serial to Network Virtual Driver for Windows ModMap Management Tool of I/O controllers for Windows Dimensions Size 174mm x 123mm x 28mm Operating Environment Input Voltage DC 8.5V ~ 38V Power Consumption 3W typical Operating Temperature -40℃ ~ +70℃ Storage Temperature -40℃ ~ +85℃ Certifications KC Registration (KN 32, KN 35) CE EMC 2014/30/EU, RoHS 2011/65/EU
