Chauvet INTIMSCAN110 scanner sku-980207086 613815662747

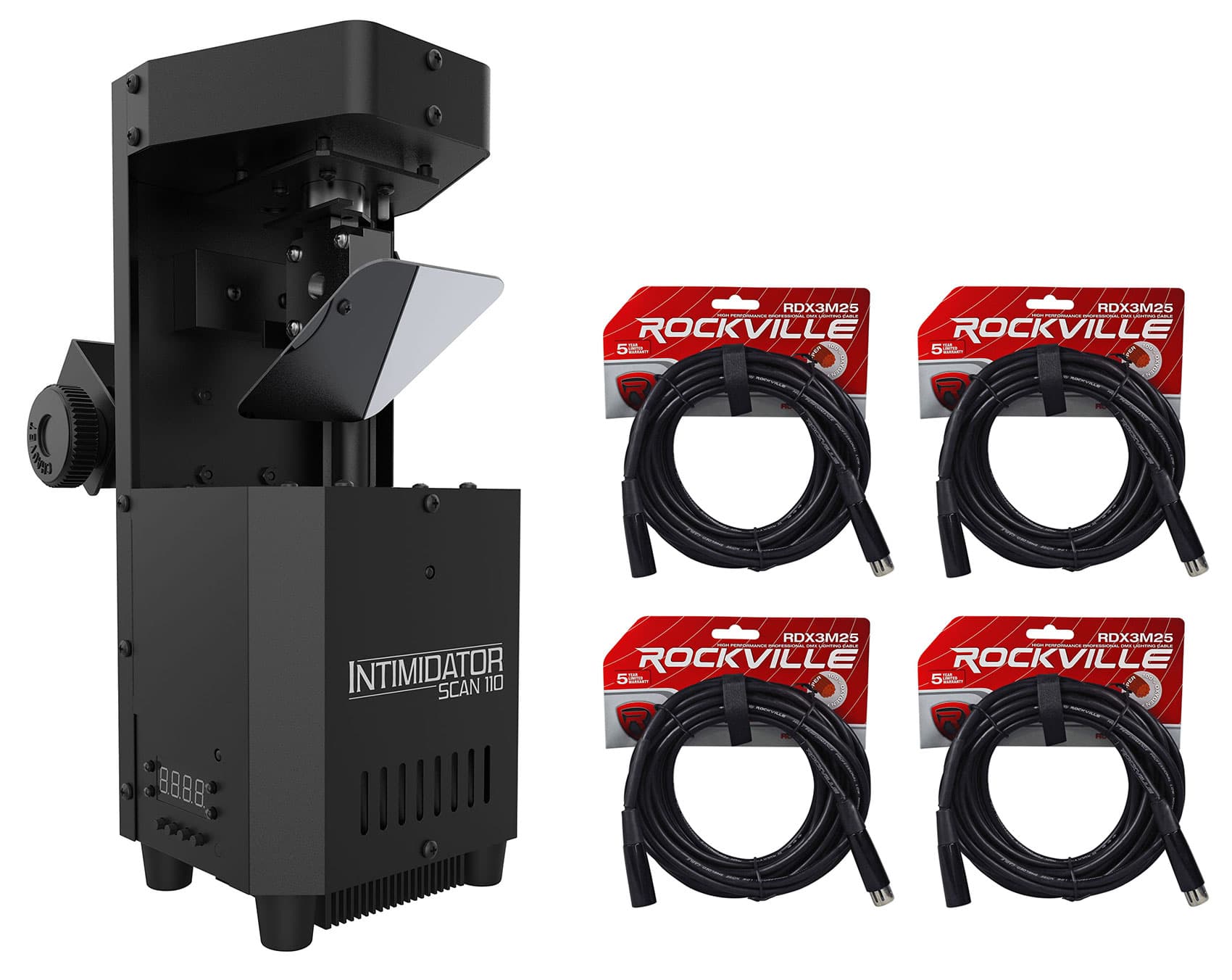

This Chauvet INTIMSCAN110 package contains 1 Intimidator Scan 110 compact LED scanner and 4 Rockville RDX3M25 DMX lighting cables, each 25 Ft long. The scanner is intended for mobile dance-floor lighting. It has sound-activated programs, built-in movement macros and move-in-black operation. Wireless non-DMX control requires an optional IRC-6 remote; multiple units can be power linked.

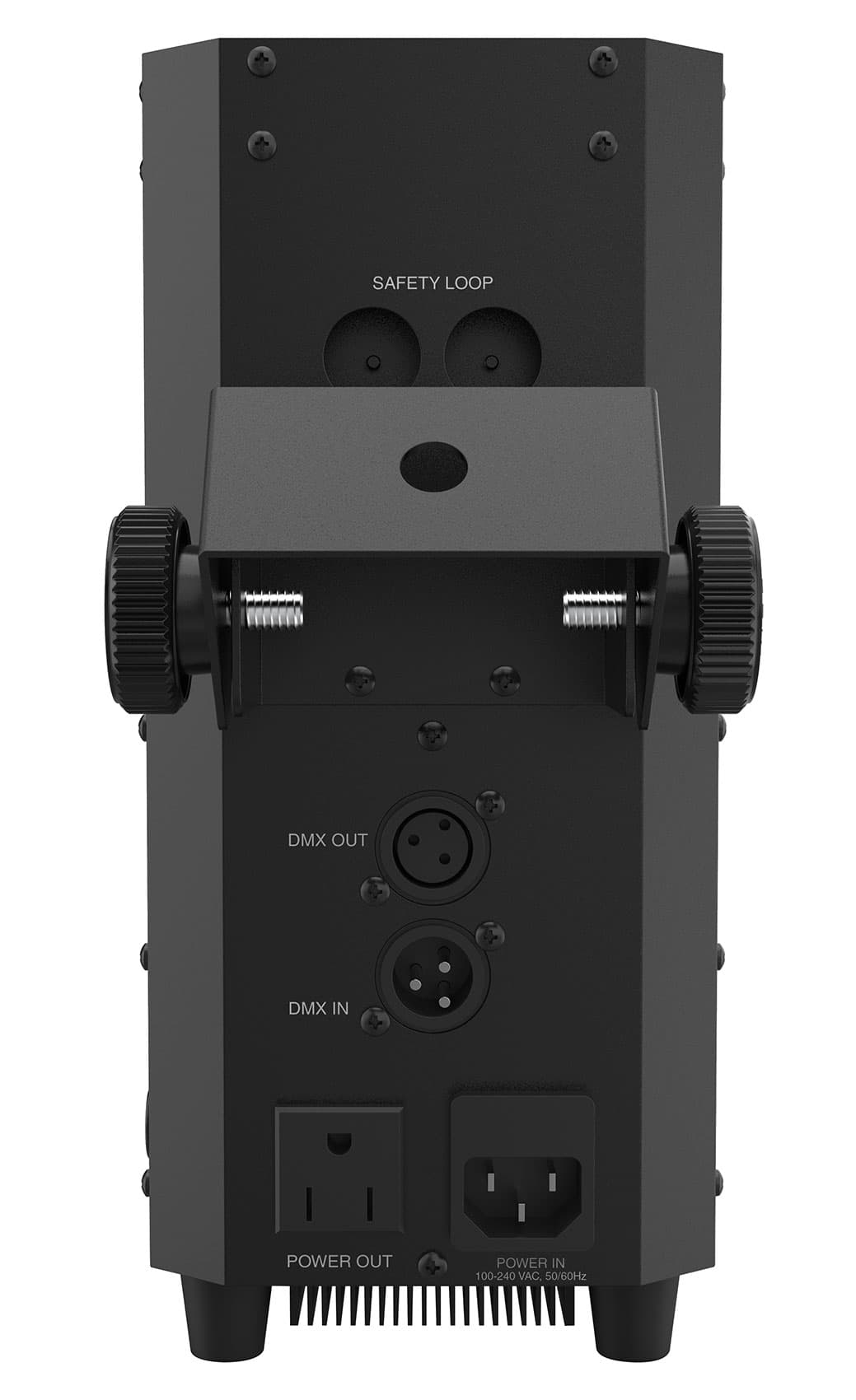

The scanner fits the CHS-40 VIP gear bag. Its DMX settings are 5 or 11 channels through 3-pin XLR connectors. Pan and tilt are 180° and 45°. The light source is 1 cool-white LED rated 10 W and 2 A, with a stated life expectancy of 50,000 hours. Strobe rate is 0 to 18 Hz, beam angle is 13°, and illuminance is 1,110 lux at 2 m. Power linking supports 17 units at 120 V or 31 units at 230 V.

Input is 100 to 240 VAC at 50/60 Hz. Power and current are 30 W and 0.5 A at 120 V, 60 Hz, or 30 W and 0.3 A at 230 V, 50 Hz. The scanner weighs 4.6 lb (2.1 kg) and measures 7.5 x 4.7 x 10.6 in (190.5 x 119.3 x 269 mm). It has CE approval and 8 combined color/gobo patterns plus open. The source also refers to the scanner as Intimidator Scan 100.

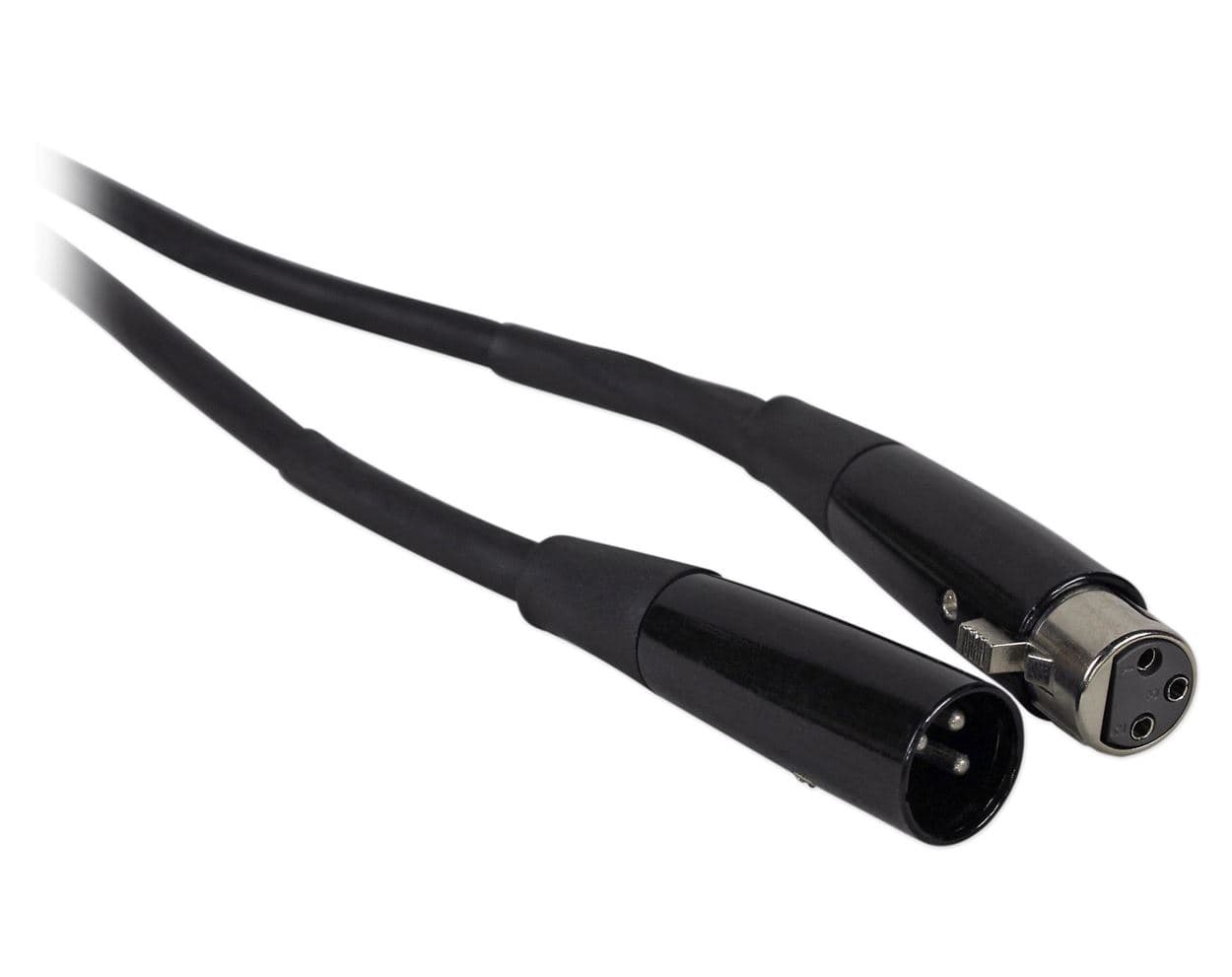

The Rockville cables have nickel-plated 3-pin male-female XLR connectors with internal strain relief, oxygen-free copper (OFC) conductors and a high-density OFC braided shield for EMI and RFI rejection. Their stated impedance is 120 Ohm, and their length is 25 Ft. The source distinguishes these DMX cables from lower-impedance microphone cables. Listed under Lighting Cables and Accessories.

SKU: sku-980207086. UPC: 613815662747.
