Century USQ1102 1 HP Up-Rated 48Y Frame Pool & Spa Motor Replacement

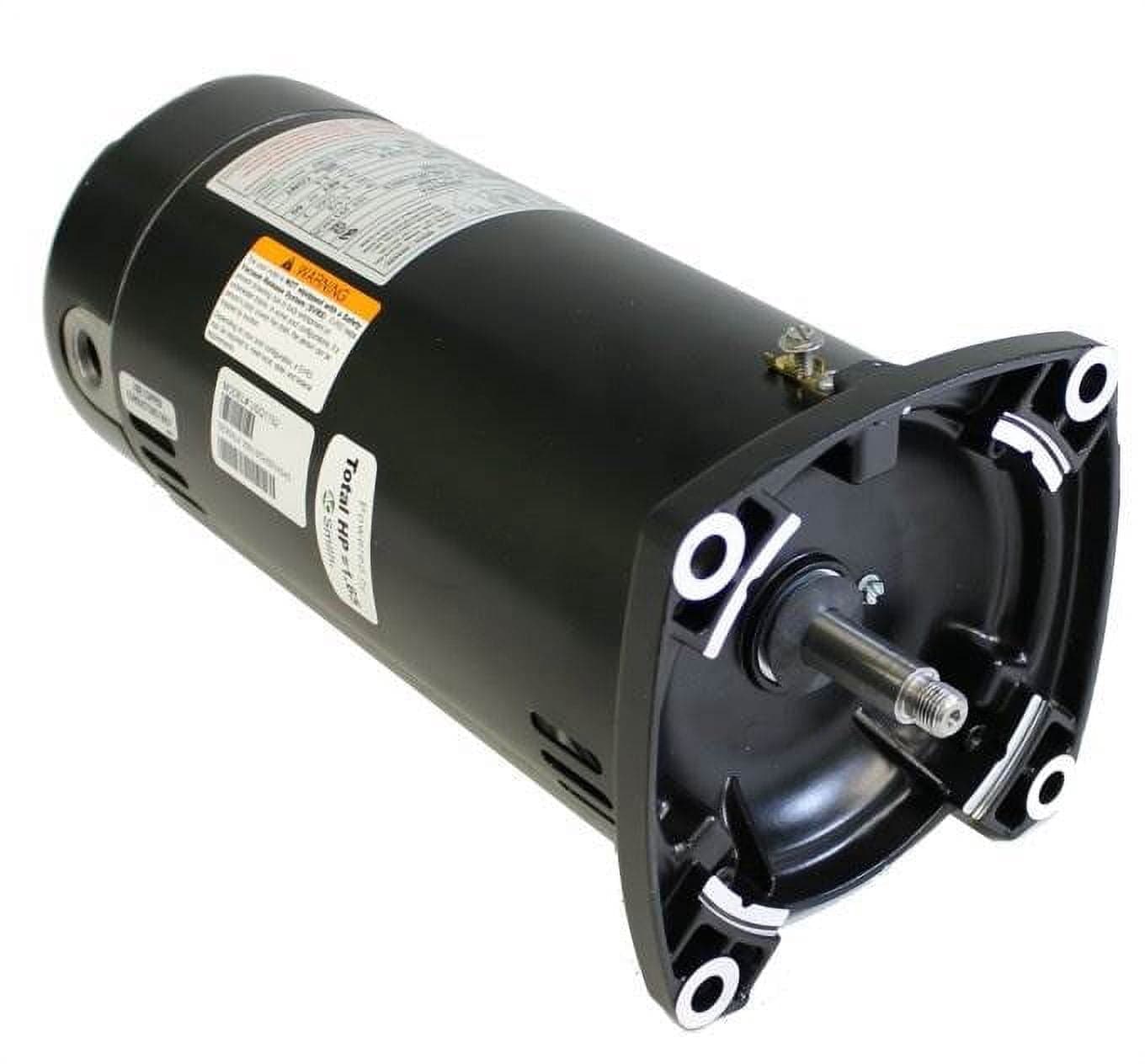

New A.O Smith USQ1102 1 HP replacement motor designed for pool and spa pump applications. This unit fits Hayward swimming pool/spa pumps—compatible with Sta-Rite Dura-Glas, Dura-Glas II, Max-E-Glas, Max-E-Glas II, Dyna-Glas and Max-E-Pro models—as well as Hayward Max-Flow II pumps and Pentair Whisper-Flo, Challenger, and Ultra-Flow pumps. Mechanical dimensions: overall length measures 12.82 inches; frame length measures 8.94 inches (type 48Y); threaded shaft diameter is 0.625 inches. Electrical and performance specifications: operates at 230/115 volts at 3,450 RPM. Single speed, 1 Hp, 3450 RPM; 115/260 Volts; 1.25 Service Factor; 48Y Frame; 60 Hertz. Features: Sealed ball bearing construction, sealed switch design, stainless steel shaft, Auto Protector, energy efficient, capacitor start, corrosion resistant shell. Intended as a pool motor only and fits Hayward Super Pumps, Pentair, Sta Rite and other pumps that use the "square Flange" bolt pattern for inground pools. Part Number: USQ1102 Manufacturer warranty: 1-year warranty
