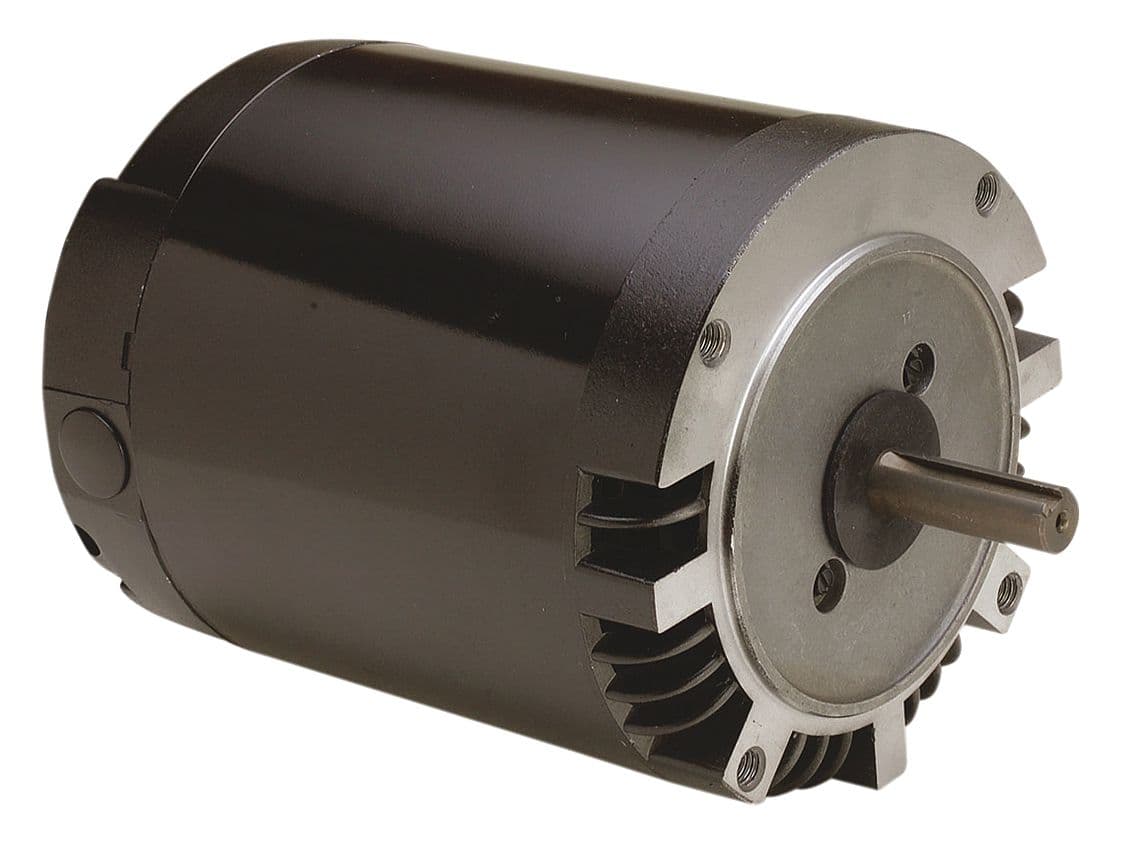

Century 1/8 HP Direct Drive Blower Motor, Split-Phase, 1140 Nameplate RPM, 115 Voltage, Frame 56CZ - F270
No rating yet(0 ratings)Direct Drive Blower Motor, Motor Application HVAC/R, Motor Sub Application Direct Dr Fan/Blower, Motor Type Split-Phase, Enclosure Open Dripproof, HP 1/8, Nameplate RPM 1140, Voltage 115, Full Load Amps 3.0, Hz 60, Phase 1, Frame 56CZ, Service Factor 1.4, Max. Ambient Temp.
40 Degrees C, Insulation Class B, Duty Continuous Air Over, Number of Speeds 1, Mounting Face, Bearings Ball, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 6-1/2", Length Less Shaft 9", Shaft Dia. 5/8", Shaft Length 2-1/4", Shaft Type Keyed, Capacitor Included Not Required, Capacitor Required None, RPM Range 1101-1200, Standards UL Recognized, CSA Certified, Application C Face Vent, Designed for Use On Commercial and Industrial Ventilation Systems
