Unbranded Podcasting Bundles | sku-18490561847 Mixer Kit

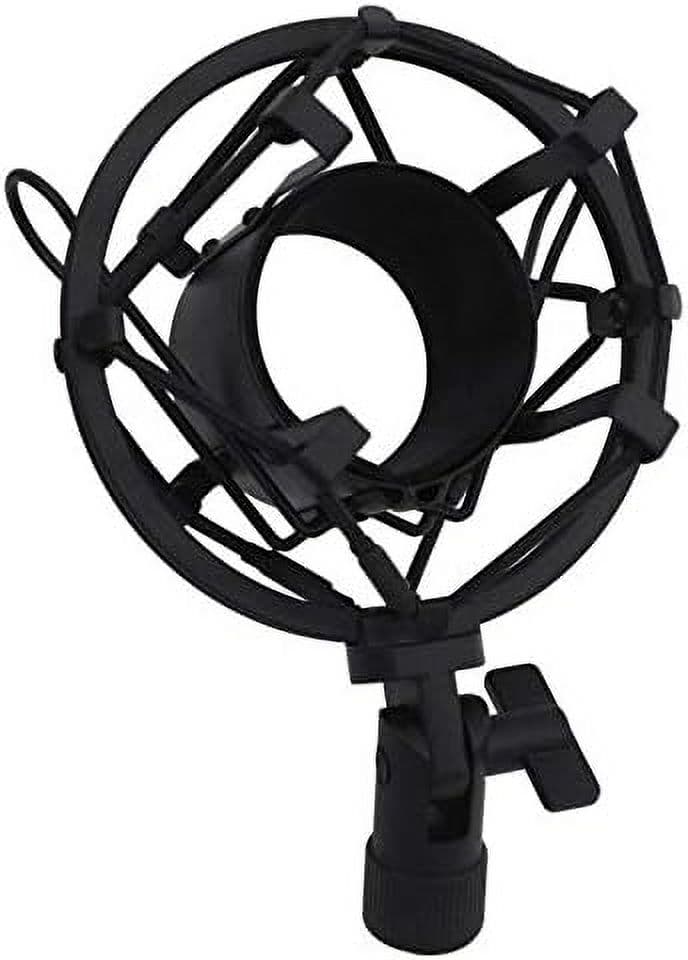

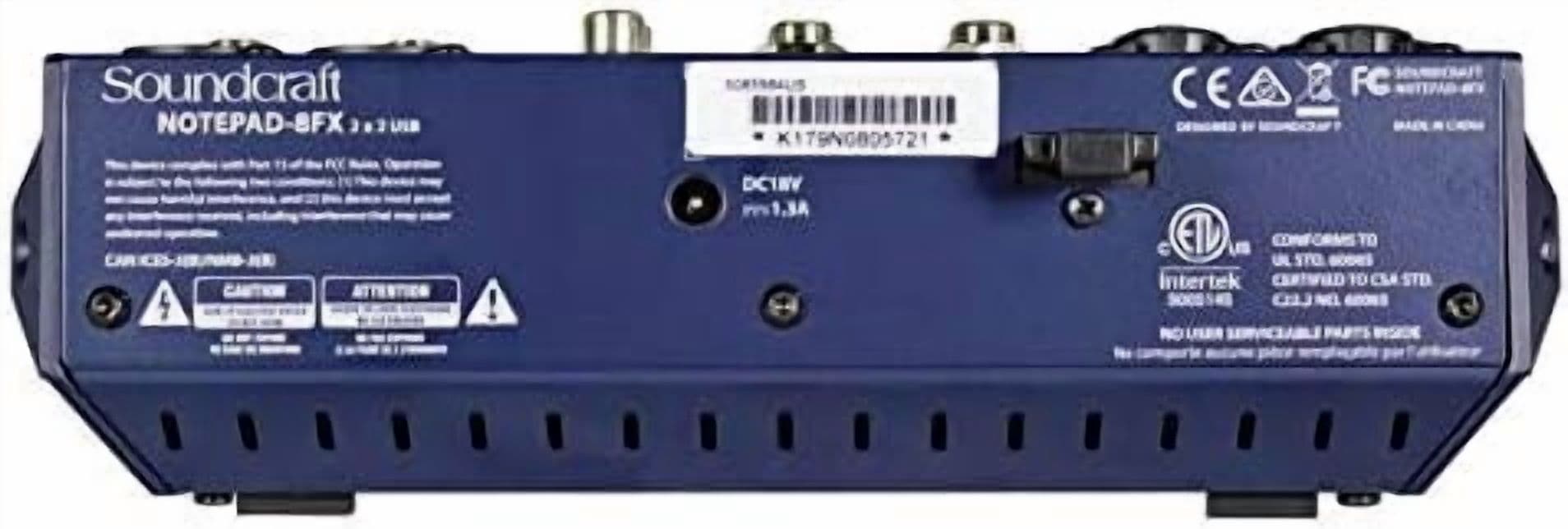

Unbranded Podcasting Bundles sku-18490561847 (UPC 330739001512) includes 1 Soundcraft Notepad-8FX 8-channel podcast mixer and USB interface with effects, plus 1 Rockville RCM01 condenser microphone with a metal shock mount. The mixer can record, edit and play back audio on Mac and PC through its integrated USB interface. HARMAN processing provides Lexicon reverb, echo and delay.

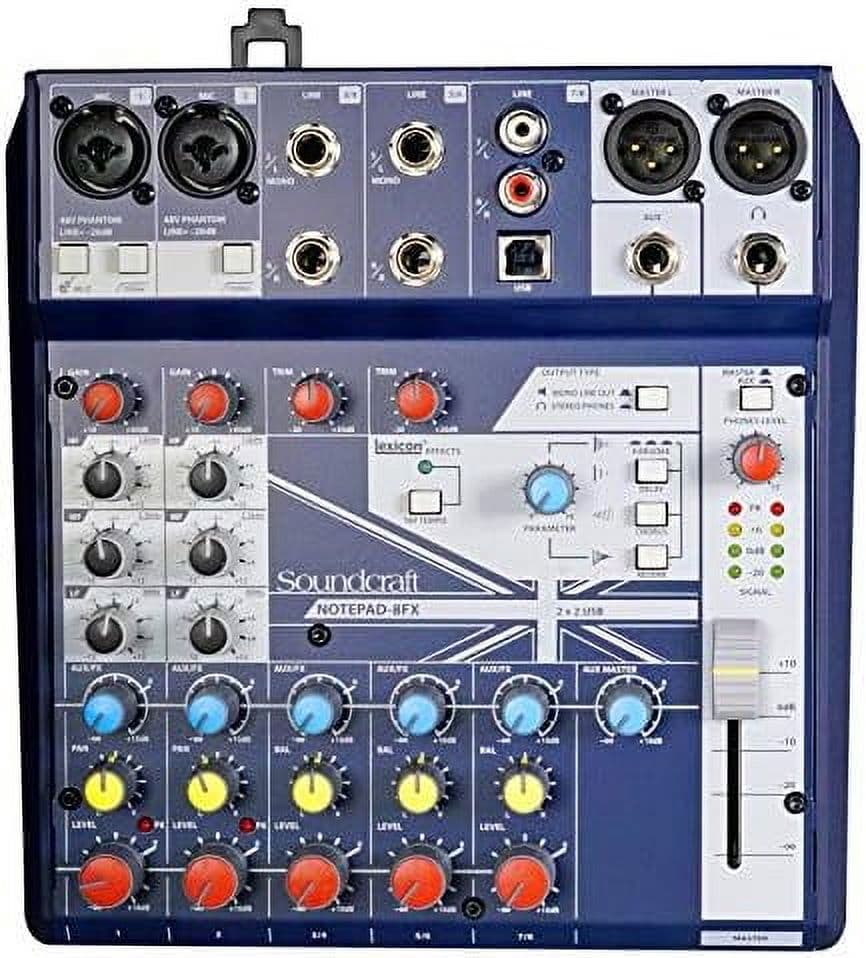

Its channel strips have EQ, an aux send, a master fader and a rotary headphone volume control. Mixer specifications list 2 mic/line combo inputs, 2 mic gain controls, 1 input with Hi-Z and 2 peak lights. They also list 2 each of high, mid and low EQ controls, pan controls and level controls; 2 1/4-inch stereo line inputs with trim; 1 RCA stereo line input; 3 aux/FXL controls; 3 balance controls; and 2 USB returns.

There is no 1/4-inch stereo line external effects return. The RCM01 has a full-metal body, a large diaphragm and an internally polarized cardioid condenser design. It is unidirectional and requires 48V DC phantom power. Sensitivity is -27dB±2dB (0dB=1V/Pa at 1kHz), and output impedance is 200 ohms ±30% at 1kHz. Standard operating voltage is 3V, with a 1.5V-10V range.

Current consumption is less than 500uA; voltage deduction is within 3dB at 2V. The signal-to-noise ratio exceeds 24dB. Frequency response is 30Hz to 20 kHz, with a fixed crossover filter cutoff of 40Hz to 16 kHz. Load impedance is at least 1000 ohms, and equivalent noise is less than 18dB A (IEC581-5). Maximum input SPL is 126dB at 1.0% THD and 1kHz. Electrical current exceeds 4.8mA.

The microphone body weighs 325 grams (0.72 pounds).
