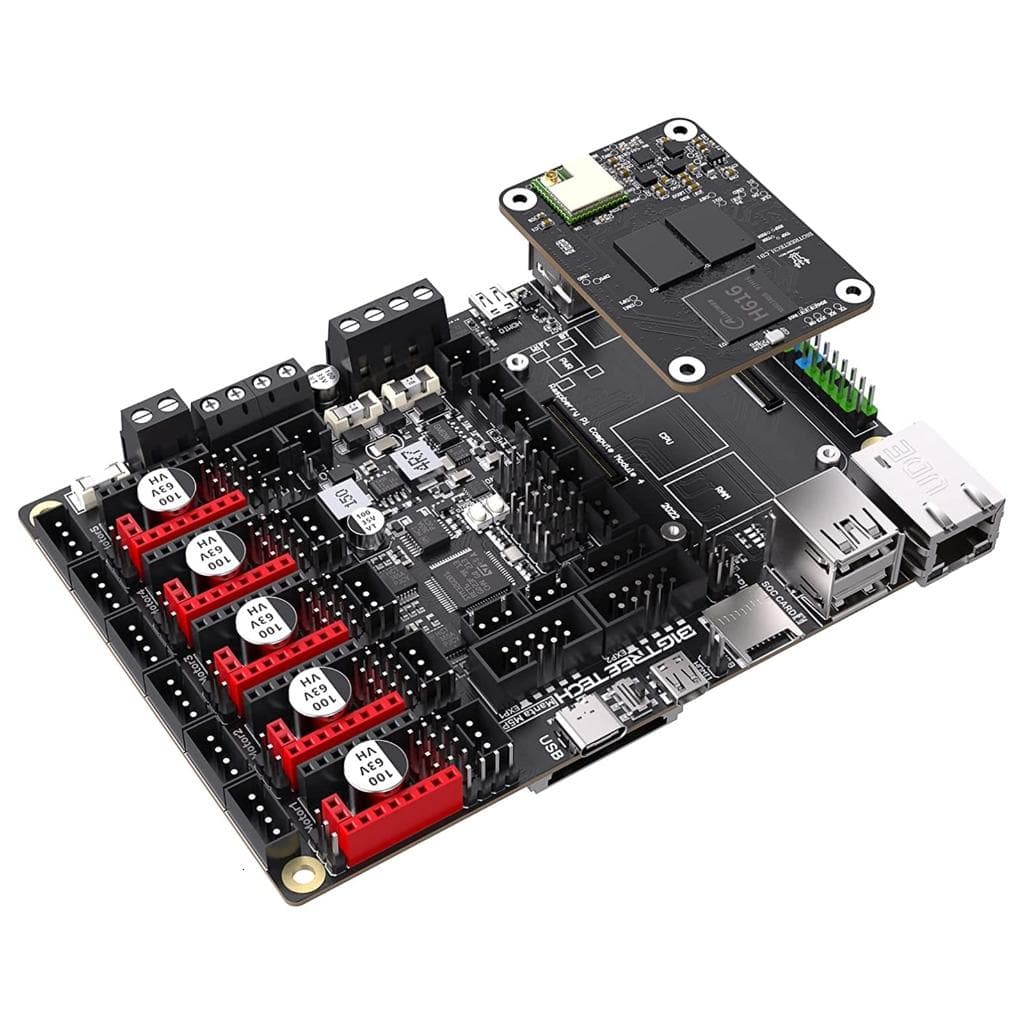

BIGTREETECH Manta M5P V1.0 + CB1 V2.2 Silent Control Board — Ready for Klipper (Runs Linux)

Klipper-Ready Combo: The BIGTREETECH Manta M5P V1.0 control board paired with the CB1 V2.2 core board is designed to boot a Linux system first and then run Klipper. If you use the Manta M5P without the CB1, it can run Marlin firmware. CB1 Core Board Details: BIGTREETECH CB1 features a quad-core architecture is 62bit ARM Cortex-A53 @ 1.5GHz processor with 1GB DDR3 RAM. It supports 100M Ethernet +100M WIFI, can run Linux, supports Debian, is programmable, and delivers high speed and stability for DIY projects. Onboard Connectivity: Includes an HDMI interface so images can be sent directly to BIGTREETECH HDMI 5/HDMI7 Screen with a single HDMI cable. An SPI interface allows use with SPI touch screens for responsive control, and a plug-and-play USB camera enables wireless monitoring of prints. Upgraded Hardware Features: TMC drivers support both SPI and UART modes and expose the DIAG pin, with jumper configuration for easy setup. The board uses a replaceable fuse and high efficiency Mostfet to reduce heat. MCU firmware updates can be applied via an SD card or by using DFU with Klipper's make flash command. After-Sales Support: For any questions about the BTT Manta M5P+CB1 core board combo, contact us any time — our professional technical support team is available to assist.
