Bad Wolf 240V Whole-House Surge Protector — 200kA with Overwatch Protection Circuitry

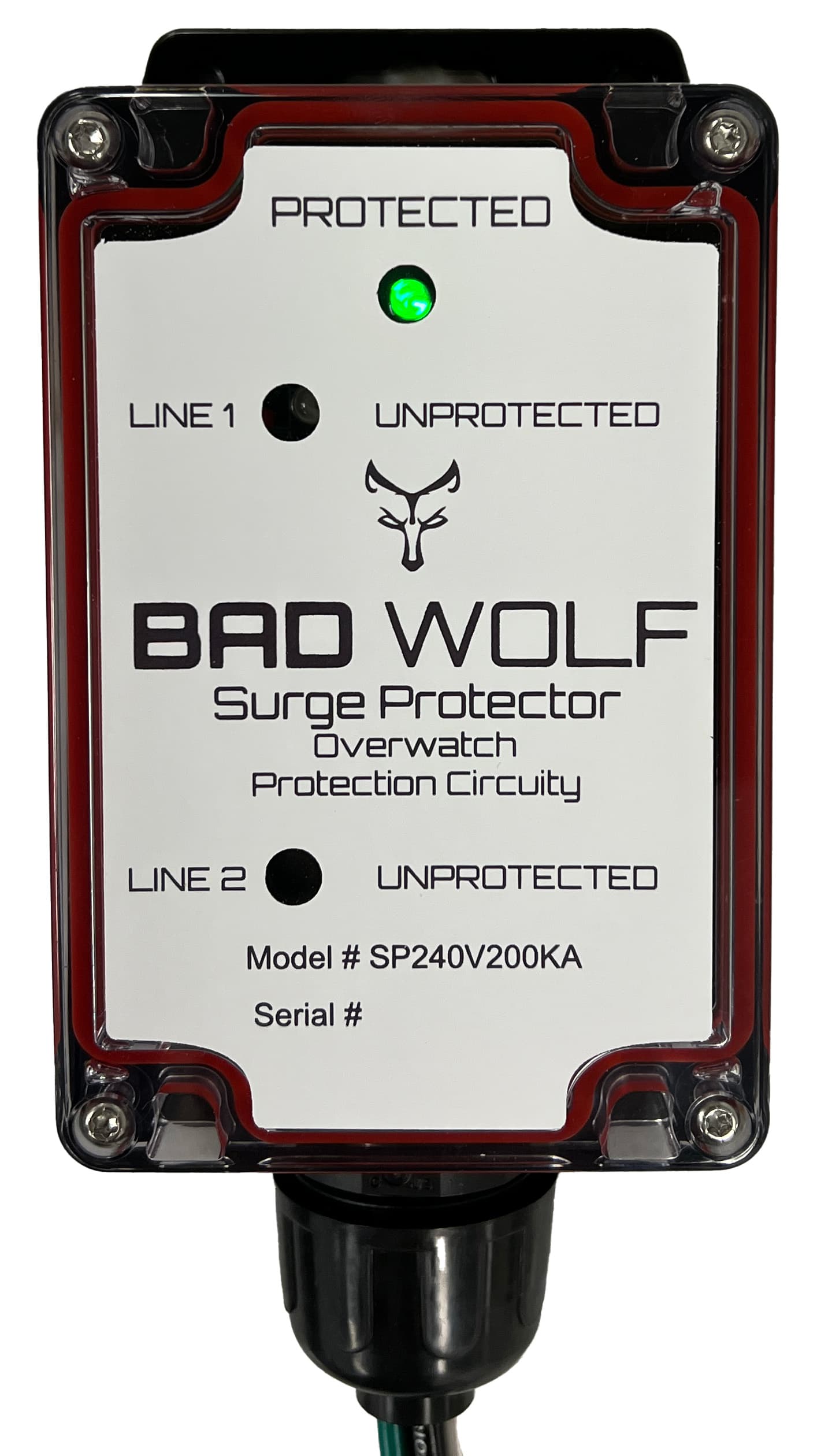

Bad Wolf whole-home surge protection engineered for 240V split-phase systems. Built around our patented Overwatch protection circuitry, this surface-mount SPD delivers ultra-fast surge response and clear status feedback via dedicated LEDs. It is intended for installation in the main breaker panel to guard all connected branch circuits and may be used as a Type 1 or Type 2 SPD (If installing on load center use in conjunction with a 20A 2 pole circuit breaker). Visual status and fault indication Visual Status Indicator Lights (Green = Protected), (Line 1 Red = Line 1 Unprotected), (Line 2 Red = Line 2 Unprotected). A green LED confirms full protection for connected circuits; two red LEDs warn of a failure on either line. Protection characteristics 6 Modes of Protection (L1 – L2), (L1 – N), (L2 – N), (L1- G), (L2 – G), (N- G). Vpr (L-L 300V) (L-N 150V) (N-G 50V). Provides 200,000 Amps of surge current capacity per phase and is specified for normal Line-to-Line voltages of 240VAC and Line-to-Neutral voltages of 120VAC. Mechanical and environmental NEMA 3R Enclosure per Nema/UL requirements with 4X indoor/outdoor rating. Surface Mount form factor; Connection Type: Hardwire. Product Dimensions 6"x3.25"x2.25". Product Weight 19oz. IP67 and UL94V-0 flammability rated. Certifications and compliance UL 1449, CSA C22.2 No. 269-5, E320116, IEC61051-1, IEC 61051-2, IEC61051-2-2, Annex Q of IEC 60950-1, Annex G of IEC 62368-1, J50519458, GB/T 10193, GB/T 10194, GB 4943.1, GB 8898, CQC21001319760, UL508A Compliance. Key specifications Service Type: Split Phase. SPD Classification: Type 1, Type 2. Surge Current Rating (A): 200kA. Type of Surge Protection: AC. AC Voltage (Vac): 240. The Bad Wolf SPD combines high surge current handling, comprehensive mode coverage, and straightforward indication to protect whole-home electrical systems from transient overvoltages.
