B&C Speakers DRV785TN-8 HF Driver — Titanium Diaphragm, 110W Nominal / 220W Continuous, 8 Ω

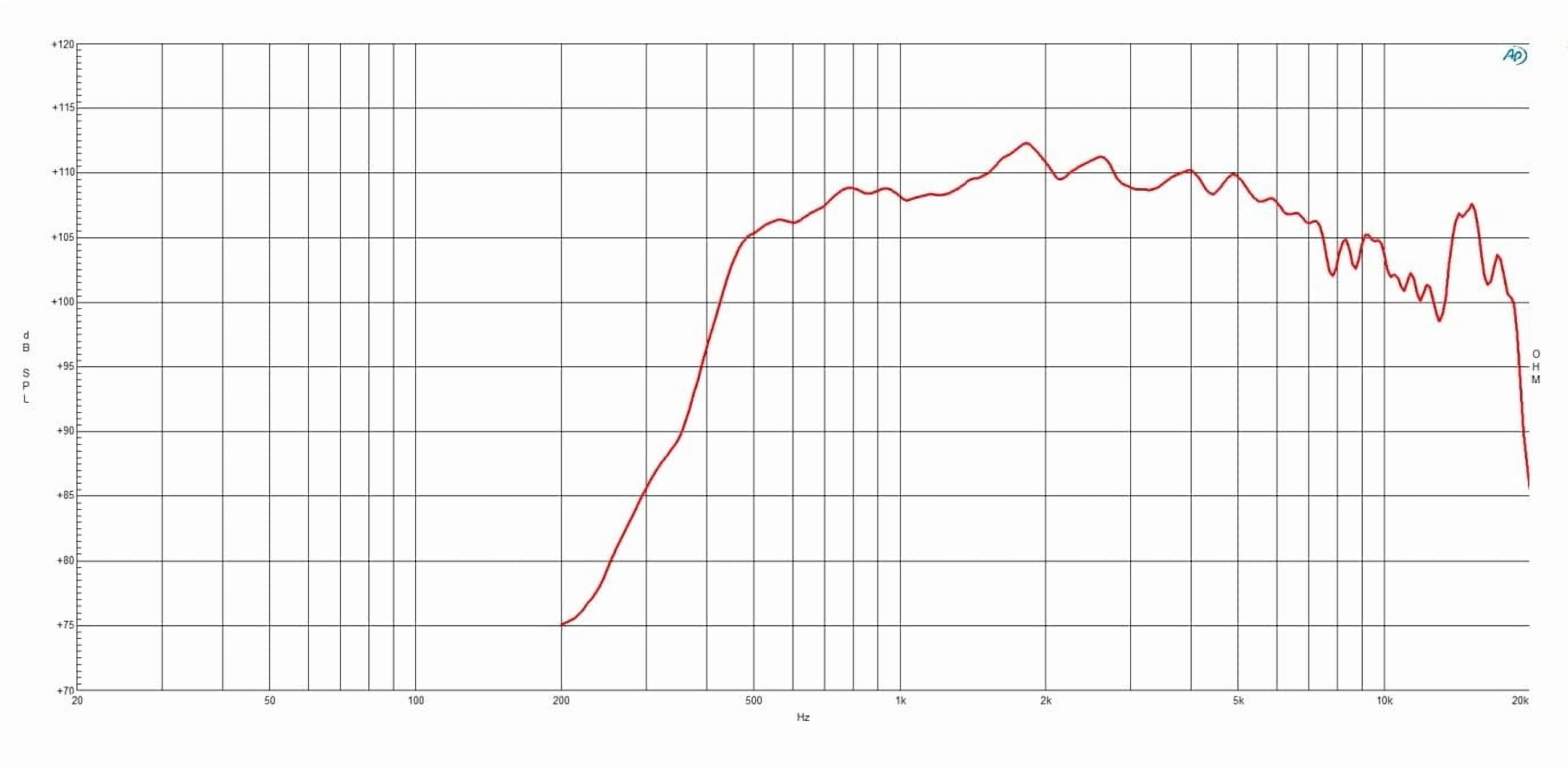

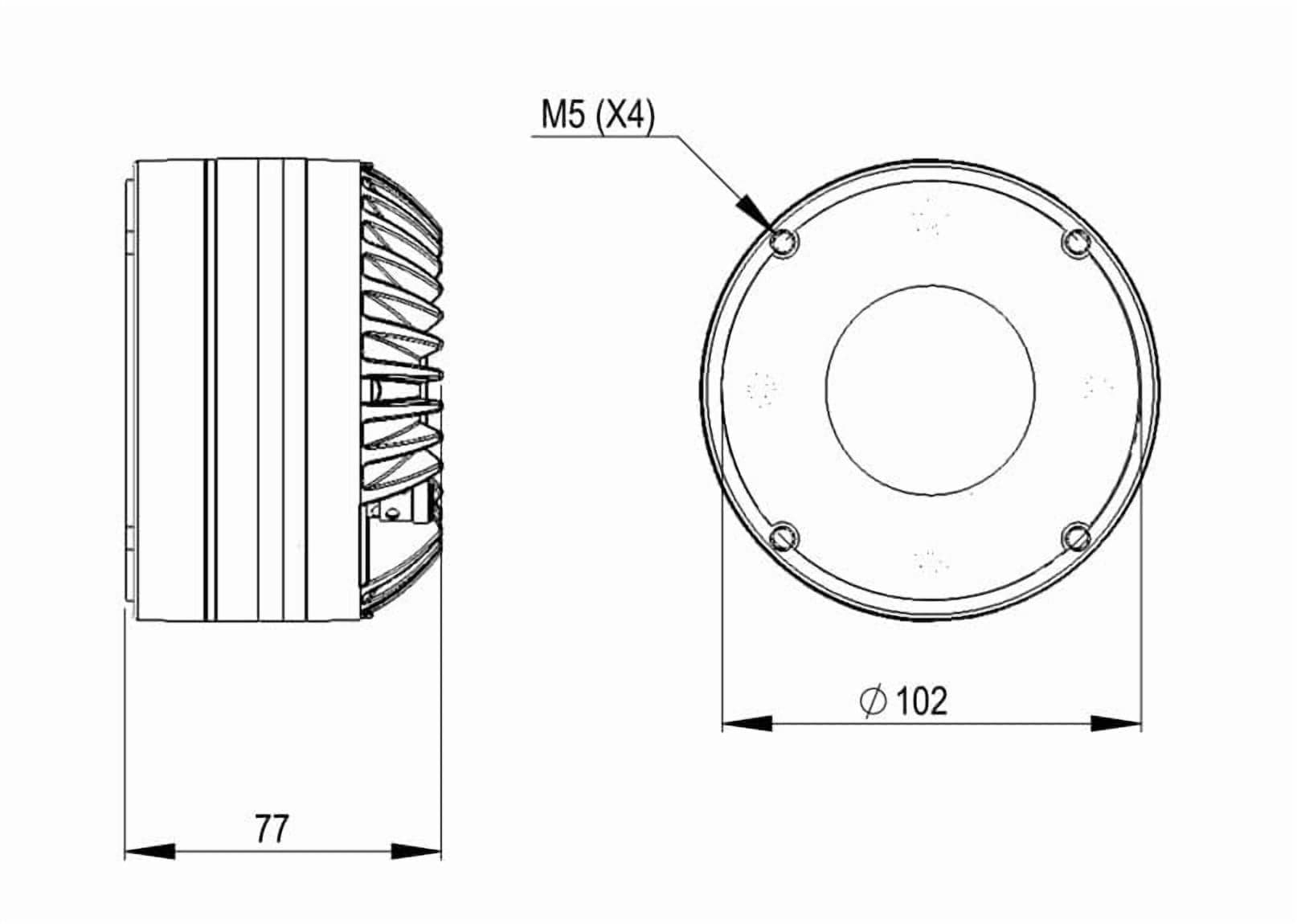

Brand: B&C Speakers | Model: DRV785TN8 / DRV785TN-8 | UPC: 8050593406613 718852125023 Overview: The B&C DRV785TN-8 is a professional high-frequency compression driver engineered for compact line-array and pro-audio loudspeaker systems. It combines a lightweight titanium diaphragm with a robust 75 mm (3.0 in) aluminum voice coil and a neodymium magnet assembly with a shorting copper cap to deliver clear, efficient HF performance across a wide bandwidth. Power & Impedance: - Continuous Power Handling: 220 W - Nominal (RMS) Power Handling: 110 W - Nominal Impedance: 8 Ω - Minimum Impedance: 8.3 Ω Acoustic Performance: - Frequency Response / Range: 500 - 18,000 Hz (0.5 - 18 kHz) - Sensitivity: 107.5 dB - Recommended Crossover: 1 kHz - Horn Throat / Throat Diameter: 50 mm (2 in) Motor & Voice Coil: - Voice Coil Diameter: 75 mm (3 in) — aluminum winding material (aluminium) - Magnet: Neodymium ring with shorting copper cap - Inductance: 0.17 mH - Flux Density: 1.95 T Diaphragm & Materials: - Diaphragm Material: Titanium Mechanical / Mounting: - Overall Diameter: 112 mm (4.41 in) - Depth: 77 mm (3.03 in) - Net Weight: 1.75 kg (3.86 lb) - Shipping Box Dimensions: 135 x 135 x 93 mm (5.31 x 5.31 x 3.66 in) The DRV785TN-8 is built for demanding pro audio use where high sensitivity and compact size are required. Its combination of a titanium diaphragm, large 3 in aluminum voice coil and neodymium motor provides high output, accurate HF reproduction and reliable thermal handling for live sound and installed sound applications.
