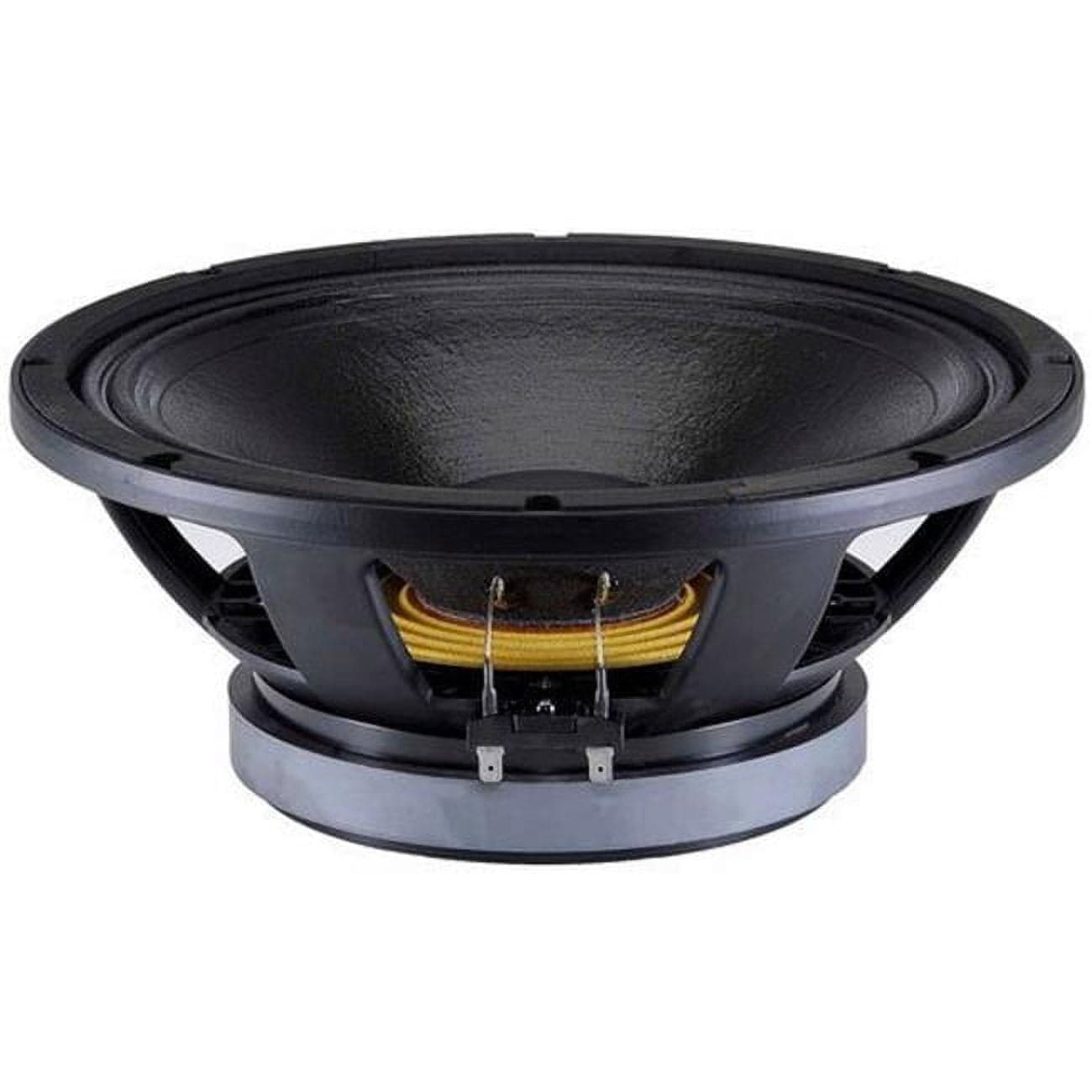

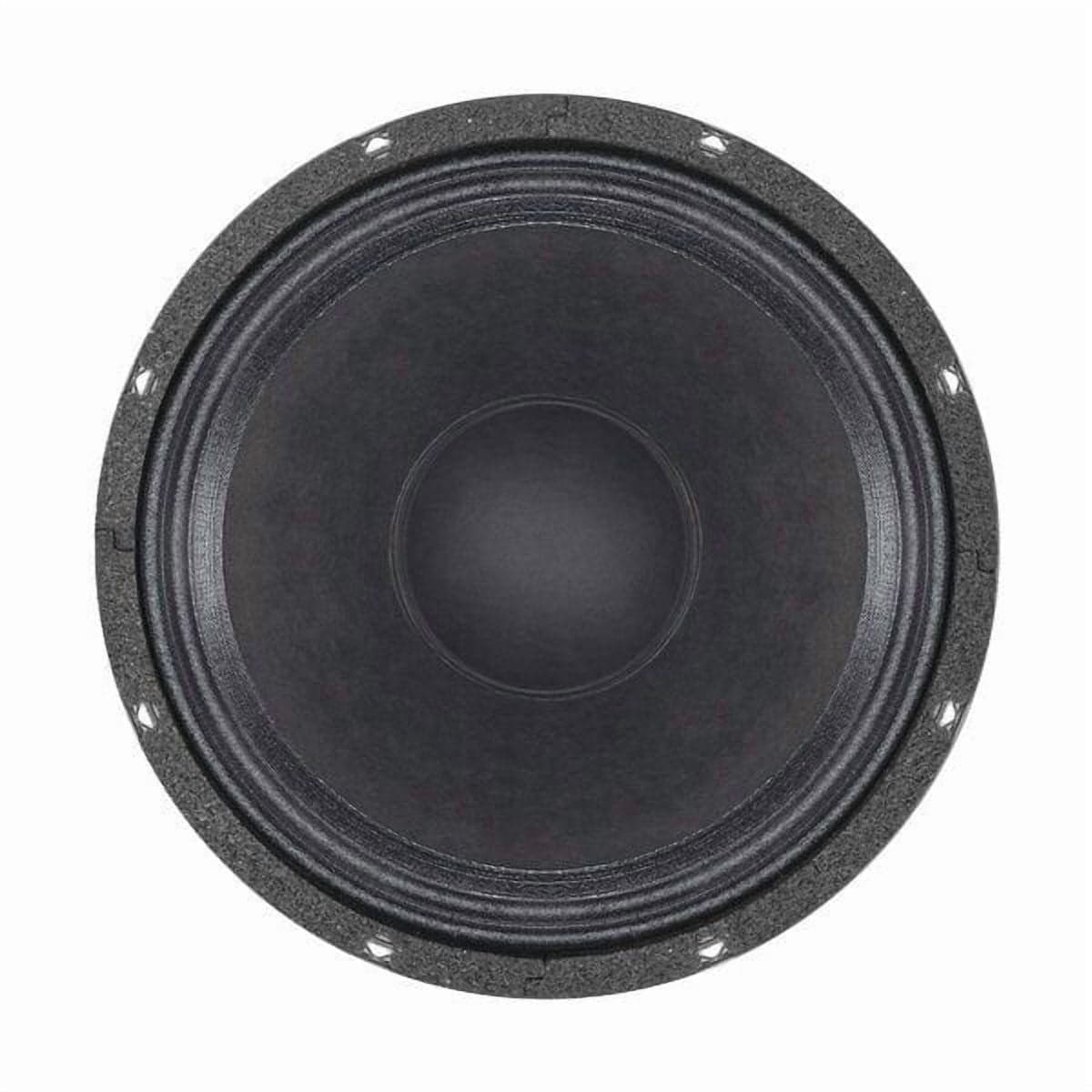

B And C 12MH32 12.0" Woofer — 800W Continuous / 400W Nominal, 8 Ohms, Ferrite Magnet

B And C 12MH32 12.0-inch woofer with ferrite magnet, built for high-output professional audio. It offers 800 Watts continuous power handling and a nominal power rating of 400 Watts into a nominal impedance of 8 Ohms (minimum 6.5 Ohms). Frequency response spans 50–3000 Hz and sensitivity is 101.0 dB (1W/1m). Mechanical and motor assembly details: nominal outer diameter 320 mm (12.0), radial cone shape with a double-roll surround, and a single spider. The voice coil is 76 mm (3.0) diameter, wound with copper and seated on a glass fibre former; winding depth is 14 mm (0.55). The magnetic gap depth measures 8 mm (0.31) and the flux density is 1.4 T. Pole design is T-Pole.
