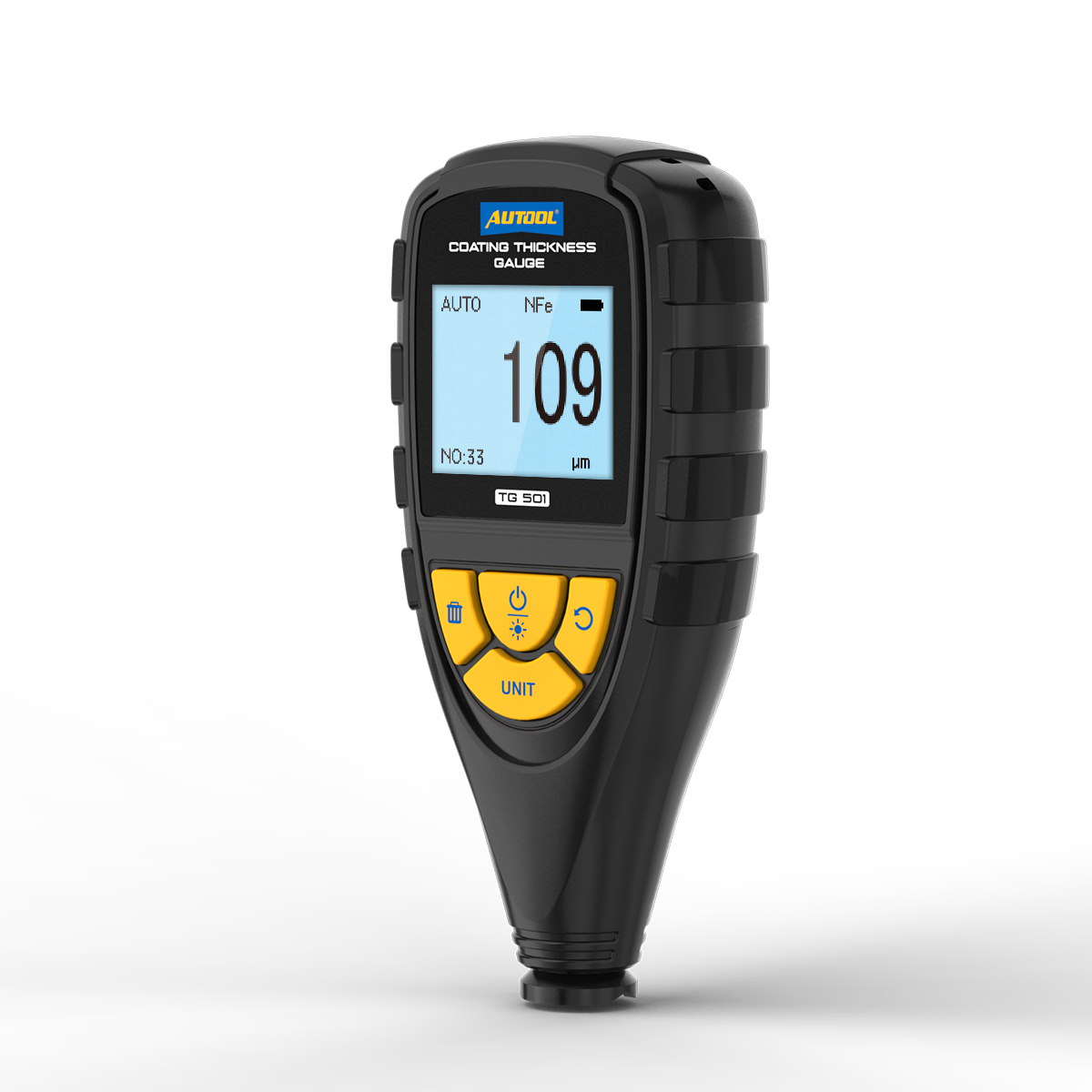

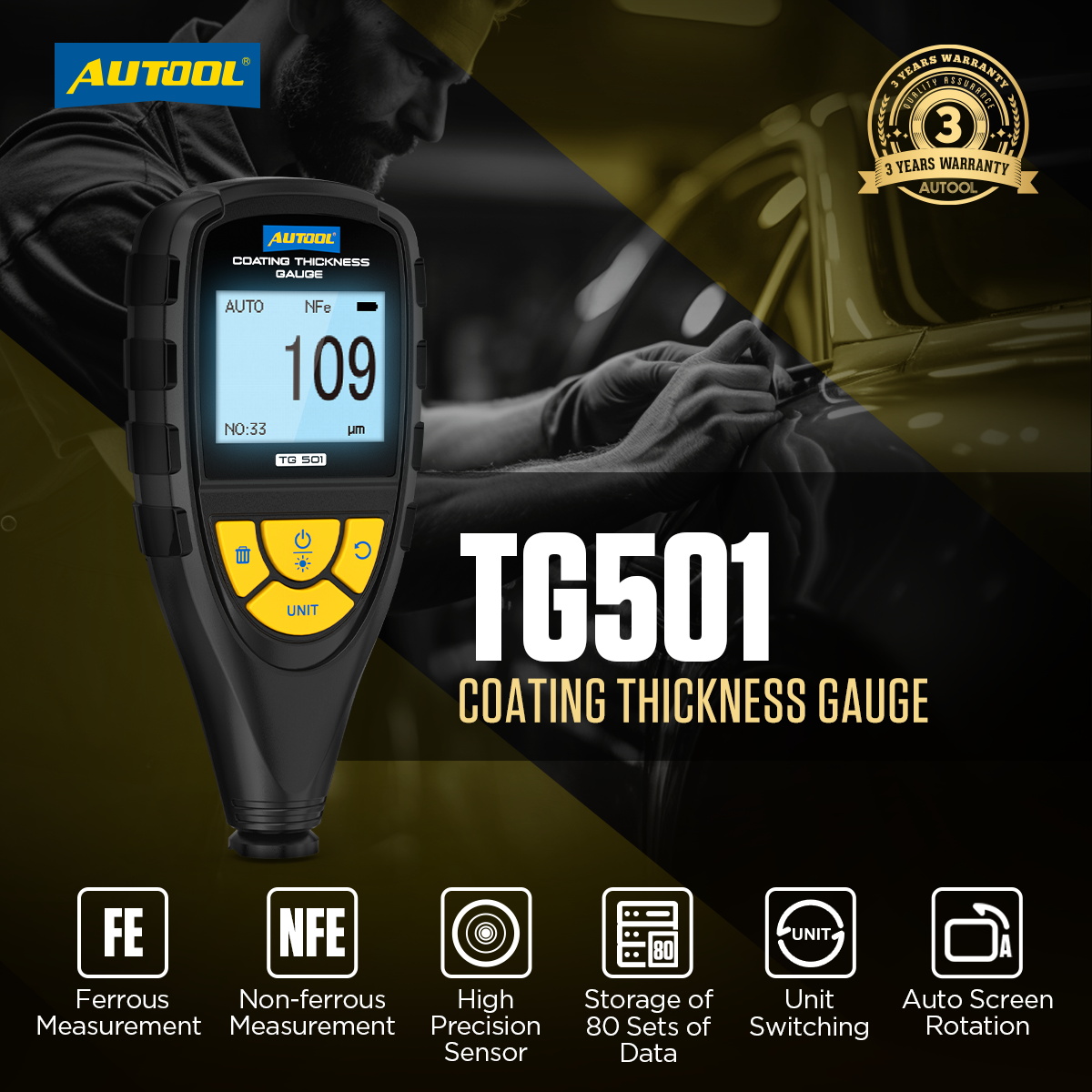

AUTOOL TG501 Coating Thickness Gauge, 0-2000μm Digital Paint Thickness Tester, Car Paint Depth Detector, Vehicle Film Measuring Meter W/ LCD Screen for Vehicle Paint Measurement

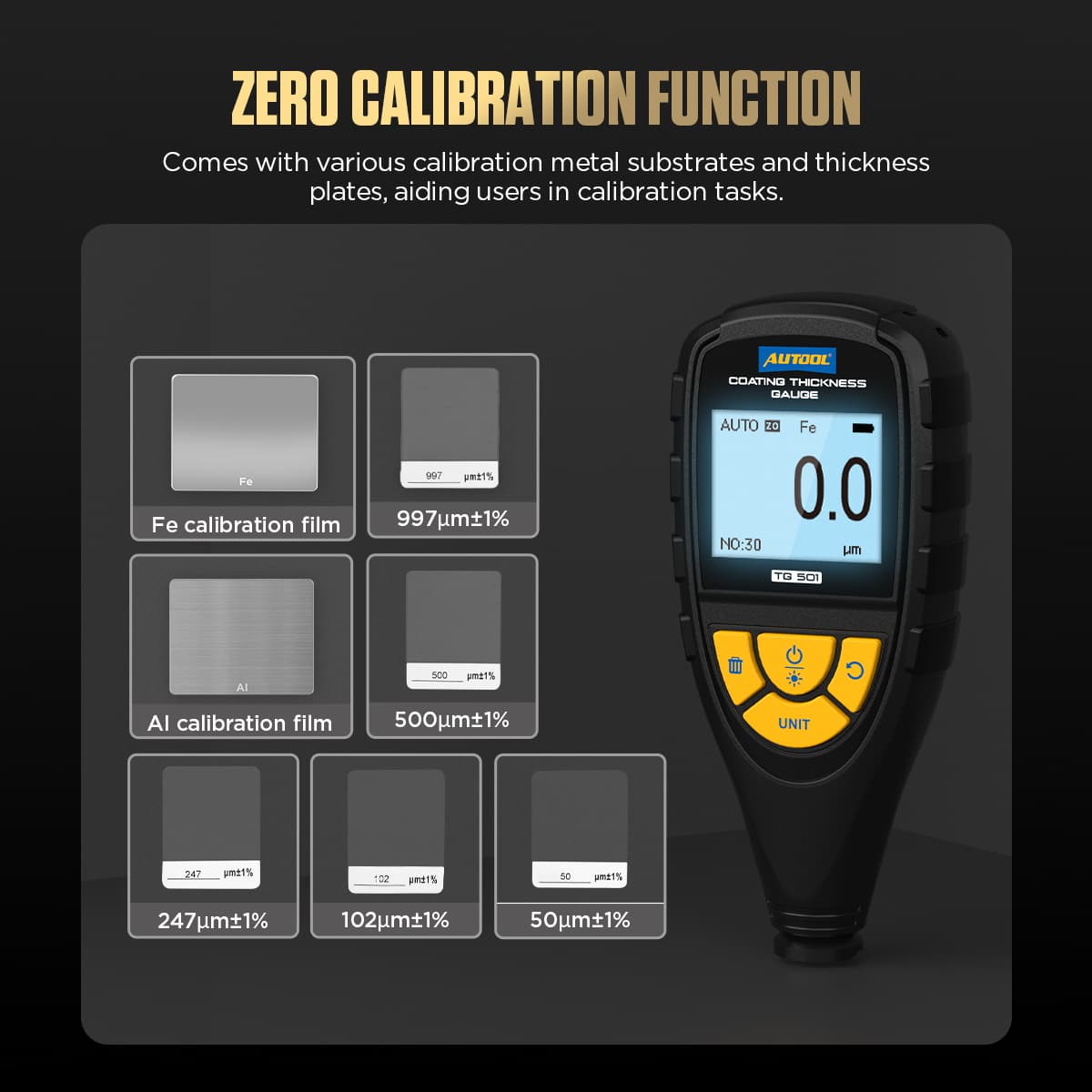

AUTOOL TG501 Coating Thickness Gauge Features: Your Good Helper: TG501 thickness gauge has good stability and can maintain accurate measurement results under various environmental conditions. It also supports multi-unit switching to adapt to various reference standards. It can also calibrate metal substrates and thickness plates to help you with calibration references.

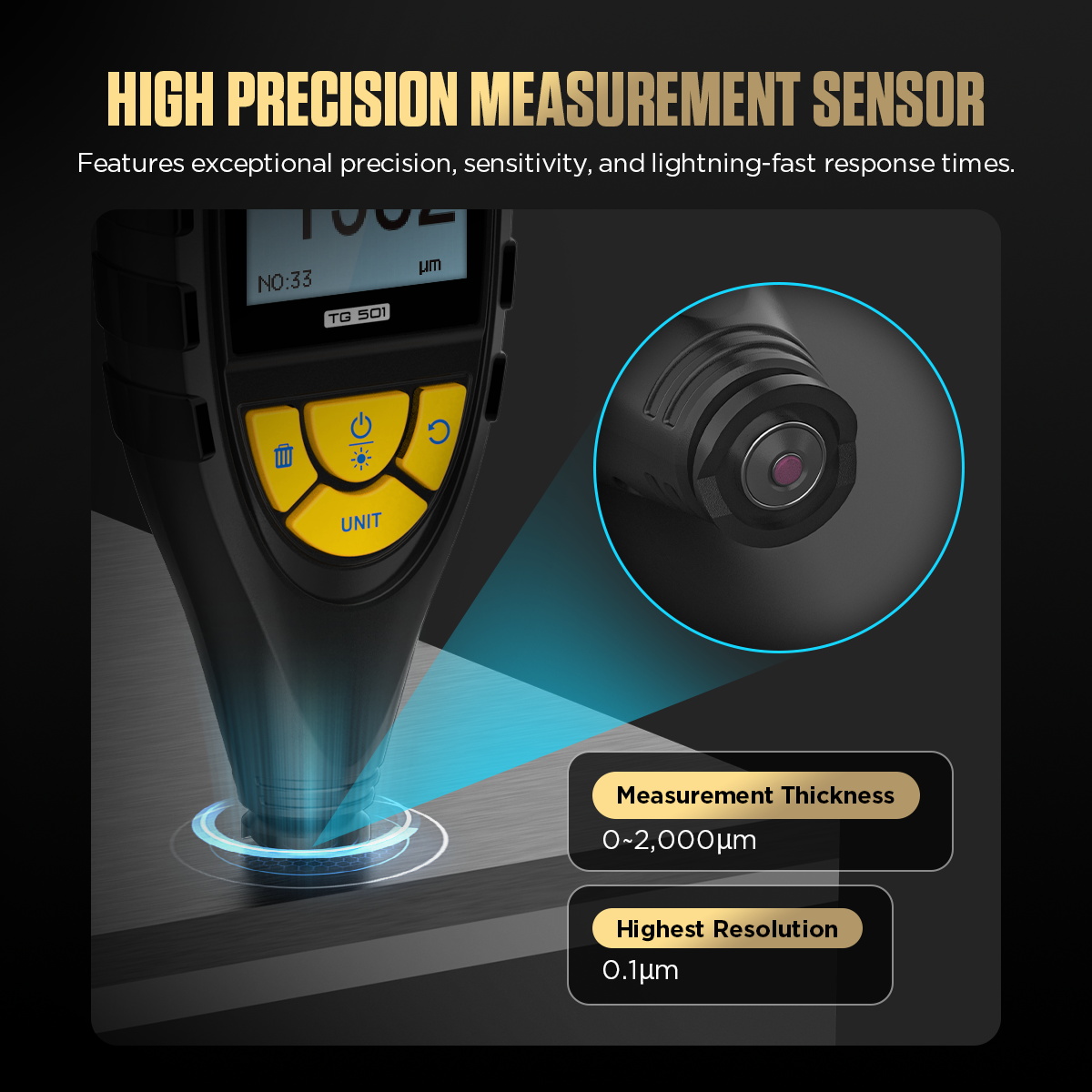

High-Precision Sensor: TG501 coating thickness gauge usually has high-precision measurement capability. Measures in the range of 0 to 2000μm, with an accuracy of 0.1μm. It can accurately measure the coating thickness on the surface of a variety of materials, to meet the needs of industry, automotive repair, marine, aerospace, and other fields.

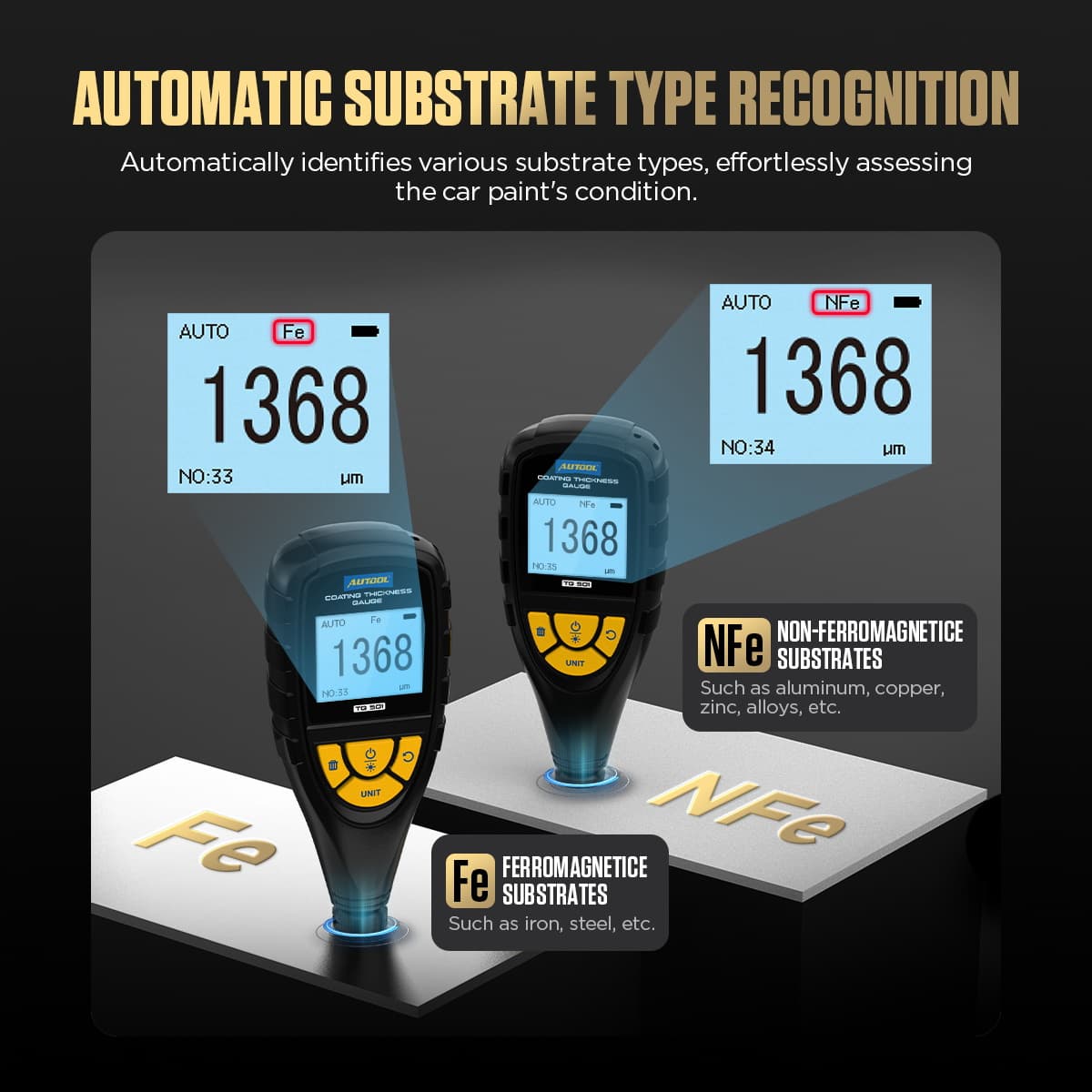

Automatic Substrate Identification: TG501 digital paint thickness tester with automatic substrate recognition, it can detect ferrous and non-ferrous painted surfaces, may support a variety of measurement modes and functions, such as non-conductive coatings on non-magnetic metal substrates (such as aluminium, copper, zinc, combined) measurement, as well as non-magnetic coatings on magnetic metal substrates (such as iron, steel, etc.) measurement.

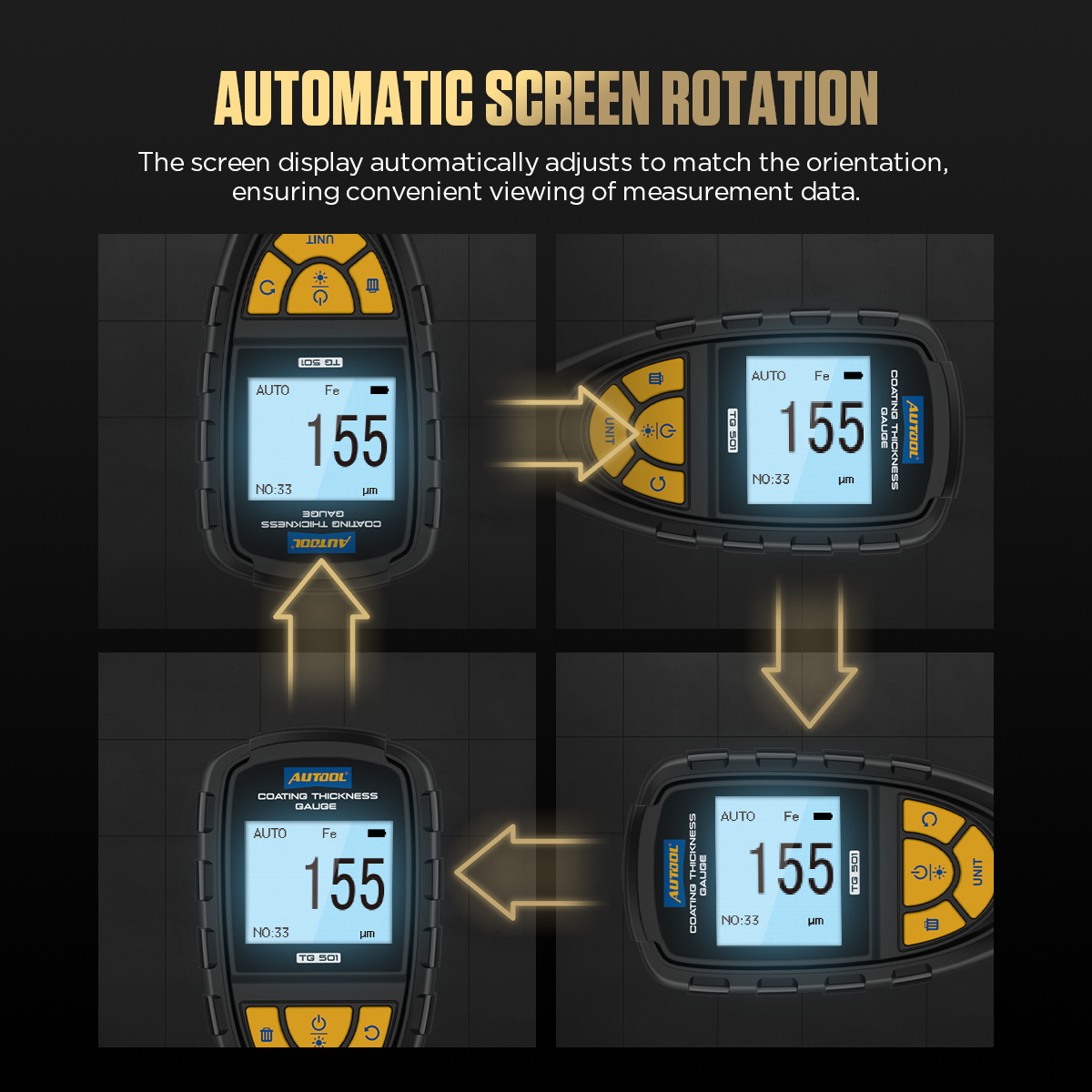

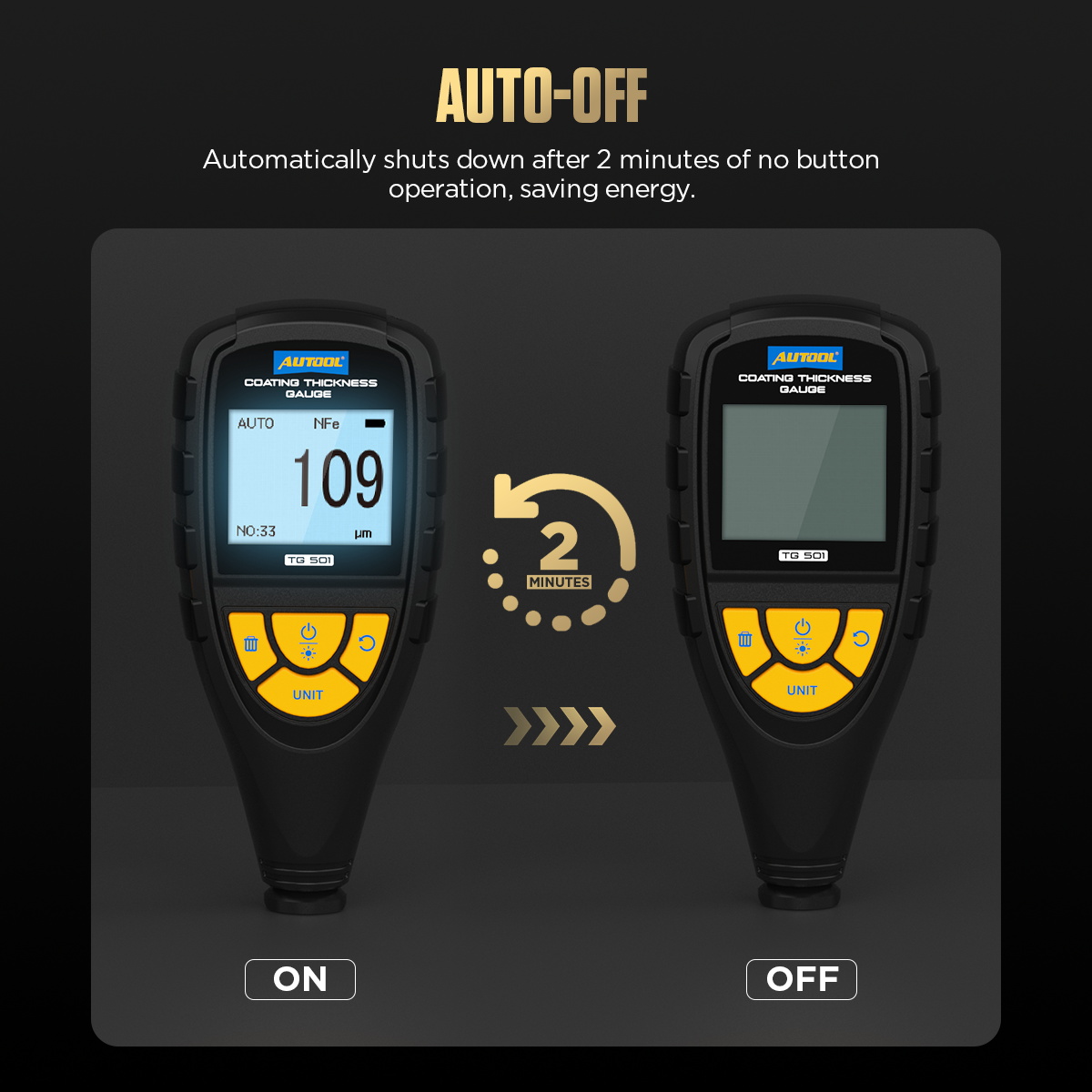

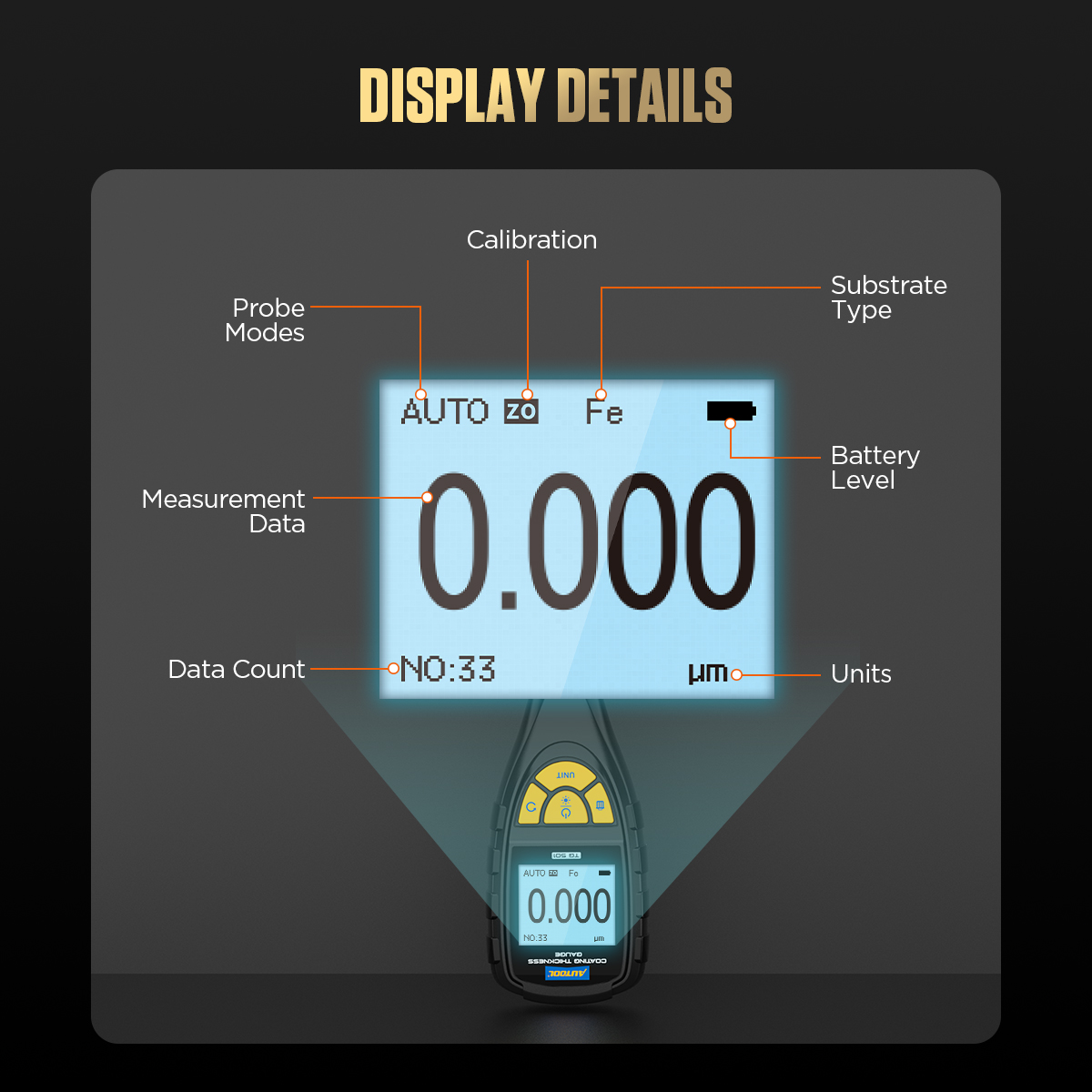

Carefully Designed Screen: The TG501 coating thickness gauge has an intuitive user interface and automatic screen rotation function, allowing you to easily and quickly measure and read data in complex environments. At the same time, the TG501 will automatically shut down after two minutes of inactivity to save power.

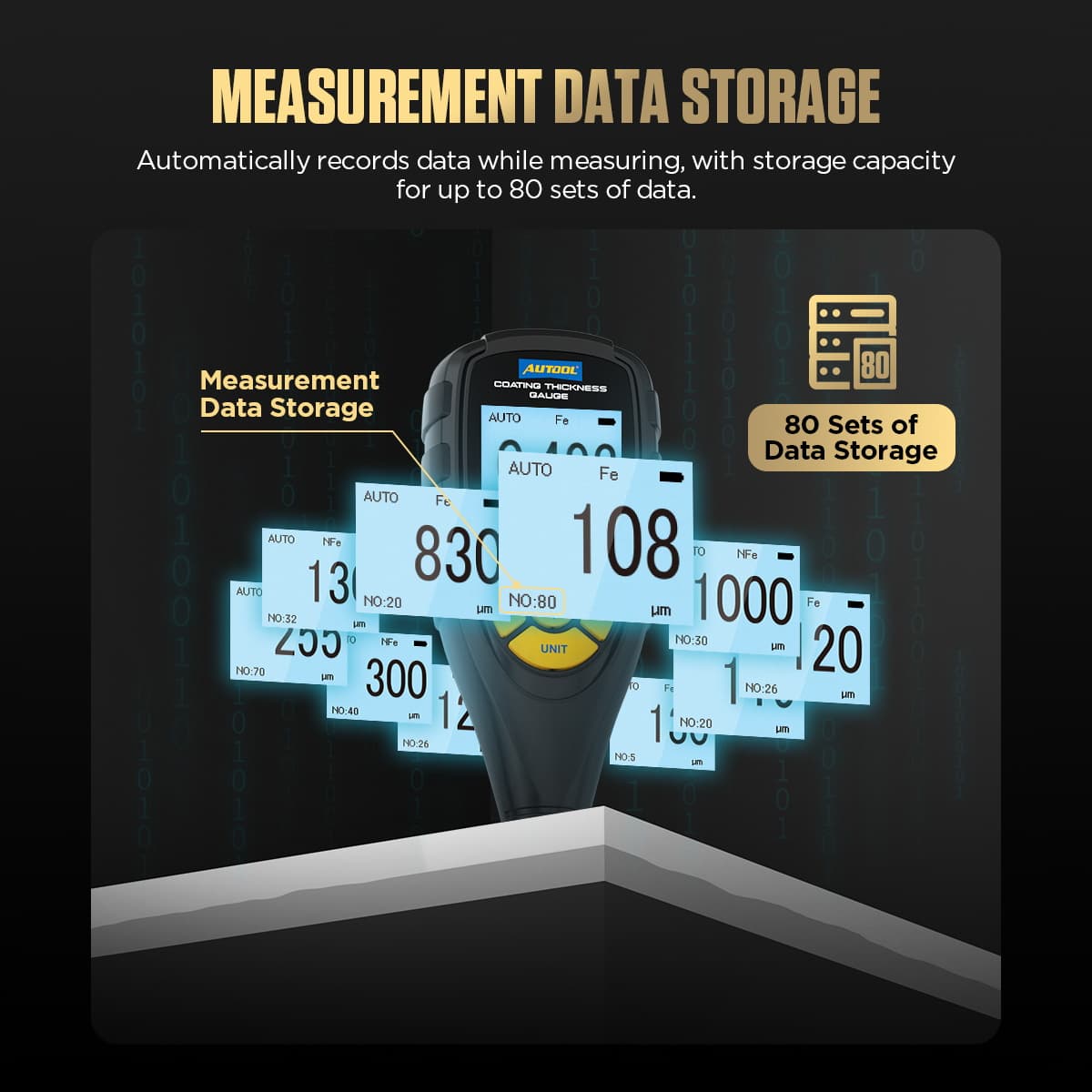

Convenient & Easy to Use: As a handheld device, the TG501 coating thickness gauge is usually compact and lightweight, making it easy for users to carry and operate. Automatically records data while measuring, with storage capacity for up to 80 sets of data. AUTOOL TG501 Paint Thickness Gauge Main Functions: 1. Ruby probe (improves accuracy and stability, probe is wear-resistant).

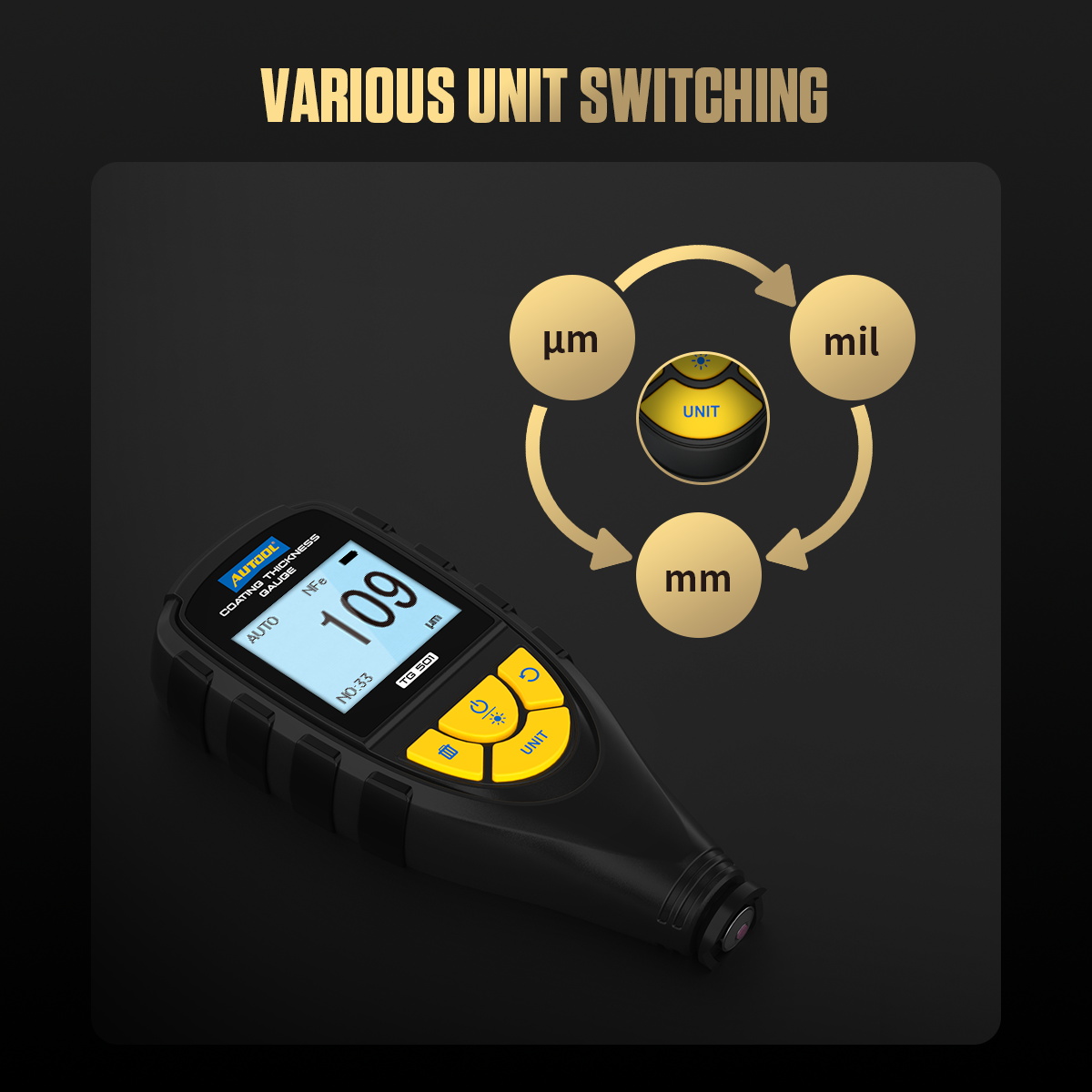

2.0.5 second reaction speed (fast reaction speed without waiting). 3. High definition with backlight display, the screen can automatically rotate for easy reading. 4.3 Unit switching (um mils mm). 5. Anti fall wristbands to prevent mechanical damage in the event of a fall. 6. Test thickness up to 2mm.

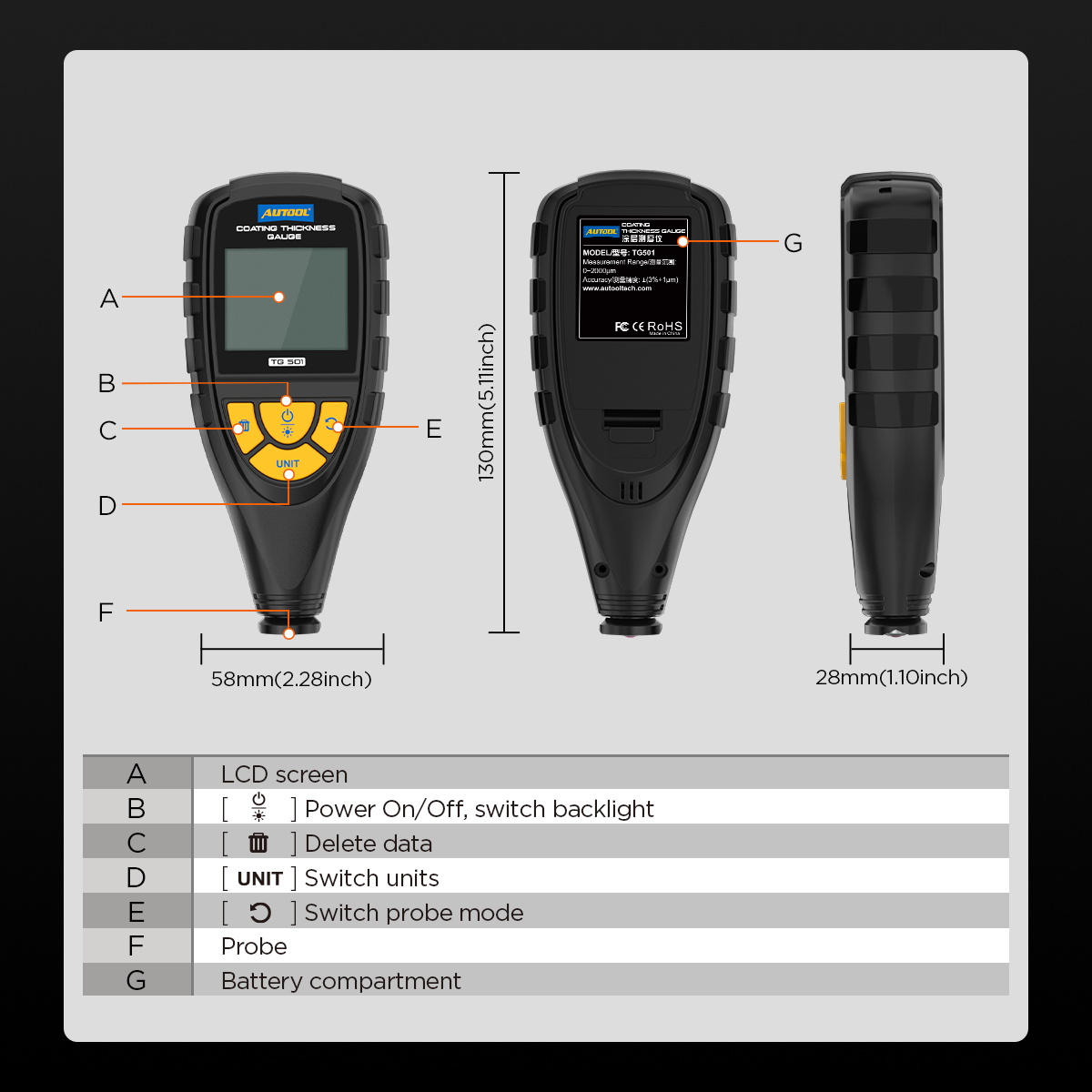

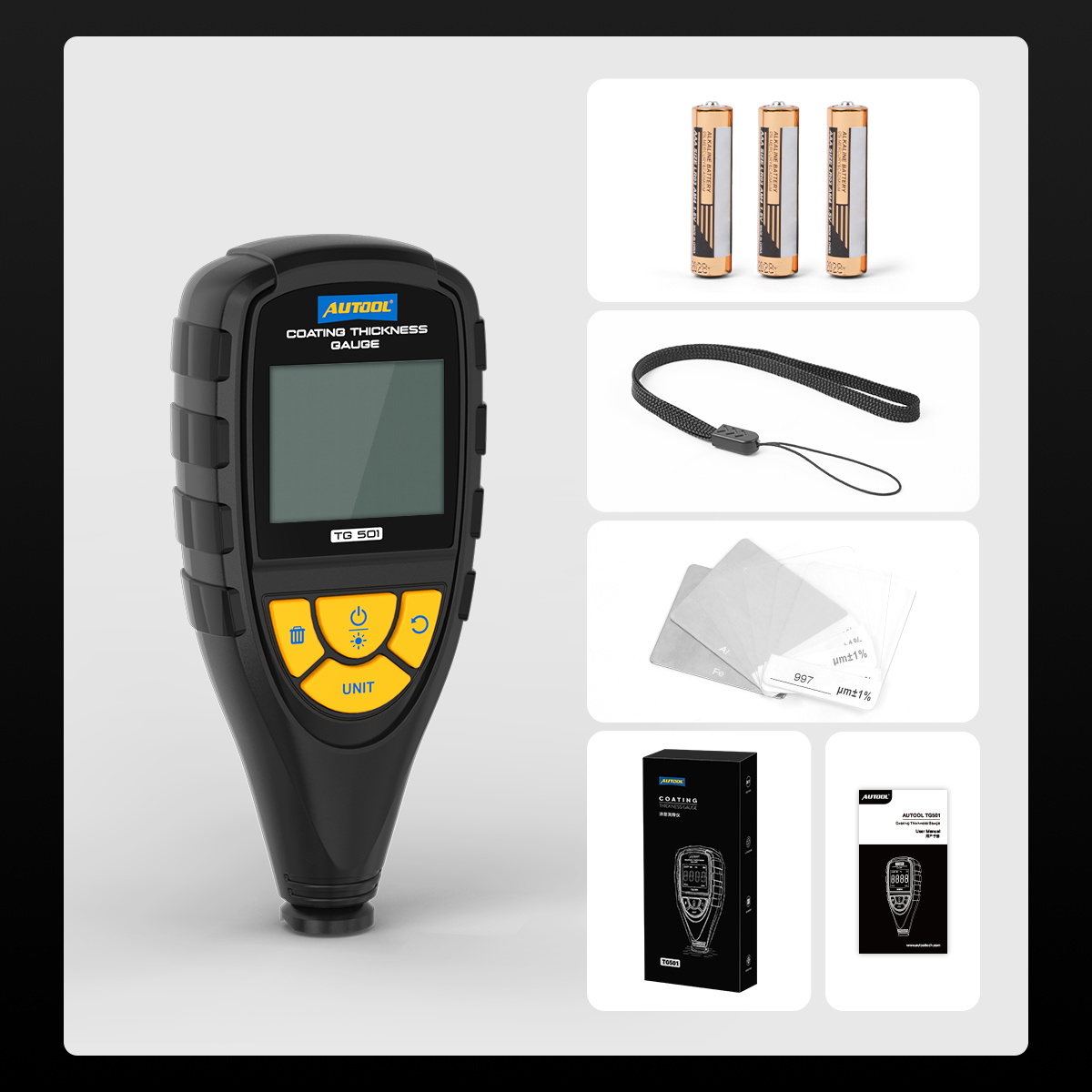

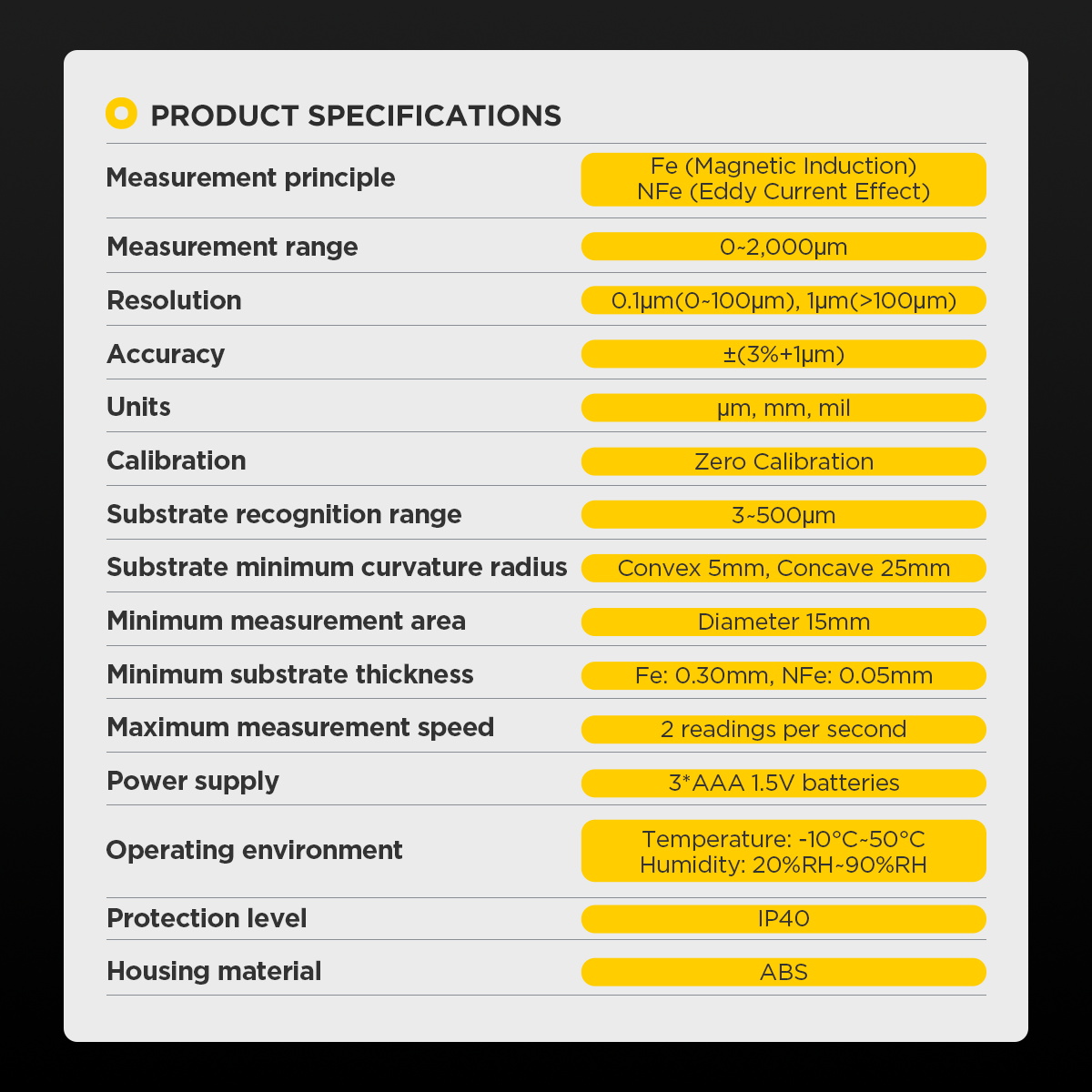

AUTOOL TG501 Coating Thickness Gauge Specifications: Housing Material: ABS Measurement Principle: Fe (Magnetic Induction), NFe (Eddy Current Effect） Measurement Range: 0-2,000μm Resolution: 0.1μm(0-100μm), 1μm(>100μm) Accuracy: ±(3%+1μm) Units: μm, mm, mil Calibration: Zero Calibration Substrate Recognition Range: 3~500μm Substrate Minimum Curvature Radius: Convex 5mm, Concave 25mm Minimum Measurement Area Diameter: 15mm Minimum Substrate Thickness Fe: 0.30mm, NFe: 0.05mm Maximum Measurement Speed: 2 Readings Per Second Operating Environment Temperature: -10°C-50°℃ Operating Environment Humidity: 20%RH-90%RH Protection Level: IP40 Power Supply: 3*AAA 1.5V Batteries(Not included) Dimension: 2.28 x 1.1 x 5.11" Weight: 0.48 lbs Digital Paint Thickness Gauge Package Includes: 1 x AUTOOL Coating Thickness Gauge TG501 Unit 1 x Fe Calibration Film 1 x Al Calibration Film 1 x 997μm±1% 1 x 247μm±1% 1 x 500μm±1% 1 x 102μm±1% 1 x 50μm±1% 1 x Rope 1 x User Manual
