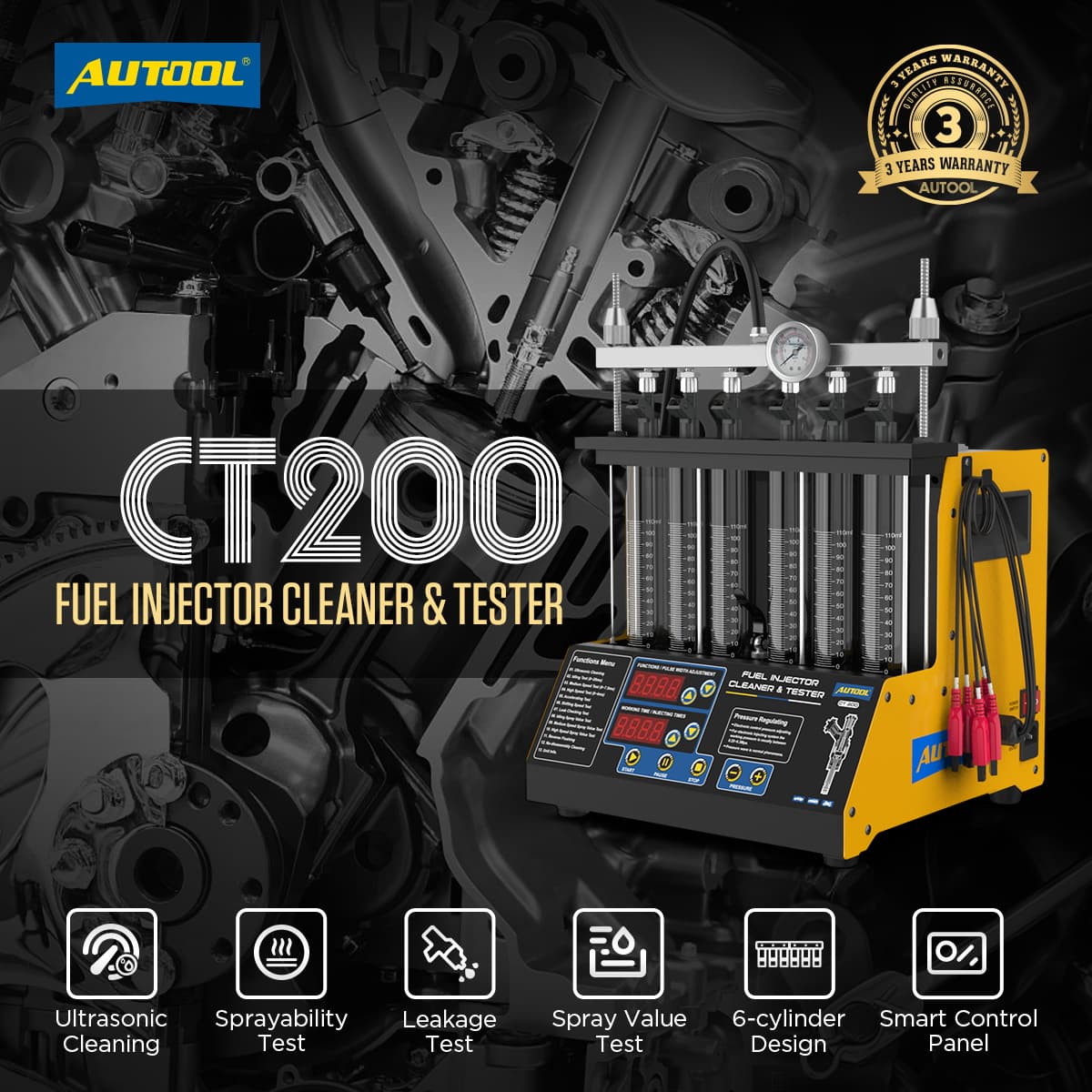

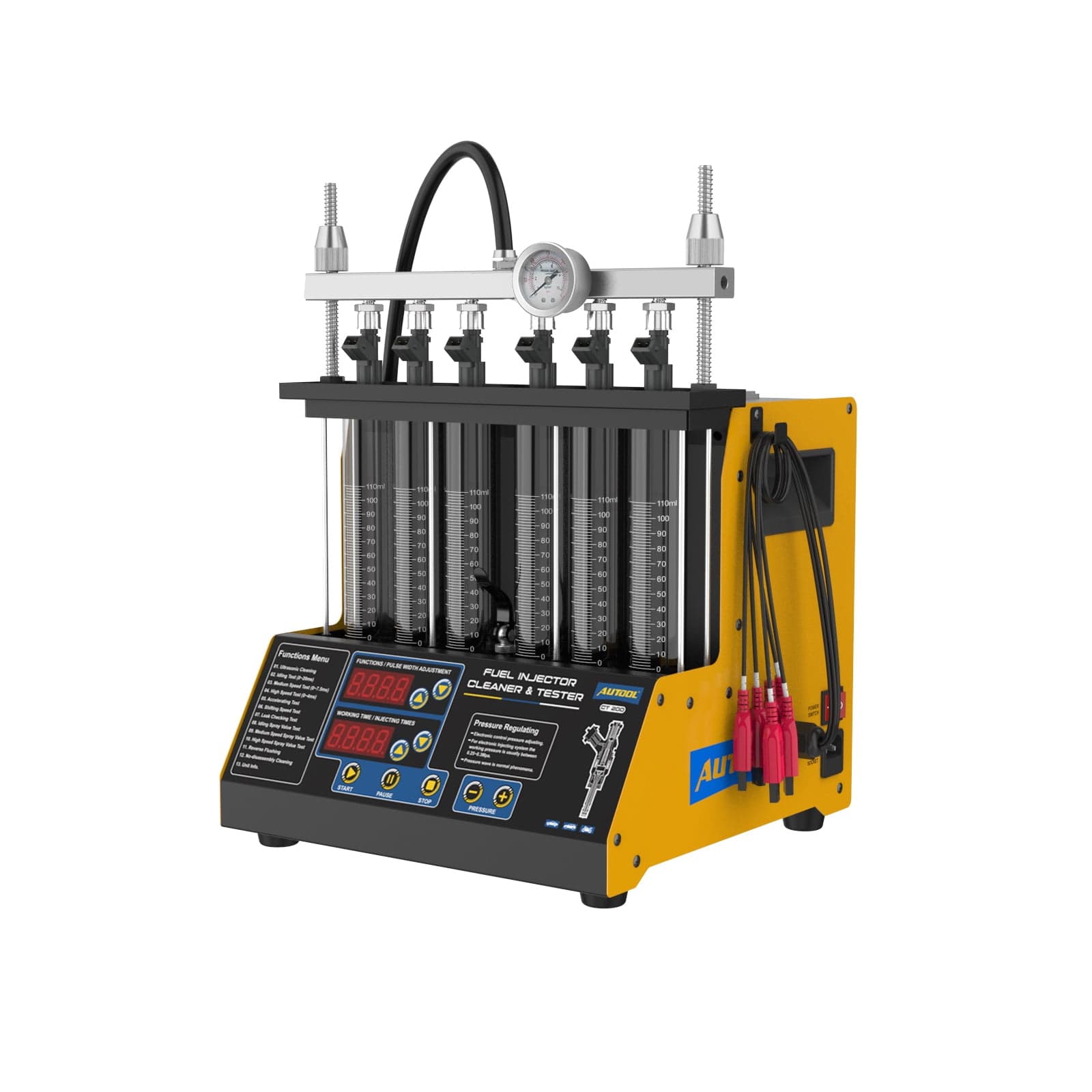

AUTOOL CT200 Fuel Injector Cleaner Tester, 6 Cylinder Ultrasonic Wave Fuel Injector Cleaning Machine, Car Fuel Injection Systems Cleaning Tool Petrol Nozzle Tester for Automotive Motorcycle

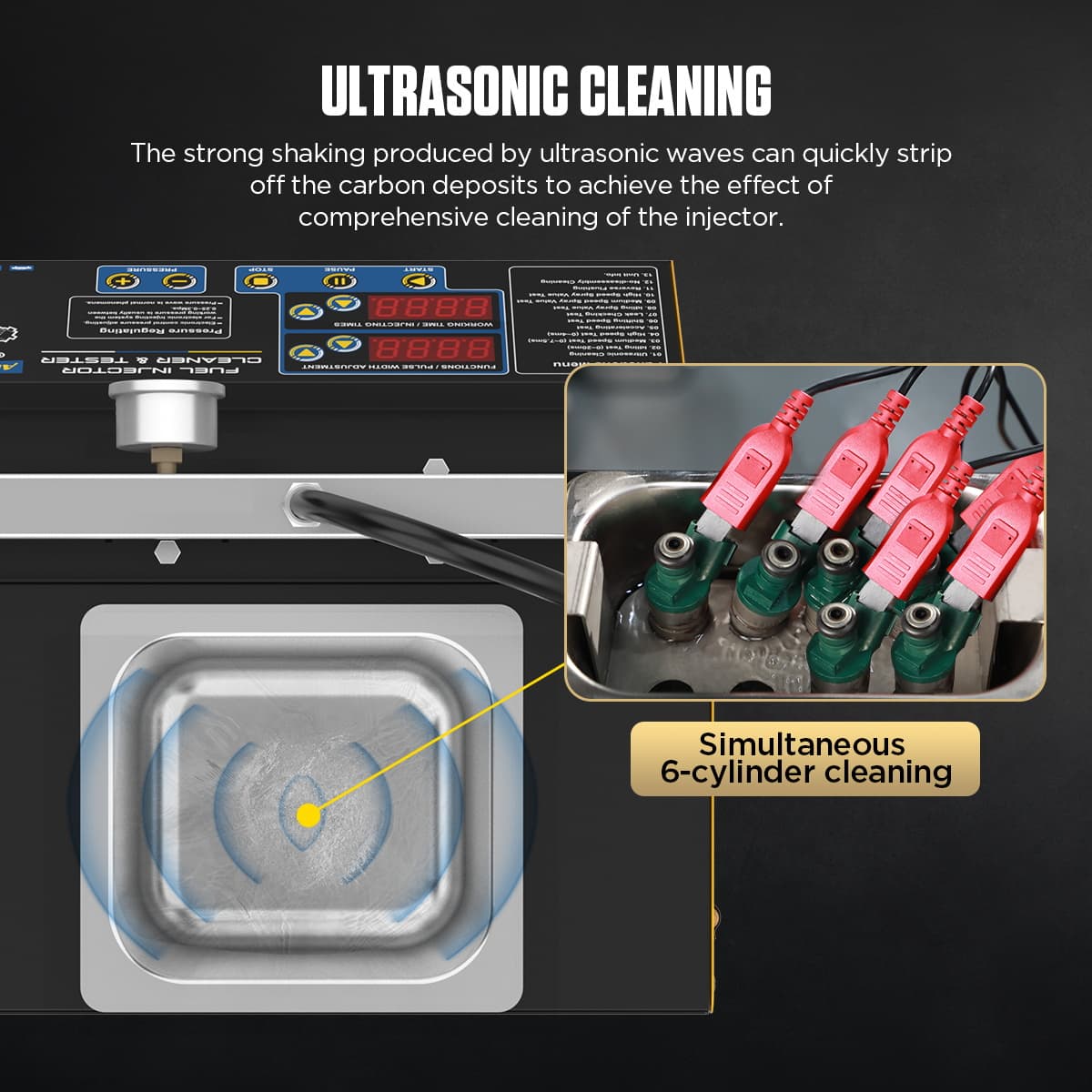

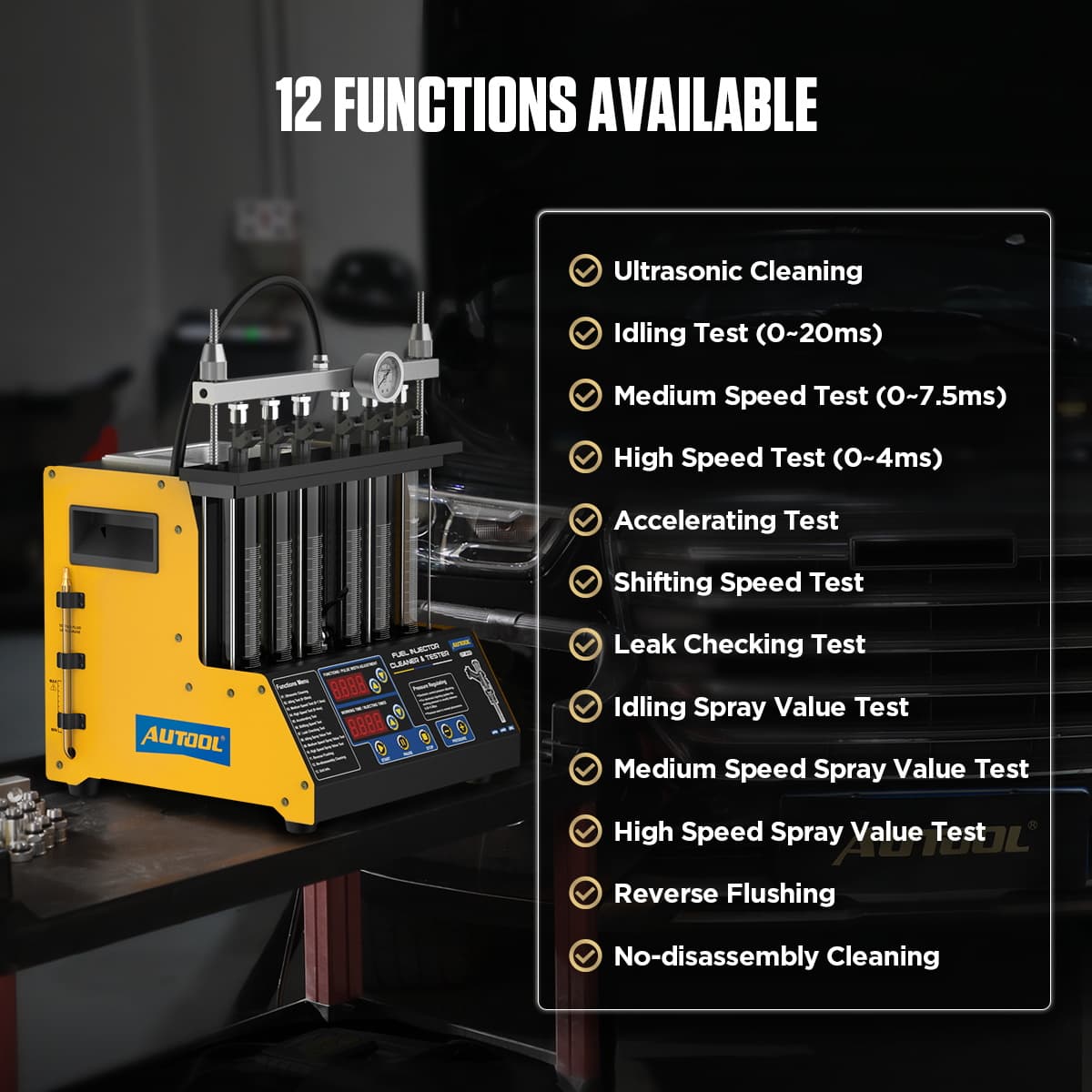

Why Clean The Fuel Injectors? When we turned off the engine suddenly, the gasoline which have been spray out can not be recycled. It would attached on the injector and combustion chamber walls. Gasoline is easy to volatile, but wax and varnish were stayed. Heat these wax and varnish day after day,they will be changed into hard coke. The hard coke will be produced more quickly and more thickly when engine work with poor quality fuel. Tips: Don't get any cleaning solvent on the outside of the vehicle, as this will damage the paint. A heavily clogged fuel injector may not allow enough cleaner to pass through during a routine cleaning to be adequately cleaned. Additional cleanings may be needed to clear heavy deposits. AUTOOL CT200 Fuel Injector Tester Functions: Ultrasonic Cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors. Idle Speed Test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector. Medium Speed Test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector. High-Speed Test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector. Acceleration Test: Simulate the acceleration state of the car and test the performance of the fuel injector. Shift Speed Test: Simulate the shifting state of the car and test the working performance of the fuel injector. Leakage Test: Test the sealing condition of the fuel injector. Idle Speed Sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector. Medium Speed Sprayability Test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector. High-Speed Sprayability Test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector. Reverse Flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector). No-Disassembly Cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, which requires special adapters. CT200 Fuel Injector Clean Machine Usage Steps: 1. Clean injector's outside with gasoline or cleaning liquid before open machine. 2. Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt. 3. Turn on ultrasonic system,pulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors. 4. Fixed injectors on main machine. 5. Testing injectors for resistance, shorts, and current draw. 6. Performing leak test, spray pattern, and flow rate testing on flow bench. 7. The injectors are now returned to the flow bench for retesting of all functions. CT200 Fuel Injector Tester Specifications: Power Supply: 110V/220V Power of Ultrasonic Cleaning: 70W Frequency of Ultrasonic Cleaning: 40KHZ±0.5KHZ Main Unit Dimensions: 15.94 x 14.96 x 16.92" Package Dimensions: 16.54 x 15.75 x 17.72" Package Weight: 28.44 Pound Cleaning Agent Test Fluid Precautions: 1. It is forbidden to use corrosive liquids as fuel injection nozzle detection liquid to detect fuel injection nozzles. Corrosive liquids will damage machine seals and fuel injectors. 2. It is forbidden to use a cleaning agent instead of the detection liquid, because the cleaning agent is generally corrosive and will cause damage to equipment and injector seals. 3. It is forbidden to use gasoline instead of cleaning agent or test liquid, which is dangerous and easy to cause safety hazards. 4. Please use absolute ethanol (industrial alcohol) or other non-corrosive liquids as the detection liquid (generally the detection liquids are colorless and transparent, no irritating odor liquid). What is a cleaning agent? The cleaning agent is used to clean the attachments (carbon deposits) on the fuel injection nozzle. 5. It is generally highly corrosive and flammable. It should be kept away from the fire source and avoid contact with the skin when used. Use it in the ultrasonic cleaning tank of the injector cleaner. 6. What is a test solution? The test liquid is used to test and judge the quality of the fuel injection nozzle. It is a colorless and transparent liquid with no irritating odor, non-corrosiveness, and not easy to emit, but used in the measuring cylinder of the fuel nozzle cleaning machine.
