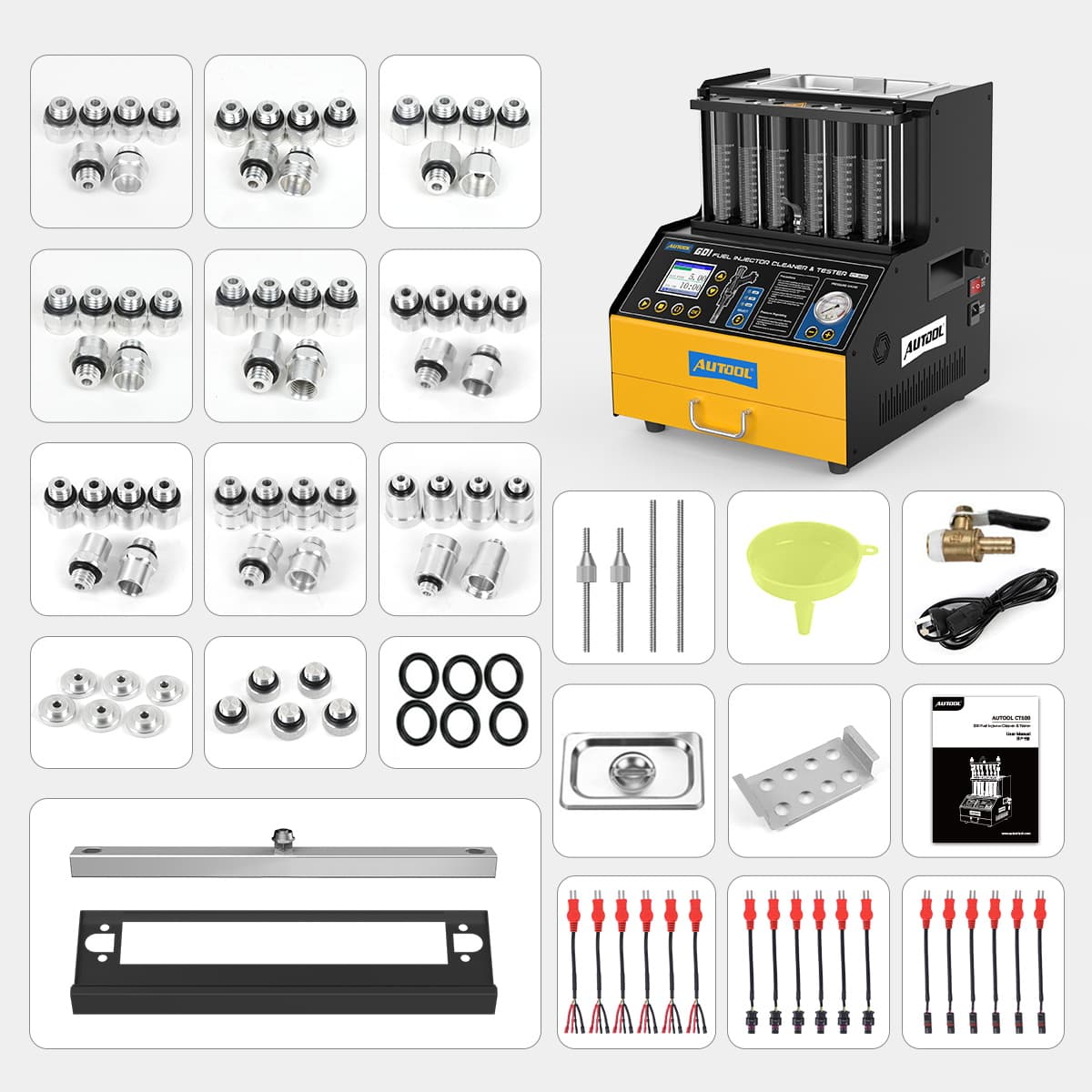

AUTOOL Automobile GDI EFI FSI Fuel Injector Cleaner Tester 6 Cylinders 2000ml Ultrasonic Wave Fuel Injector Clean Test Machine for All Cars, CT500

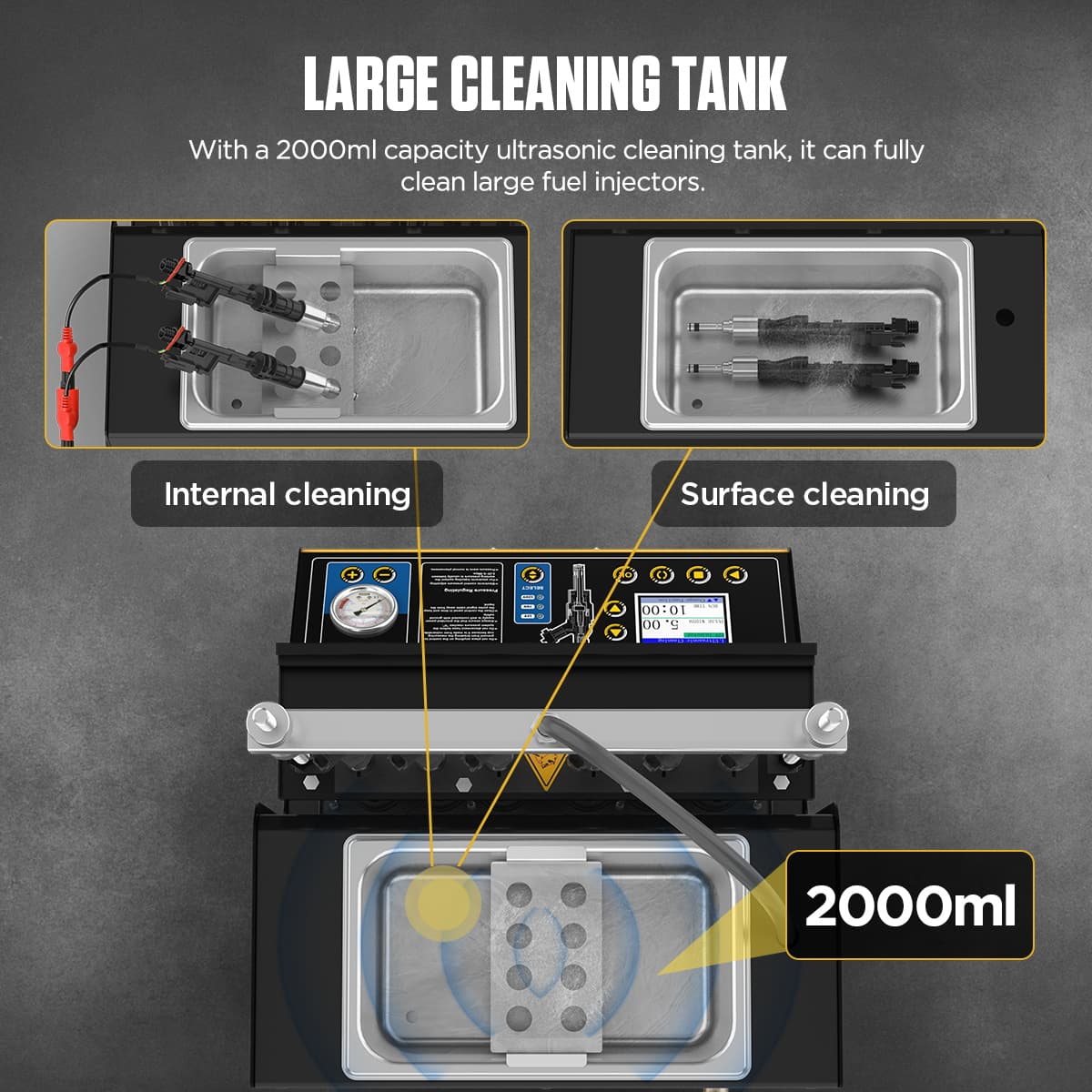

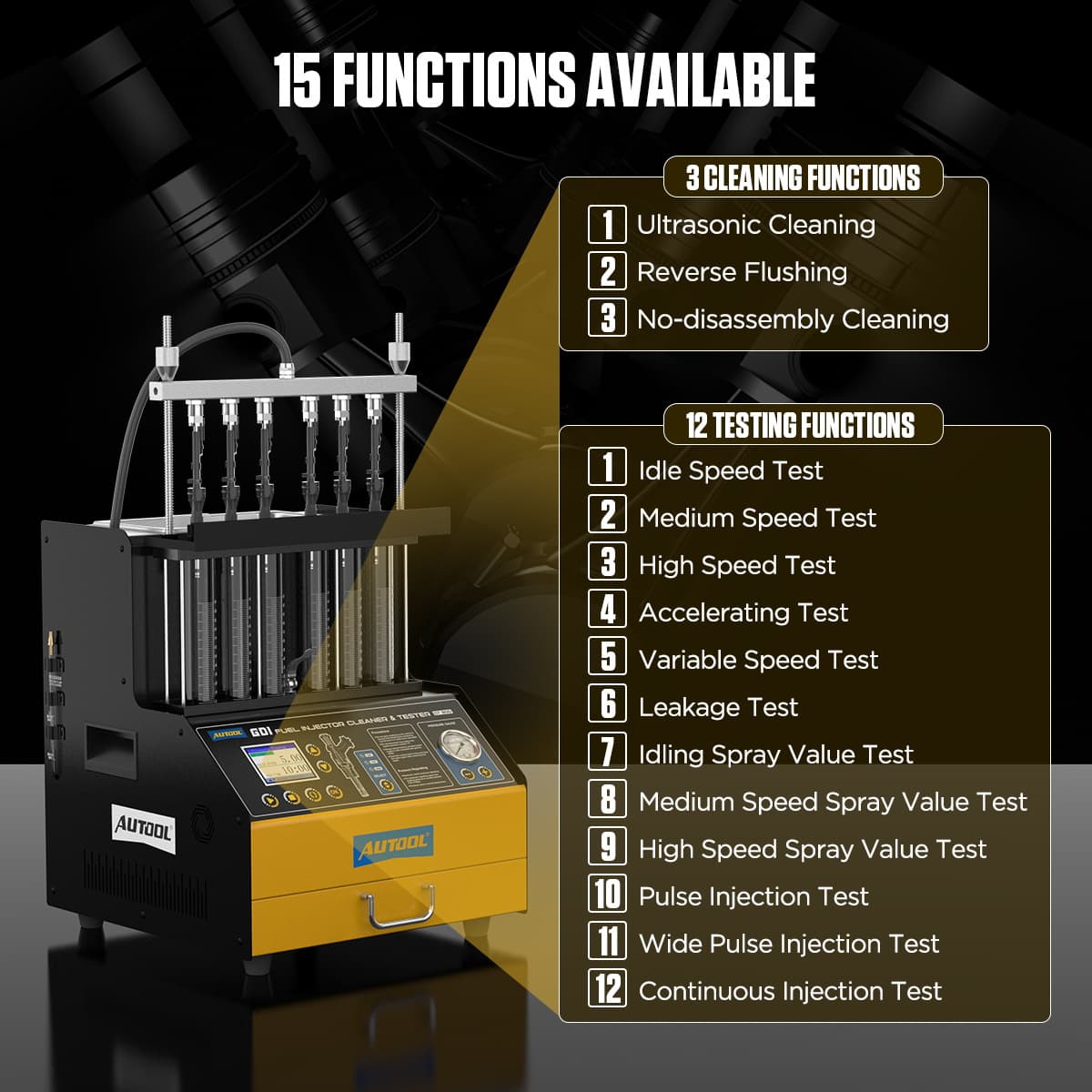

AUTOOL CT500 Fuel Injector Cleaner Tester Function Menu: It is an expert in Injector solutions, featuring 15 injector-specific functions: 01. Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors. 02. Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector. 03. Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector. 04. High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector. 05. Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector. 06. Variable Speed Test: Simulate the variable Speed of the car and test the working performance of the fuel injector. 07. Leak Test: Test the sealing condition of the fuel injector. 08. Idle dpeed & spray ability & Test: Simulate the engine idling state and test the spraying performance of the fuel injector. 09. Medium speed & spray ability test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector. 10. High-speed & spray ability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector. 11. Flow Balance Test: The flow balance test shall be carried out at different speeds. 12.Observation of Fuel Injection Shape: Observe whether the fuel injection shapes and angles of all fuel injection nozzles on the same car are uniform at various speeds. 13. Reverse flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector). 14. Leak Detection Test : The leak detection test is to detect the tightness of the injector needle valve under the high pressure of the system. 15. No-disassembly cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, which requires special adapters. CT500 Fuel Injector Cleaner Tester Features: Compatible With Various Injector Types: CT500 provides 12V, 70V and 120V voltage options, and can drive common fuel injectors as well as other types such as GDI EFI, and FSI injectors.It covers most of the core brand vehicles' fuel injectors in Europe, America, and Asia. Six-Cylinder Design: Our fuel injector cleaning machine can clean and test up to six fuel injectors simultaneously, providing efficient service. It allows for easy observation and accurate evaluation of the injectors' condition through comparison The graduated cylinder has a 140ml capacity. Practical Drawer Design: It has a convenient drawer at the bottom for storing various components, with labeled compartments for eas organization and access. Comes With Various Connectors: Fuel injector tester has replaceable composite joints suitable for a variety of vehicle types. It covers most of the core brand vehicles' fuel injectors in Europe, America, and Asia. Smart Control Panel: Design with HD color display, makes the operation clear and easy to learn. Large Cleaning Tank With a 2000ml capacity ultrasonic cleaning tank, it can fully clean large fuel injectors. Note: 1. Cleaning solution and test solution (industrial alcohol) should not be confused. 2. Please do not add other liquids, if you are not sure whether the liquid is correct, please contact me in advance and attach pictures. 2. Test Fluid: The glass cylinders are used to contain testing liquid, which is usually professional fuel injector testing liquid, or industrial alcohol. To avoid corrosion, DO NOT put cleaning liquid or any other corrosive liquid in cylinders. 3. It is recommended to use professional automotive injector test fluids. If not available locally, it is recommended to use medical alcohol with an alcohol content of more than 75% instead of the test solution. 4. Cleaning Fluid: The ultra-sonic tank is used to contain cleaning liquid, cleaning liquid is usually corrosive, please be careful, do not mistake cleaning liquid with testing liquid. Packing List: 1 x AUTOOL CT500 Unit 1 x Cleaning Fluid Drain Valve 1 x Ultrasonic bath cover 1 x Oil rail 6 x Nozzle pads 6 x Sealing Ring 5 x Plugs for oil rail 1 x Funnel 4 x Fixing Bolt 1 x Ultrasonic Cleaning Bracket 1 x Pulse Signal Cable 1 x Power Cable 6 x Adapt Cable 1 x User manual with warranty card 6 x 11mm adapters 6 x 12mm adapters 6 x 12.5mm adapters 6 x 13mm adapters 6 x 13.6mm adapters 6 x 14mm adapters 6 x 15mm adapters 6 x 15.8mm adapters 6 x Fit For BMW Special adapters Q & A: Q: Oil leak in oil separator assembly. A: leak in oil separator, check whether the installed "O" ring matches, and check whether it is deformed or damaged. If it doesn't match or is damaged, replace it. The two black adjusting screws must not be over-tightened, too tight will also cause oil to leak from the oil separator. Q: The oil pressure drops slowly. A: The oil pressure can't drop to zero in 1-2 minutes, and you can use the hex wrench to adjust the relief valve counterclockwise. Q: The buzzer sounds a long time without oil pressure. A: The machine has a lack of oil alarm function. When the liquid level in the oil tank is insufficient, a sound will be issued and the oil pump and fuel injection nozzle will automatically shut down and return to stop later. In the state, the prompt sound will automatically close after adding enough cleaning liquid. At this time, you need to press the [Run] key to restart the oil pump. Q: "Drain Key" must be pressed twice to completely drain the test solution. A: The solenoid valve of the machine has a function of automatic shutdown in 15 seconds; More liquid in the glass tube may require multiple drains. Q: The amount of cleaning and test solution added. A: When adding cleaning liquid, the cleaning liquid in the ultrasonic box should not exceed the connection port of the fuel injection nozzle; When adding test fluid, the test fluid should not exceed two-thirds of the glass tube screen level. Q: Cleaning and testing problems with 4 injectors. A: There is a short circuit of the machine, which causes the machine protection to reset. It may be that the fuel injector resistance value is too low or there is a problem with the fuel injector. You need to find the problem nozzle and replace it with another normal nozzle to clean. If there is no problem with the fuel injector, one of the pulse lines is damaged. There are 6 pieces of impulse lines, and each impulse line needs to be tested separately. If the 6-piece pulse lines can be used normally, this is the fuel nozzle problem. Q: What is a cleaning agent? A: The cleaning agent is used to clean the attachments (carbon deposits) on the fuel injectors. It is generally highly corrosive and flammable. It should be kept away from the fire source and avoid contact with the skin when used. Use it in the ultrasonic cleaning bath of the injector cleaner. Q: What is a test fluid? A: The test fluid is used to test and judge the quality of the fuel injectors. It is a colorless and transparent liquid with no irritating odor, non-corrosiveness, and not easy to emit, but used in the measuring glass of the fuel injector cleaning machine. Why Choose AUTOOL Official Store? 1. Global Leading Brands, popular among customers, worth to trust. 2. We are the Only AUTOOL Official Store in Walmart ! 100% original products, best price and Three-year warranty. 3. All products have been passed strict quality test before shipment, make sure high quality. Lifetime Tech Support from AUTOOL Official Store. 4. Support Wholesale Price and Dropshipping. In addition, AUTOOL also has several series of products that are specifically used to repair different parts of the vehicle, such as fuel injector cleaners and testers, HVAC digital manifold meters, engine carbon removal cleaners, OBD2 diagnostic scanners, automotive oil quality testers, battery testers, circuit testers and automotive diagnostic multimeters, etc. If you are interested in this, you can click the link below to go to our store to learn more or directly click on the series of products below to learn more. AUTOOL Official Store>> OBD2 Diagnostic Scanner Series>> Car Oil Quality Detector Series>> Car Battery Tester Series>> Car Circuit Tester Series>> Car Diagnostic Multimeter Series>>
