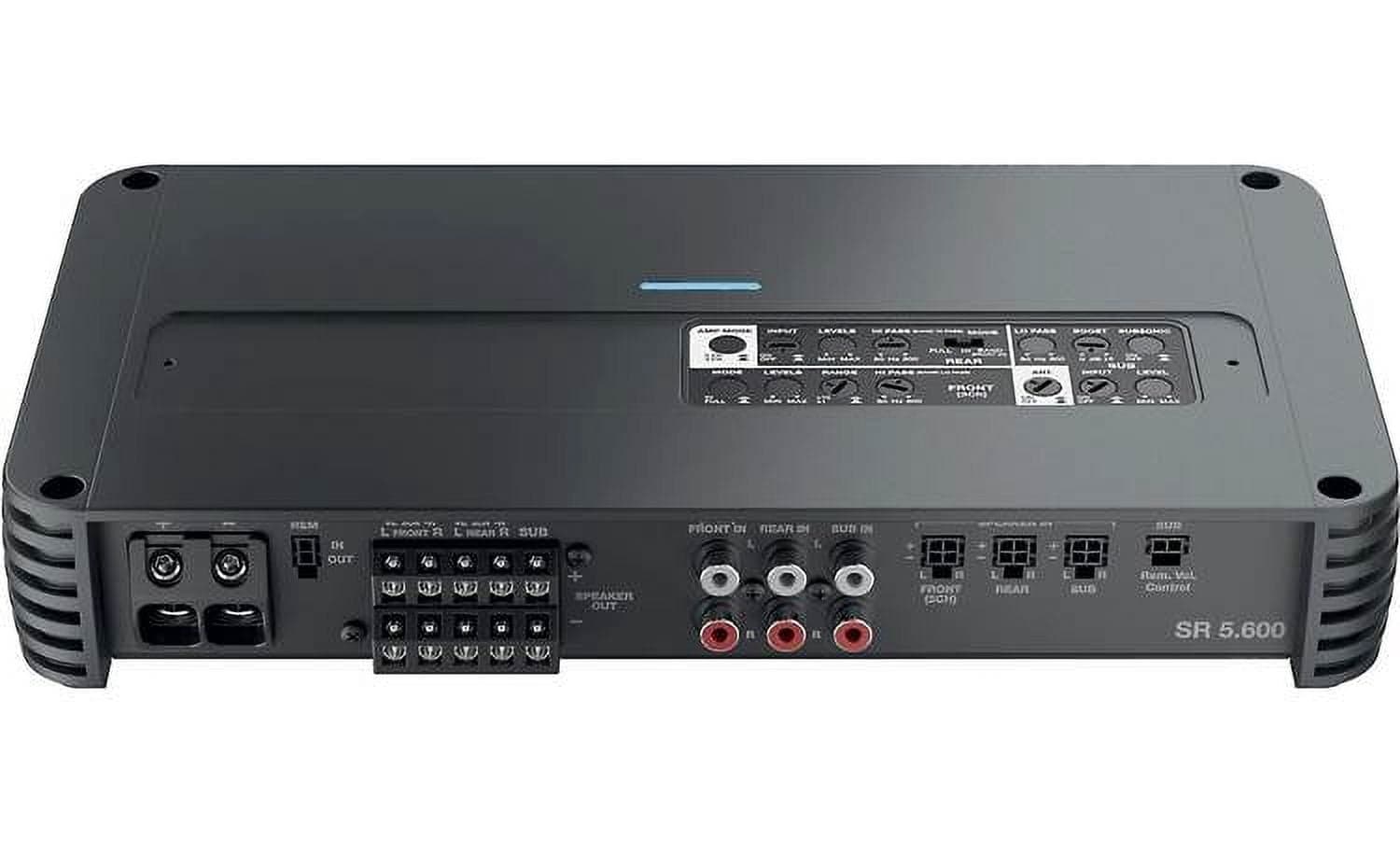

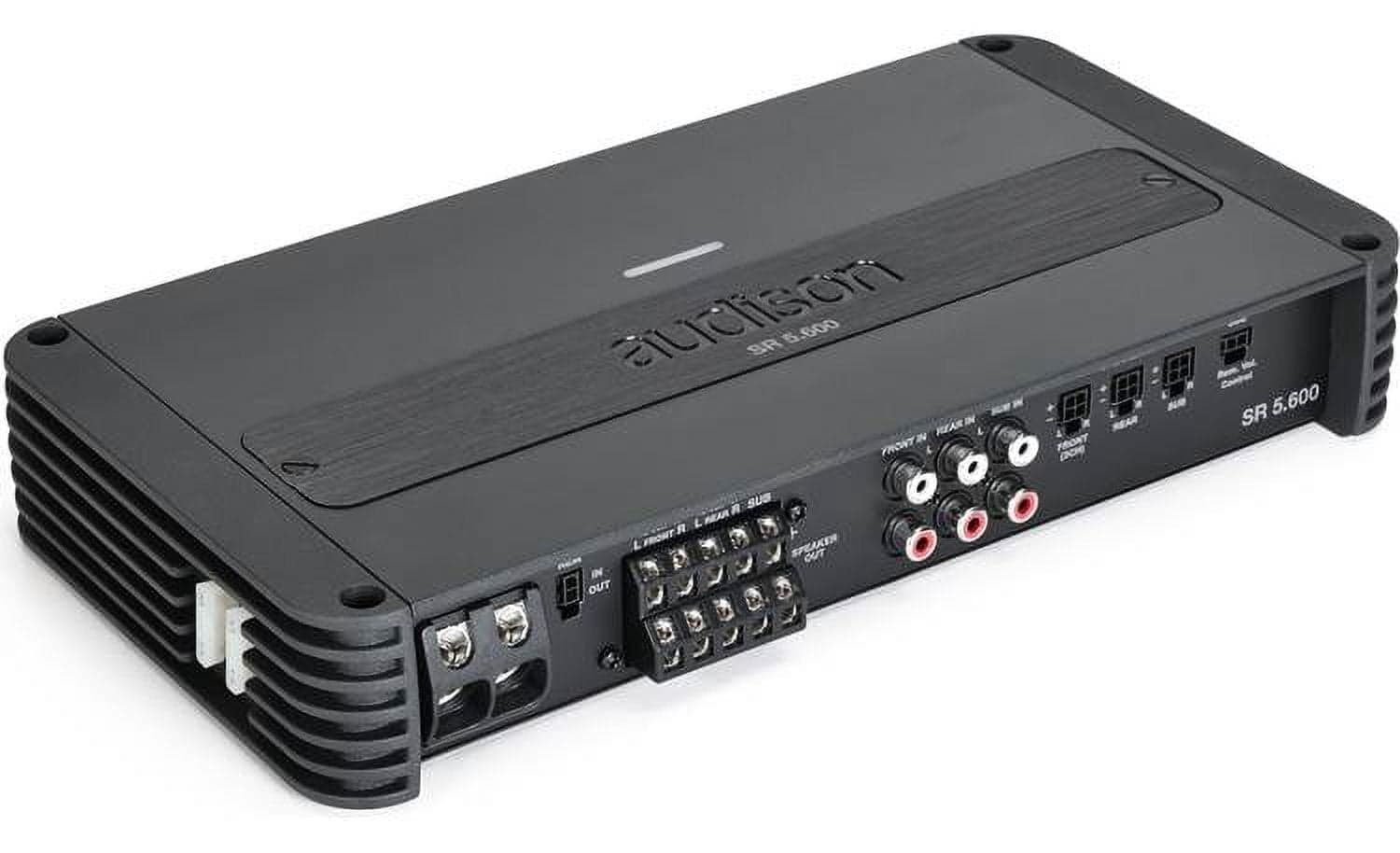

Audison SR 5.600 — 5-Channel Car Amplifier: 75 watts RMS x4 (4 ohms) + 550 watts RMS x1 (2 ohms)

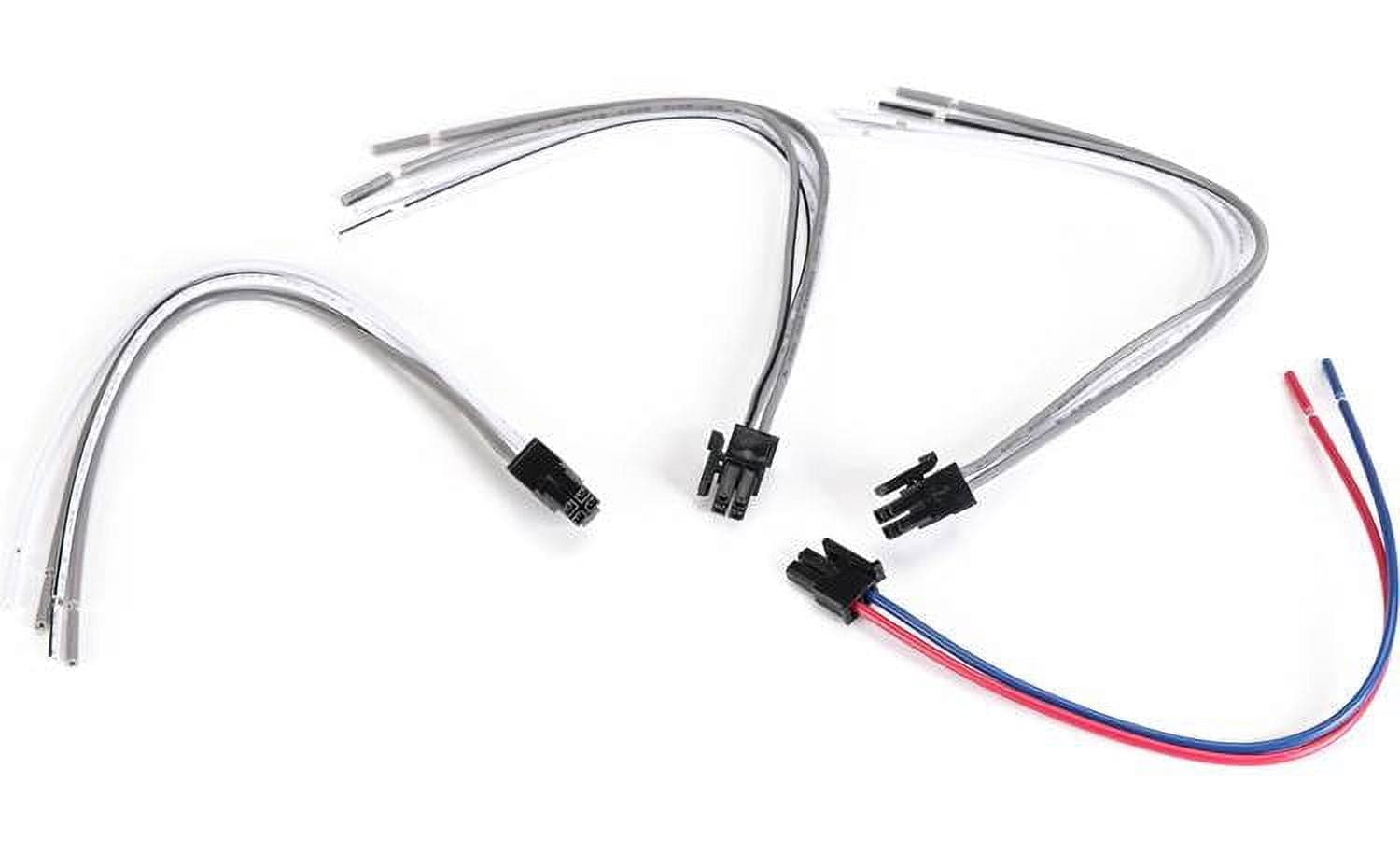

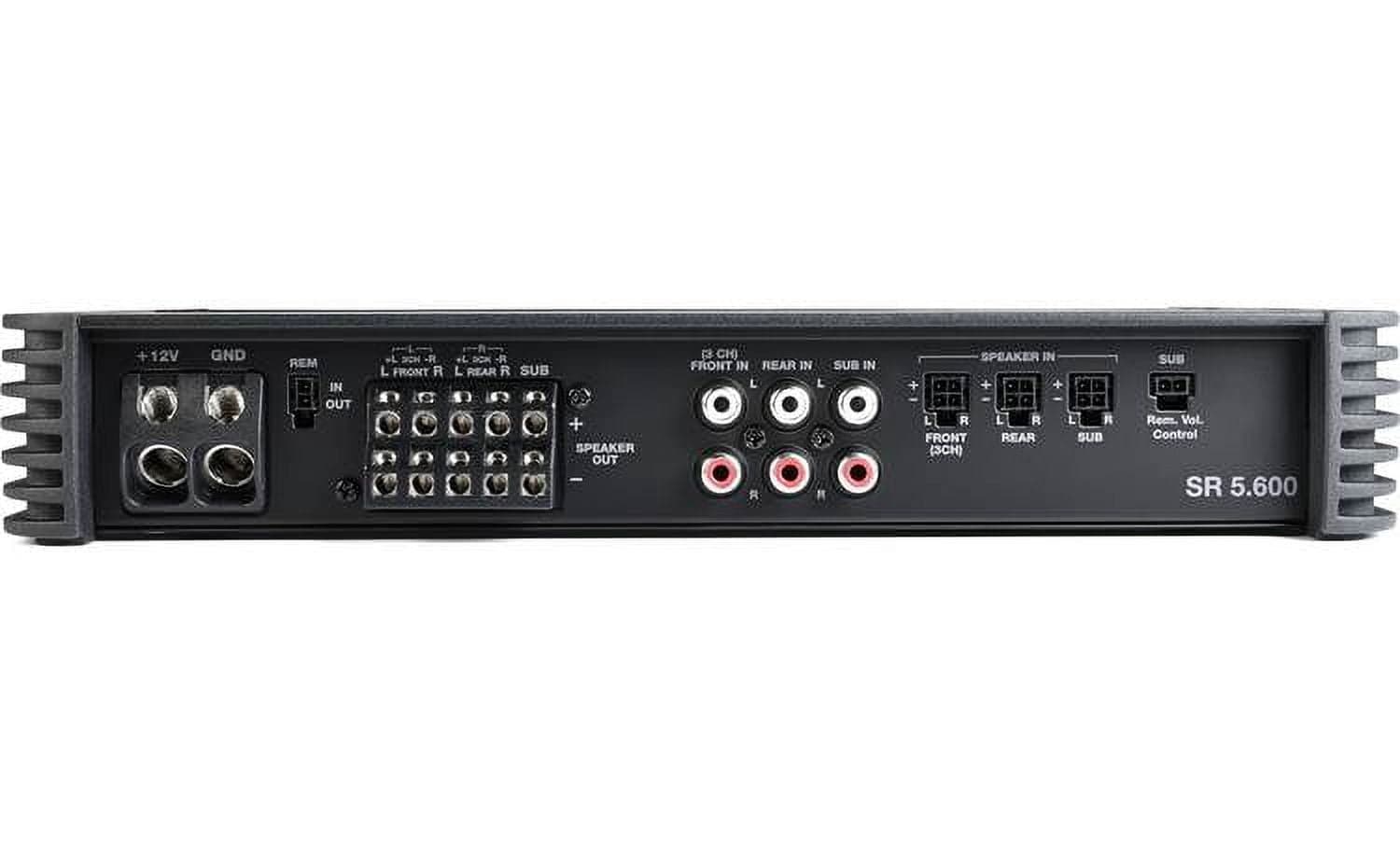

Overview: The Audison SR 5.600 is a 5-channel Class D car amplifier engineered for compact, high-efficiency power delivery and flexible system integration. It offers multiple power modes to drive a full-range system plus a powered subwoofer. Power ratings (per manufacturer listing): 75 watts RMS x 4 + 330 watts RMS x 1 at 4 ohms; 115 watts RMS x 4 + 550 watts RMS x 1 at 2 ohms; 230 watts RMS x 2 bridged at 4 ohms + 550 watts RMS x 1 at 2 ohms. CEA-2006 rating: 75 watts RMS x 4 + 300 watts RMS at 4 ohms, 1% THD+N, 14.4 V. Audio performance: Class D amplifier topology with a frequency response of 10-35K Hz. Front channels offer selectable high-pass or low-pass filters (50-5000 Hz, 12 dB/octave). Rear channels provide selectable high-pass or band-pass filtering (50-500 Hz, 12 dB/octave). The subwoofer channel includes a variable low-pass filter (50-500 Hz, 12 dB/octave), adjustable bass boost (0-12 dB at 50 Hz) and a switchable subsonic filter (25 Hz, 24 dB/octave). Controls and connectivity: Preamp inputs plus speaker-level inputs are provided; speaker-level inputs can accept up to 20 volts (about 100 watts). The unit supports auto turn-on when used with speaker-level input wiring. An optional VCR S2 wired remote is available for subwoofer volume control. Installation notes: 4-gauge power and ground leads are recommended (not included). Fuse rating: 25A x 2. Physical size: 11.59"W x 1.867"H x 6.12"D. Warranty: 1 year. What's included: Audison SR 5.600 owner's manual (contact seller if you need help accessing the manual); 5-channel amplifier (two installed 25A ATO fuses); 2 spare 25A fuses; three 6" speaker-level input harnesses; 6" remote in/out harness; four 2" screws; two Allen keys (3mm & 2mm); two 4 ga. ferrules; screwdriver; user manual.
